Bulb, Cover Replacement - Headlamp

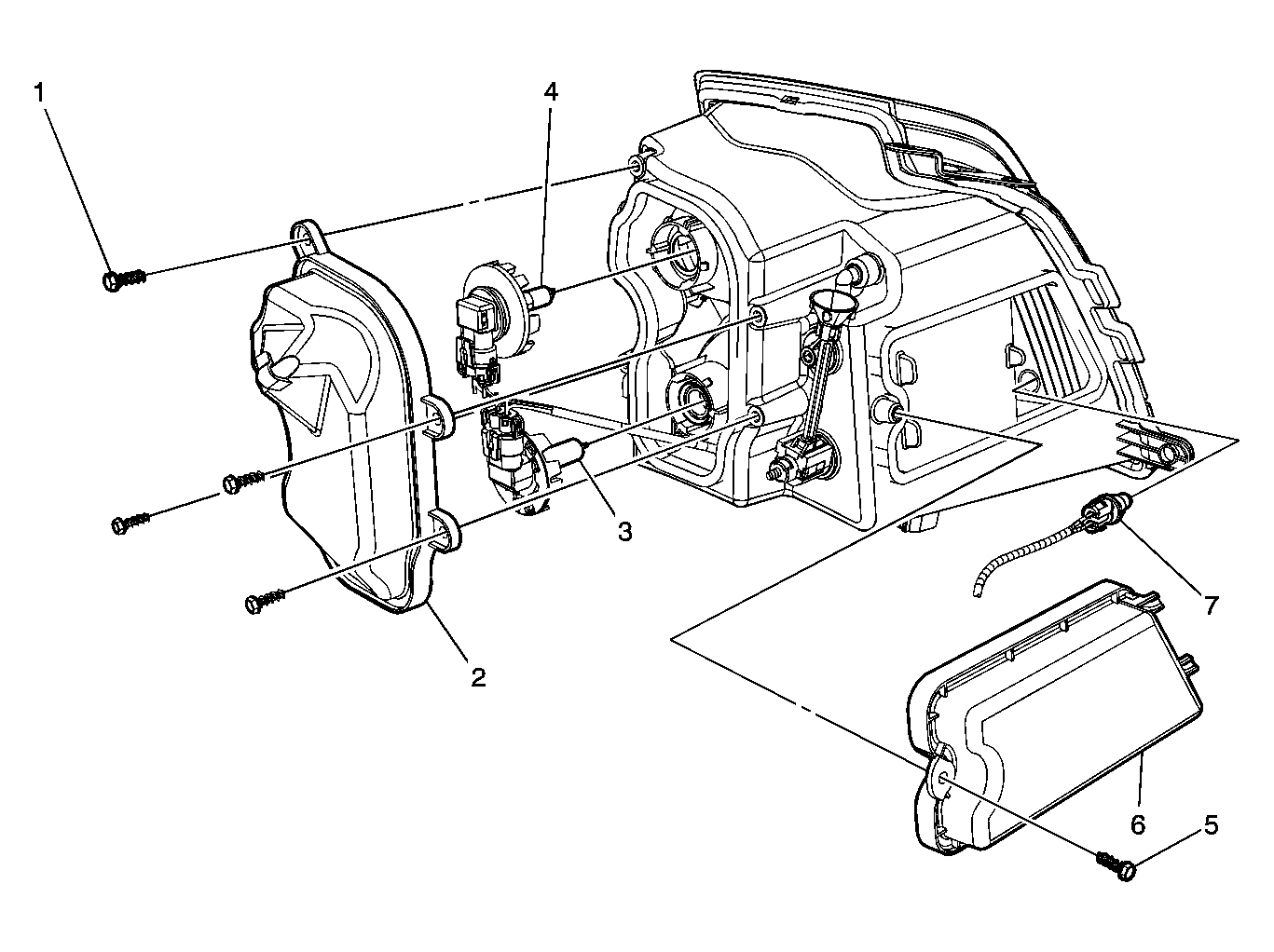

Fig 1: View Of Headlamp Bulb & Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Headlamp Bulb Replacement Preliminary Procedures Remove the front fascia assembly. Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers. Remove the headlamp assembly. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front .
1	Screw, Headlamp Bulb Access Cover (Qty: 4) Tighten: 3 N.m (27 lb in)
2	Cover, Headlamp Bulb Access Cover
3	Bulb Assembly, High Beam Headlamp Bulb CAUTION: Refer to Halogen Bulb Caution in Cautions and Notices.
4	Bulb Assembly, Low Beam Headlamp Bulb CAUTION: Refer to Halogen Bulb Caution in Cautions and Notices.
Front Position Lamp Bulb Replacement Preliminary Procedures Remove the front fascia assembly. Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers. Remove the headlamp assembly. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front .
5	Screw, Ballast Access Cover Tighten: 3 N.m (27 lb in)
6	Cover, Ballast Access Cover
7	Bulb Assembly, Front Position Lamp
