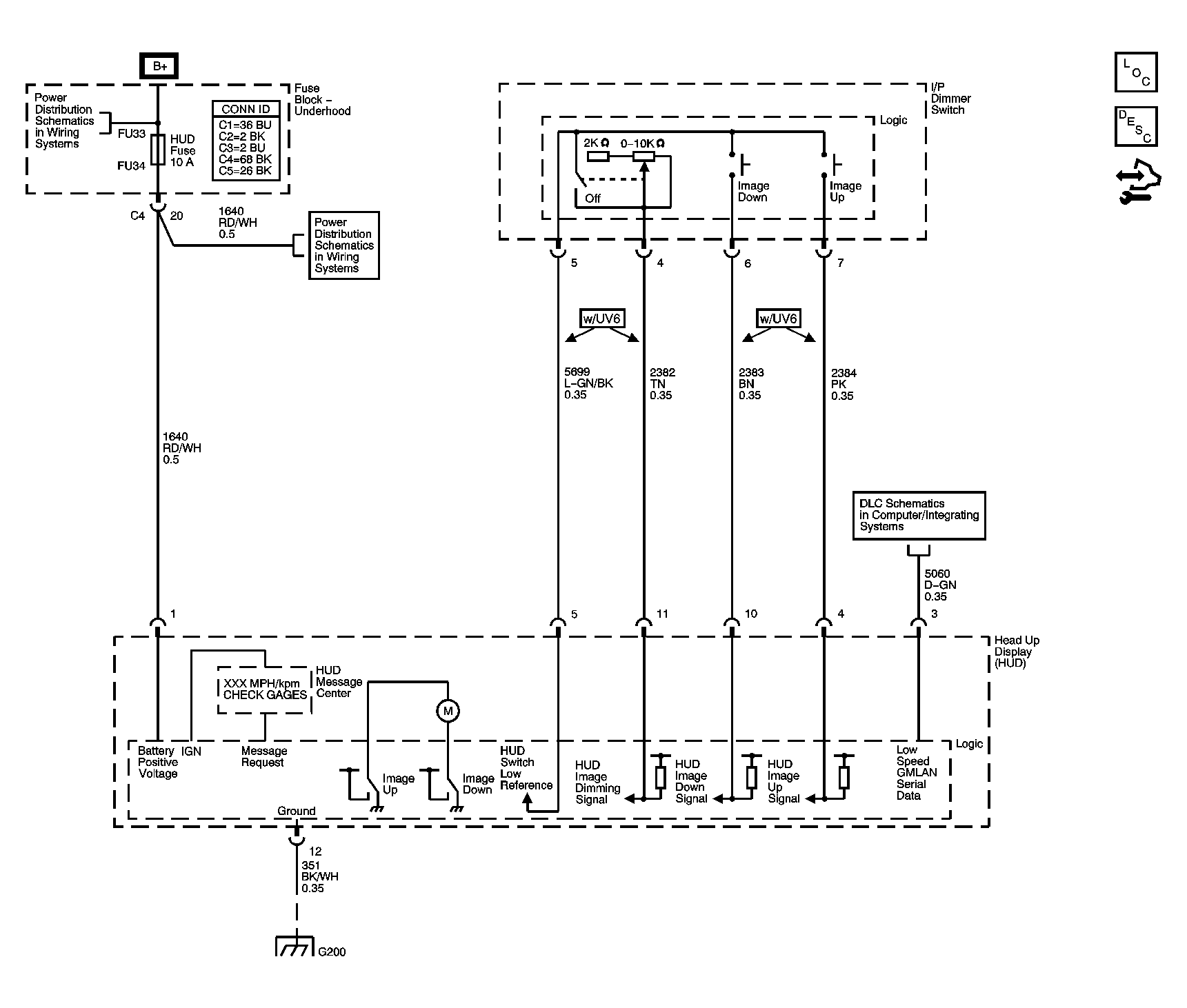

Home >> Cadillac >> 2005 >> STS 3.6 7 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays, Gauges And Console >> Schematic and Routing Diagrams >> Head Up Display Schematics
