Suspension Controls Schematics

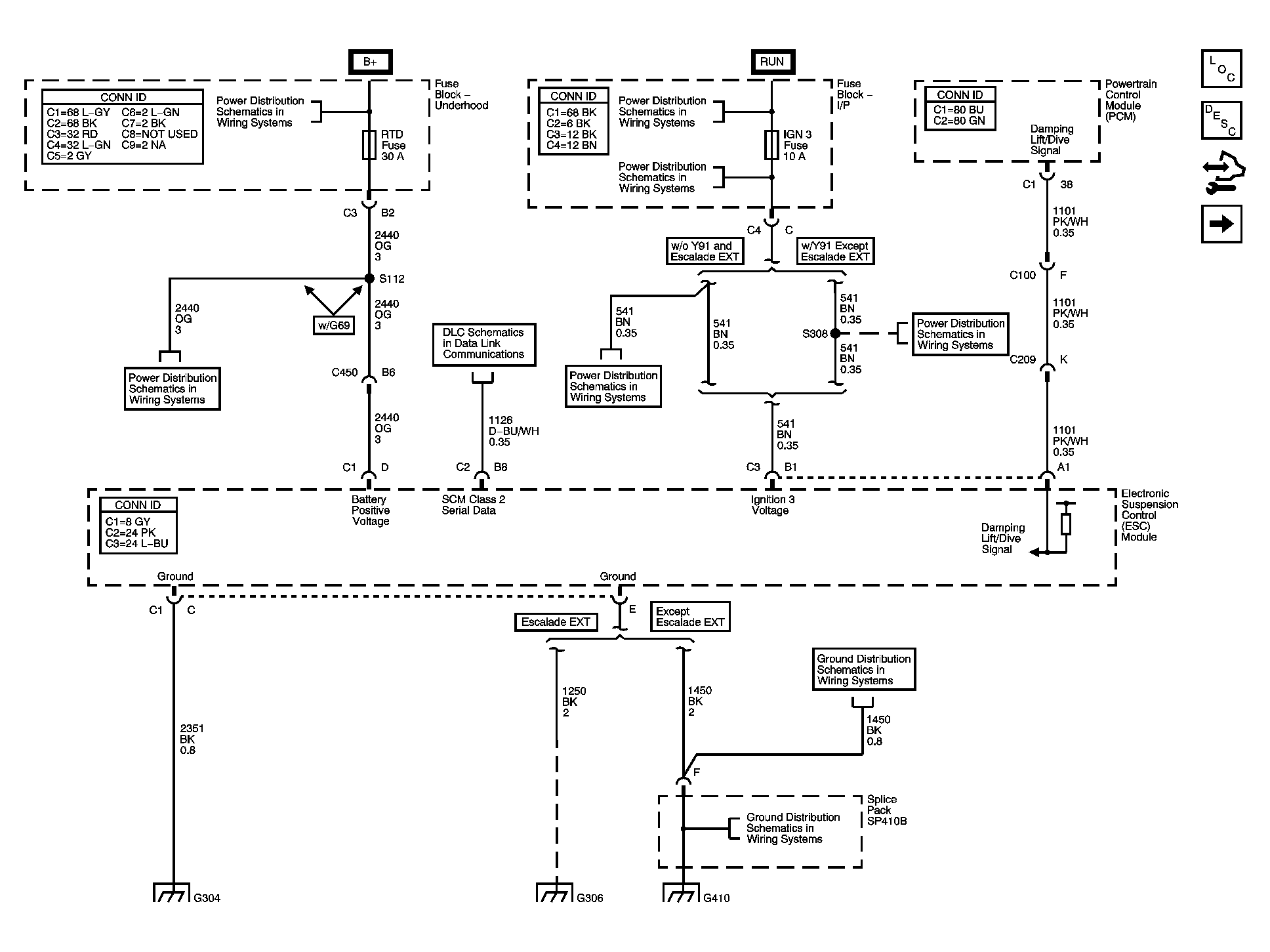

Fig 1: Power, Ground, and Serial Data
GM1463868Courtesy of GENERAL MOTORS CORP.

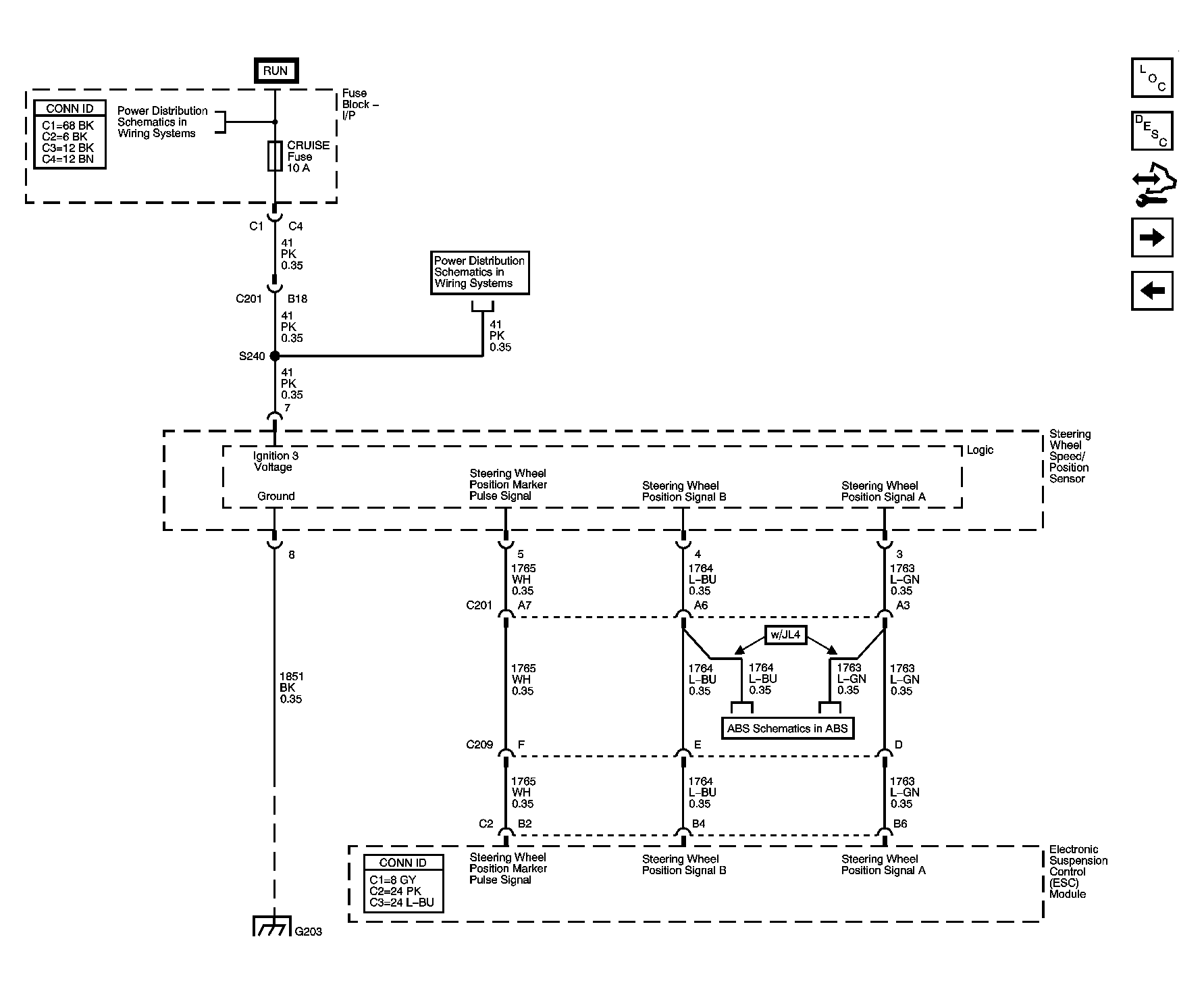

Fig 2: Steering Wheel Speed/Position Sensor Inputs
GM1463870Courtesy of GENERAL MOTORS CORP.

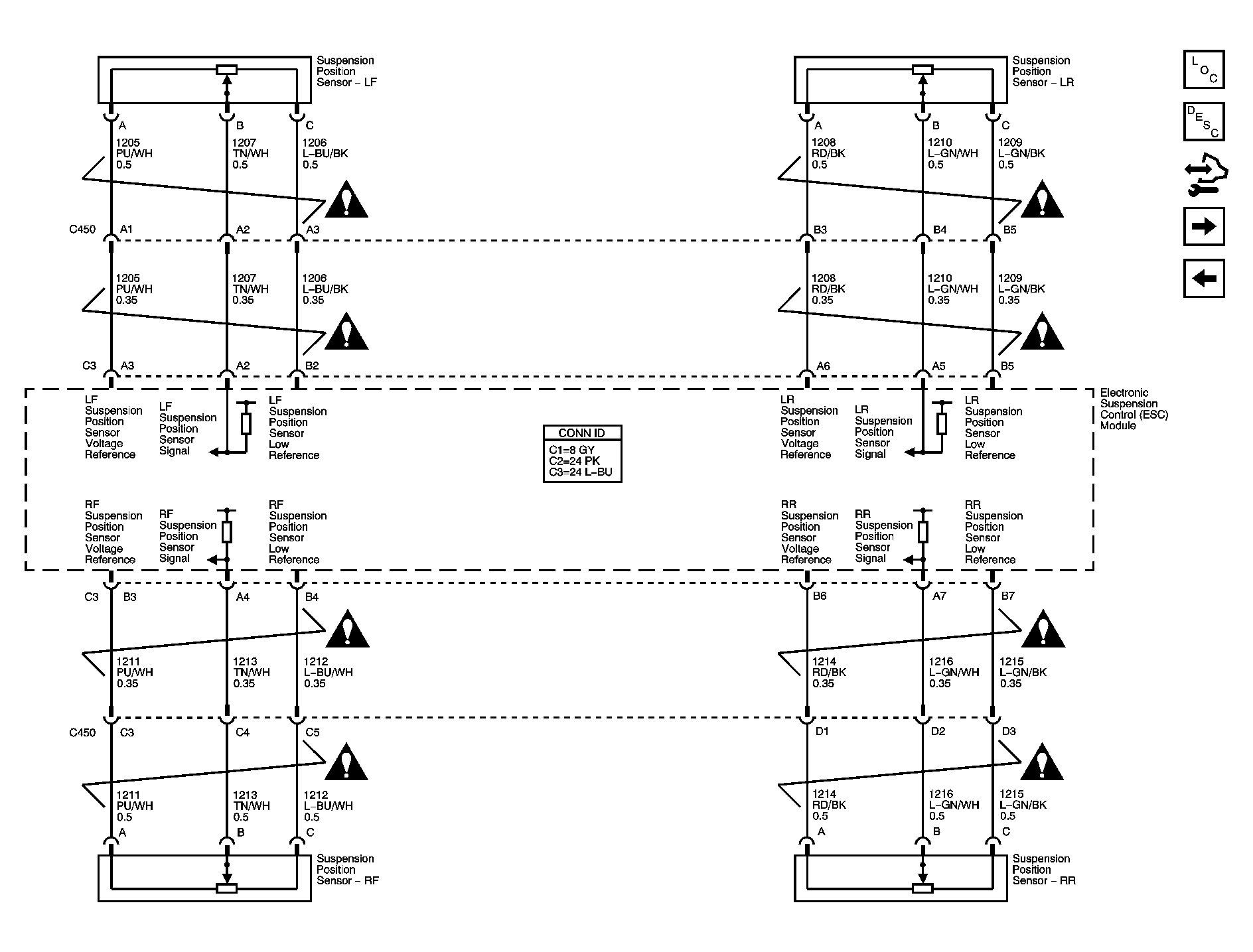

Fig 3: Suspension Position Sensors
GM1463873Courtesy of GENERAL MOTORS CORP.

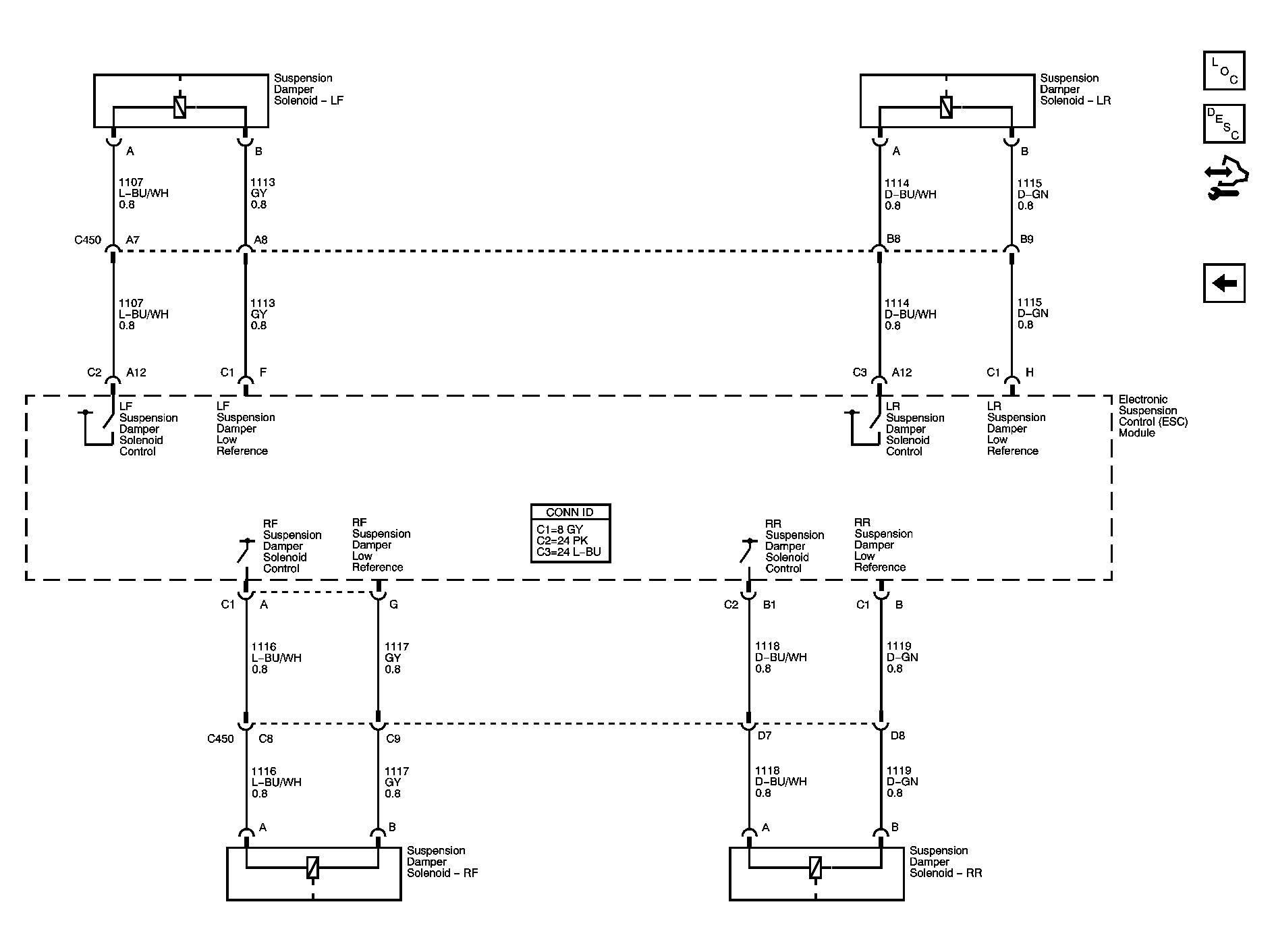

Fig 4: Suspension Damper Solenoids
GM1463874Courtesy of GENERAL MOTORS CORP.
