Rear Wheel Steering Schematics

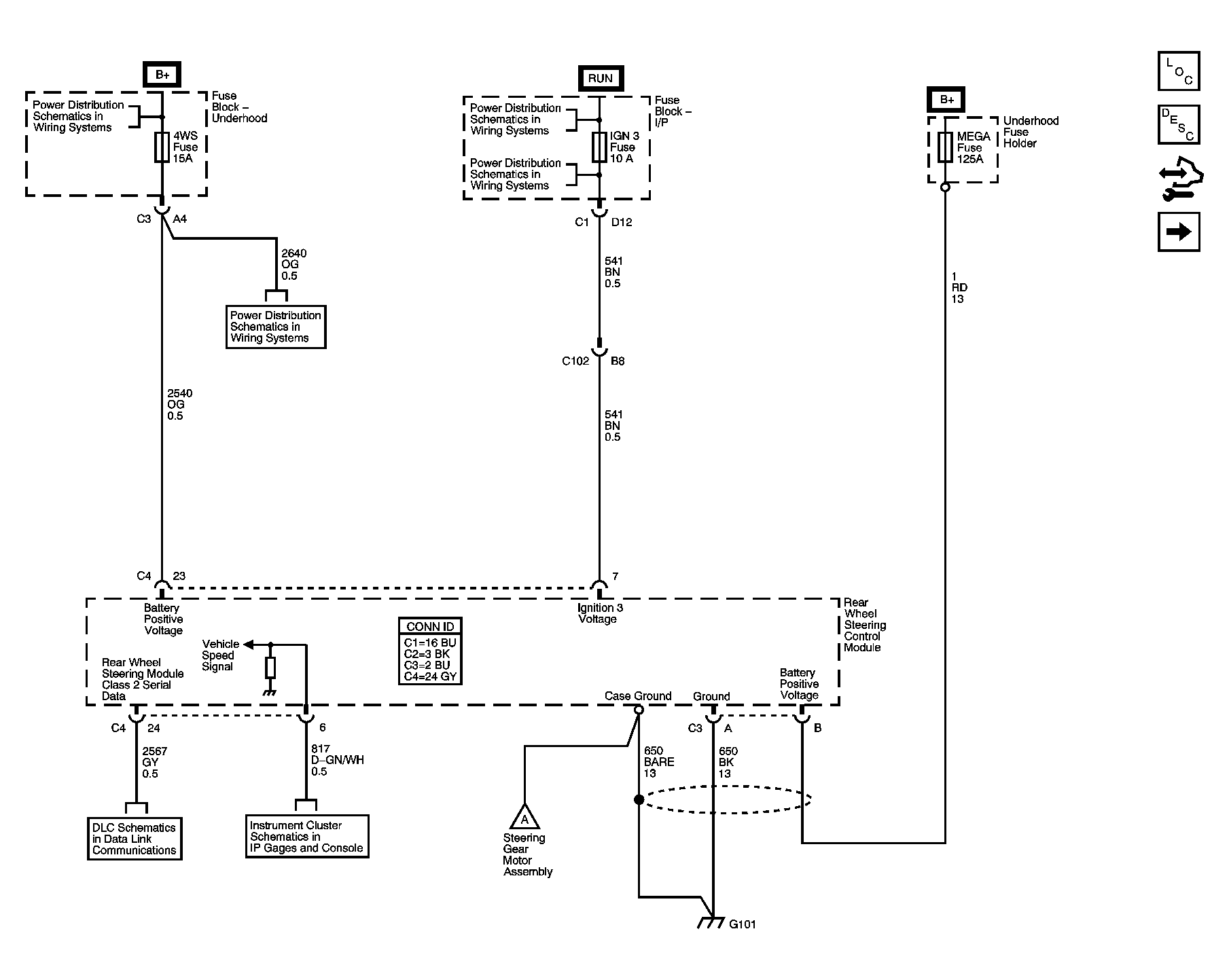

Fig 1: Power, Ground, Serial Data & Vehicle Speed Schematic
GM1463855Courtesy of GENERAL MOTORS CORP.

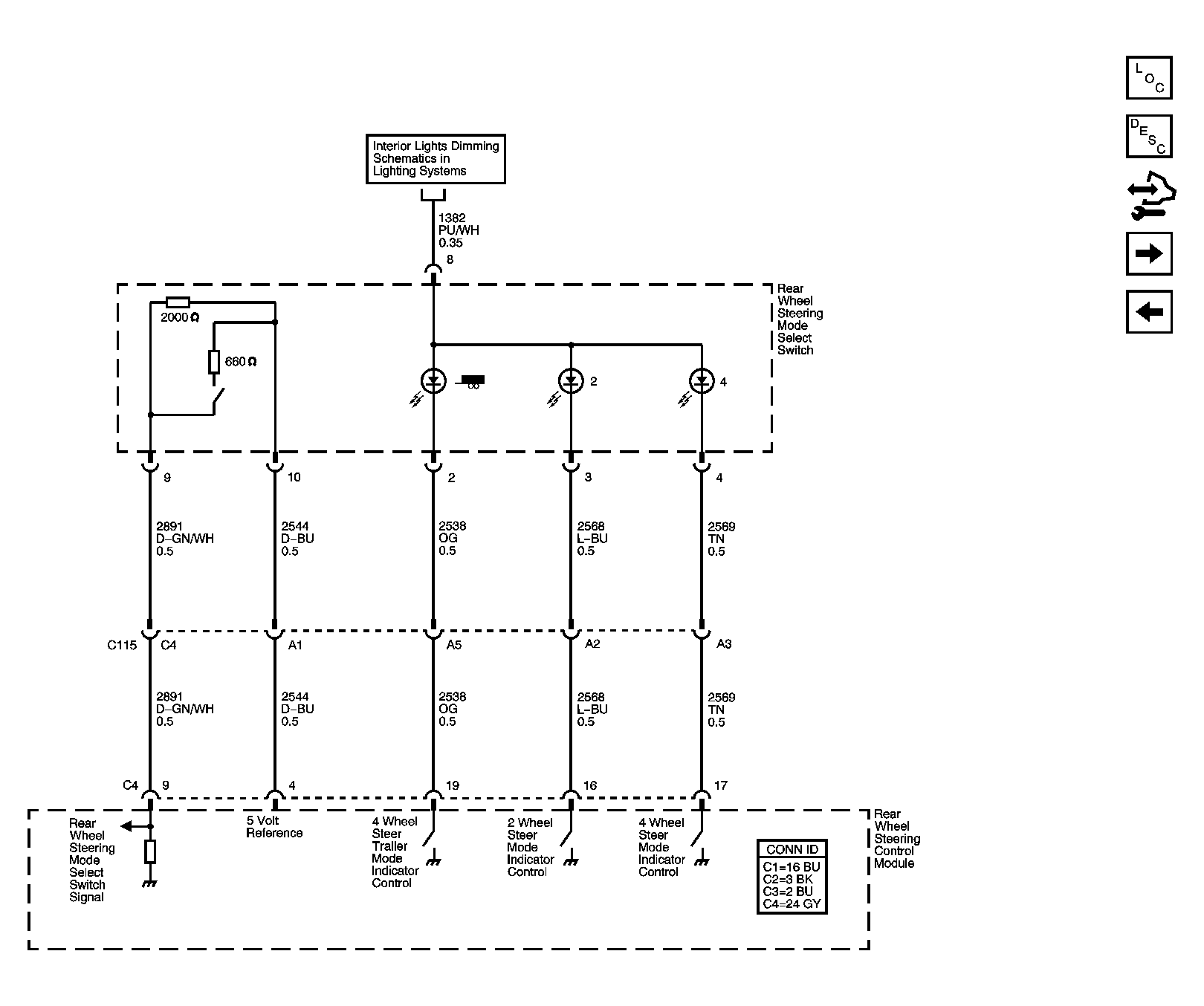

Fig 2: Mode Selection Schematic
GM1463856Courtesy of GENERAL MOTORS CORP.

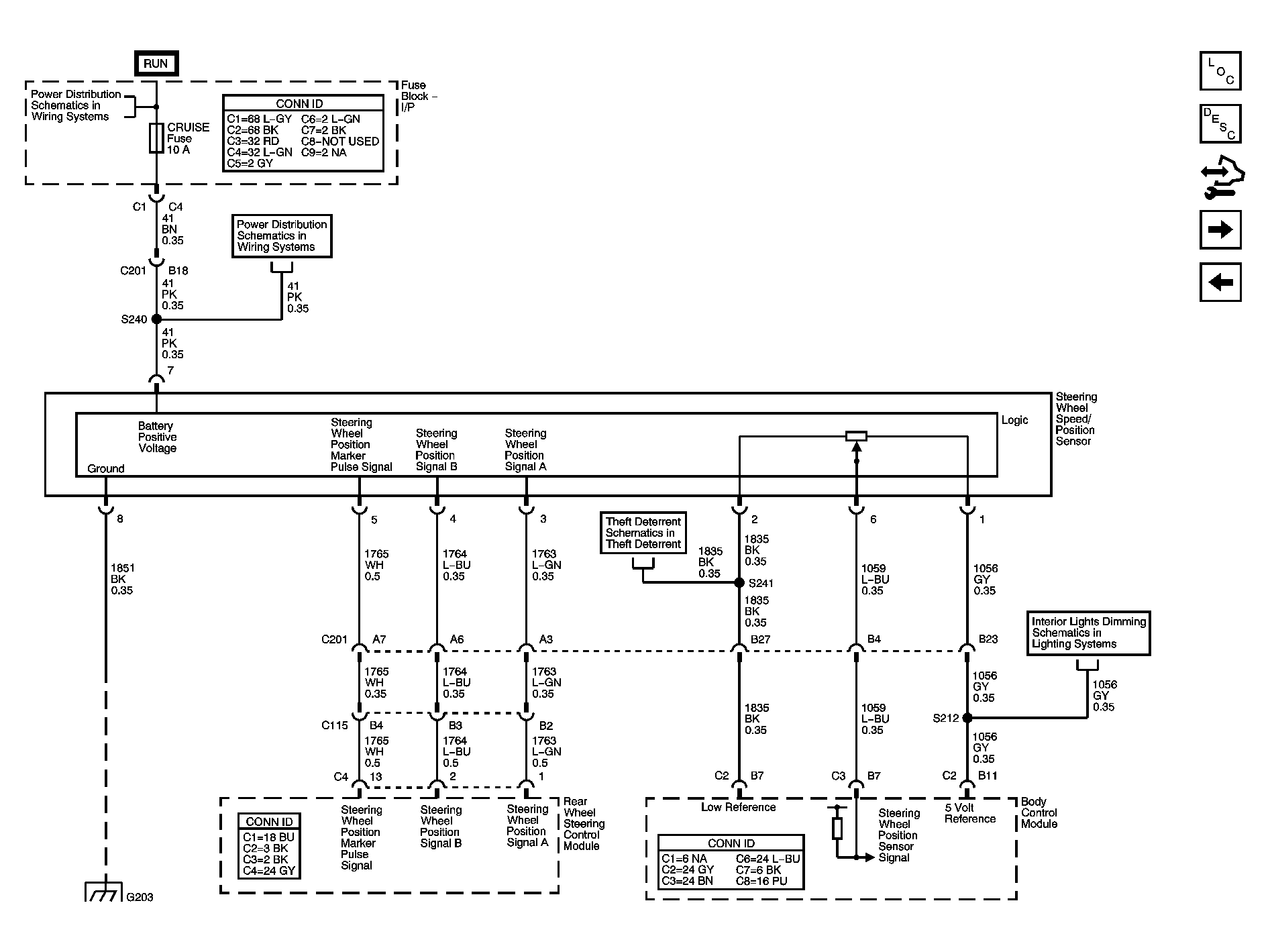

Fig 3: Steering Wheel Speed/Position Sensor Schematic
GM1463857Courtesy of GENERAL MOTORS CORP.

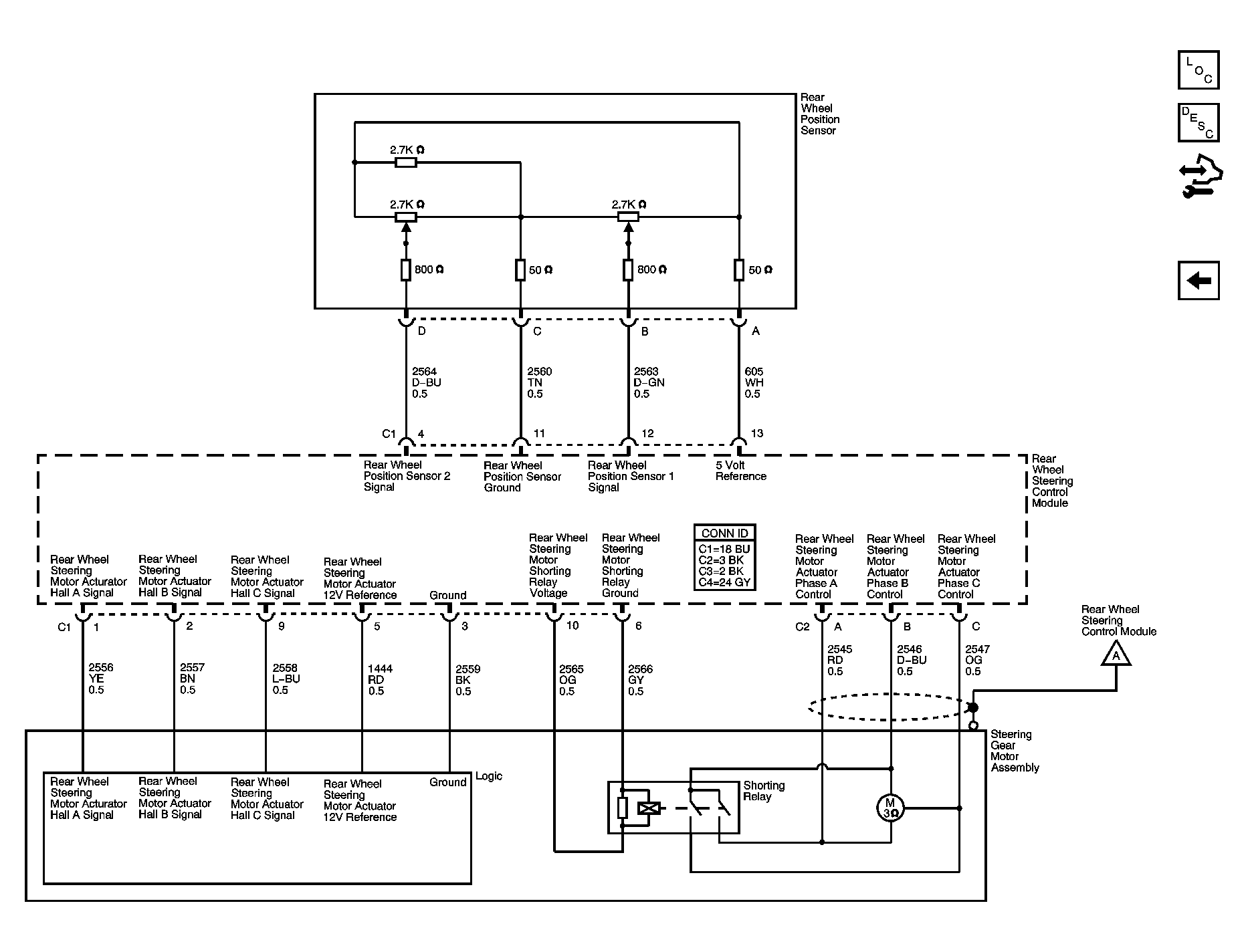

Fig 4: Rear Wheel Steering System Schematic
GM1463858Courtesy of GENERAL MOTORS CORP.
