SIR Schematics

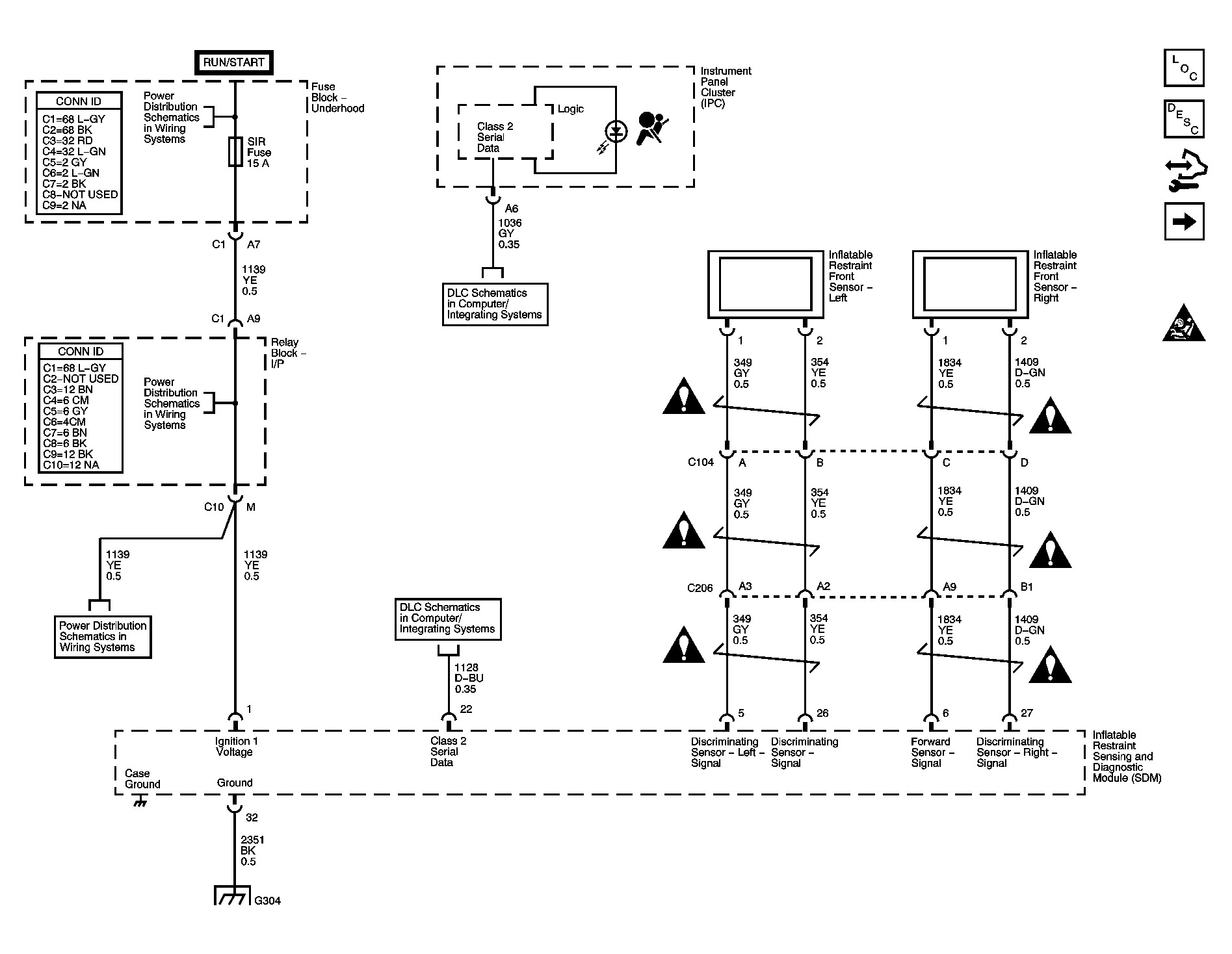

Fig 1: Power, Ground, Serial Data & Front Impact Sensors Schematic
GM1464818Courtesy of GENERAL MOTORS CORP.

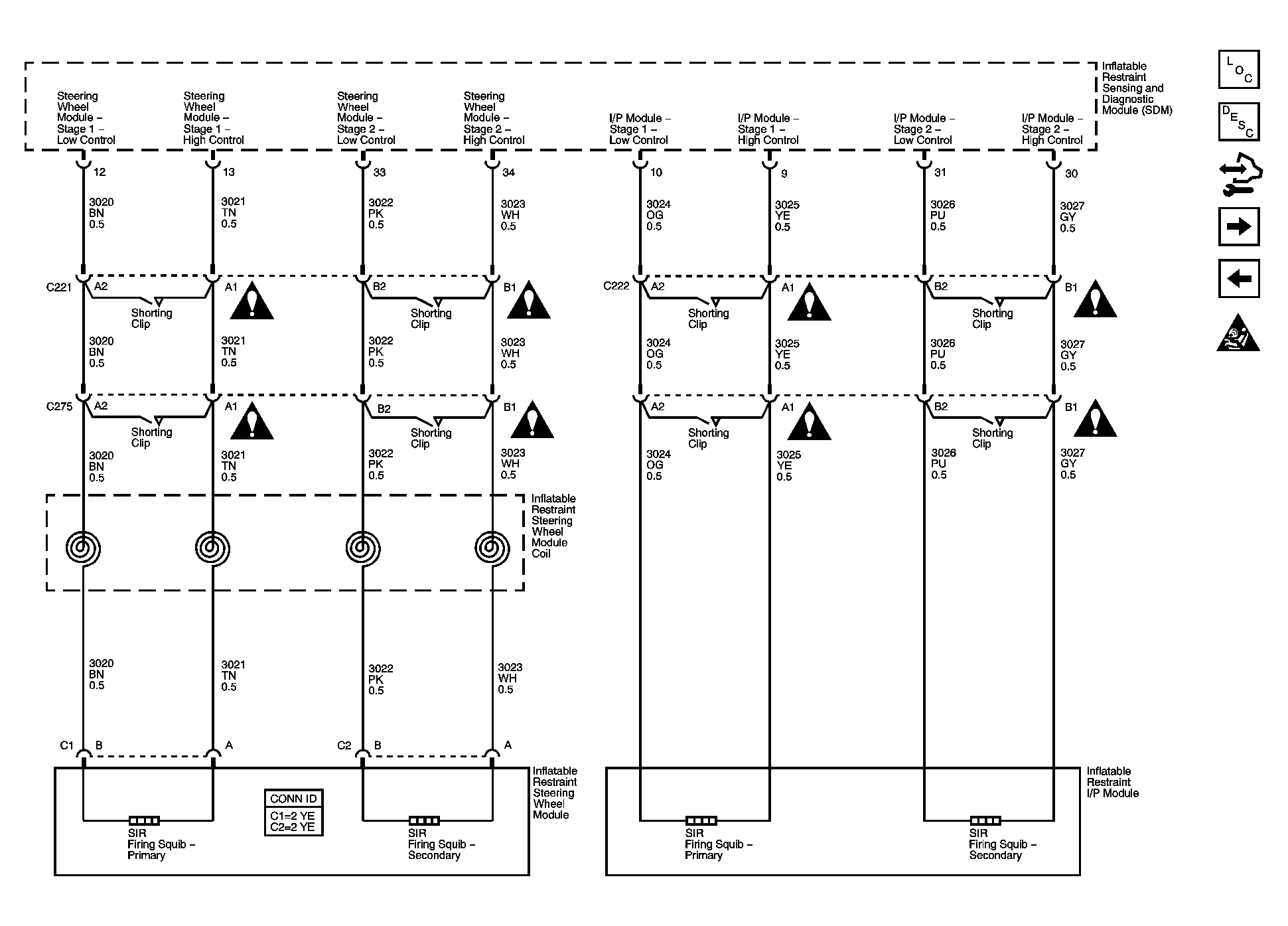

Fig 2: Driver & Passenger Airbags Schematic
GM1464820Courtesy of GENERAL MOTORS CORP.

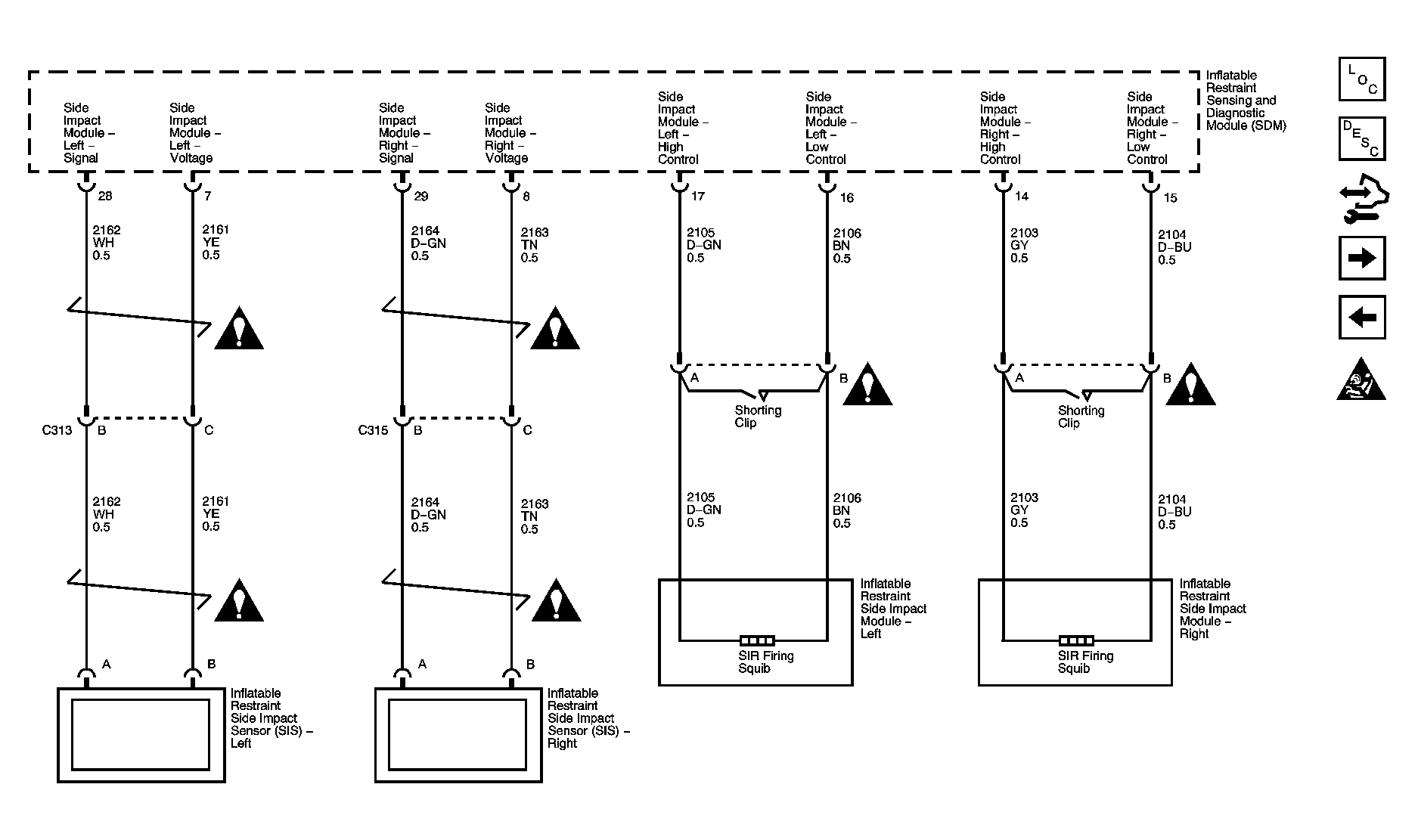

Fig 3: Side Impact Sensors & Airbags Schematic
GM1464822Courtesy of GENERAL MOTORS CORP.
Fig 4: Seat Position Switches Schematic
GM1464825Courtesy of GENERAL MOTORS CORP.

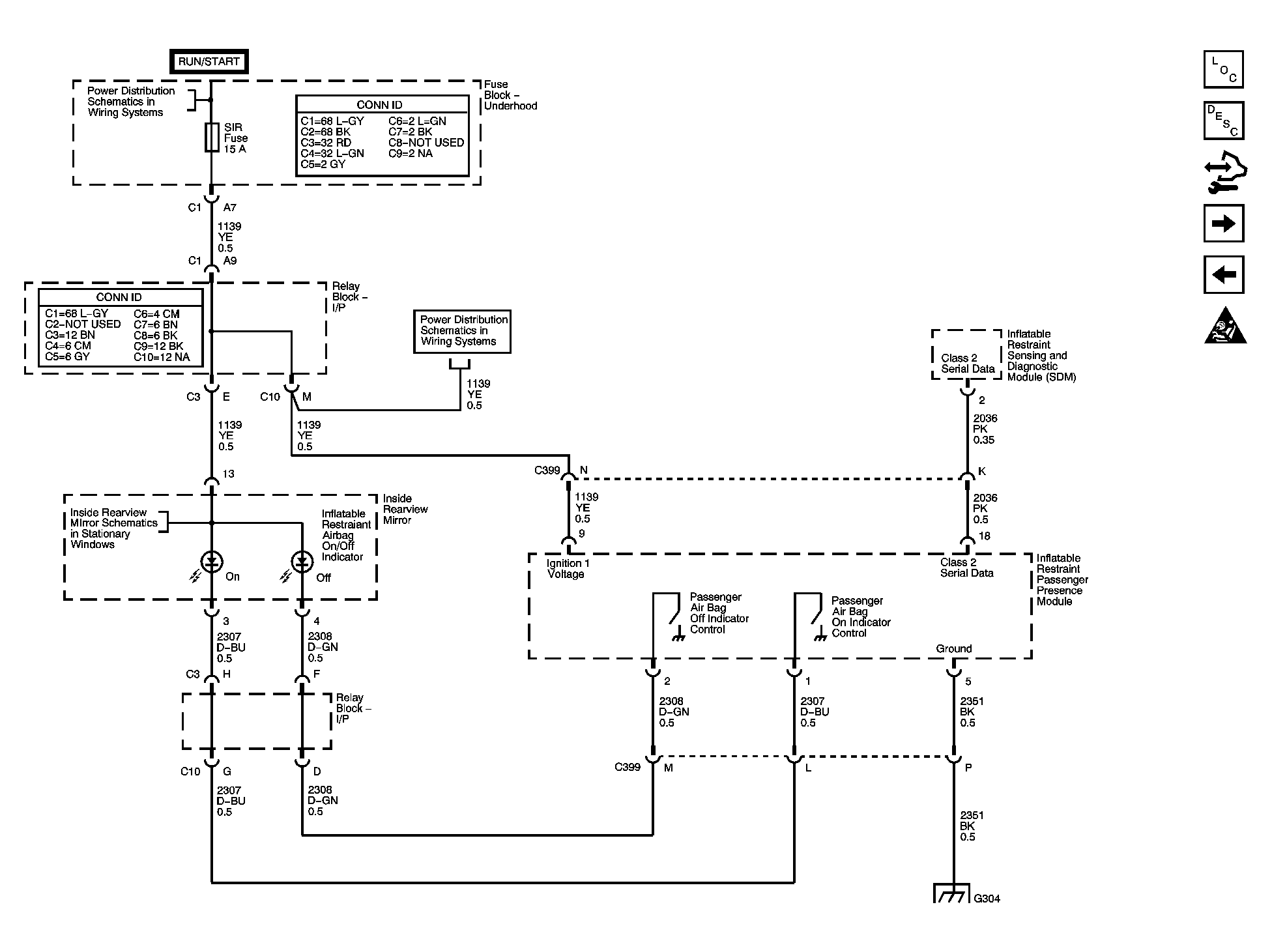

Fig 5: Passenger Presence Schematic 1 of 2
GM1464826Courtesy of GENERAL MOTORS CORP.
Fig 6: Passenger Presence Schematic 2 of 2
GM1464828Courtesy of GENERAL MOTORS CORP.
