HVAC Component Views

Fig 1: A/C Low Pressure Switch and A/C Accumulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Battery Relay
2	A/C Accumulator
3	A/C Low Pressure Switch
4	Inner Wheel Well
5	Coolant Level Switch Connector
6	Mass Air Flow (MAF) Sensor
7	Air Cleaner Assembly
8	Engine Coolant Recovery Reservoir
9	Auxiliary Battery Relay Electrical Connector

Fig 2: Refrigerant Pressure Sensor and Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Refrigerant Pressure Sensor
2	Refrigerant Line to Condensor
3	Compressor Clutch
4	Compressor Clutch Connector
5	Compressor
6	Engine Wiring Harness

Fig 3: HVAC Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	HVAC Control Module

Fig 4: HVAC Module Assembly - Top

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Door
2	Recirculation Actuator
3	Recirculation door
4	Air Temperature Actuator - Right
5	HVAC Module Assembly
6	Mode Actuator

Fig 5: HVAC Module Assembly - Bottom

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Left
2	Blower Resistor Assembly
3	Blower Motor
4	G 200

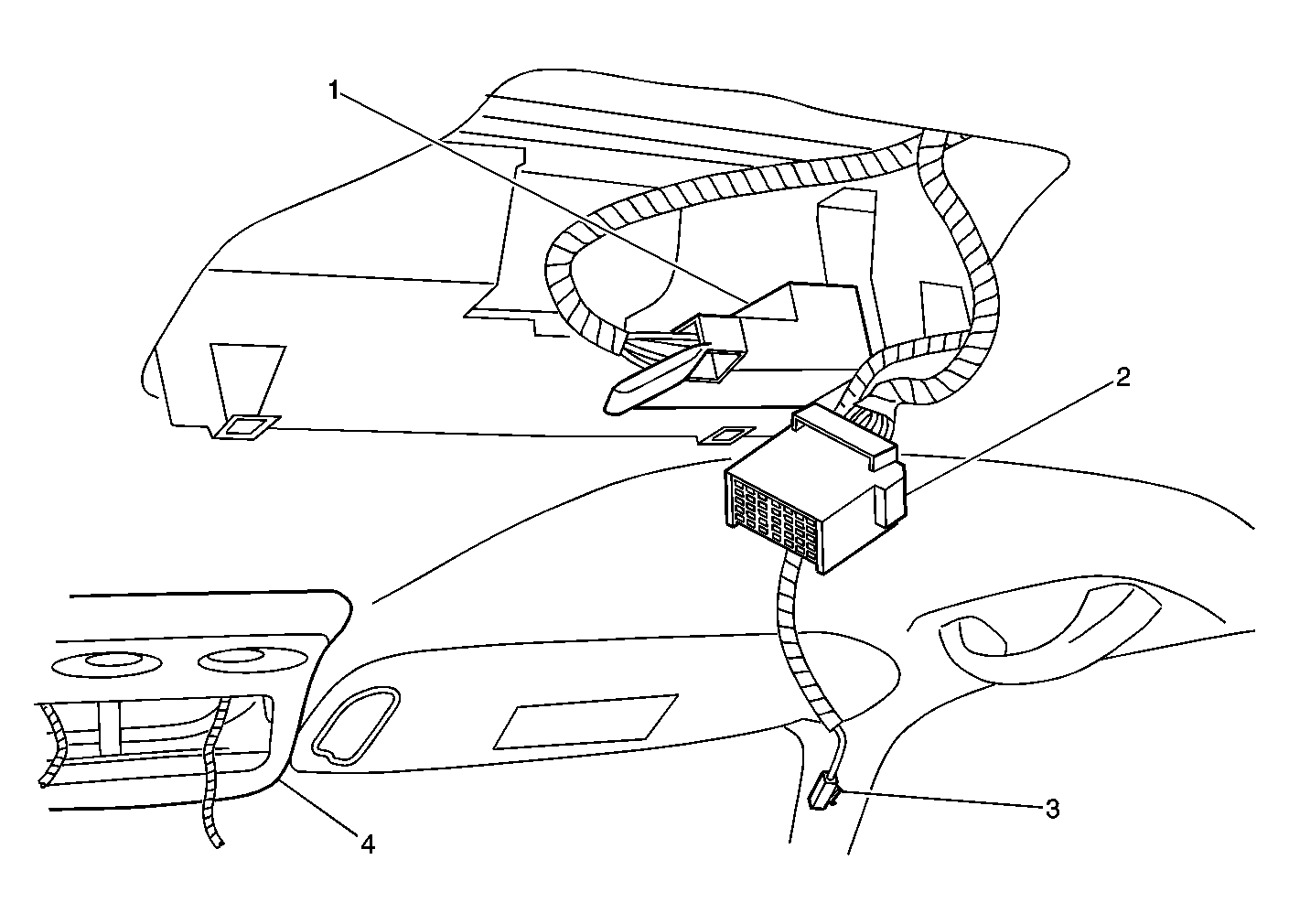

Fig 6: HVAC Control Processor - Auxiliary Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Processor - Auxiliary
2	HVAC Control Assembly - Rear Auxiliary Connector
3	Courtesy/Reading Lamp - Mid Connector
4	Overhead Console

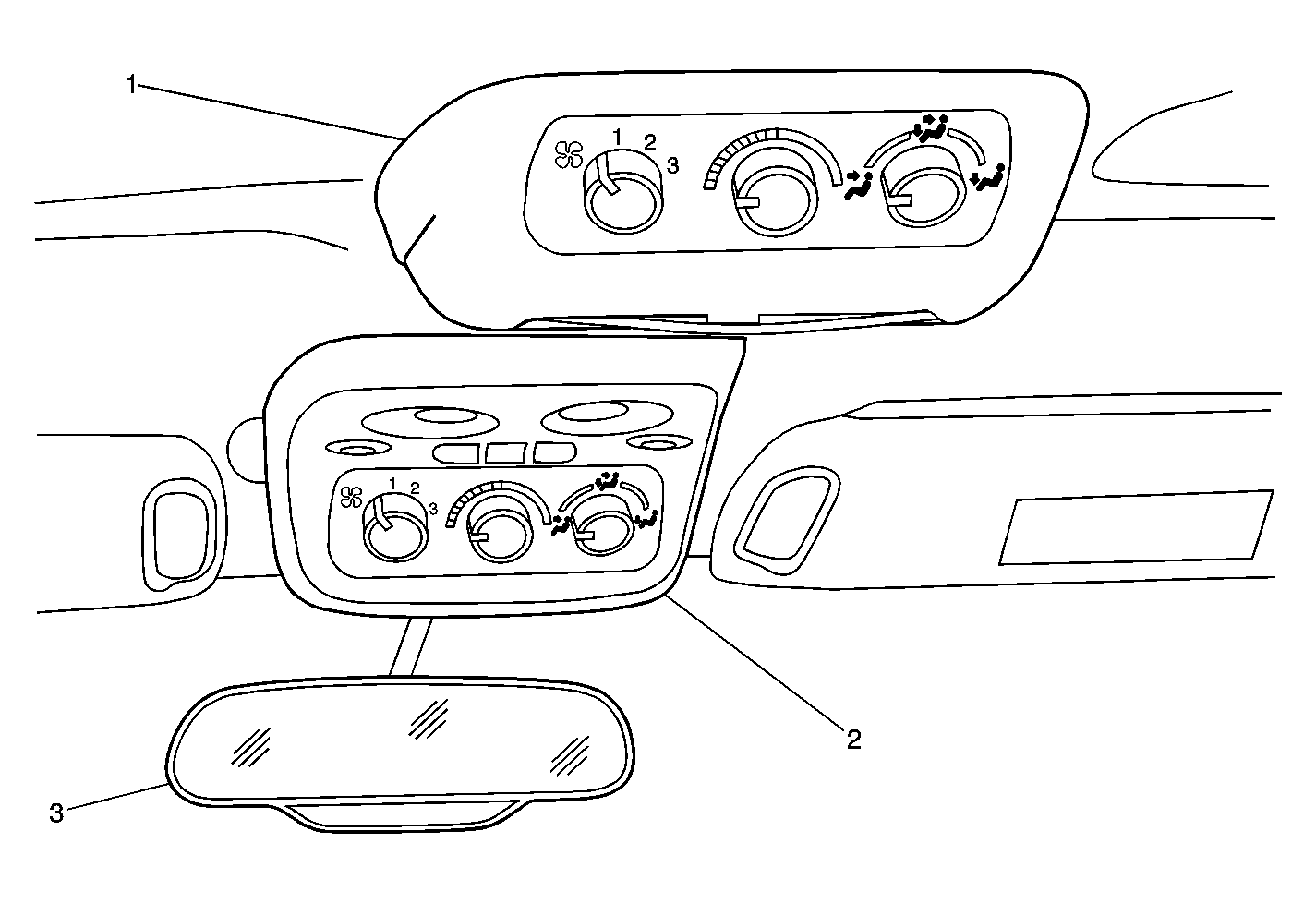

Fig 7: HVAC Auxiliary Control Assemblies Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Assembly - Rear Auxiliary
2	HVAC Control Assembly - Front Auxiliary
3	Inside Rearview Mirror

Fig 8: Right Rear of Cargo Area (Manual HVAC 706)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	SP410B
3	G410
4	Blower Motor-Auxiliary
5	Blower Motor Resistor Assembly - Auxiliary
6	Air Temperature Actuator-Auxiliary (W/C36/C69 Only)
7	C312 Auxiliary HVAC Harness to Headliner Harness
8	Mode Actuator-Auxiliary (W/C36/C69 Only)
9	C397 Auxiliary HVAC Harness to Body Harness

Fig 9: Right Rear of Cargo Area (Manual HVAC 906)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator (w/C69/C36 Only)
2	C312 HVAC Auxiliary Harness to Headliner Harness
3	Air Temperature Actuator-Auxiliary (w/C69/C36 Only)
4	C397 Auxiliary HVAC Harness to Body Harness
5	Blower Motor Resistor Assembly-Auxiliary
6	Real Time Damping (RTD) Module
7	Body Harness
8	SP410B
9	G410 (Manual A/C Only)
10	SP410A (w/C69/C36 Only)
