Transfer Case Disassembled View

WARNING: This page is about a different car, the 2005 GMC Yukon XL and 2005 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

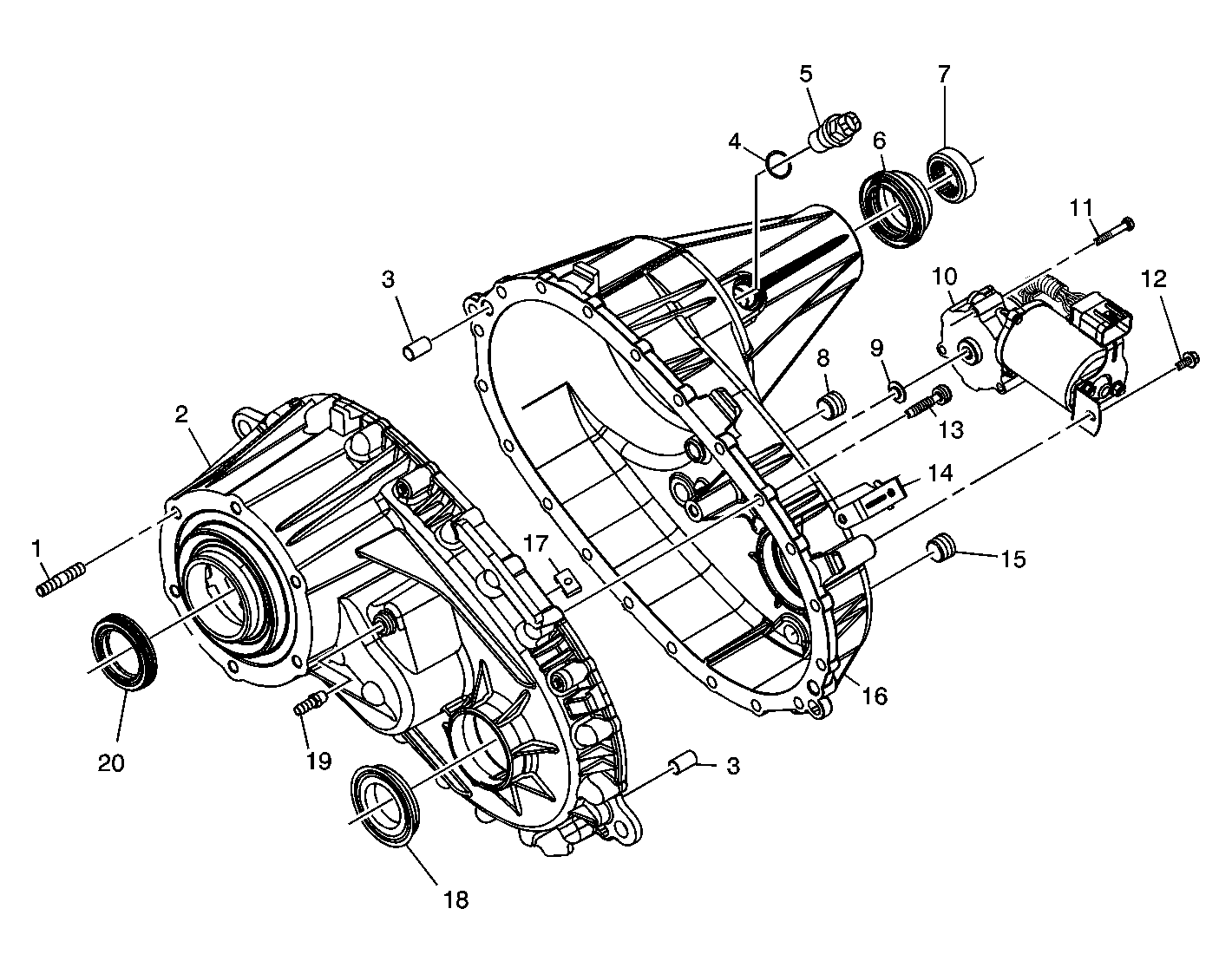

Fig 1: Case Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Adapter Stud
2	Front Case Half
3	Location Pin
3	Location Pin
4	Vehicle Speed Sensor O-Ring Seal
5	Vehicle Speed Sensor
6	Rear Output Shaft Seal
7	Shipping Seal
8	Fill Plug
9	Shift Detent Lever Seal
10	Encoder Motor
11	Encoder Motor Bolt
12	Encoder Motor Bracket Bolt
13	Case Half Bolt
14	Wiring Harness Bracket
15	Drain Plug
16	Rear Case Half
17	Magnet
18	Front Output Shaft Seal
19	Vent
20	Input Shaft Seal

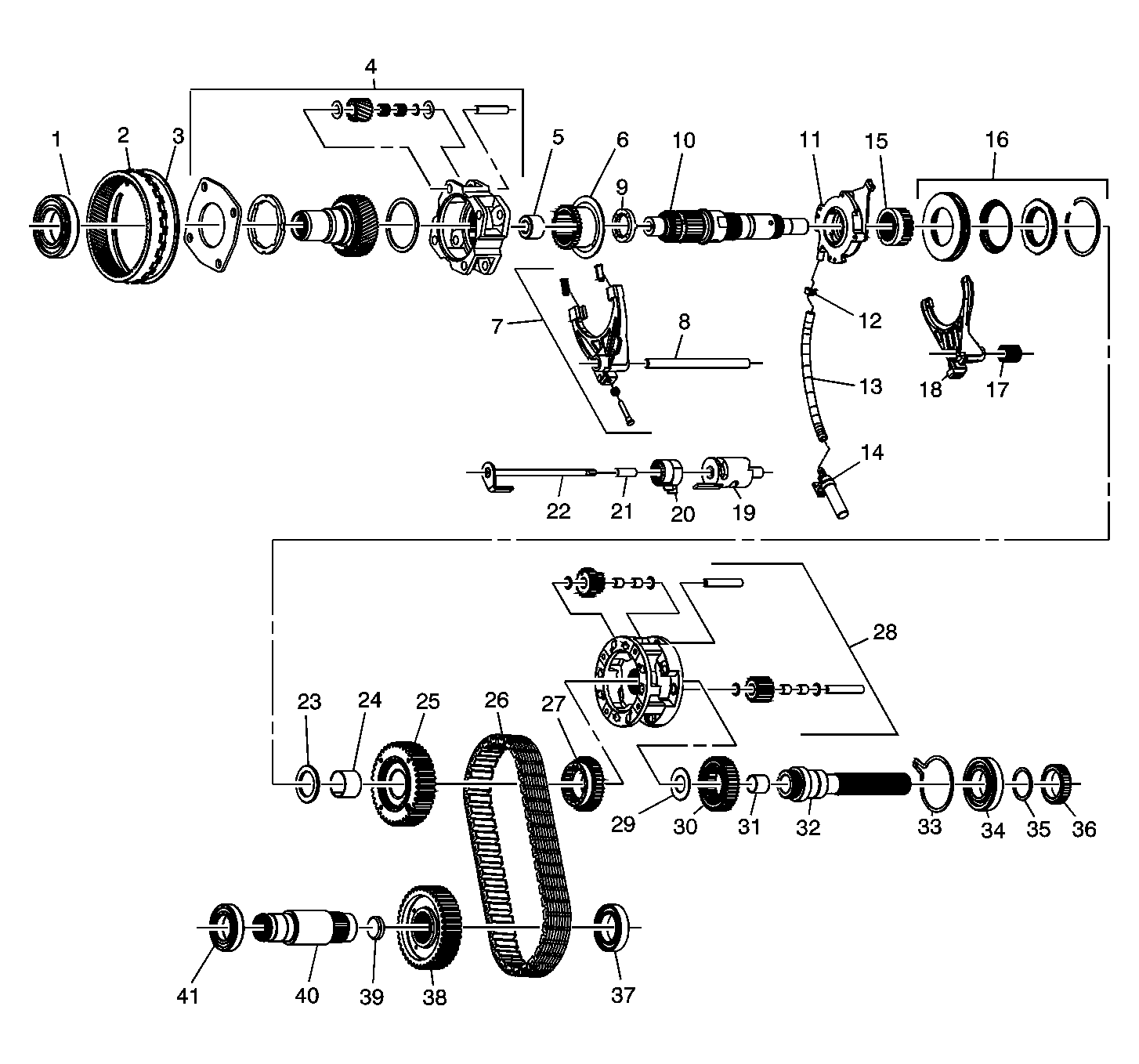

Fig 2: Transfer Case Internal Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Gear Bearing
2	Annulus Gear
3	Annulus Gear Retaining Ring
4	High/Low Planetary Carrier Assembly
5	Mainshaft Front Support Bearing
6	High/Low Range Sleeve
7	High/Low Range Shift Fork Assembly
8	Shift Fork Shaft
9	Input Gear Thrust Washer
10	Mainshaft
11	Oil Pump
12	Oil Pump Hose Clamp
13	Oil Pump Hose
14	Oil Pump Screen
15	Inner Lockup Hub
16	Lockup Shift Assembly
17	Shift Fork Shaft Spring
18	Lockup Shift Fork
19	Shift Detent Lever Cam
20	Shift Detent Lever Shaft Spring
21	Shift Detent Lever Shaft Sleeve
22	Shift Detent Lever Shaft
23	Drive Sprocket Thrust Washer
24	Drive Sprocket Bushing
25	Drive Sprocket
26	Drive Chain
27	Front Sun Gear
28	Planetary Differential Assembly
29	Rear Output Shaft Thrust Washer
30	Rear Sun Gear
31	Mainshaft Rear Support Bushing
32	Rear Output Shaft
33	Rear Output Shaft Bearing Outer Retaining Ring
34	Rear Output Shaft Bearing
35	Rear Output Shaft Bearing Retaining Ring
36	Speed Reluctor Wheel
37	Front Output Shaft Rear Bearing
38	Driven Gear
39	Front Output Shaft Cup Plug
40	Front Output Shaft
41	Front Output Shaft Front Bearing
