Tow/Haul Switch/Indicator Always On or Inoperative: Notes

WARNING: This page is about a different car, the 2005 GMC Yukon XL, 2005 Chevrolet Suburban, and 2005 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

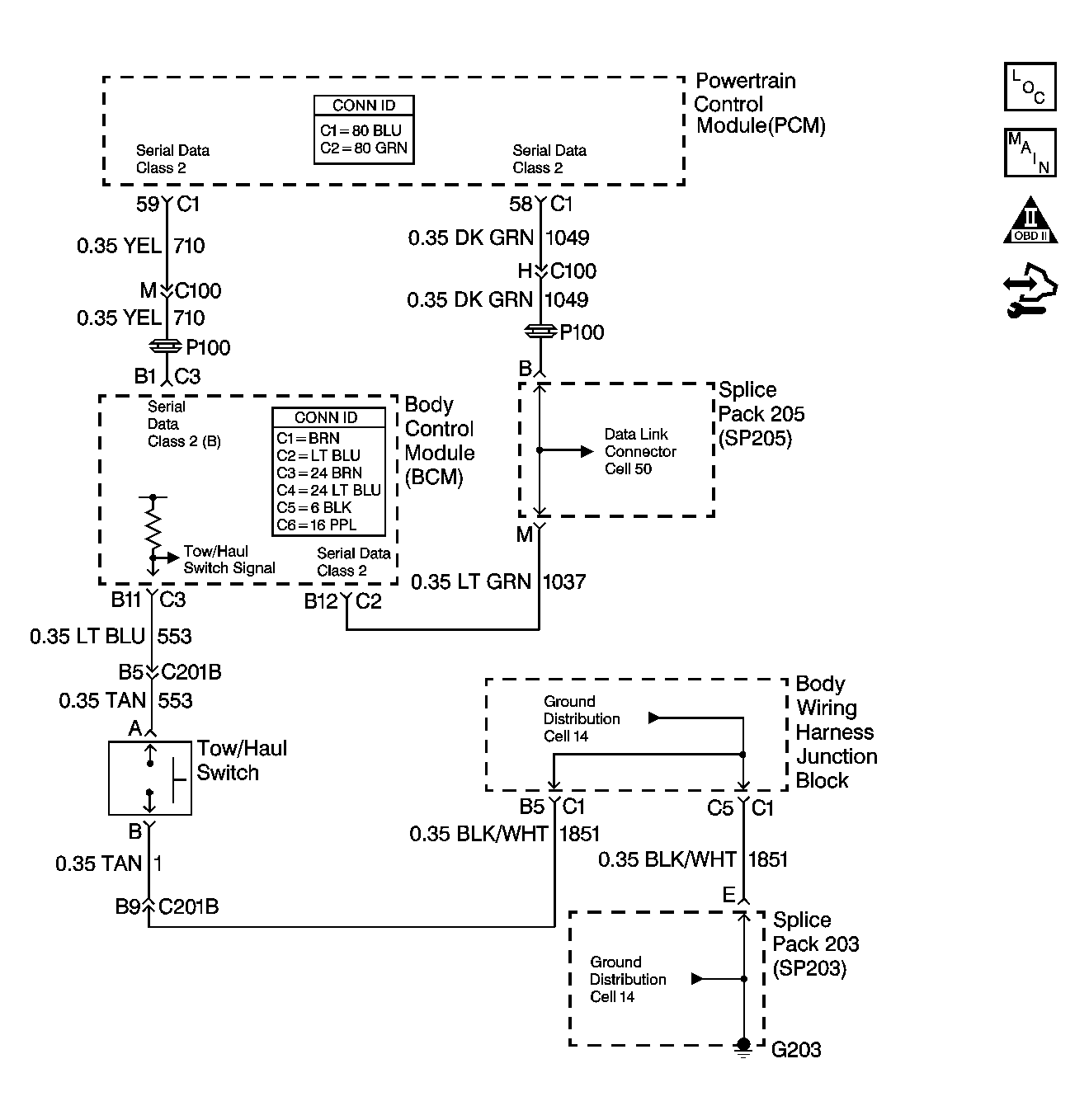

Fig 1: Tow/Haul Switch Circuit
GM1445050Courtesy of GENERAL MOTORS CORP.
