Starting and Charging Schematics

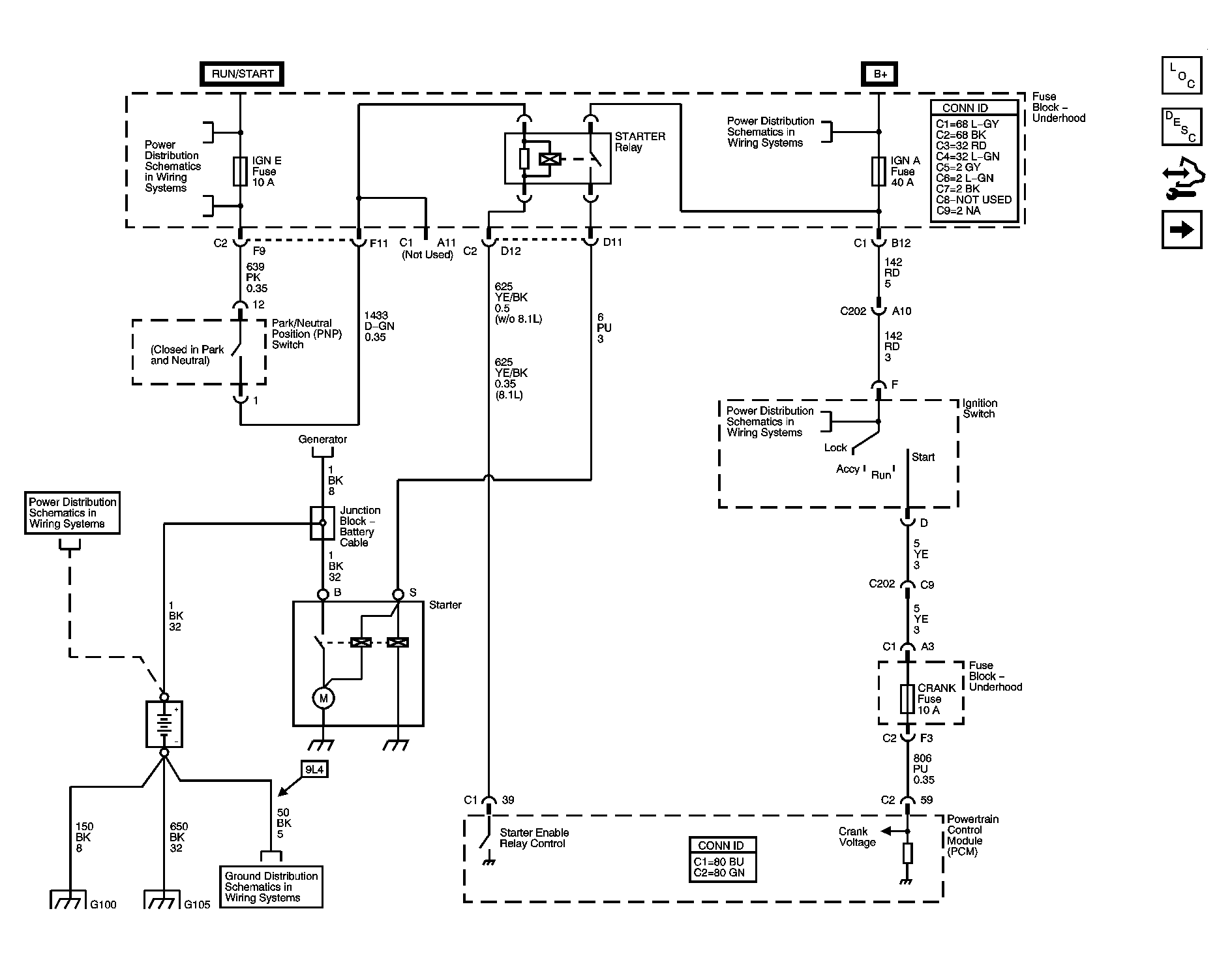

Fig 1: Starting Schematics
GM1450635Courtesy of GENERAL MOTORS CORP.

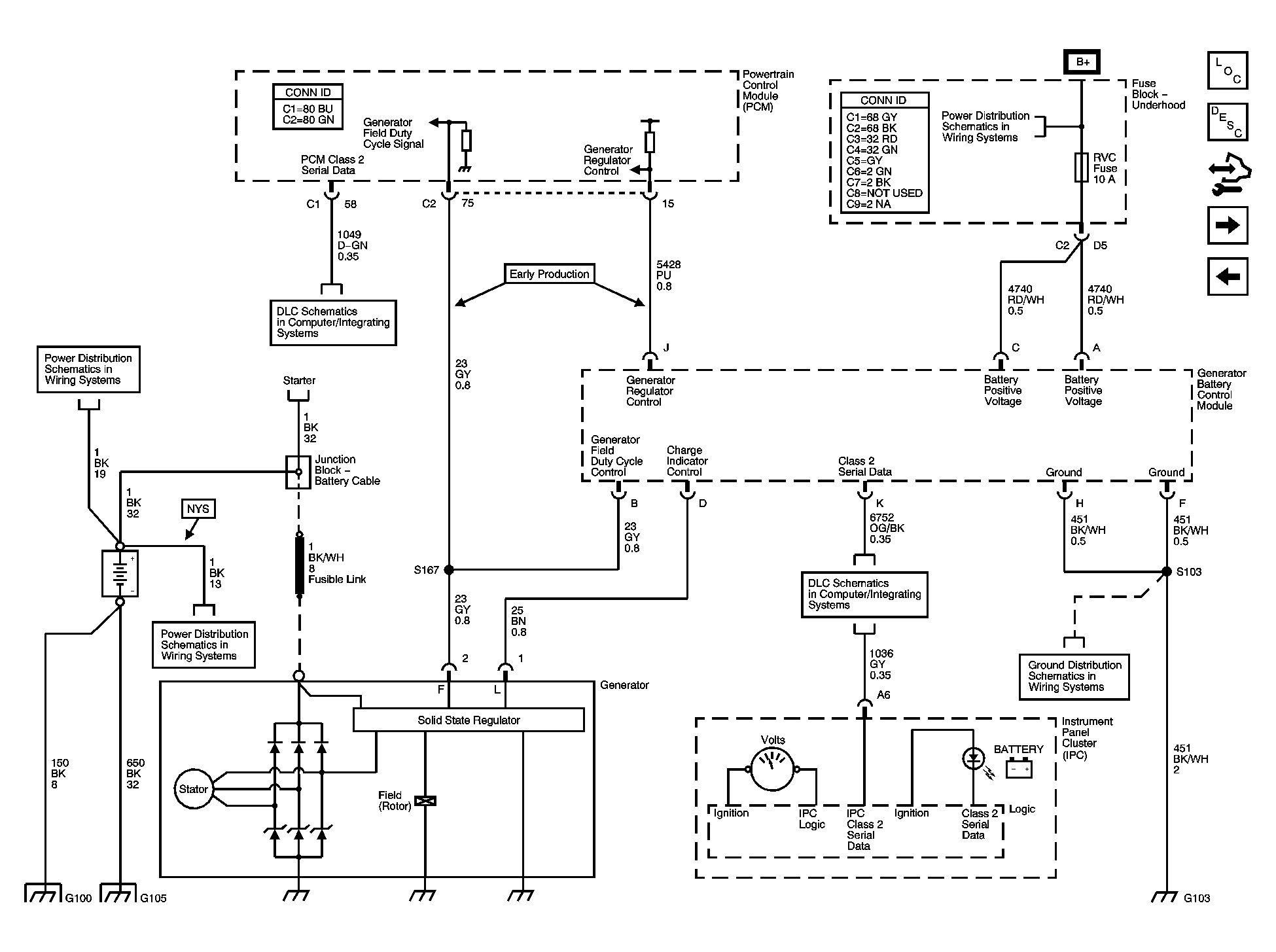

Fig 2: Charging Schematics - except L18 or NYS
GM1450638Courtesy of GENERAL MOTORS CORP.

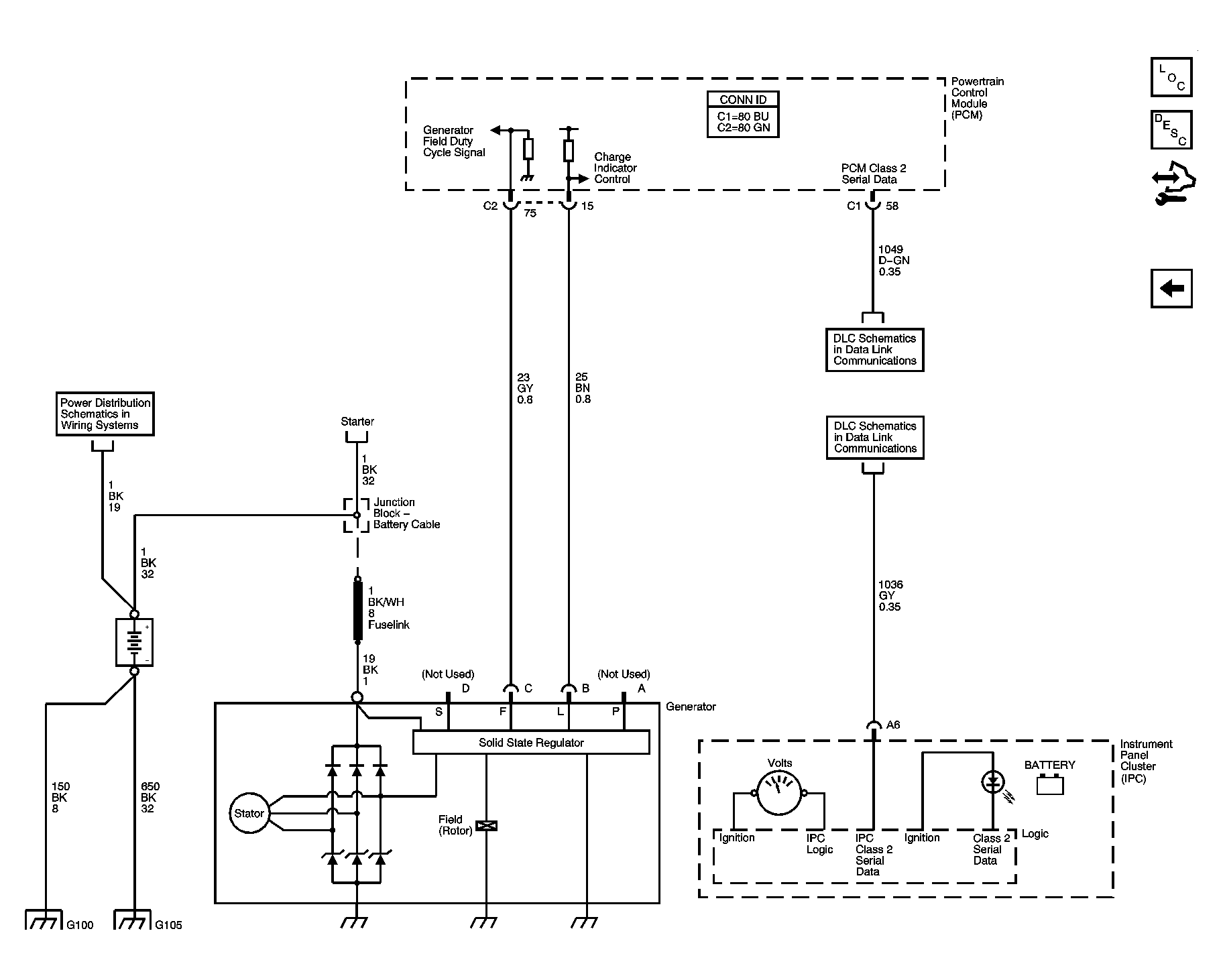

Fig 3: Charging Schematics - L18 or NYS
GM1450639Courtesy of GENERAL MOTORS CORP.
