Power Distribution Schematics

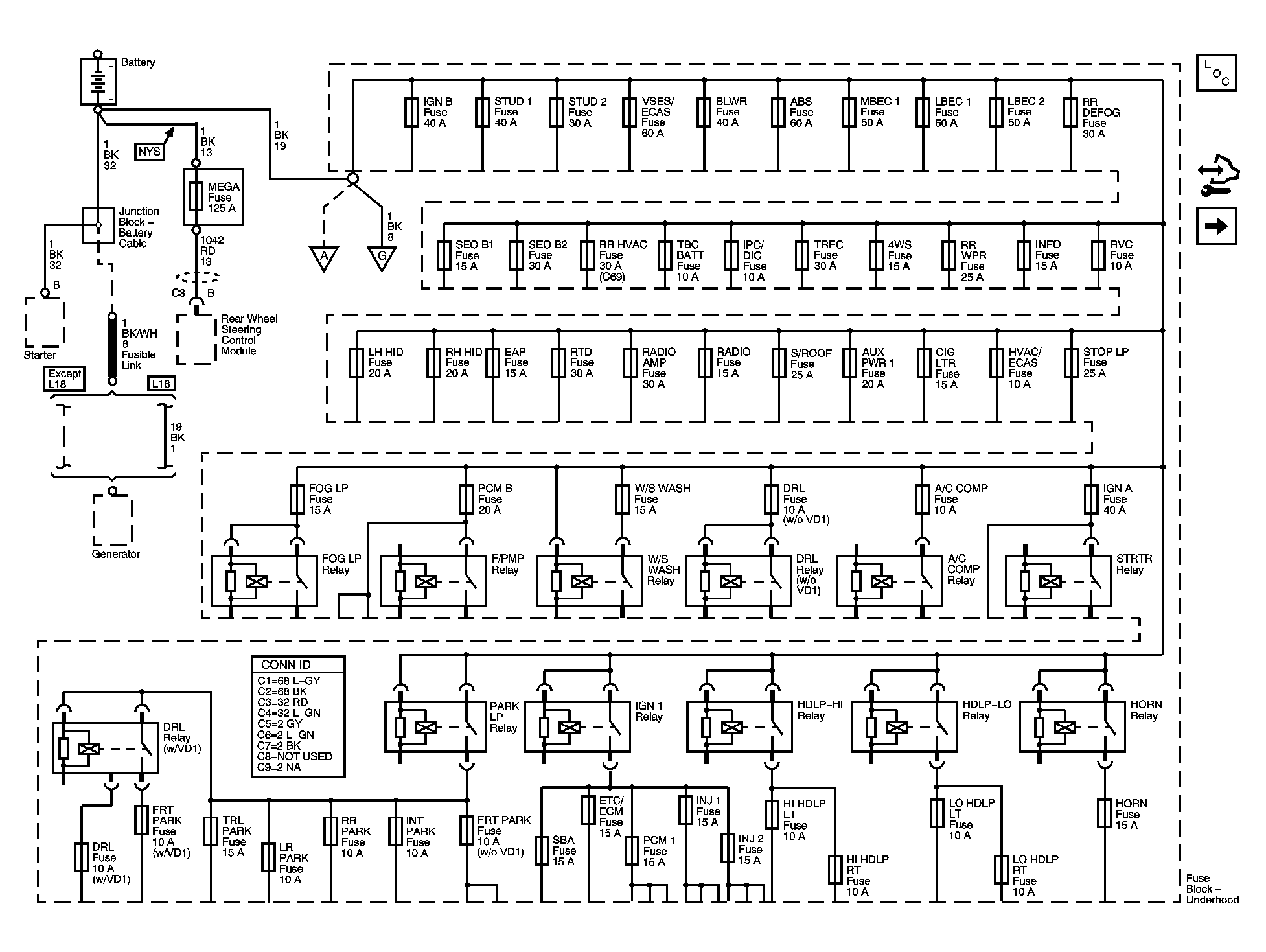

Fig 1: B+ Bus Schematics - 1 of 2
GM1464604Courtesy of GENERAL MOTORS CORP.

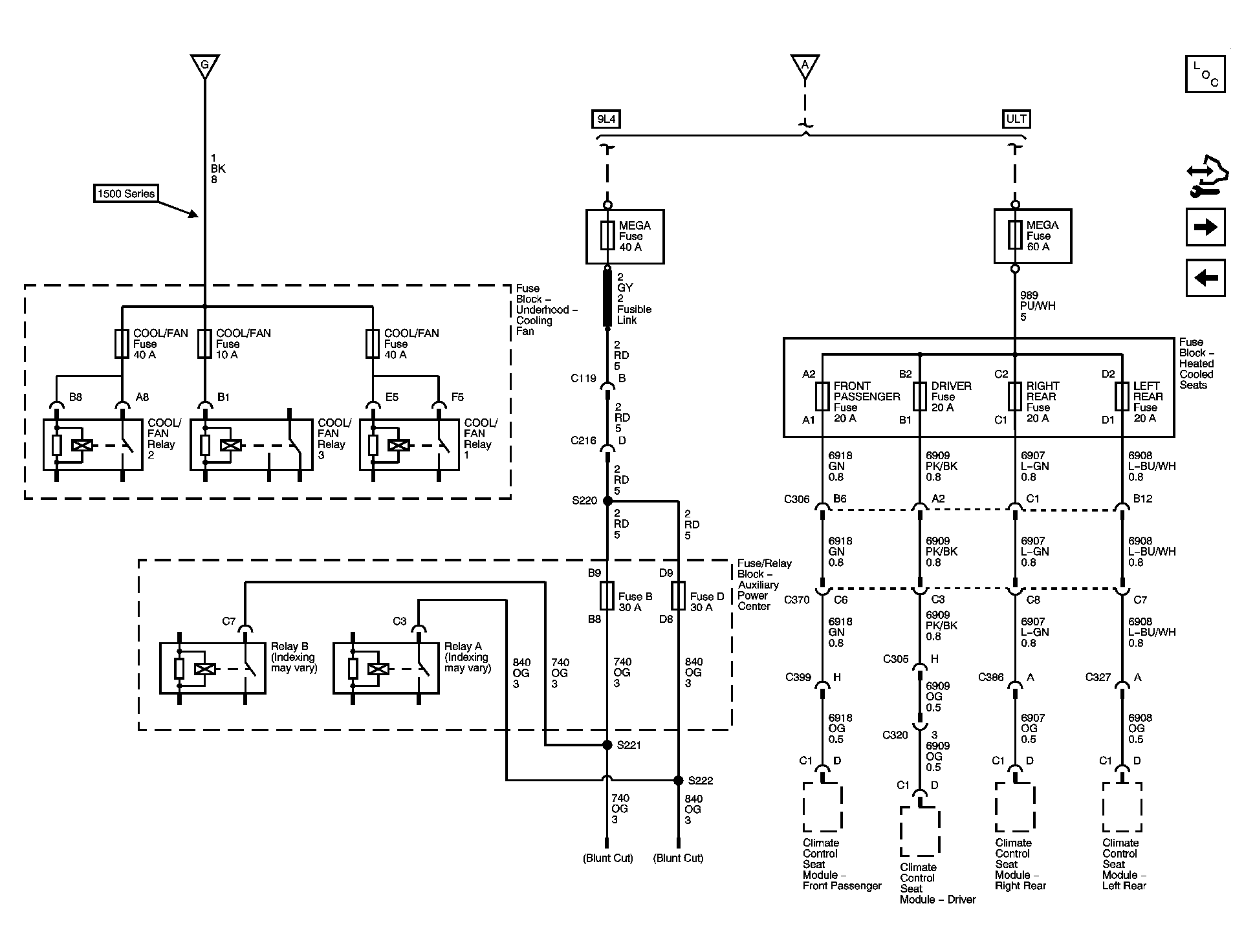

Fig 2: B+ Bus Schematics - 2 of 2
GM1464608Courtesy of GENERAL MOTORS CORP.

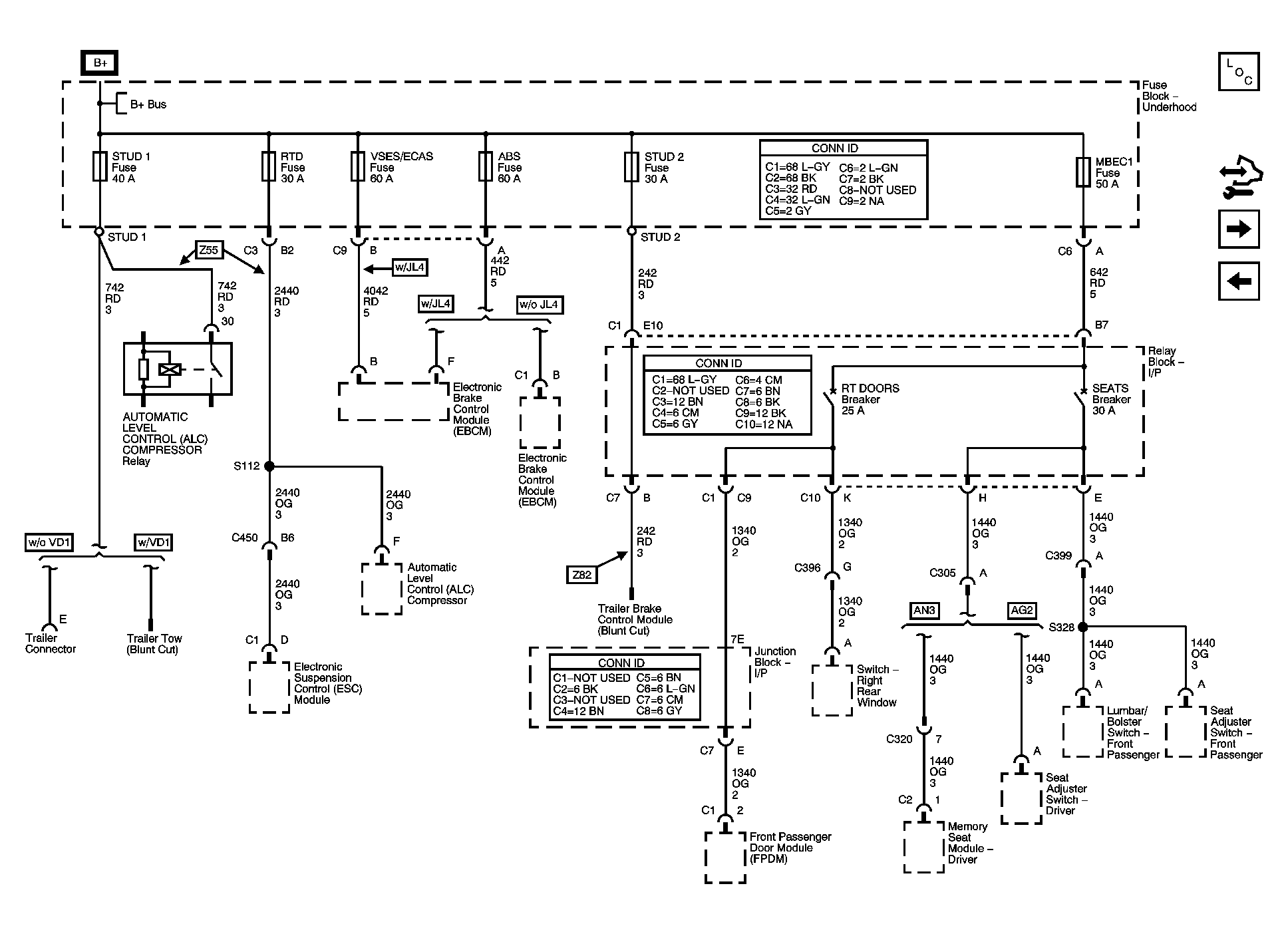

Fig 3: ABS, MBEC 1, RTD, STUD 2, VSES/ECAS Fuses; RT DOORS and SEATS Circuit Breakers Schematics
GM1464609Courtesy of GENERAL MOTORS CORP.

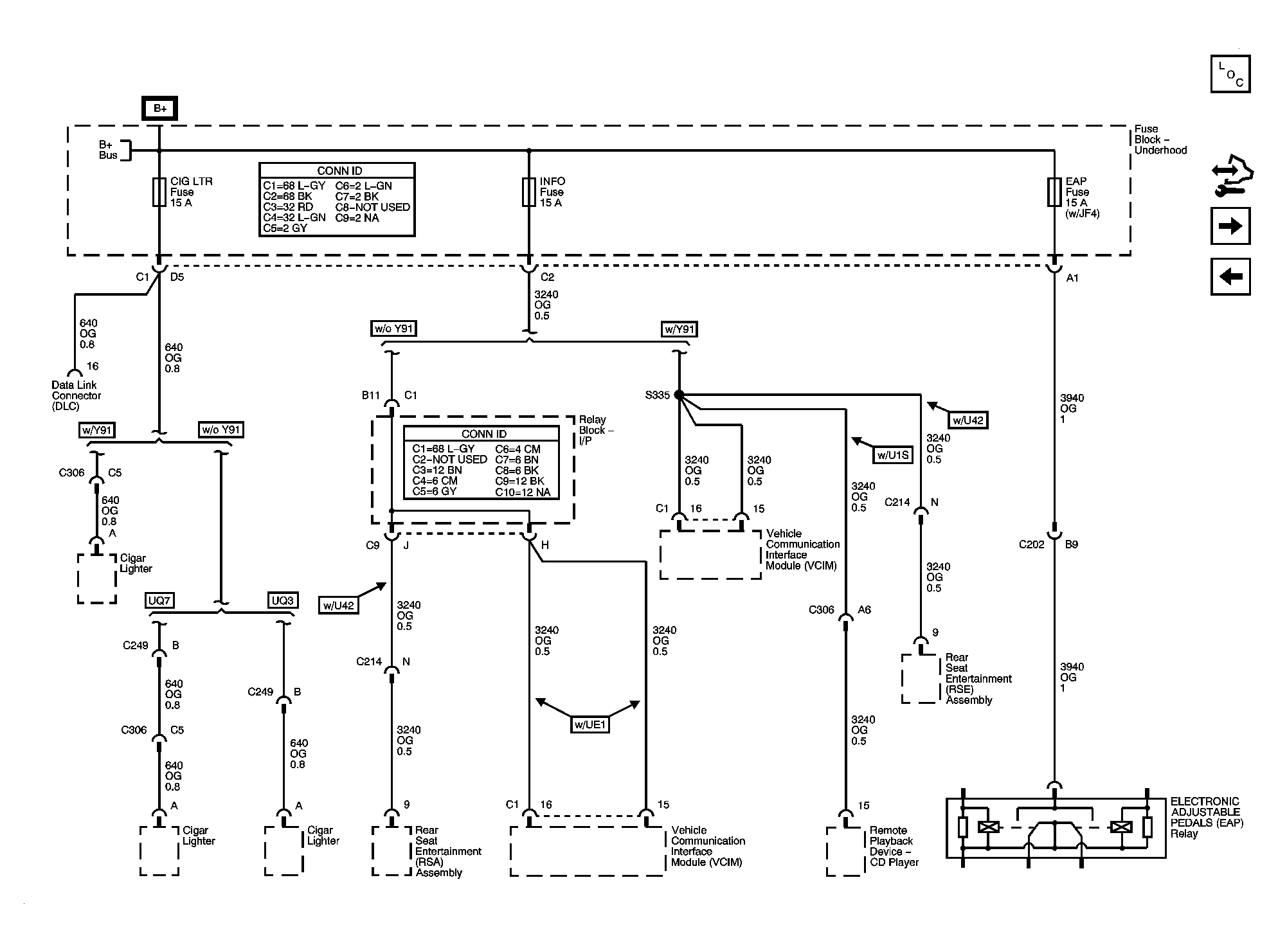

Fig 4: CIG LTR, EAP, and INGO Fuses Schematics
GM1464611Courtesy of GENERAL MOTORS CORP.

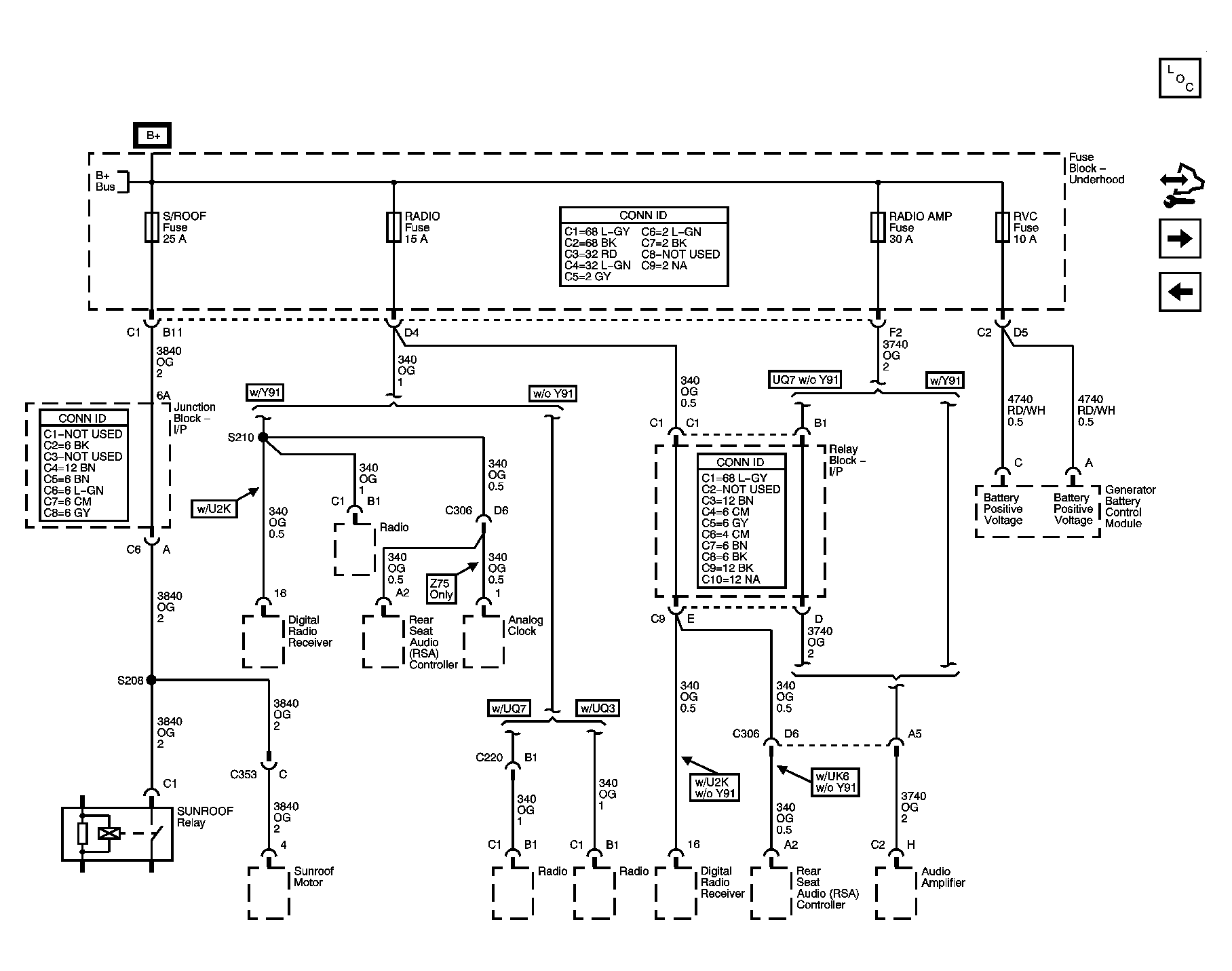

Fig 5: RADIO, RADIO AMP, and S/ROOF Fuses Schematics
GM1464623Courtesy of GENERAL MOTORS CORP.

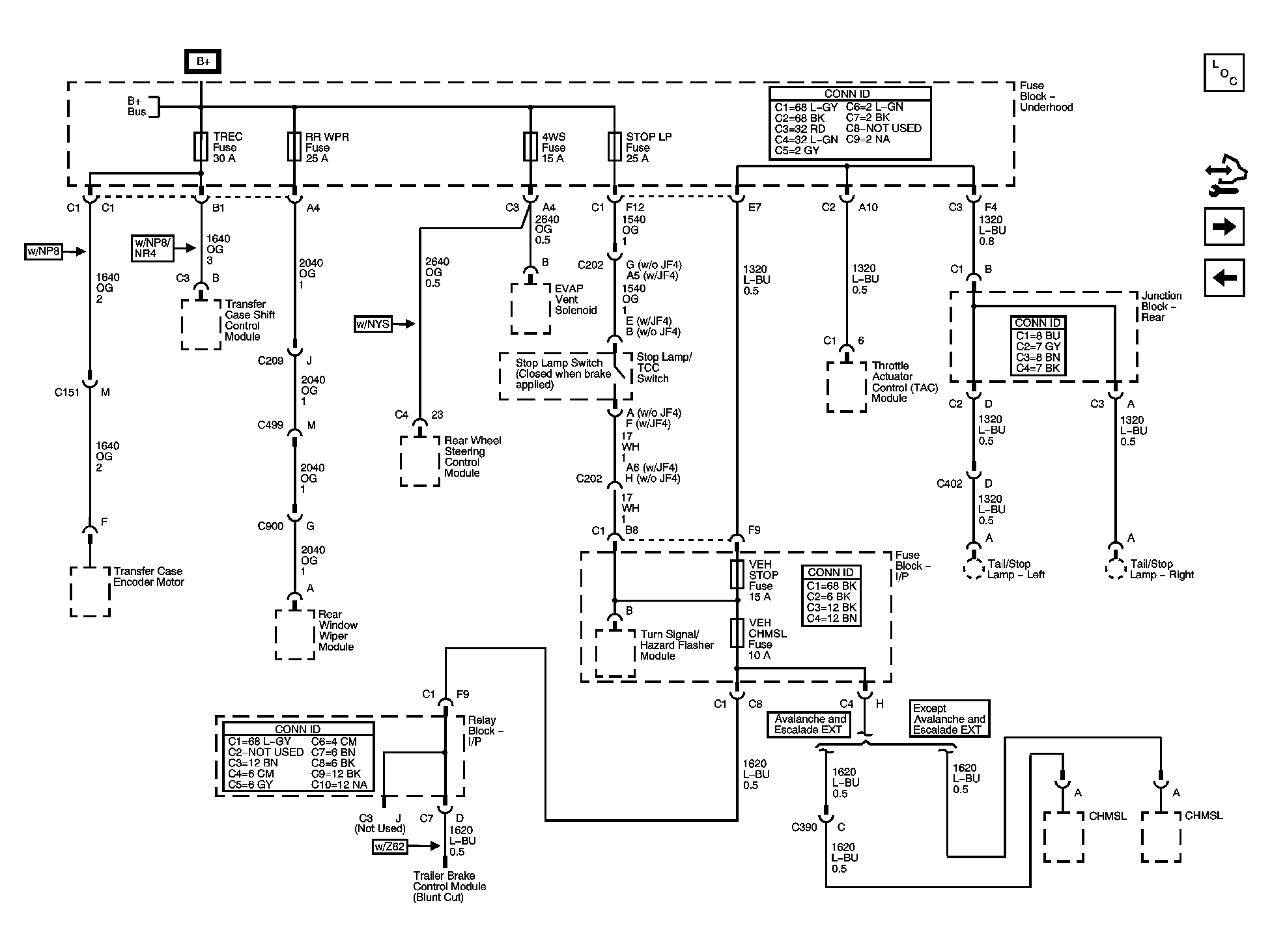

Fig 6: RR WPR, STIP LO, TREC, VEH CHMSL, VEH STOP, and 4WS Fuses Schematics
GM1464625Courtesy of GENERAL MOTORS CORP.

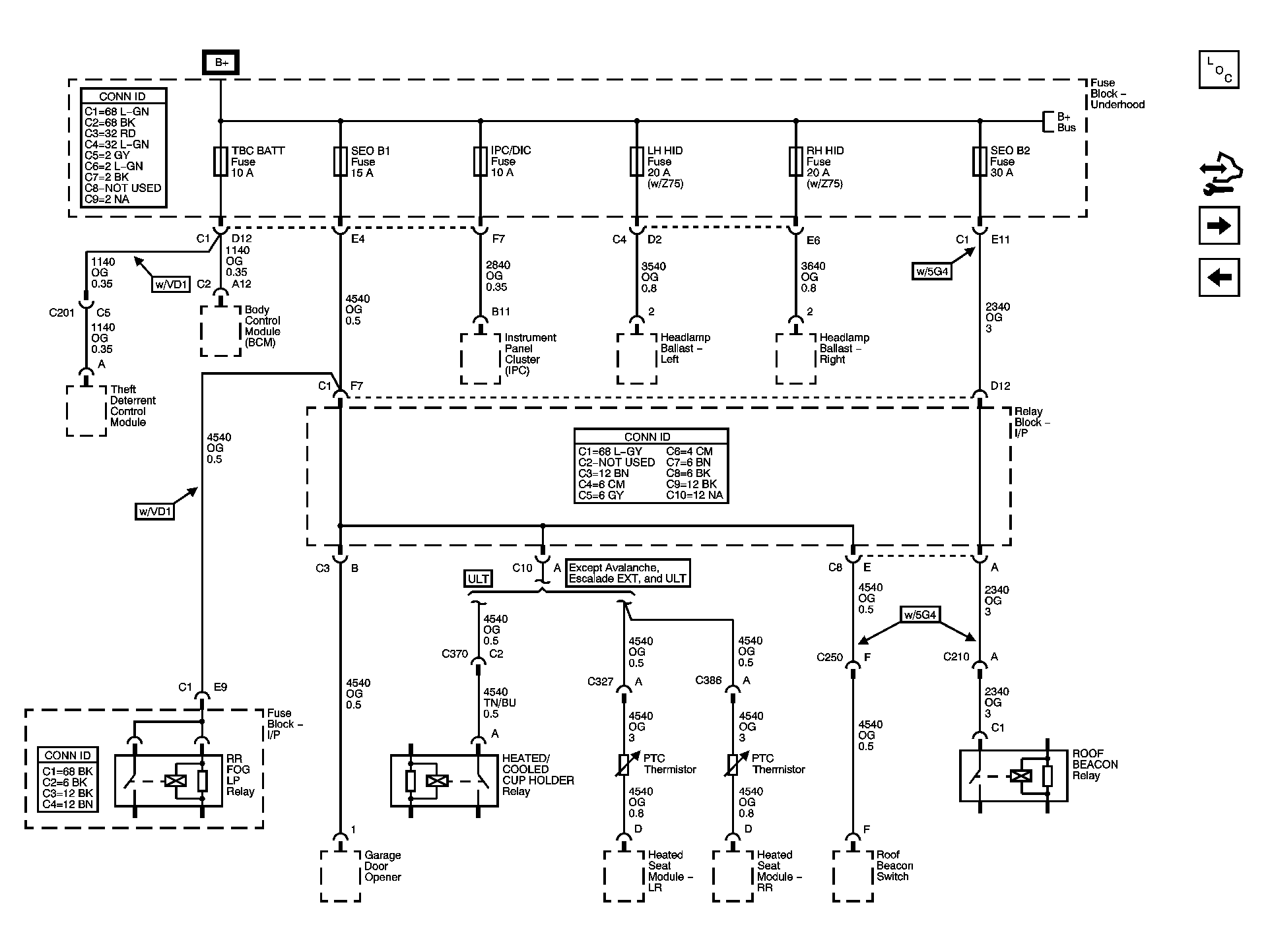

Fig 7: IPC/DIC, LH HID, RH HID, SEO B1, SEO B2, and TBC BATT Fuses Schematics
GM1464626Courtesy of GENERAL MOTORS CORP.

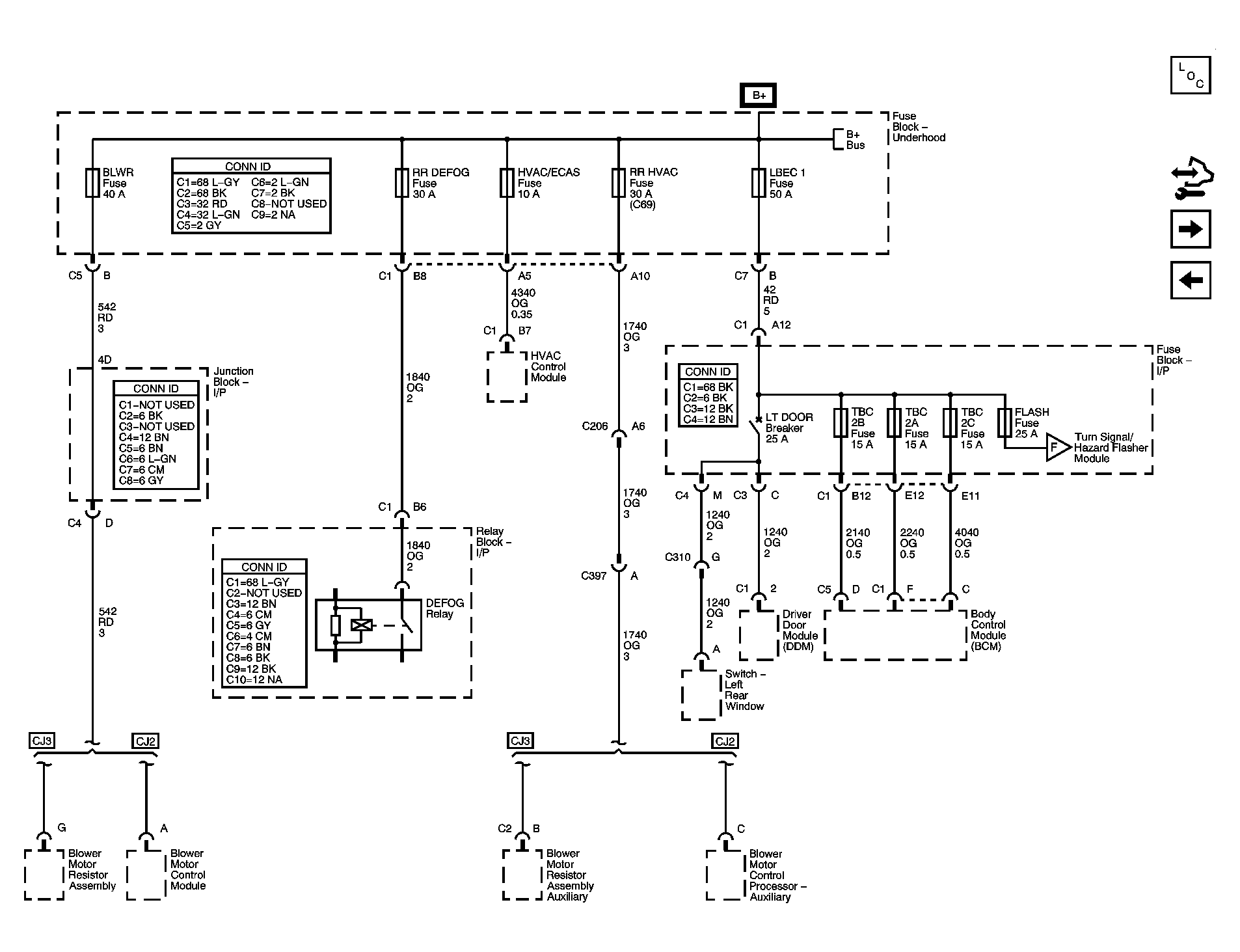

Fig 8: BLOWER, FLASH, HVAC/ECAS, LBEC 1, RR DEFOG, RR HVAC, TBC2A, TBC 2B, and TBC 2C Fuses, and LT DOOR Breaker Schematics
GM1464628Courtesy of GENERAL MOTORS CORP.

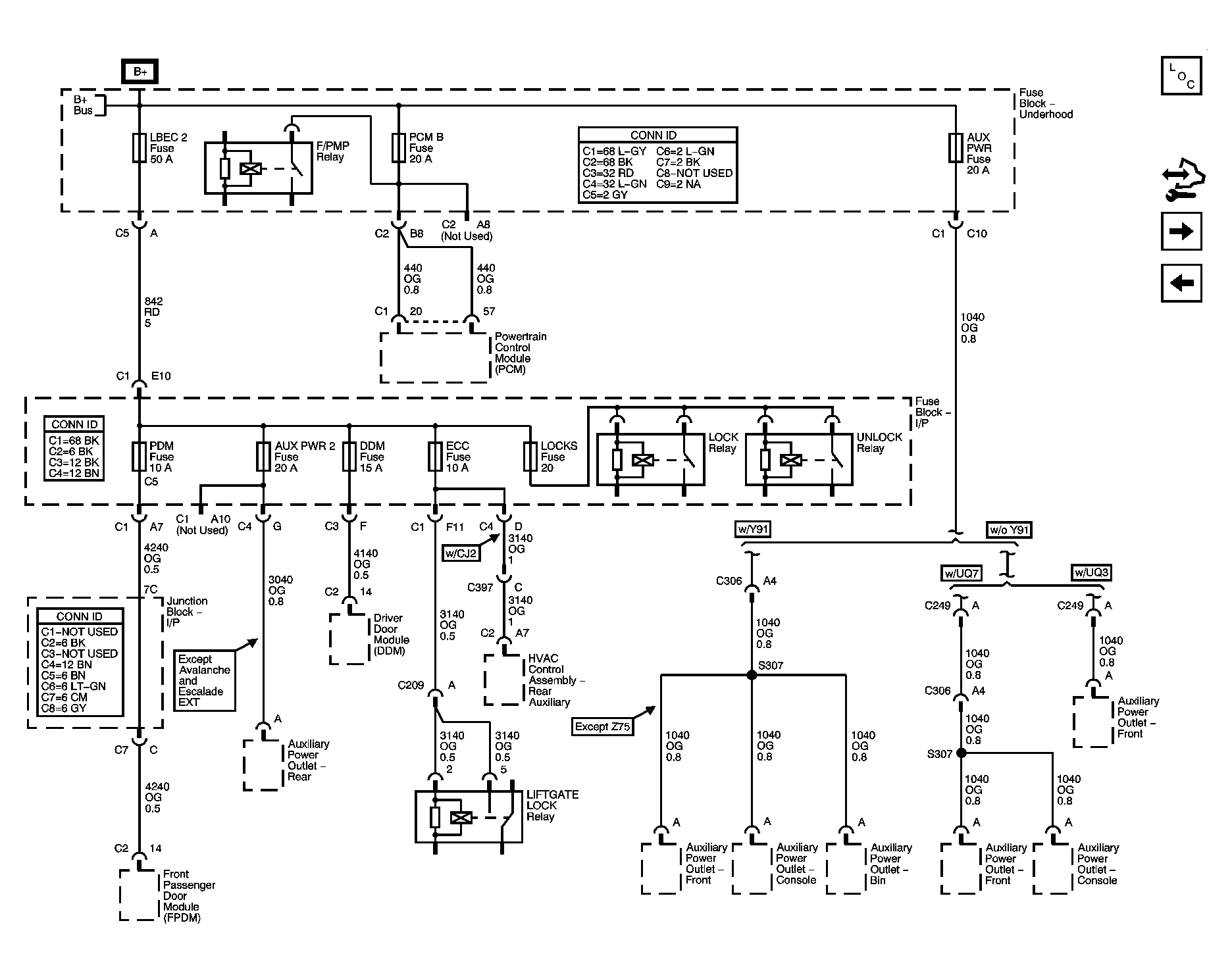

Fig 9: AUX PWR, AUX PWR 2, DDM, ECC, LBEC 2, LOCKS, PCM B, and PDM Fuses Schematics
GM1464632Courtesy of GENERAL MOTORS CORP.

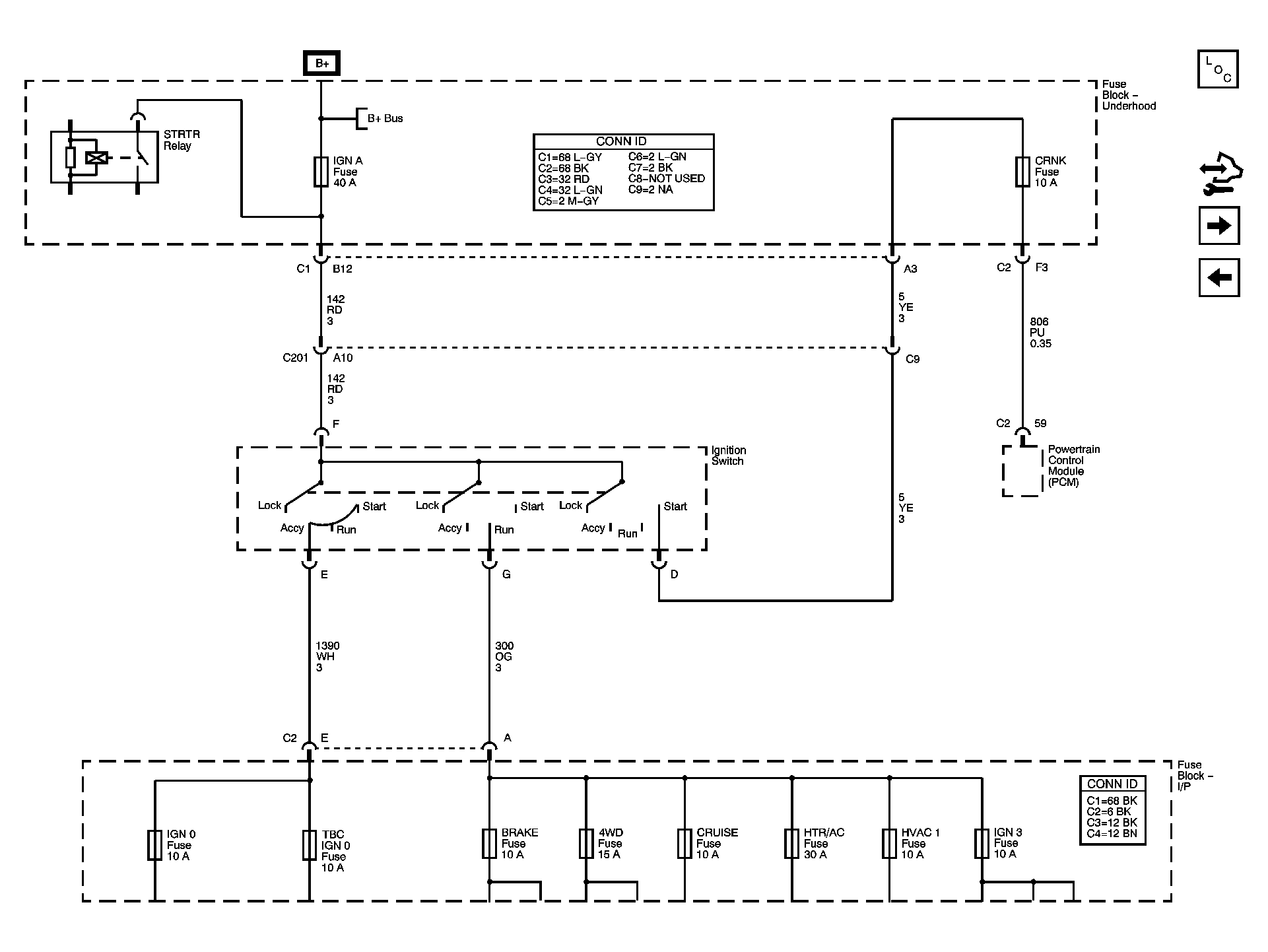

Fig 10: Ignition Switch - ACCY/RUN/START, RUN, and START Busses, IGN A, and CRANK Fuses Schematics
GM1464634Courtesy of GENERAL MOTORS CORP.

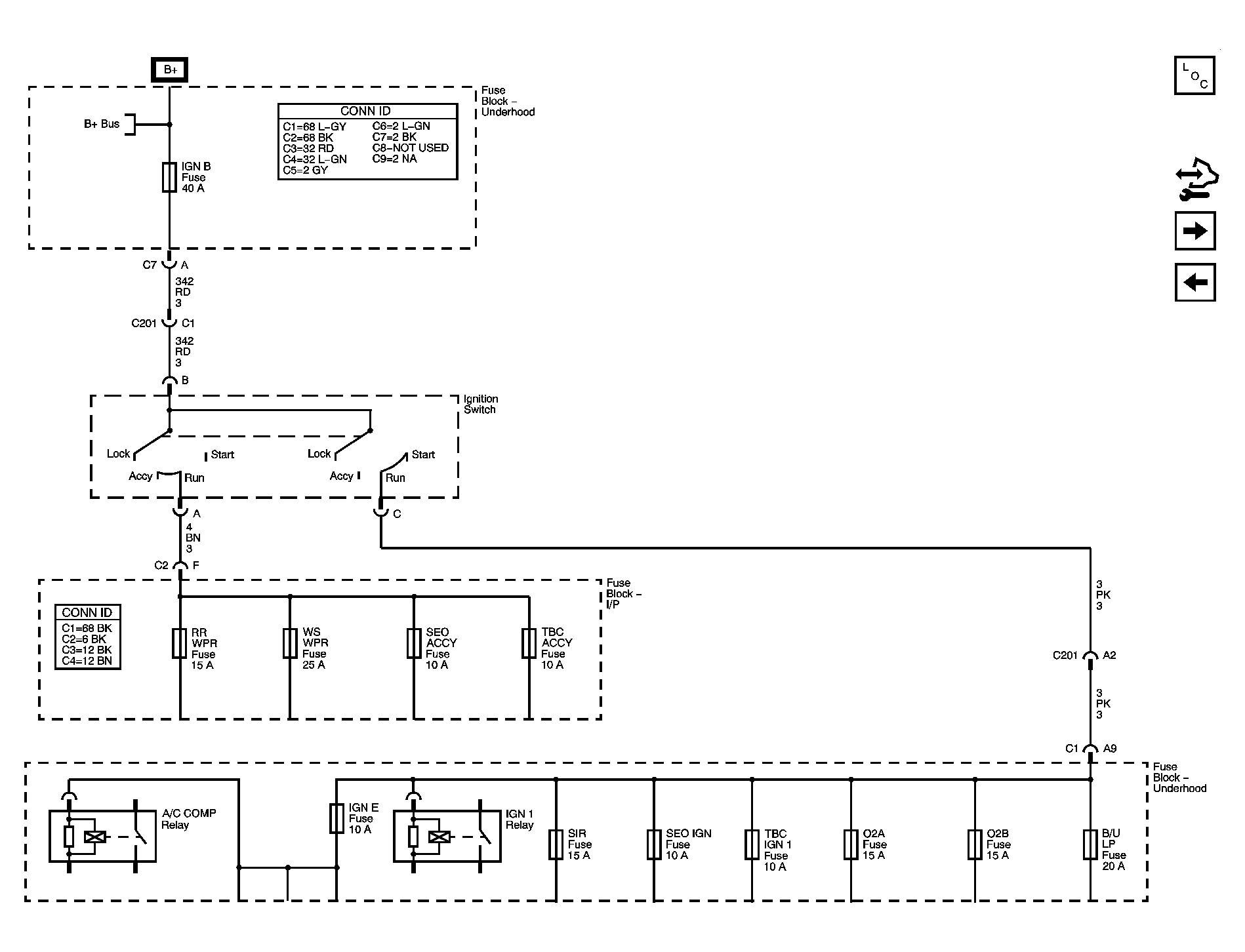

Fig 11: Ignition Switch - ACCY/RUN and RUN/START Busses, and IGN B Fuse Schematics
GM1464635Courtesy of GENERAL MOTORS CORP.

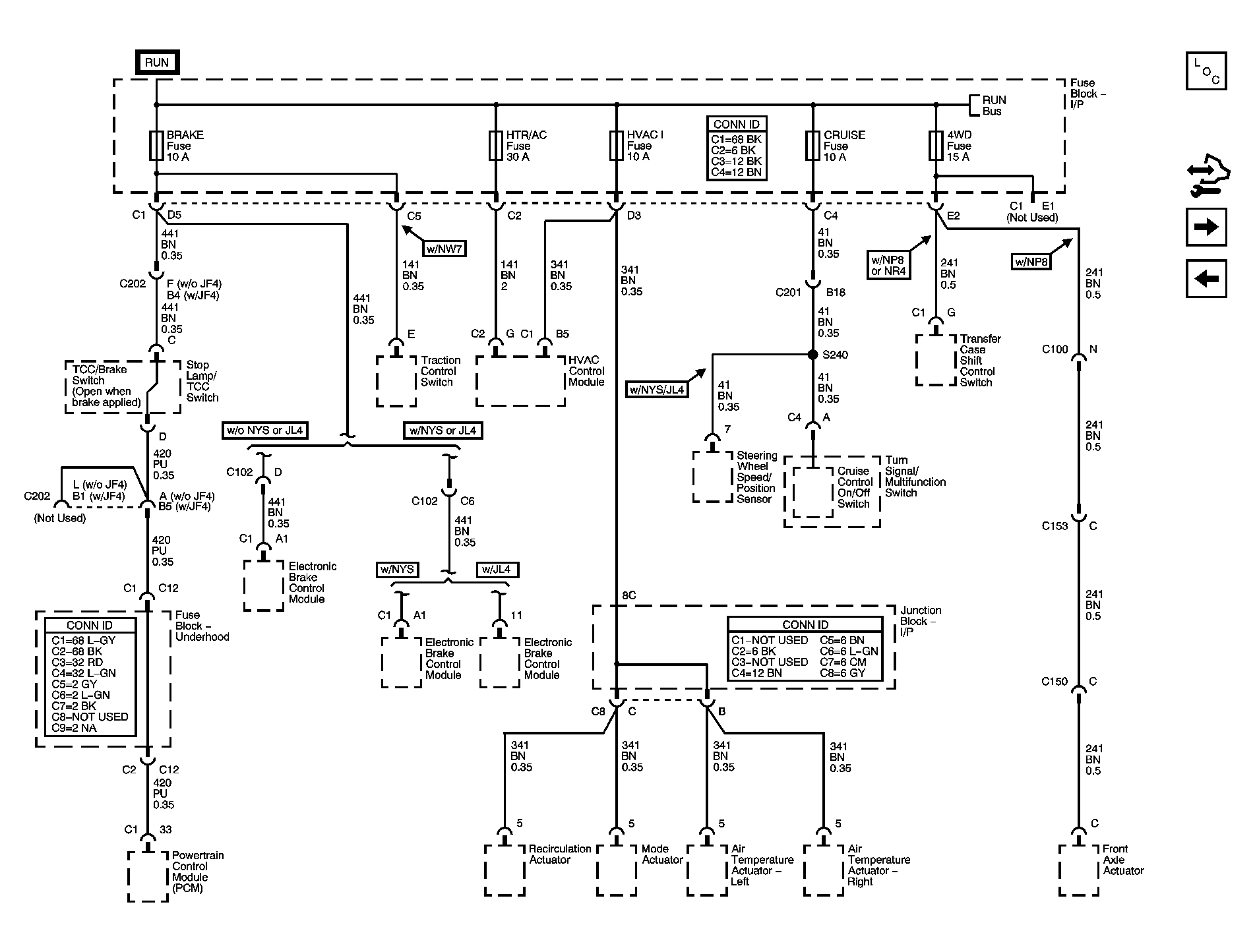

Fig 12: BRAKE, CRUISE, IGN 2, HTR/AC, HVAC 1, and 4WD Fuses Schematics
GM1464636Courtesy of GENERAL MOTORS CORP.

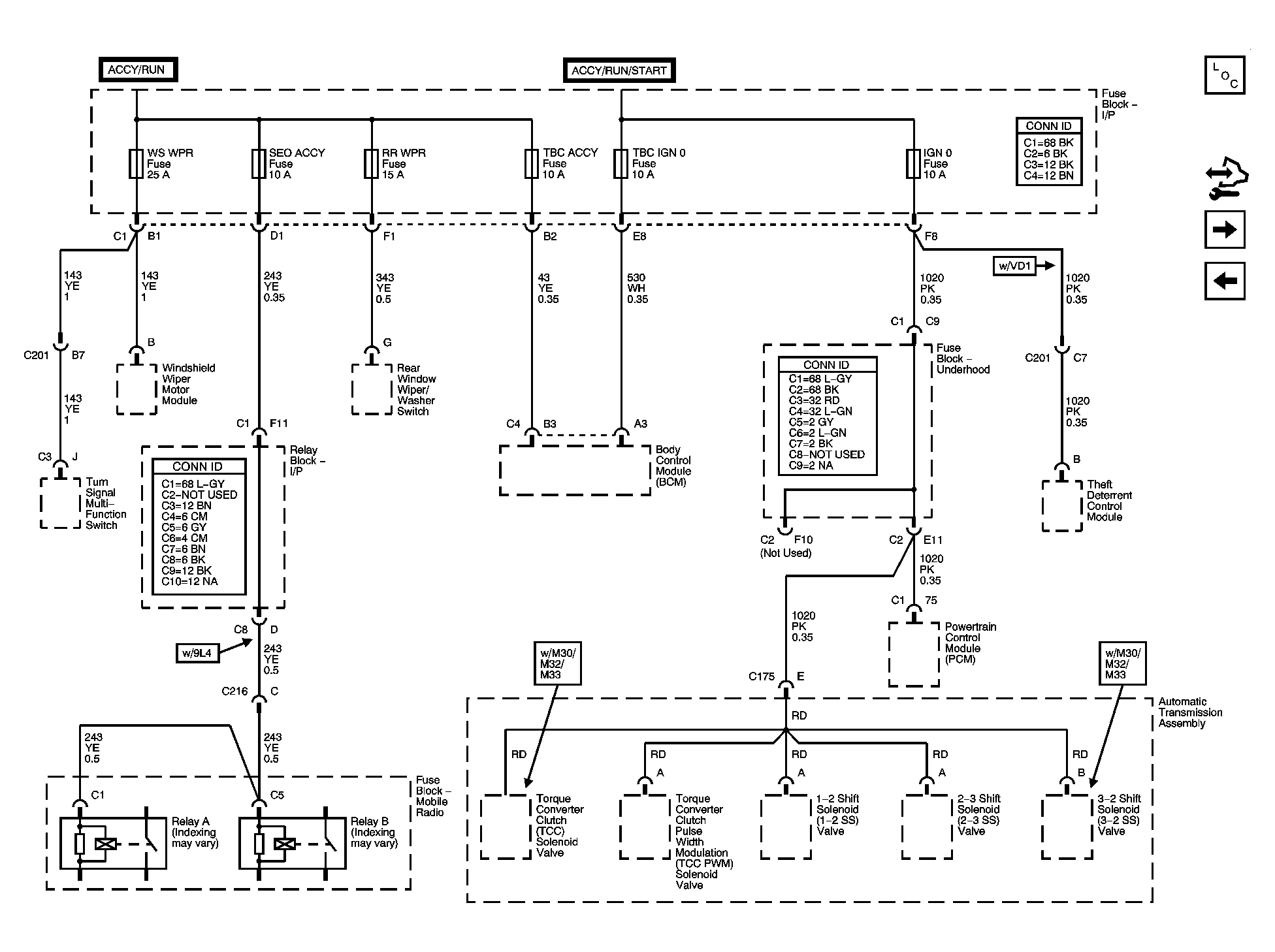

Fig 13: IGN 0, RR WPR, SEO ACCY, TBC ACCY, TBC IGN 0, and WS WPR Fuses Schematics
GM1464637Courtesy of GENERAL MOTORS CORP.

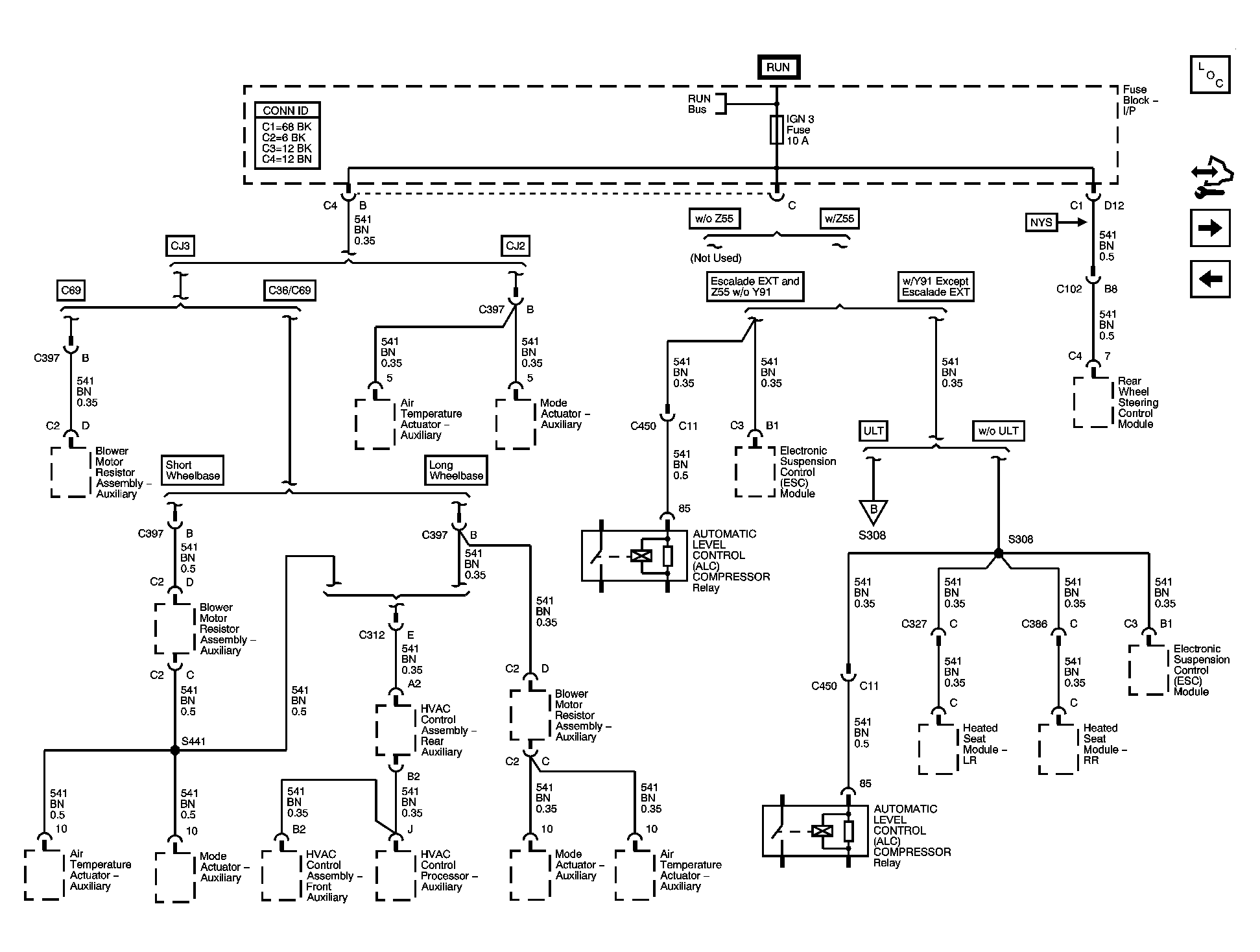

Fig 14: IGN 3 Fuse Schematics - 1 of 2
GM1464638Courtesy of GENERAL MOTORS CORP.

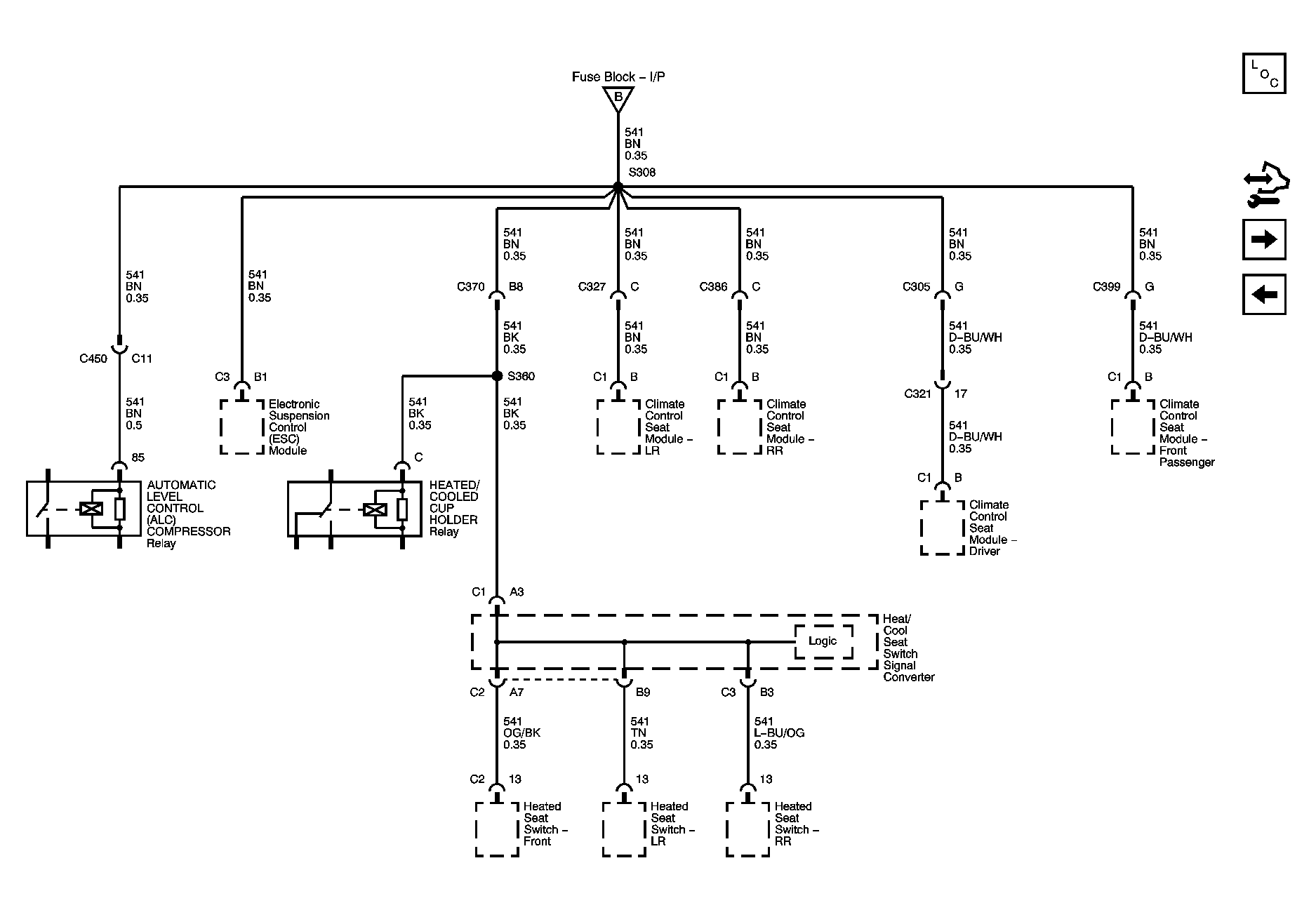

Fig 15: IGN 3 Fuse Schematics, 2 of 2 - ULT
GM1464643Courtesy of GENERAL MOTORS CORP.

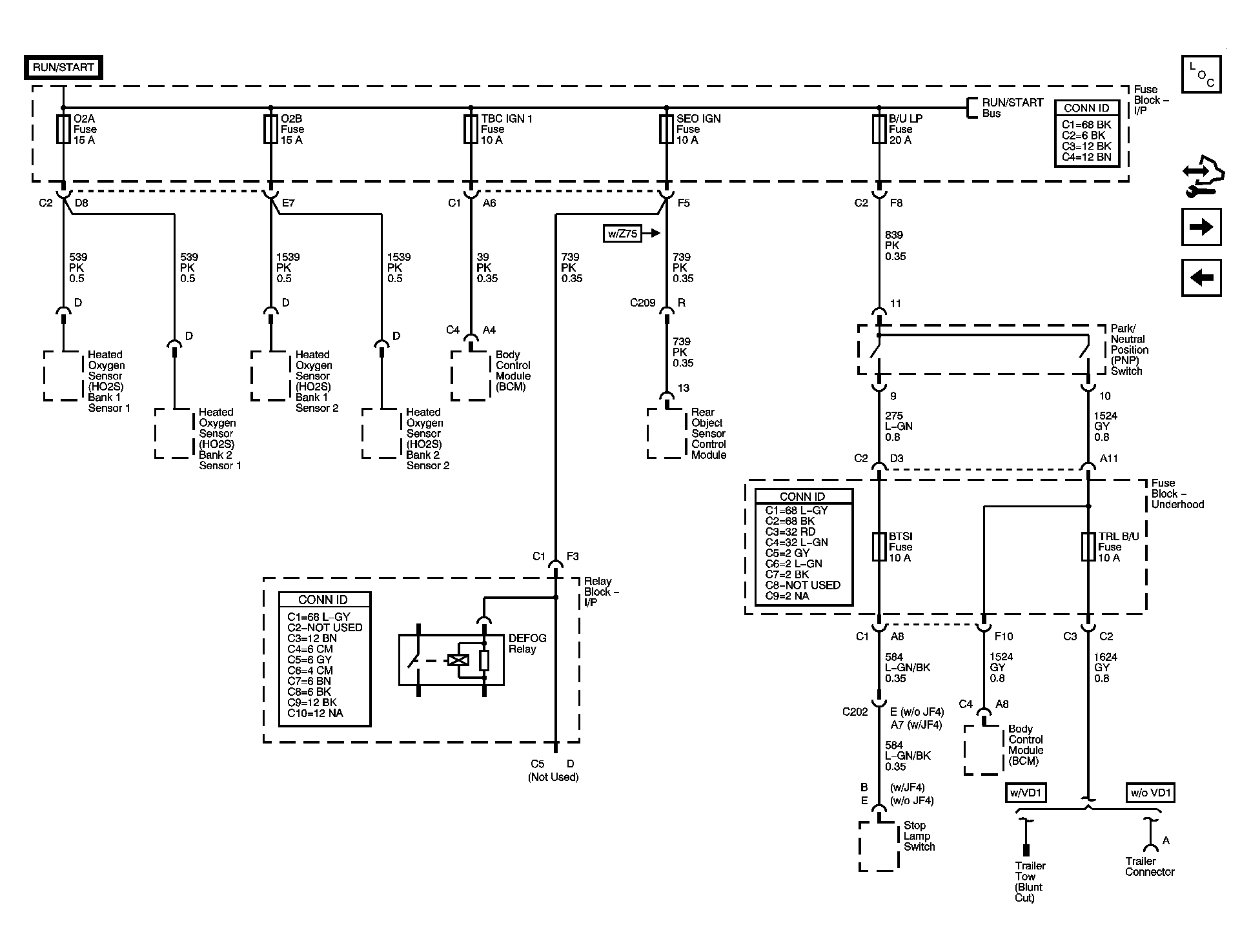

Fig 16: BTSI, B/U LP, O2A, O2B, SEO IGN, TBC IGN 1, and TRL B/U Fuses Schematics
GM1464645Courtesy of GENERAL MOTORS CORP.

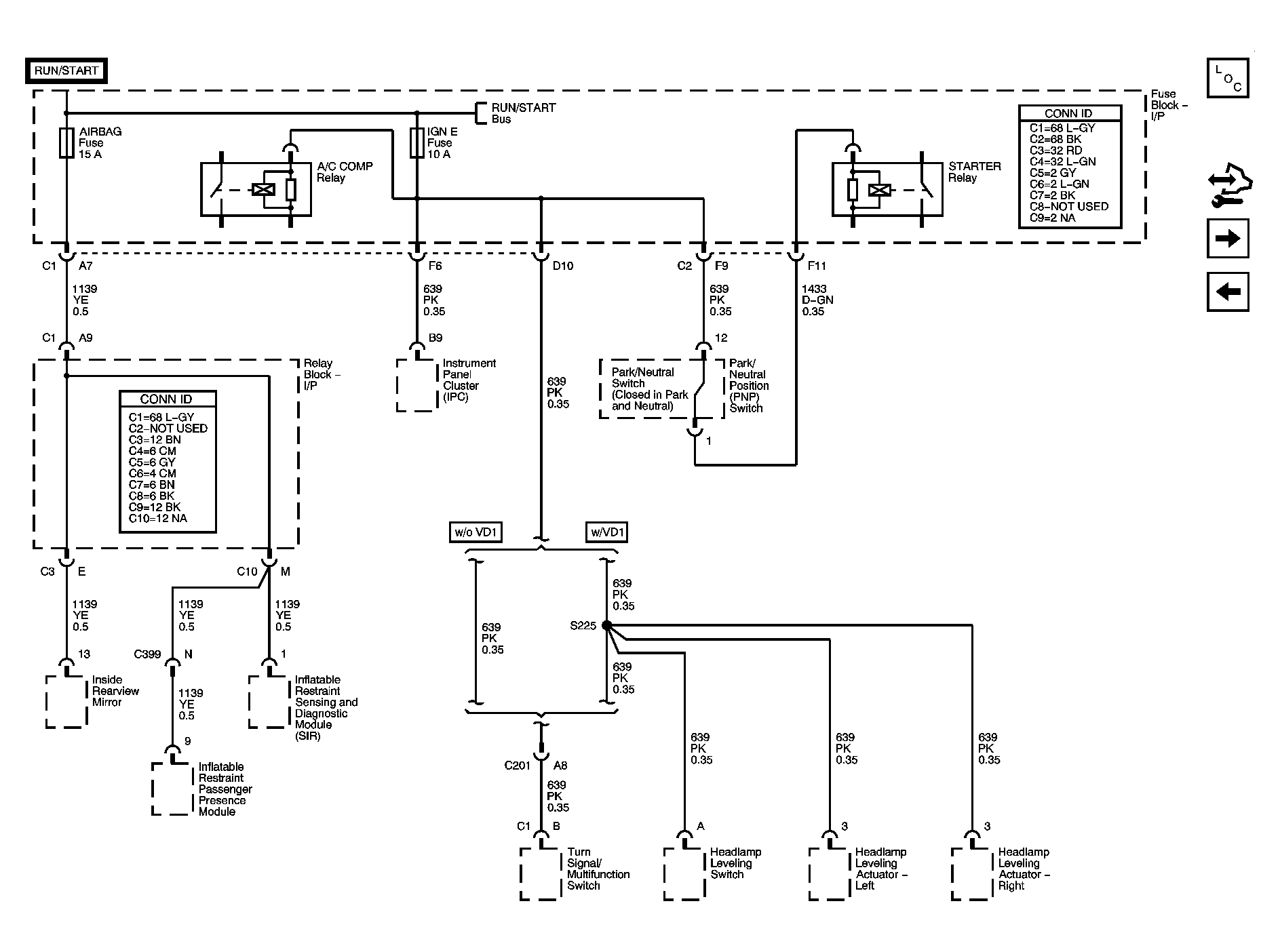

Fig 17: IGN E and SIR Fuses Schematics
GM1464648Courtesy of GENERAL MOTORS CORP.

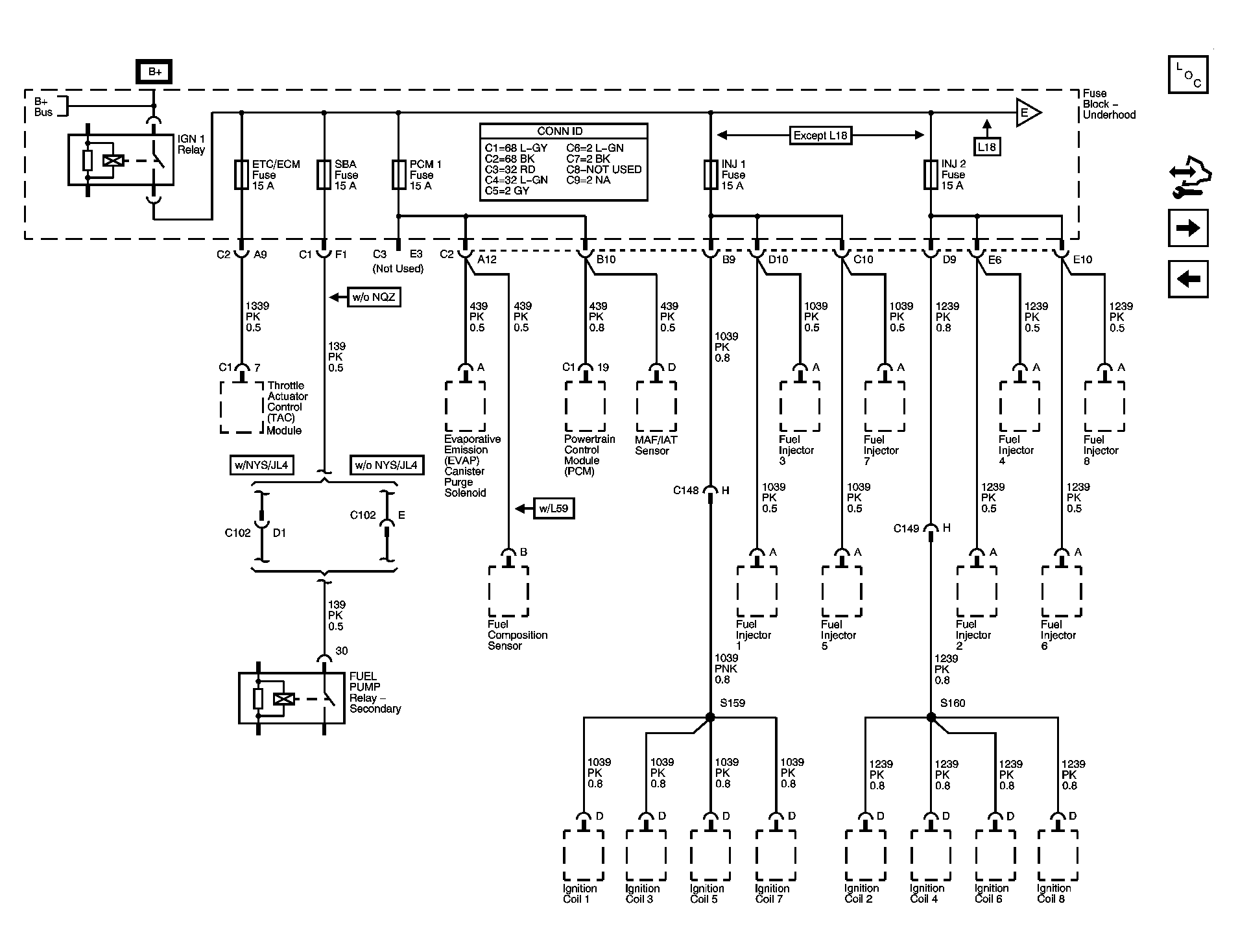

Fig 18: IGN 1 Relay Bus Schematics - 1 of 2 - ETC/ECM, PCM I, and SBA Fuses; INJ 1 and INJ 2 Fuses - Except L18
GM1464649Courtesy of GENERAL MOTORS CORP.

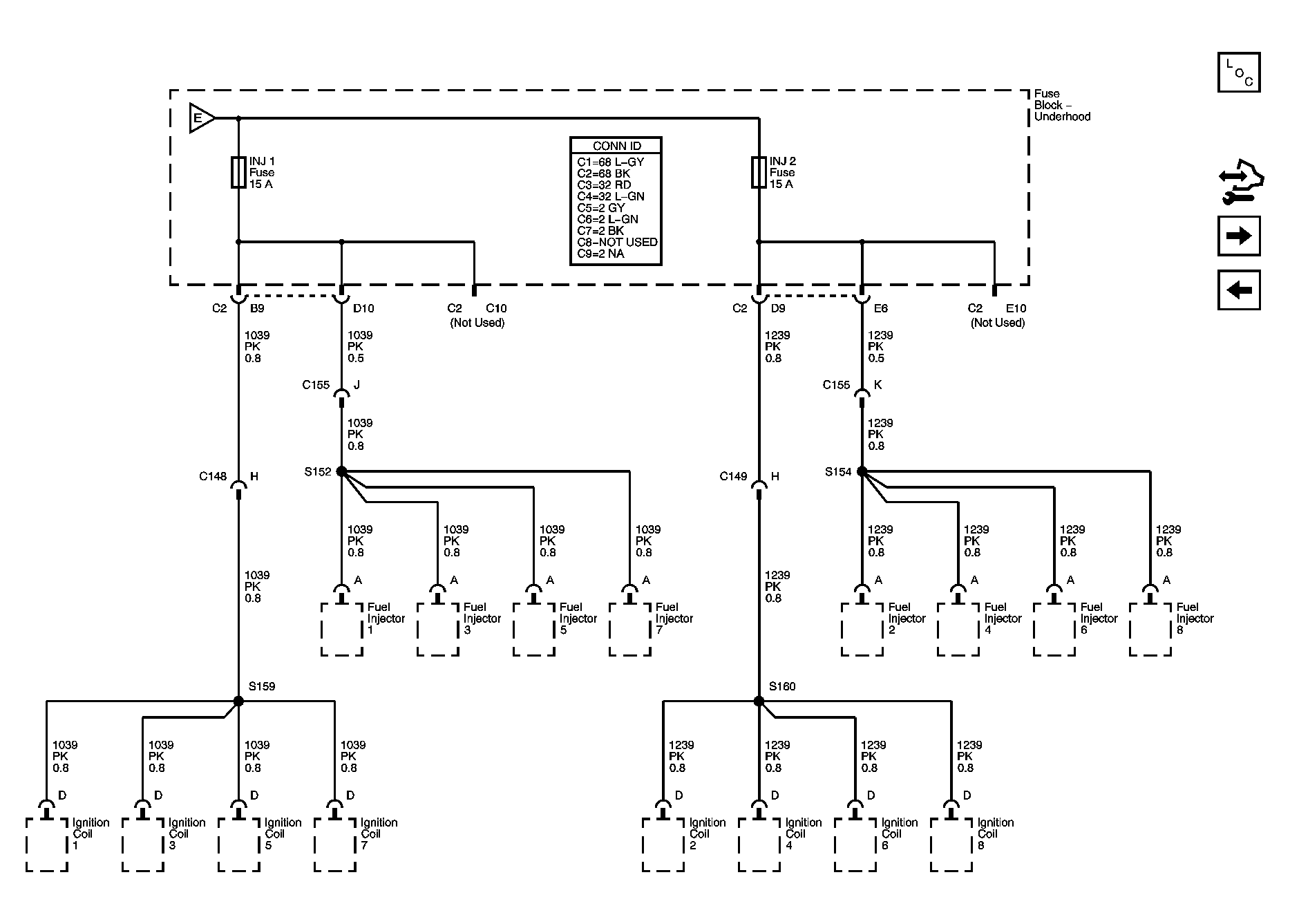

Fig 19: IGN 1 Relay Bus Schematics - 2 of 2 - INJ 1 and INJ 2 Fuses -L18
GM1464655Courtesy of GENERAL MOTORS CORP.

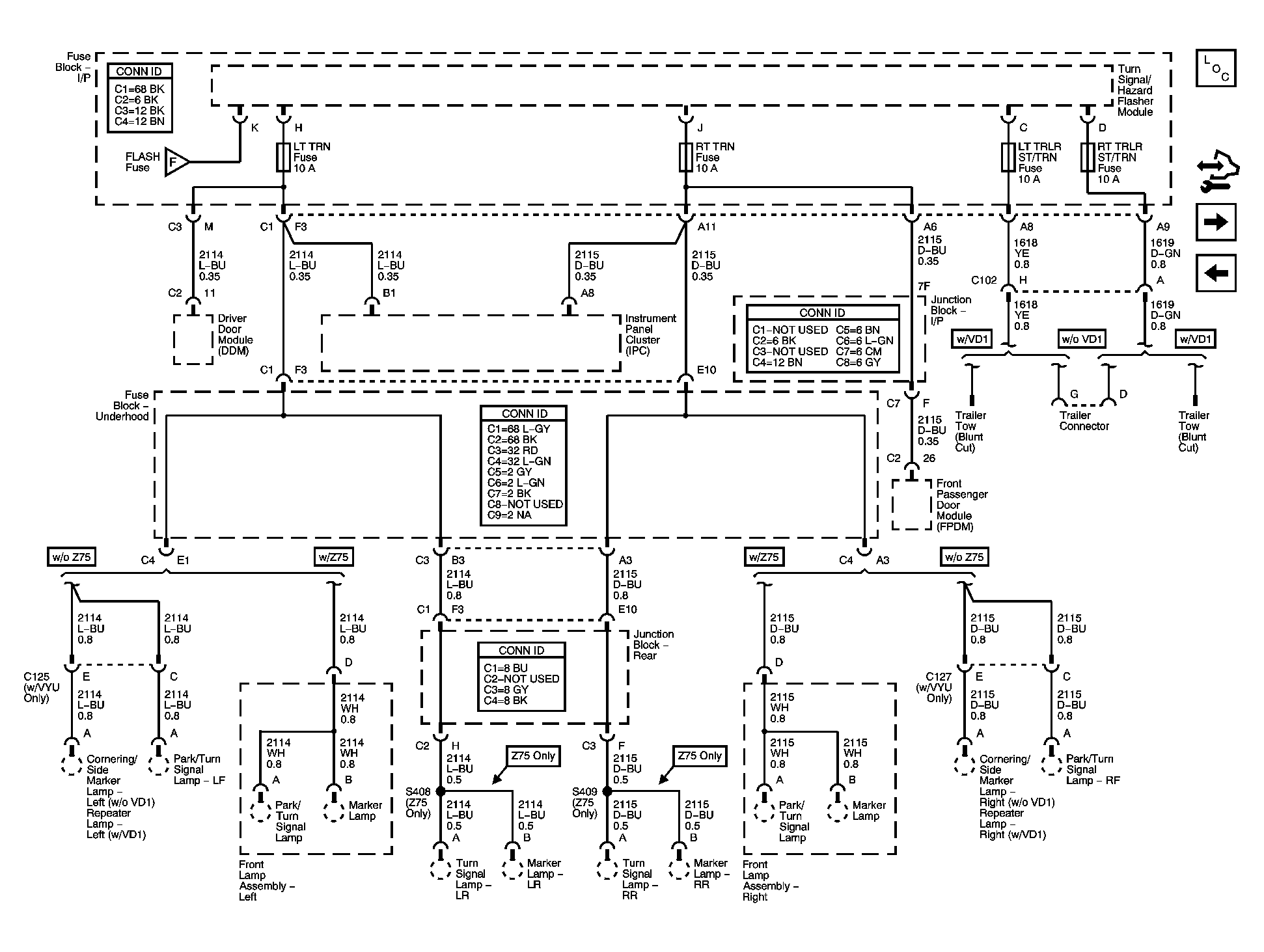

Fig 20: LT TRLR, LT TRN, RT TRLR, and RT TRN Fuses Schematics
GM1464657Courtesy of GENERAL MOTORS CORP.

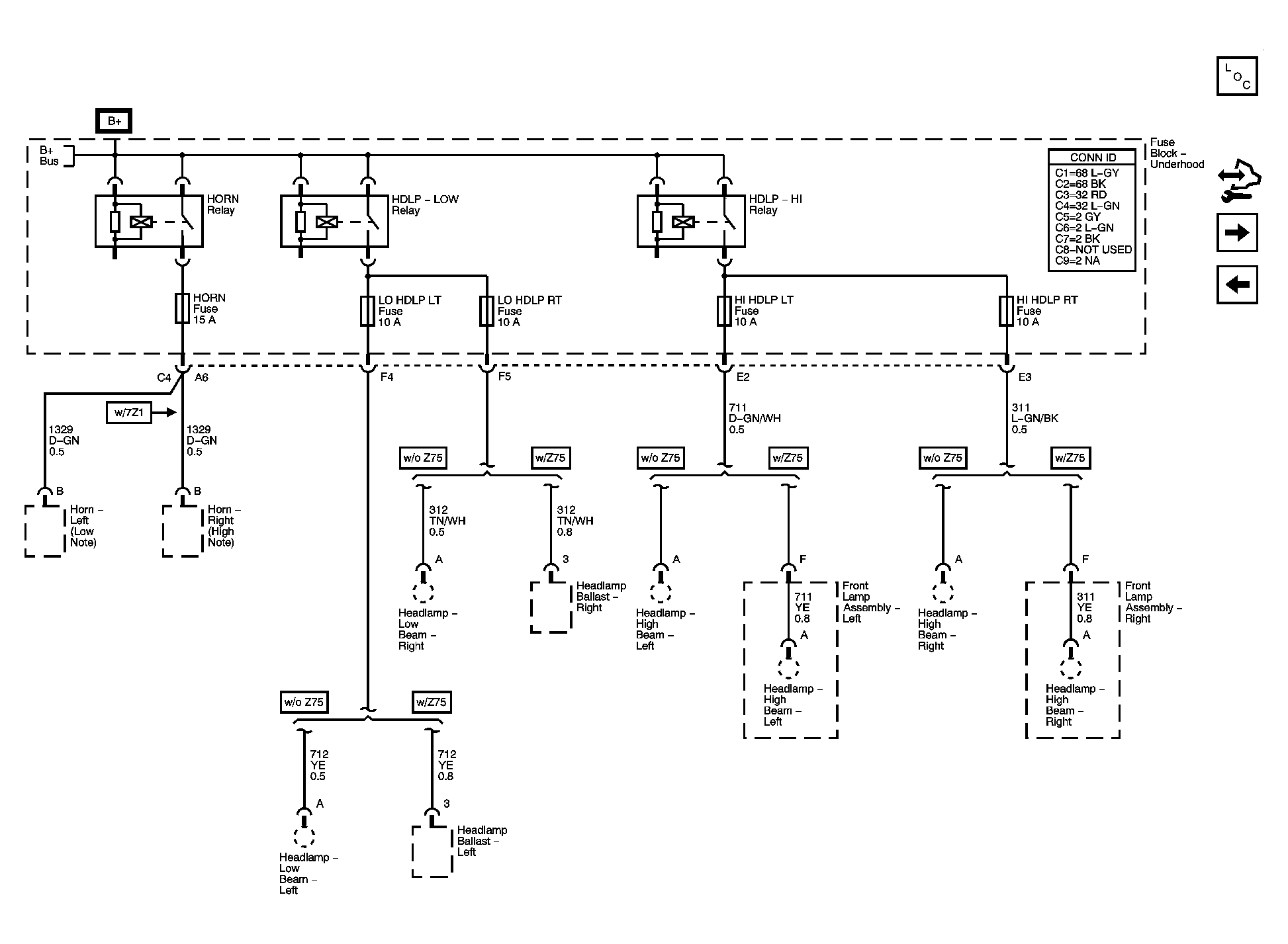

Fig 21: HI HDLP LT, HI HDLP RT, HORN, LO HDLP LT, and LO HDLP RT Fuses Schematics
GM1464665Courtesy of GENERAL MOTORS CORP.

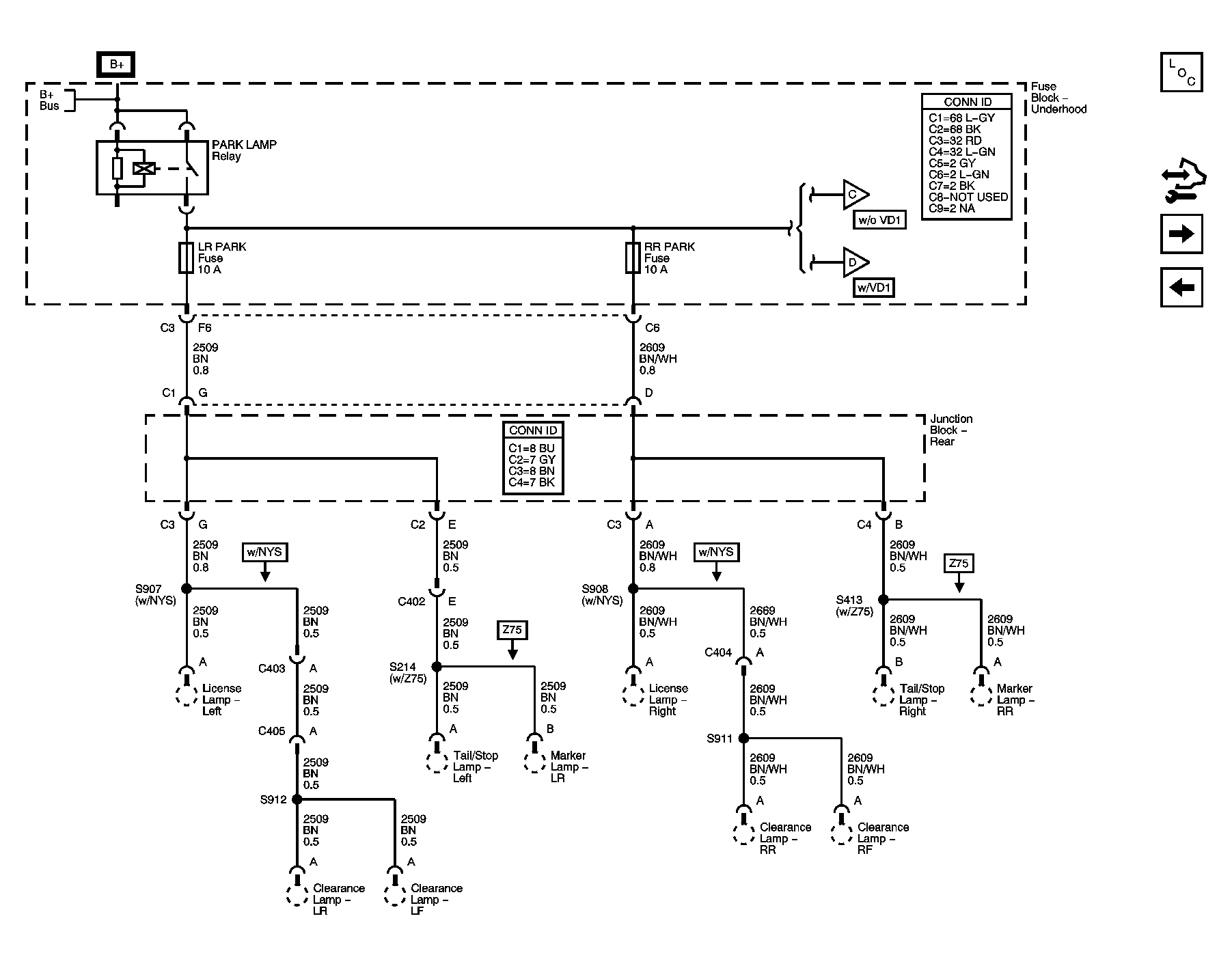

Fig 22: LR PARK and RR PARK Fuses Schematics
GM1464666Courtesy of GENERAL MOTORS CORP.

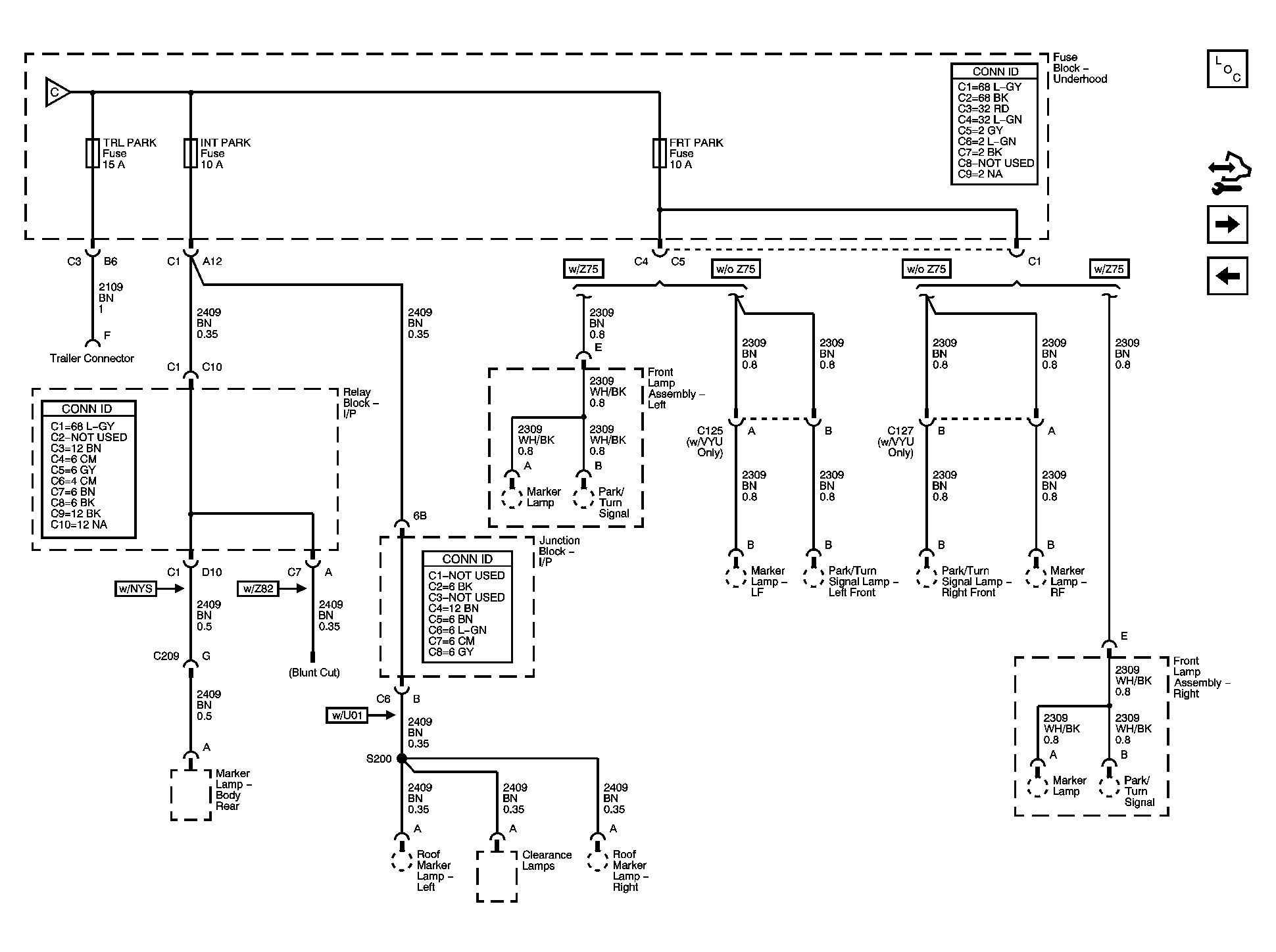

Fig 23: FRT PARK, INT PARK, and TRL PARK Fuses Schematics - Except VD1
GM1464668Courtesy of GENERAL MOTORS CORP.

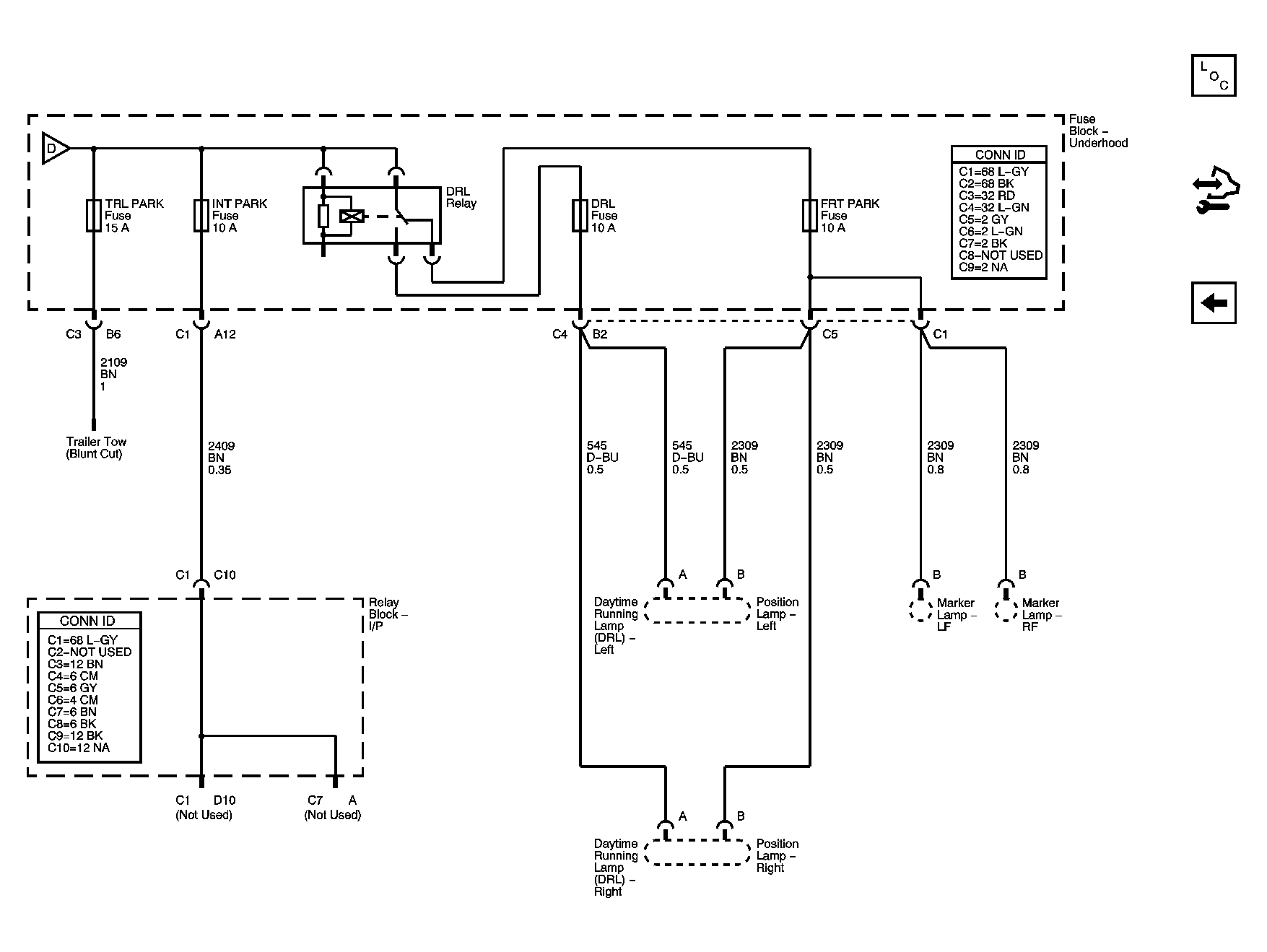

Fig 24: FRT PARK, DRL, INT PARK, and TRL PARK Fuses Schematics - w/VD1
GM1464670Courtesy of GENERAL MOTORS CORP.
