Ground Distribution Schematics

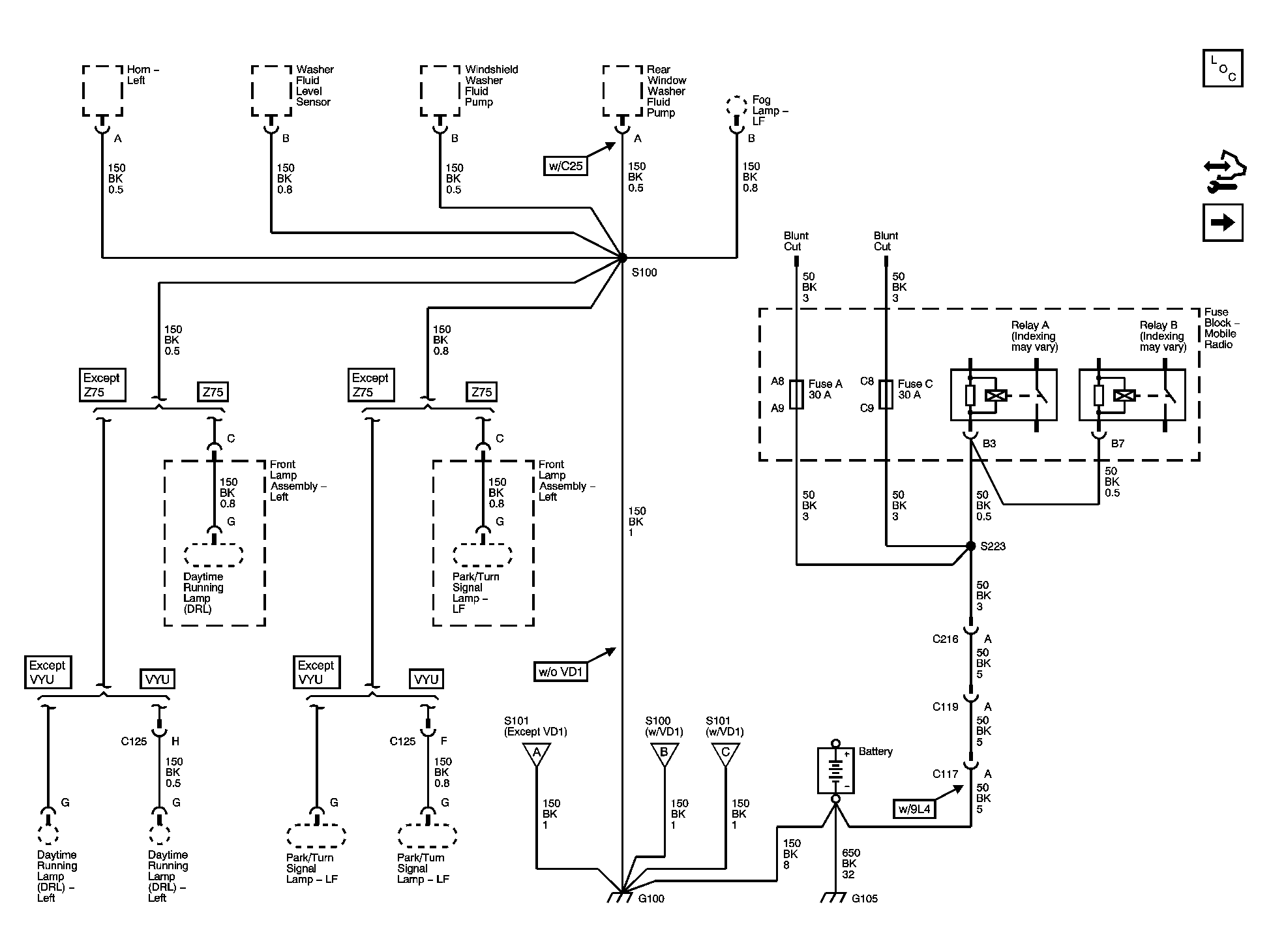

Fig 1: G100 and G105 Schematics - 1 of 4

Courtesy of GENERAL MOTORS CORP.

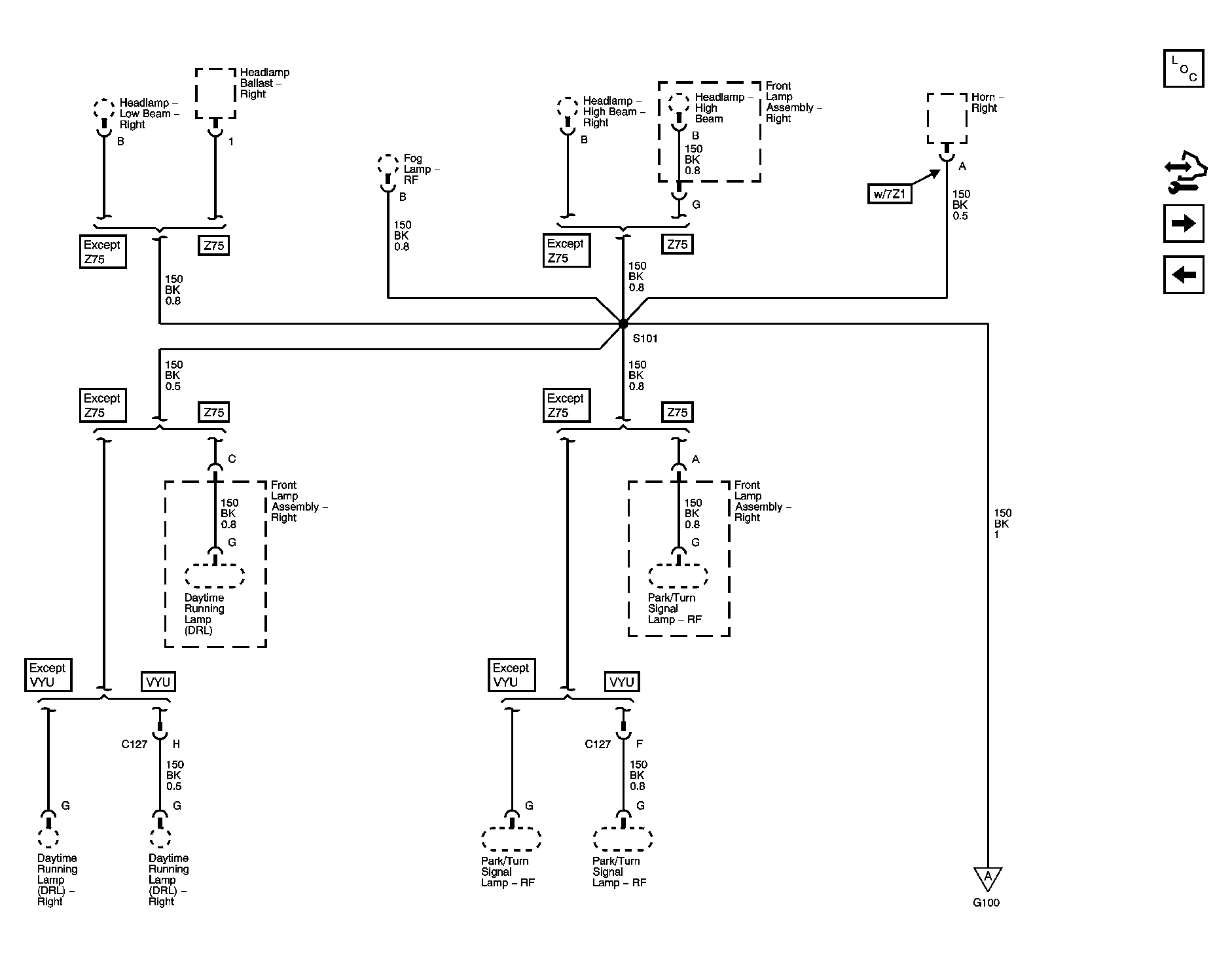

Fig 2: G100 and G105 Schematics - 2 of 4 - S101 Except VD1

Courtesy of GENERAL MOTORS CORP.

Fig 3: G100 and G105 Schematics - 3 of 4 - S100 w/VD1

Courtesy of GENERAL MOTORS CORP.

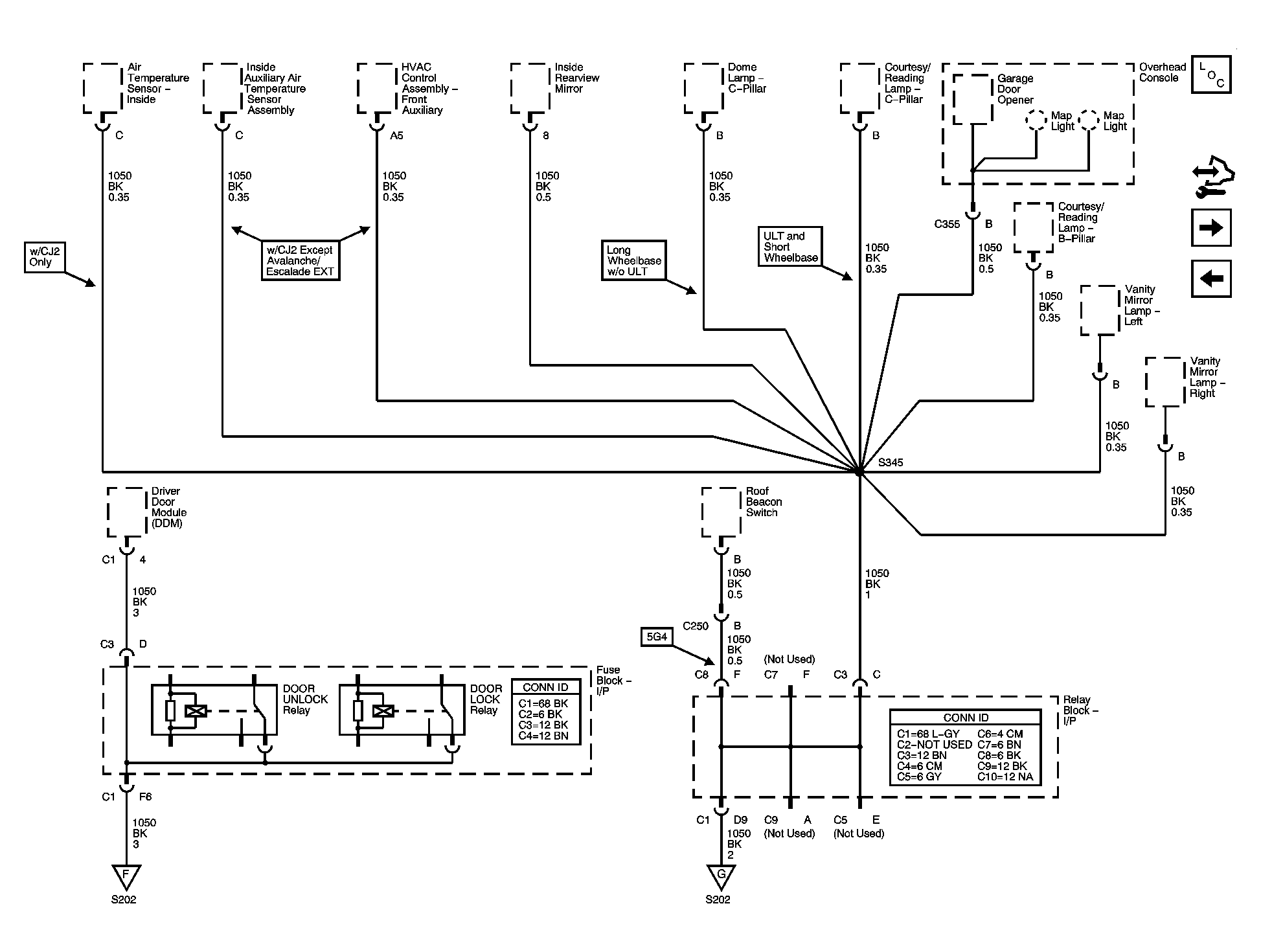

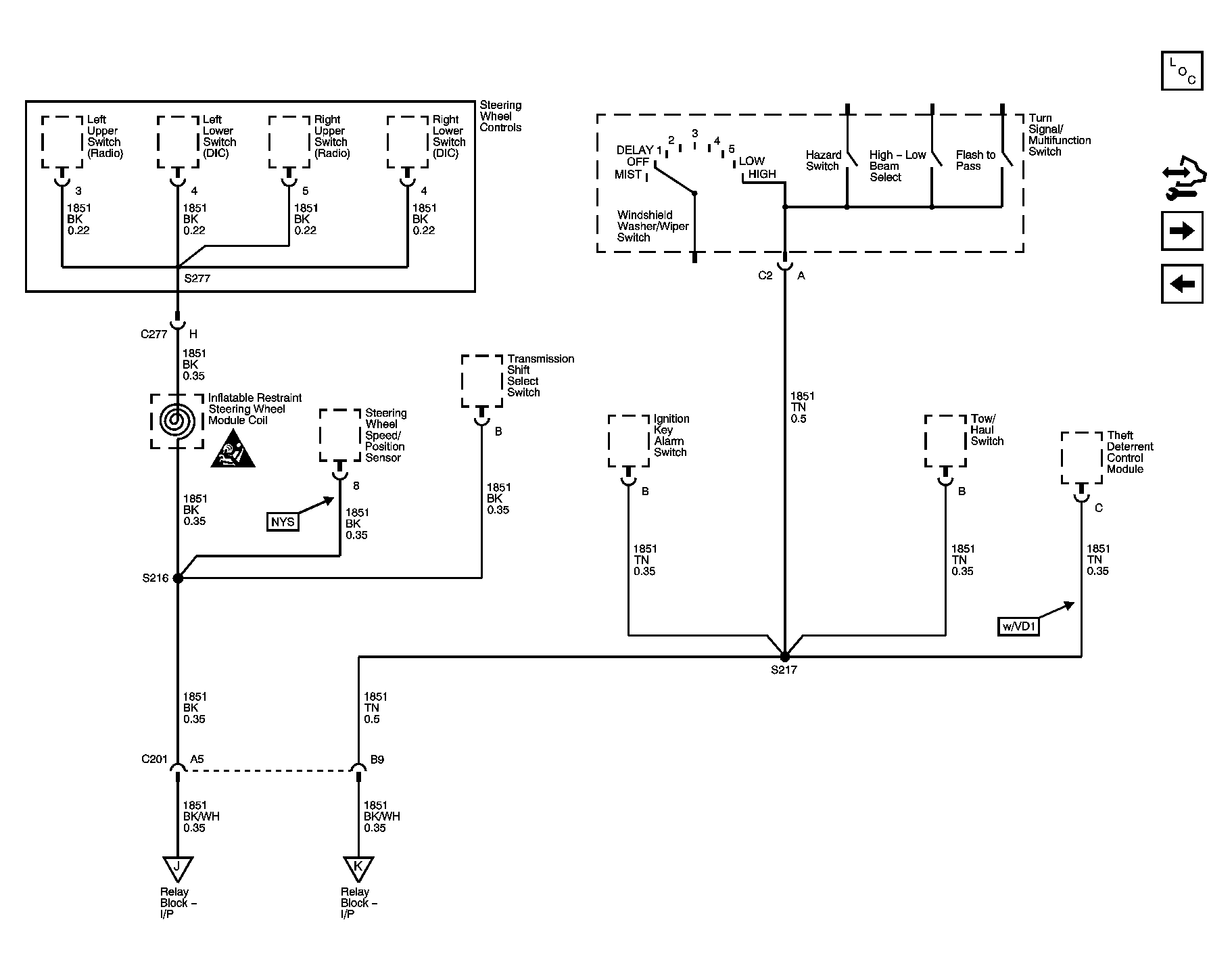

Fig 4: G100 and G105 Schematics - 4 of 4 - S101 w/VD1

Courtesy of GENERAL MOTORS CORP.

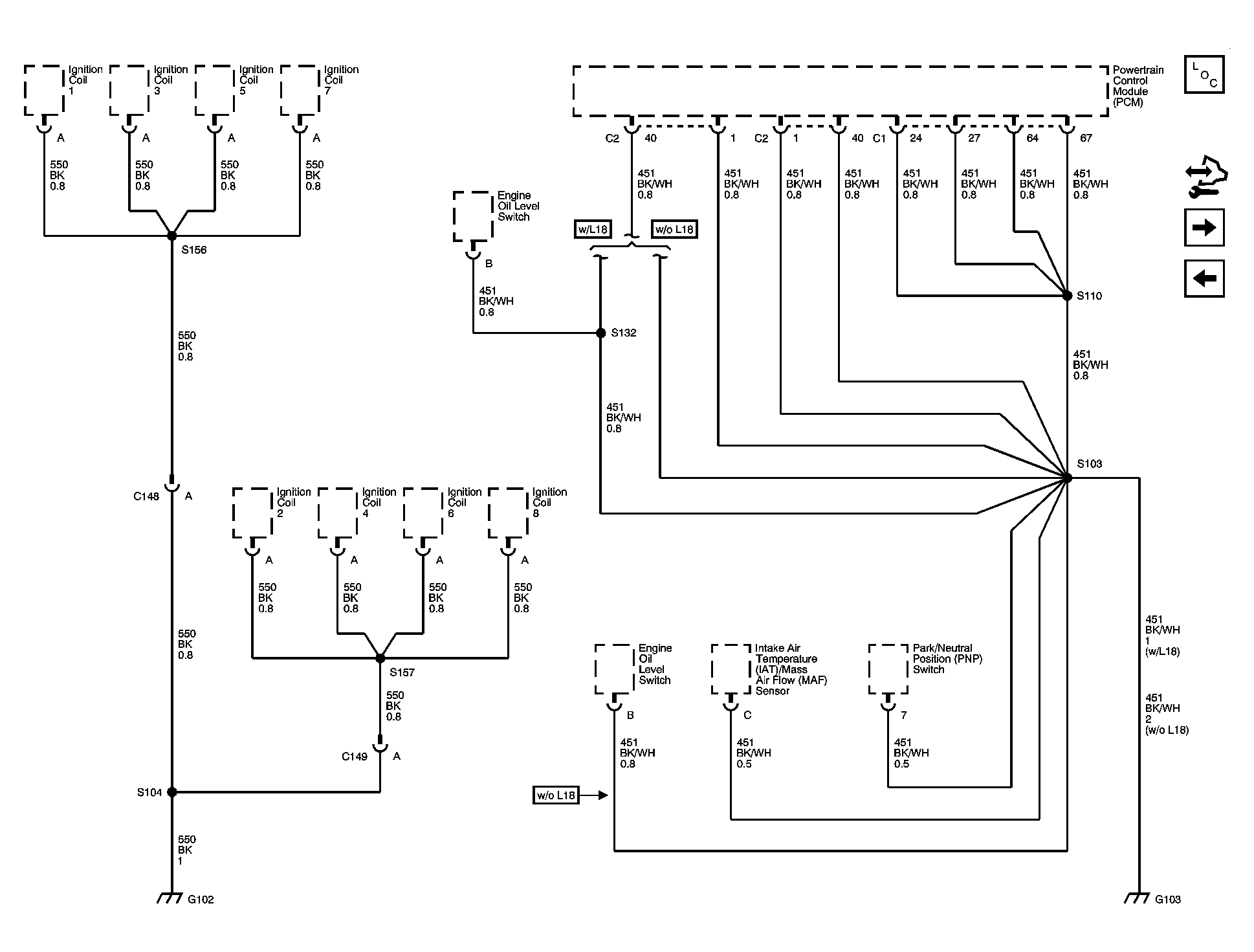

Fig 5: G102 and G103 Schematics

Courtesy of GENERAL MOTORS CORP.

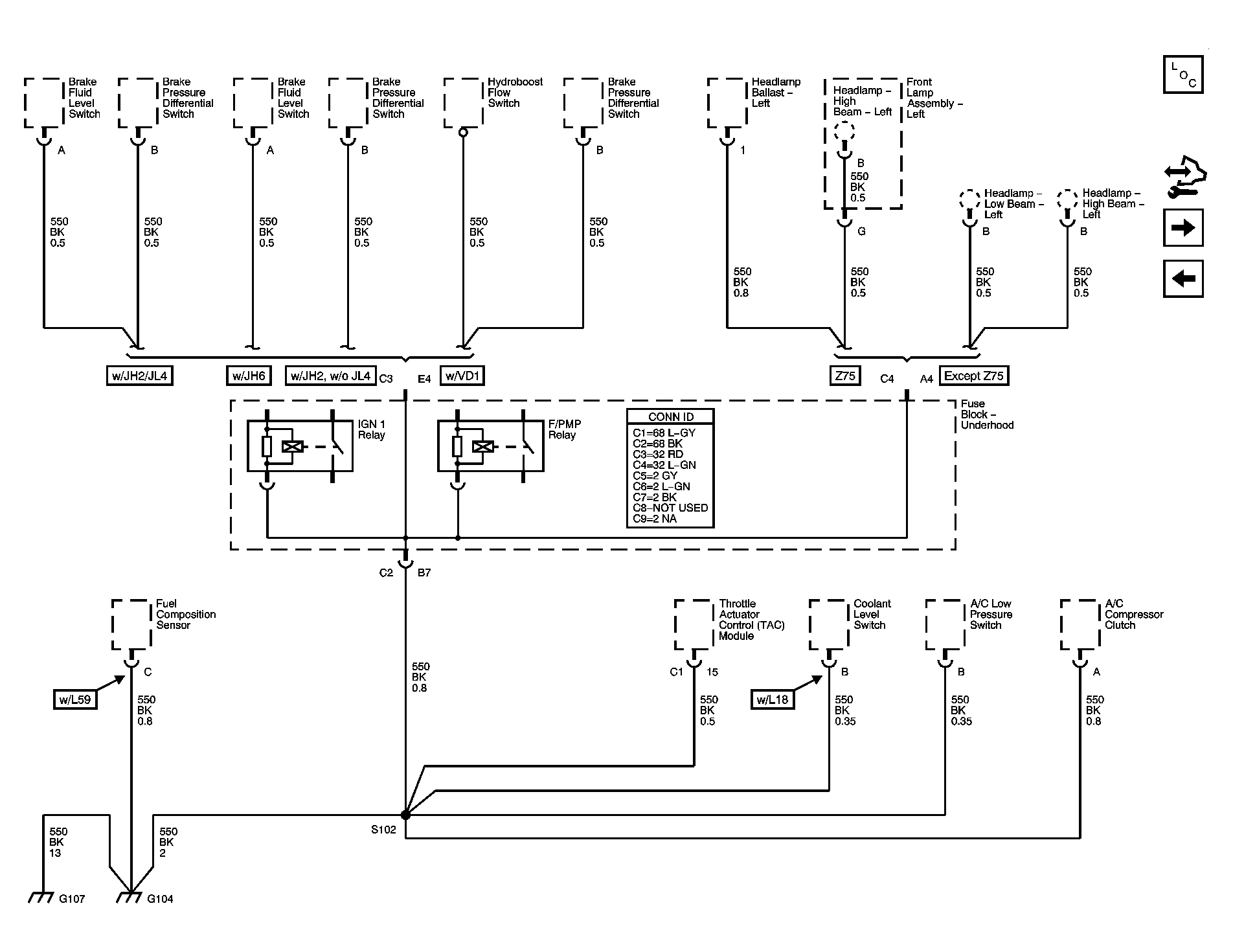

Fig 6: G104 and G107 Schematics

Courtesy of GENERAL MOTORS CORP.

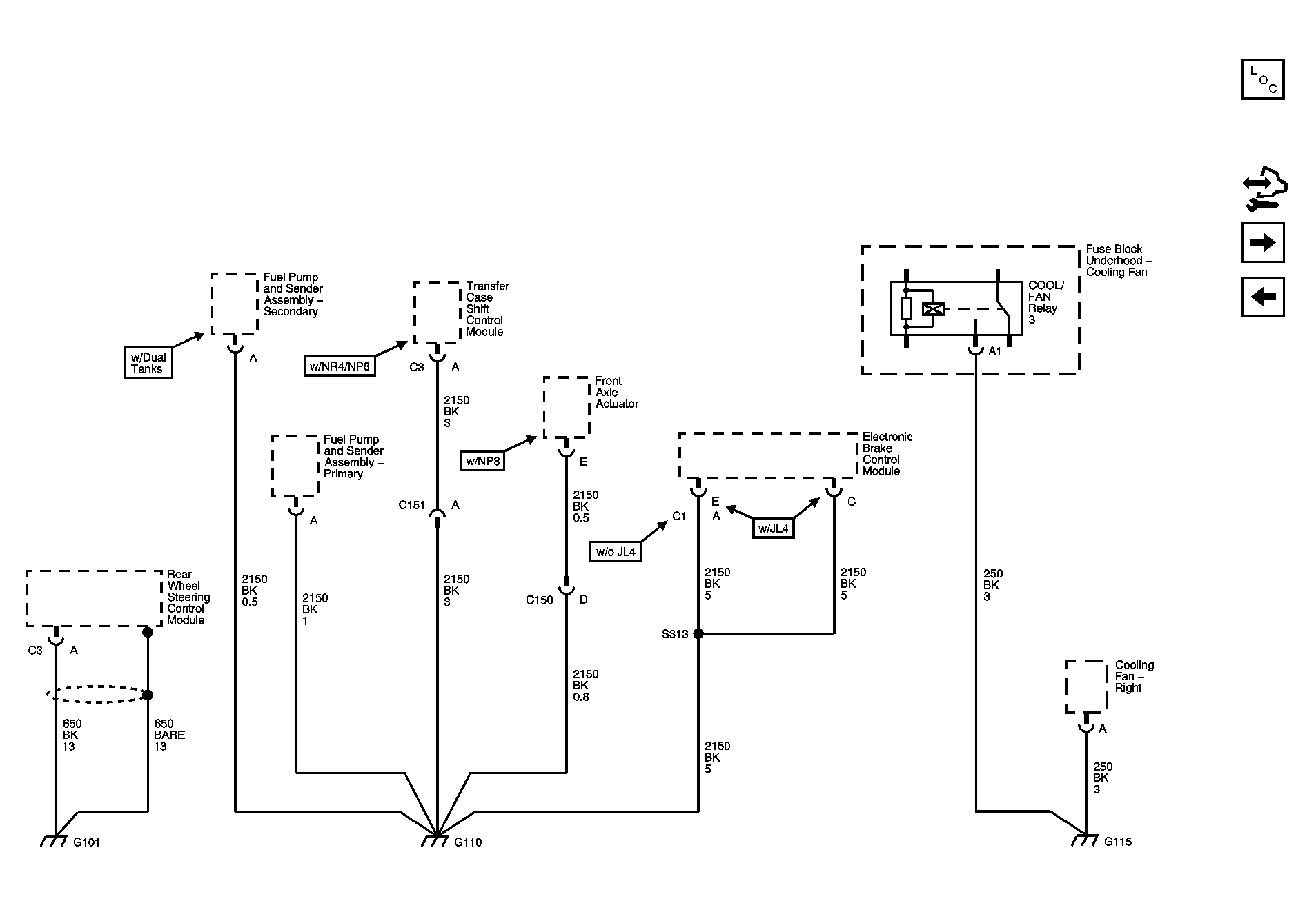

Fig 7: G101 and G110 Schematics

Courtesy of GENERAL MOTORS CORP.

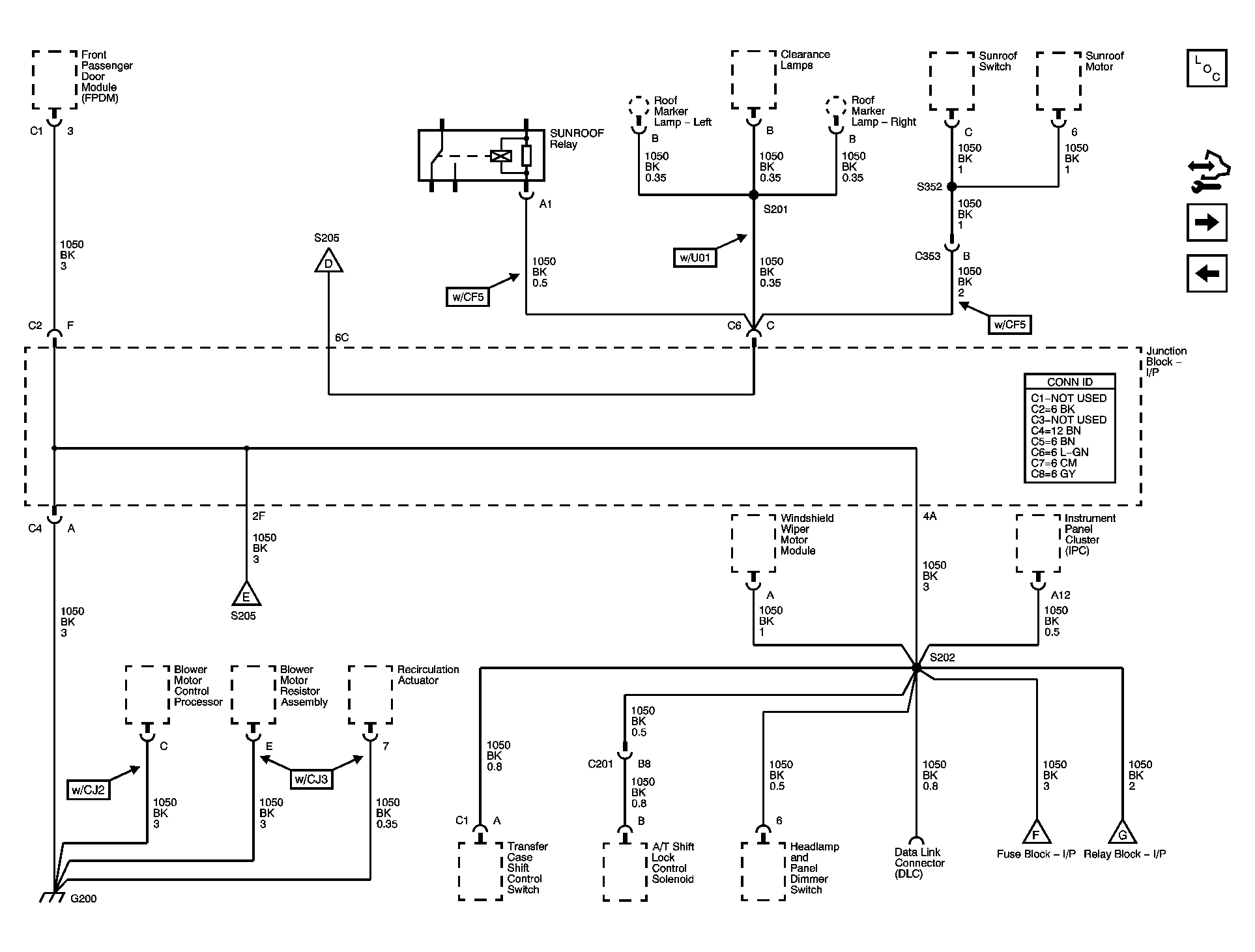

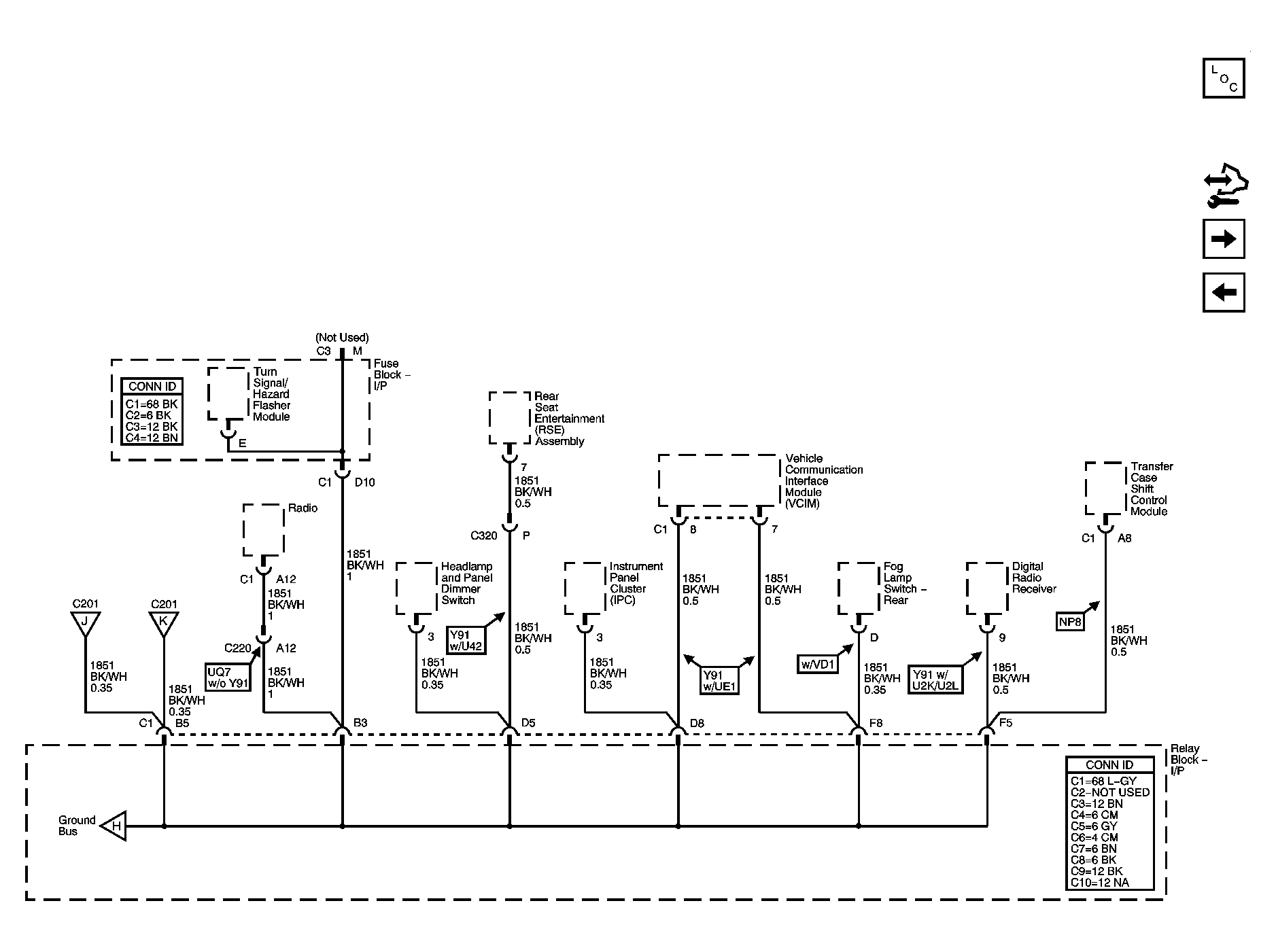

Fig 8: G200 Schematics - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 9: G200 Schematics - 2 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 10: G200 Schematics - 3 of 3

Courtesy of GENERAL MOTORS CORP.

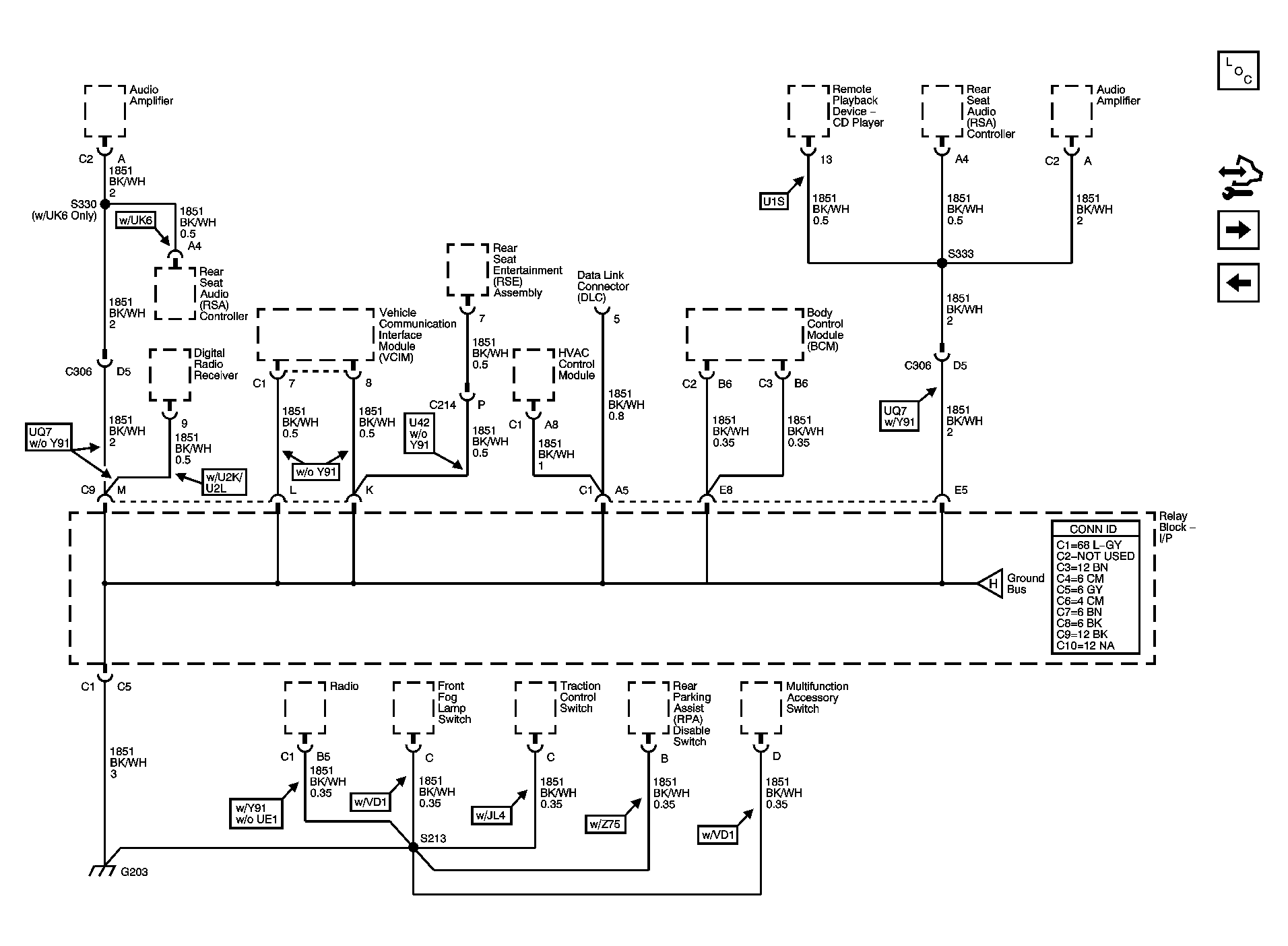

Fig 11: G203 Schematics - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 12: G203 Schematics - 2 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 13: G203 Schematics - 3 of 3

Courtesy of GENERAL MOTORS CORP.

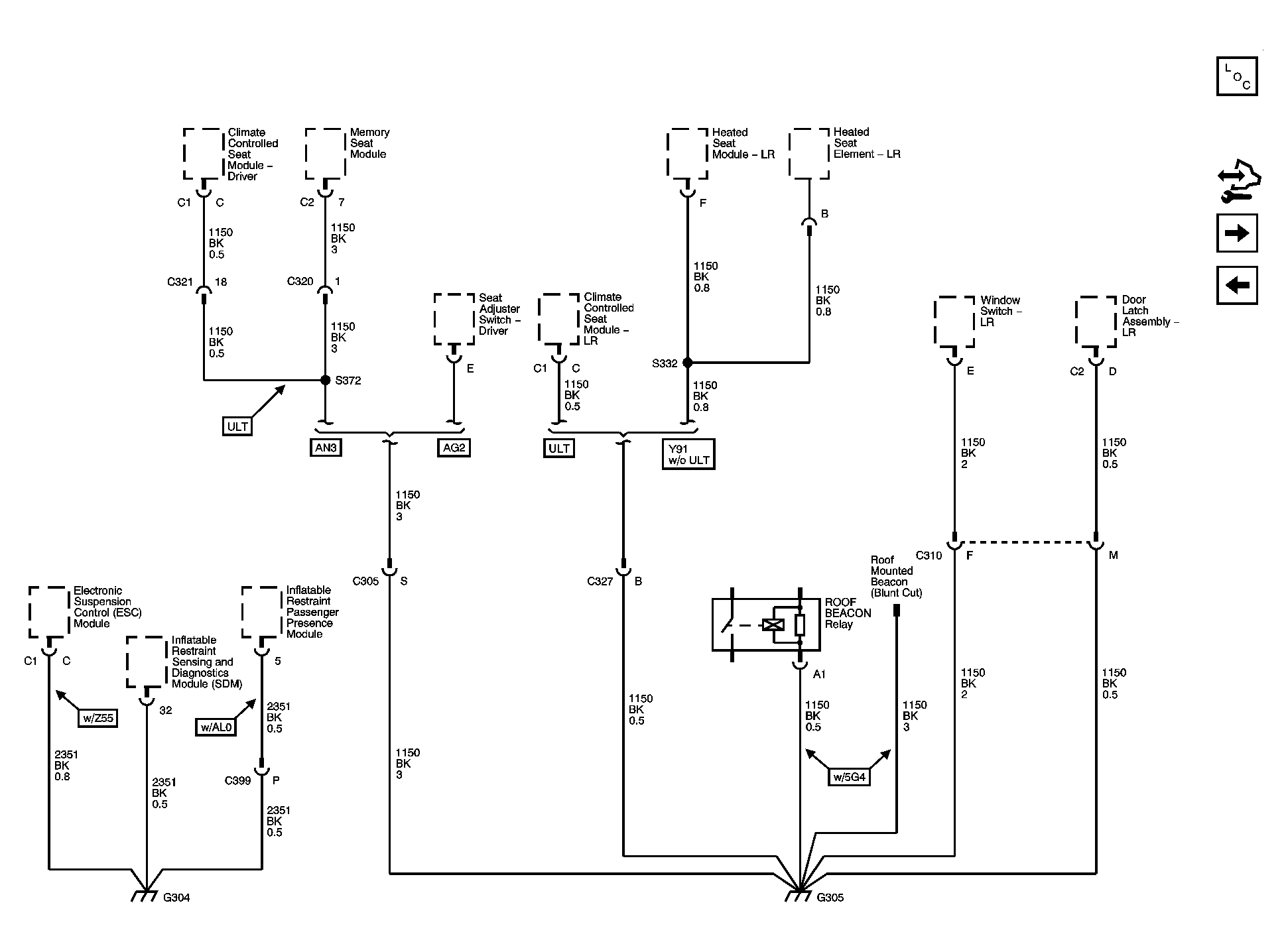

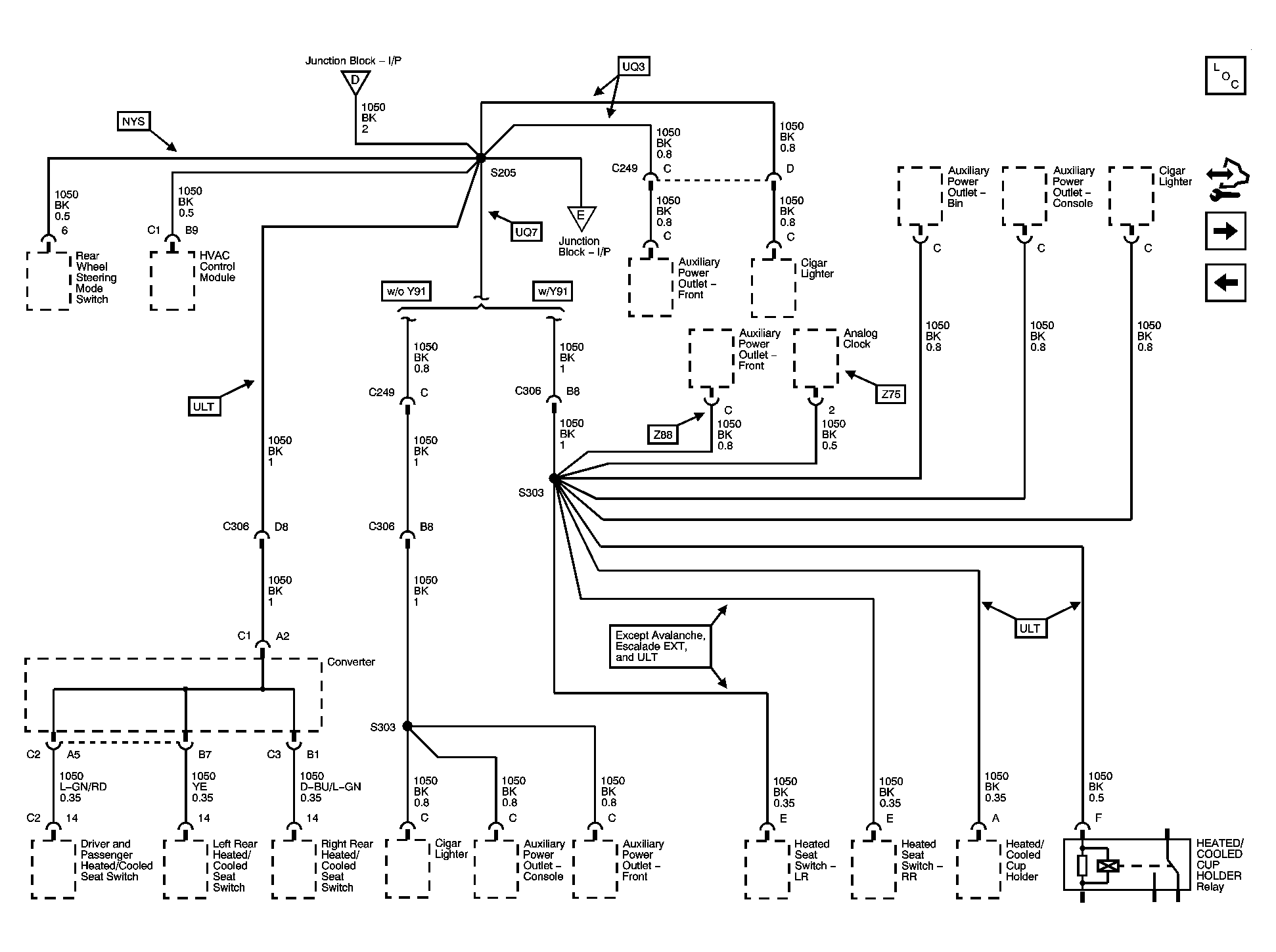

Fig 14: G303 and G305 Schematics

Courtesy of GENERAL MOTORS CORP.

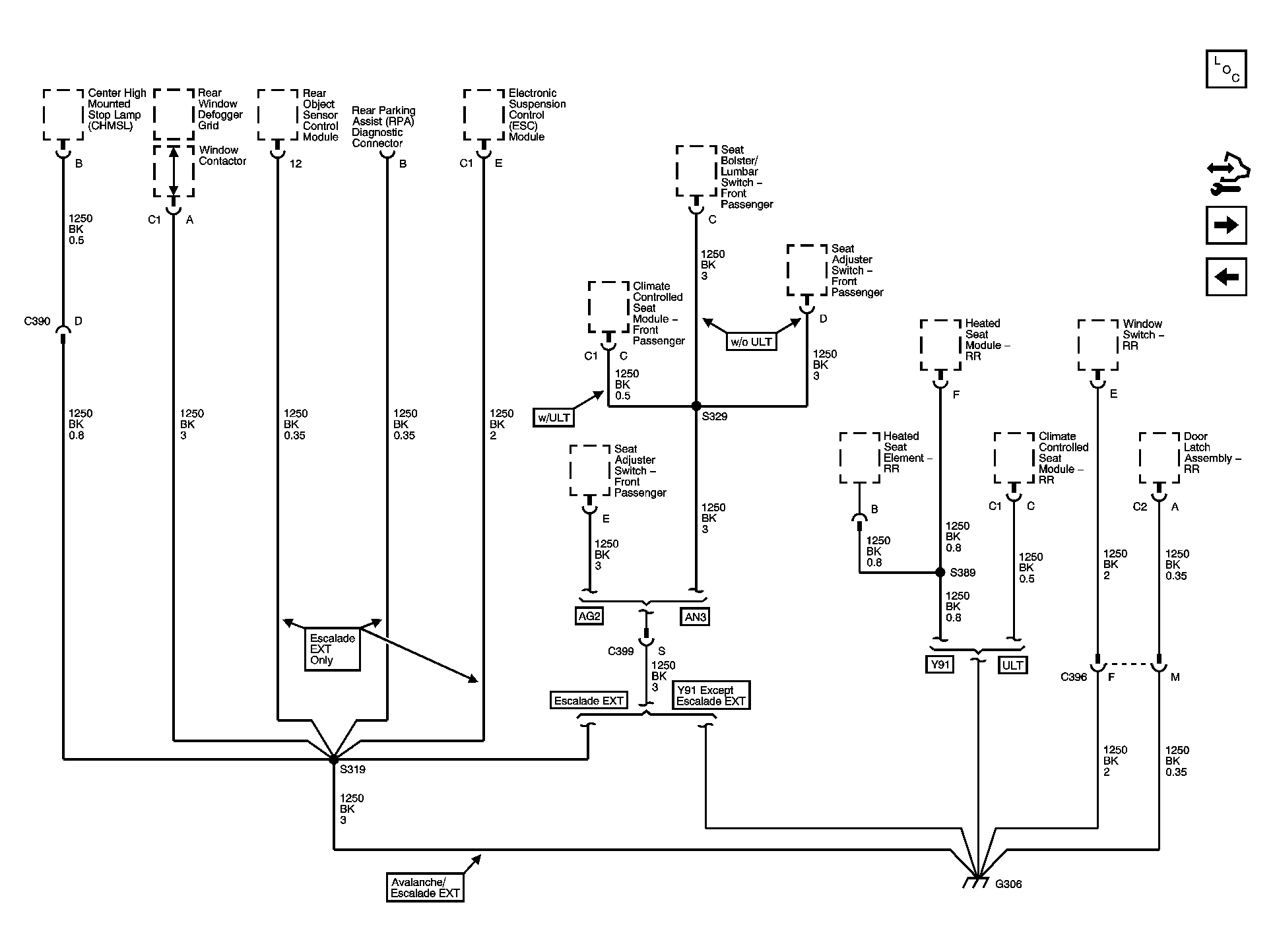

Fig 15: G306 Schematics

Courtesy of GENERAL MOTORS CORP.

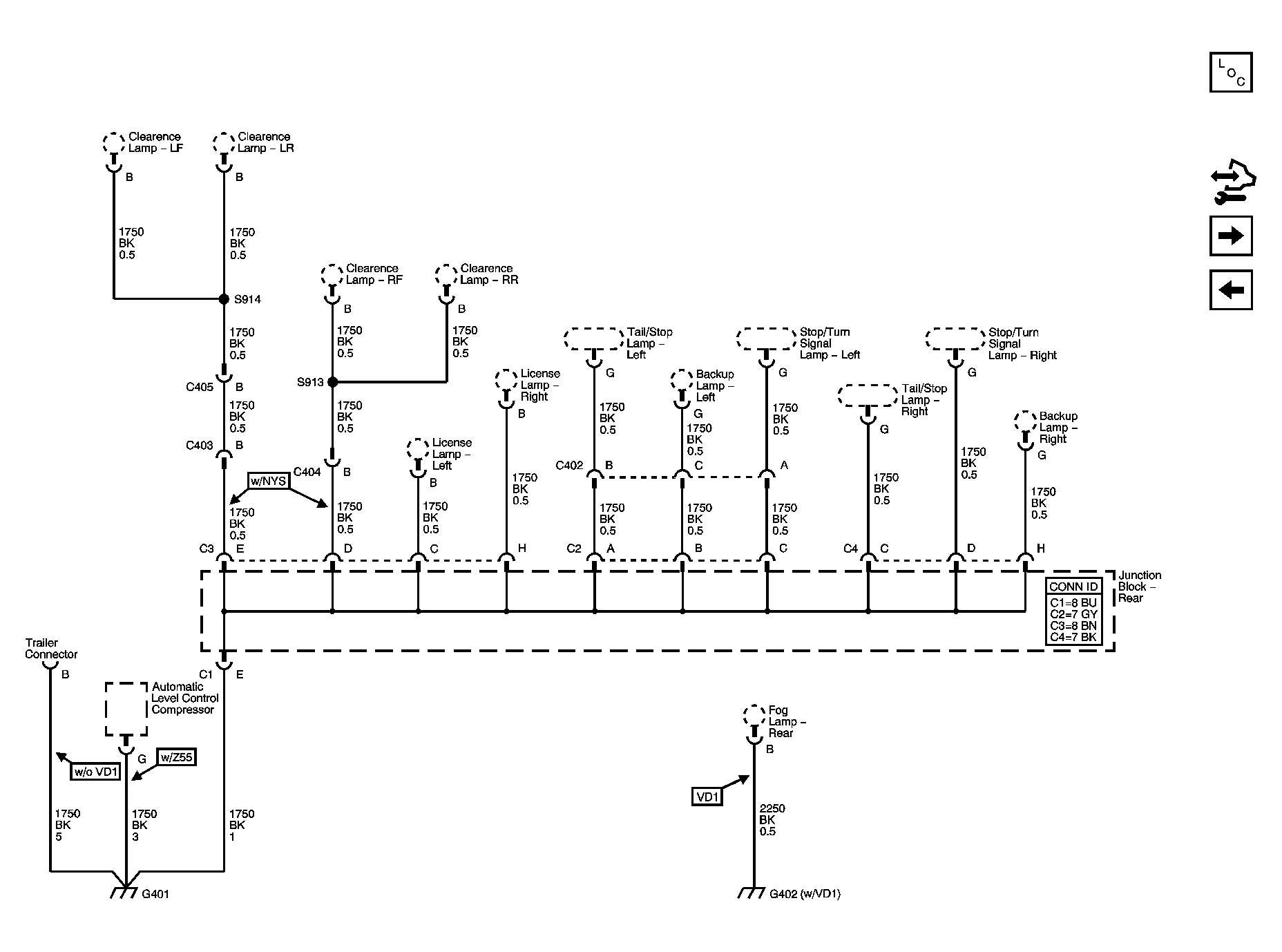

Fig 16: G401 and G402 Schematics

Courtesy of GENERAL MOTORS CORP.

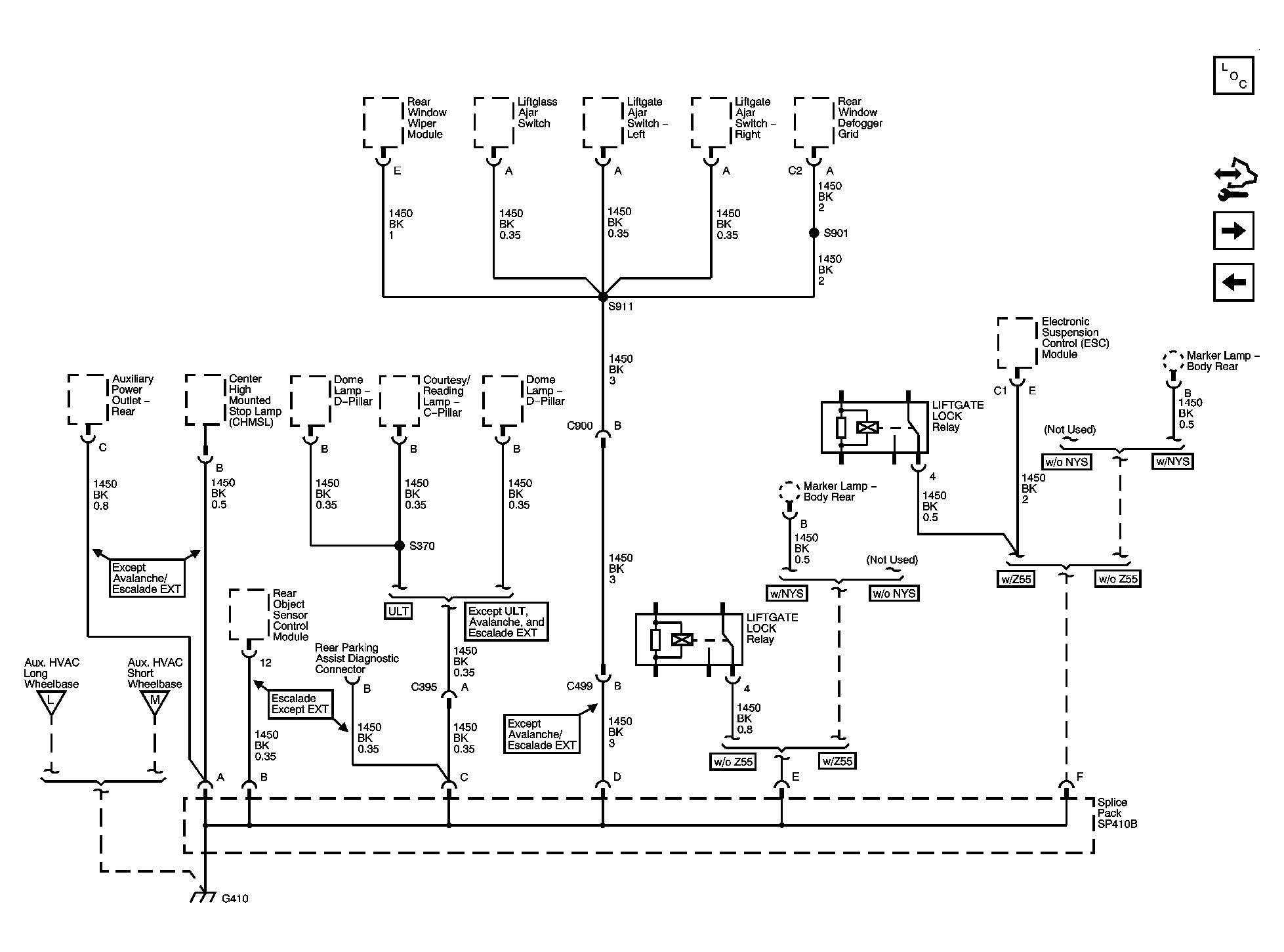

Fig 17: G410 Schematics - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 18: G410 Schematics - 2 of 3, Auxiliary HVAC Long Wheelbase

Courtesy of GENERAL MOTORS CORP.
