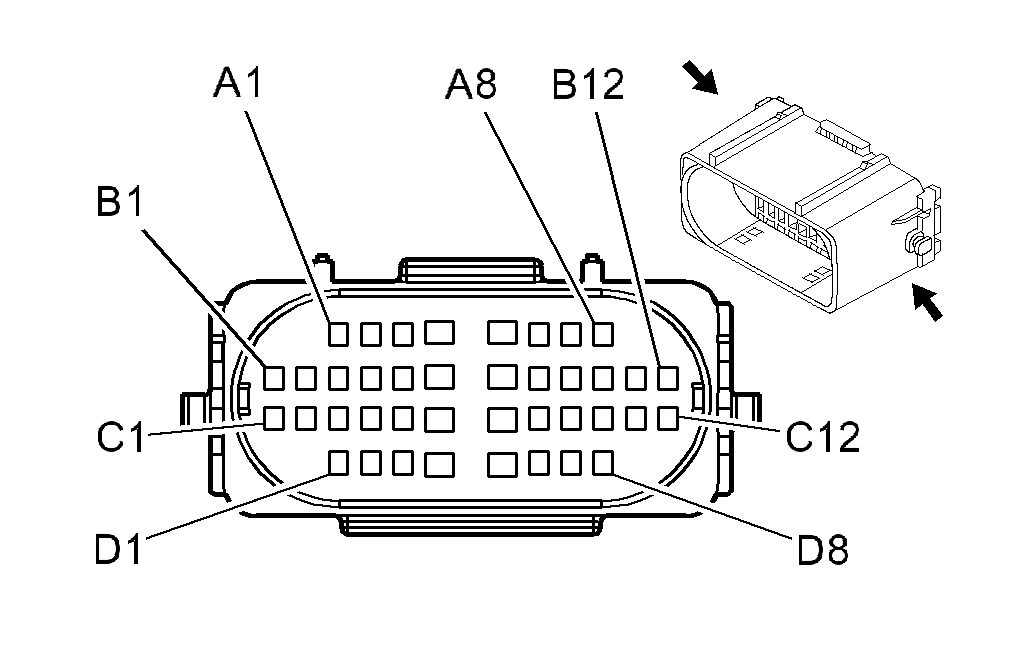

C102 Chassis Harness to I/P Harness Connector End View (w/NYS or JL4)
C102 Chassis Harness to I/P Harness (w/NYS or JL4)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | D BU | 2544 | Rear Wheel Steer Mode Select Switch 5-Volt Reference (NYS) | A1 | D BU | 2544 | Rear Wheel Steer Mode Select Switch 5-Volt Reference (NYS) |
| A2 | - | - | Not Used | A2 | - | - | Not Used |
| A3 | OG | 2538 | 4-Wheel Steer Trailer Mode Indicator Supply Voltage (NYS) | A3 | OG | 2538 | 4-Wheel Steer Trailer Mode Indicator Supply Voltage (NYS) |
| A4 | L-BU | 2568 | 2 Wheel Steer Mode Indicator Control(NYS) | A4 | L-BU | 2568 | 2 Wheel Steer Mode Indicator Control (NYS) |
| A5 | TN | 2569 | 4 Wheel Steer Mode Indicator Control (NYS) | A5 | TN | 2569 | 4 Wheel Steer Mode Indicator Control (NYS) |
| A6 | D-GN/WH | 817 | Vehicle Speed Signal (NYS) | A6 | D-GN/WH | 817 | Vehicle Speed Signal (NYS) |
| A7 | D-GN | 2567 | Rear Wheel Steering Module Class 2 Serial Data (NYS) | A7 | D-GN | 2567 | Rear Wheel Steering Module Class 2 Serial Data (NYS) |
| A8 | D-GN/WH | 2891 | Rear Wheel Steering Mode Select Switch Signal (NYS) | A8 | D-GN/WH | 2891 | Rear Wheel Steering Mode Select Switch Signal (NYS) |
| B1 | D-GN | 2087 | Steering Wheel Position Sensor 5V Reference (JL4) | B1 | D-GN | 2087 | Steering Wheel Position Sensor 5V Reference (JL4) |
| B2 | L GN | 1763 | Steering Wheel Position Signal A | B2 | L GN | 1763 | Steering Wheel Position Signal A |
| B3 | L BU | 1764 | Steering Wheel Position Signal B | B3 | L BU | 1764 | Steering Wheel Position Signal B |
| B4 | WH | 1765 | Steering Wheel Position Marker Pulse Signal (NYS) | B4 | WH | 1765 | Steering Wheel Position Marker Pulse Signal (NYS) |
| B4 | YE | 5353 | Yaw rate frequency (JL4) | B4 | YE | 5353 | Yaw rate frequency (JL4) |
| B5 | L-BU | 2088 | Steering Wheel Position Sensor Low Reference (JL4) | B5 | L-BU | 2088 | Steering Wheel Position Sensor Low Reference (JL4) |
| B6 | L-BU | 715 | Lateral Accelerometer Signal (JL4) | B6 | L-BU | 715 | Lateral Accelerometer Signal (JL4) |
| B7 | D-BU | 716 | Yaw Rate Sensor Signal (JL4) | B7 | D-BU | 716 | Yaw Rate Sensor Signal (JL4) |
| B8 | BN | 541 | Ignition 3 Voltage (NYS) | B8 | BN | 541 | Ignition 3 Voltage (NYS) |
| B9-B12 | - | - | Not Used | B9-B12 | - | - | Not Used |
| C1-C2 | - | - | Not Used | C1-C2 | - | - | Not Used |
| C3 | D-GN | 1619 | Trailer Right Rear Turn/Stop Lamp Supply Voltage | C3 | D-GN | 1619 | Trailer Right Rear Turn/Stop Lamp Supply Voltage |
| C4 | L-GN | 24 | Backup Lamp Supply Voltage | C4 | L-GN | 24 | Backup Lamp Supply Voltage |
| C5 | L-BU | 1122 | ABS/TCS Class 2 Serial Data | C5 | L-BU | 1122 | ABS/TCS Class 2 Serial Data |
| C6 | BN | 441 | Ignition 3 Voltage | C6 | BN | 441 | Ignition 3 Voltage |
| C7 | TN | 1384 | Selective Ride Control Switch Signal | C7 | TN | 1384 | Selective Ride Control Switch Signal |
| C8 | - | - | Not Used | C8 | - | - | Not Used |
| C9 | YE | 1618 | Trailer Left Rear Turn/Stop Lamp Supply Voltage | C9 | YE | 1618 | Trailer Left Rear Turn/Stop Lamp Supply Voltage |
| C10 | - | - | Not Used | C10 | - | - | Not Used |
| C11 | L-BU | 2206 | Traction Control Preference Switch Signal (JL4) | C11 | L-BU | 2206 | Traction Control Preference Switch Signal (JL4) |
| C12 | - | - | Not Used | C12 | - | - | Not Used |
| D1 | PK | 139 | Ignition 1 Voltage | D1 | PK | 139 | Ignition 1 Voltage |
| D2-D3 | - | - | Not Used | D2-D3 | - | - | Not Used |
| D4-D5 | - | - | Not Available | D4-D5 | - | - | Not Available |
| D6-D8 | - | - | Not Used | D6-D8 | - | - | Not Used |
