Instrument Cluster Schematics

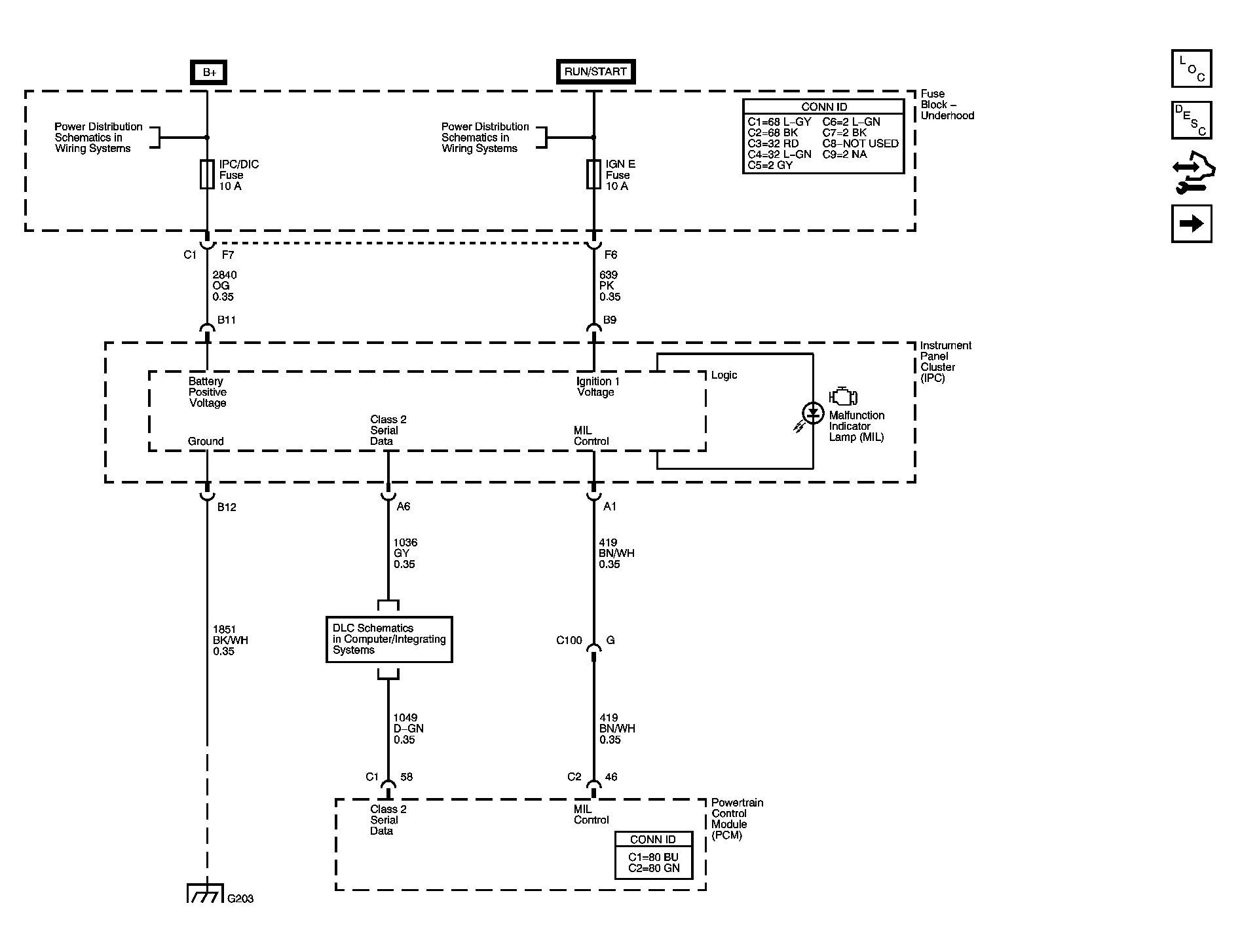

Fig 1: Power, Ground, Serial Data, and MIL Control Schematics
GM1464168Courtesy of GENERAL MOTORS CORP.

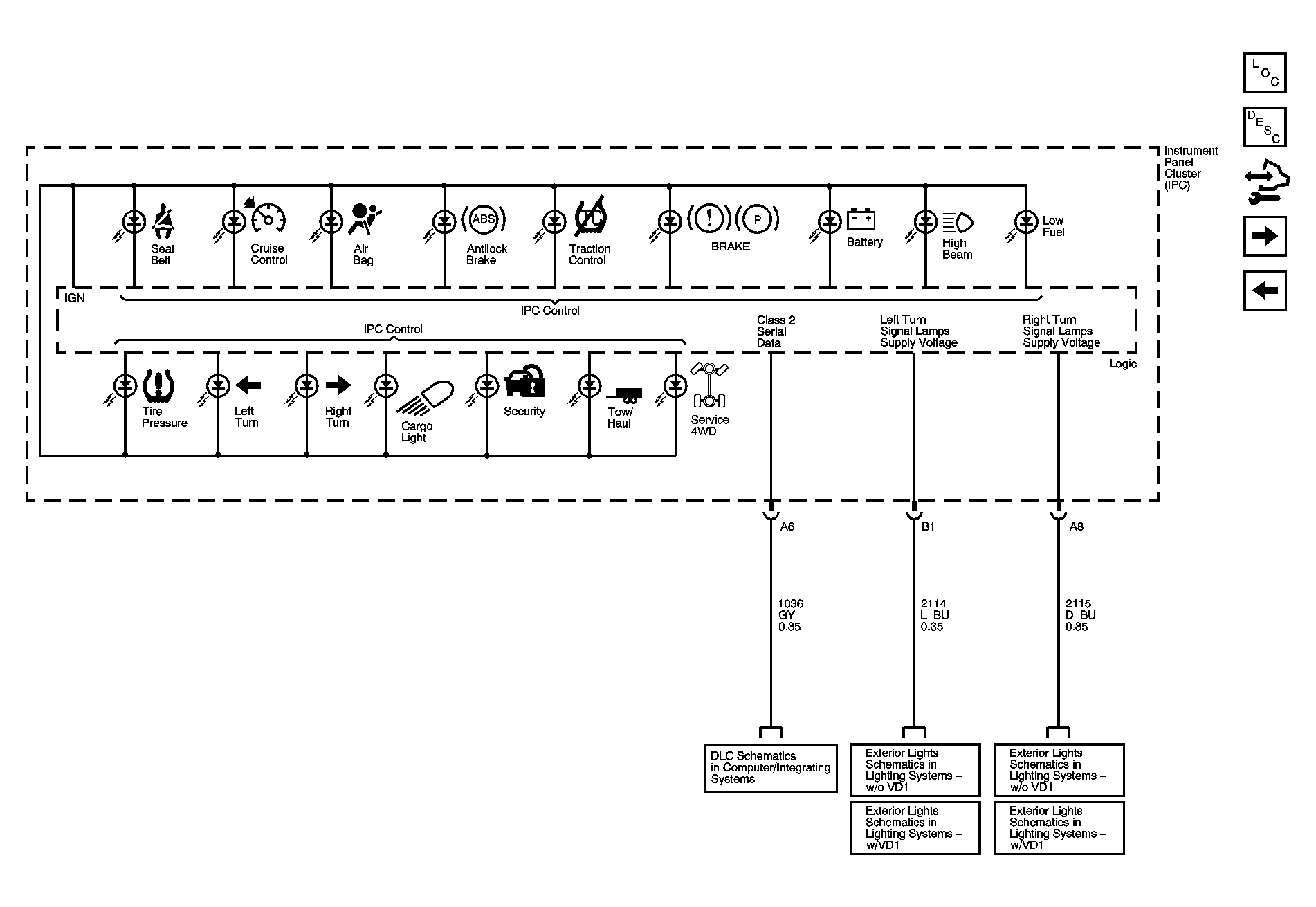

Fig 2: Indicators Schematics
GM1464169Courtesy of GENERAL MOTORS CORP.

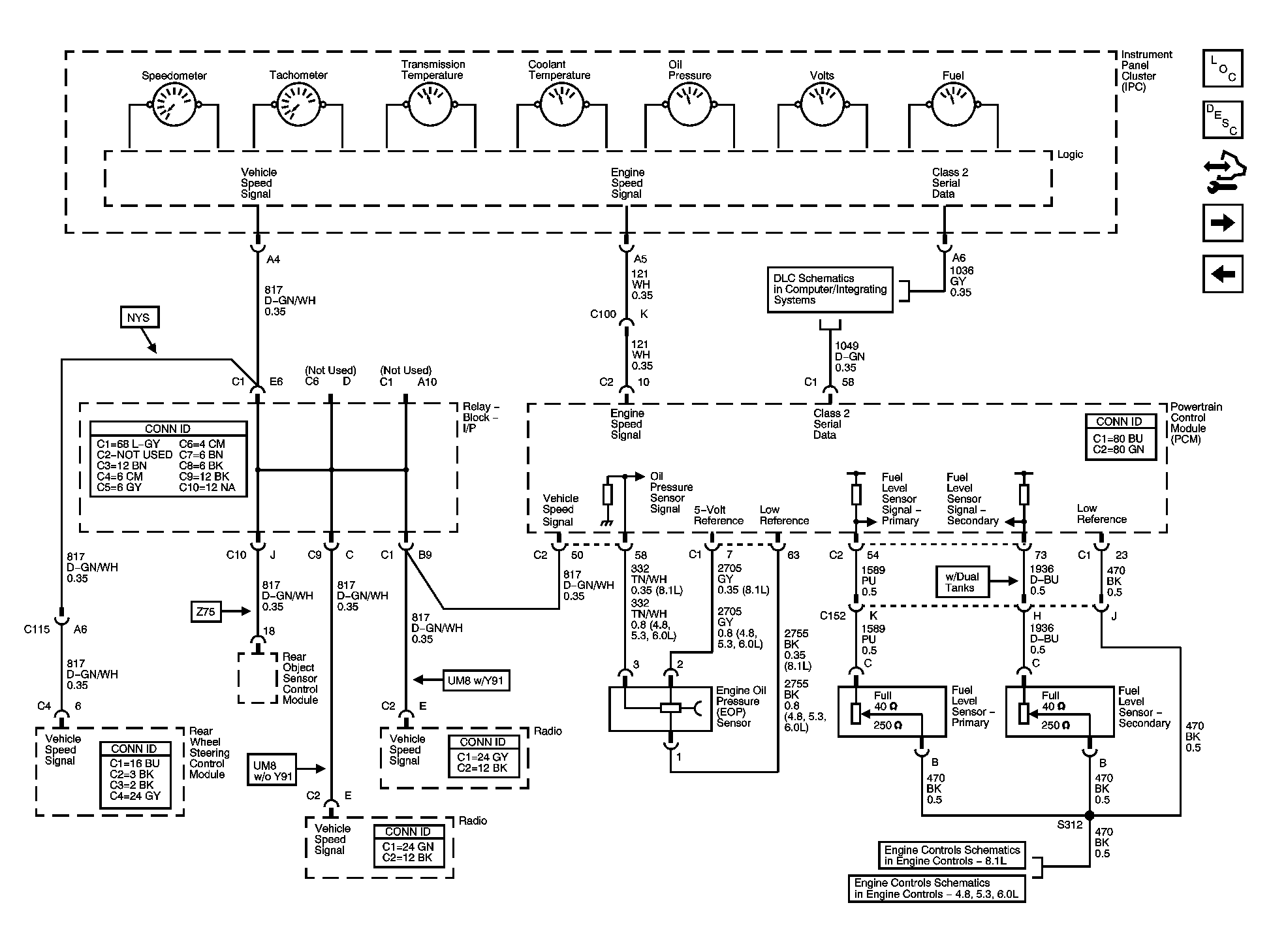

Fig 3: Gages Schematics
GM1464171Courtesy of GENERAL MOTORS CORP.

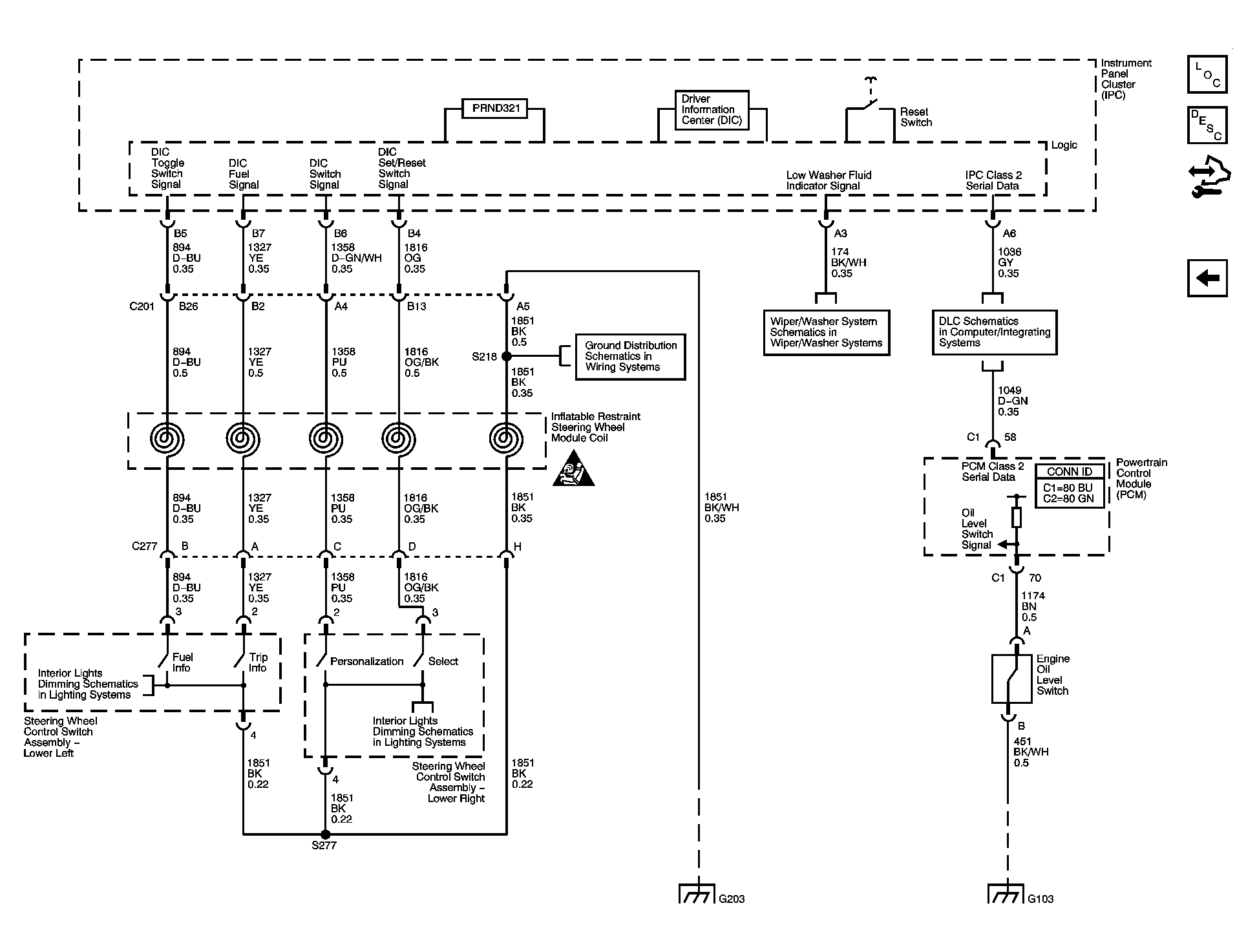

Fig 4: Driver Information Center Schematics
GM1464173Courtesy of GENERAL MOTORS CORP.
