Inside Rearview Mirror Schematics

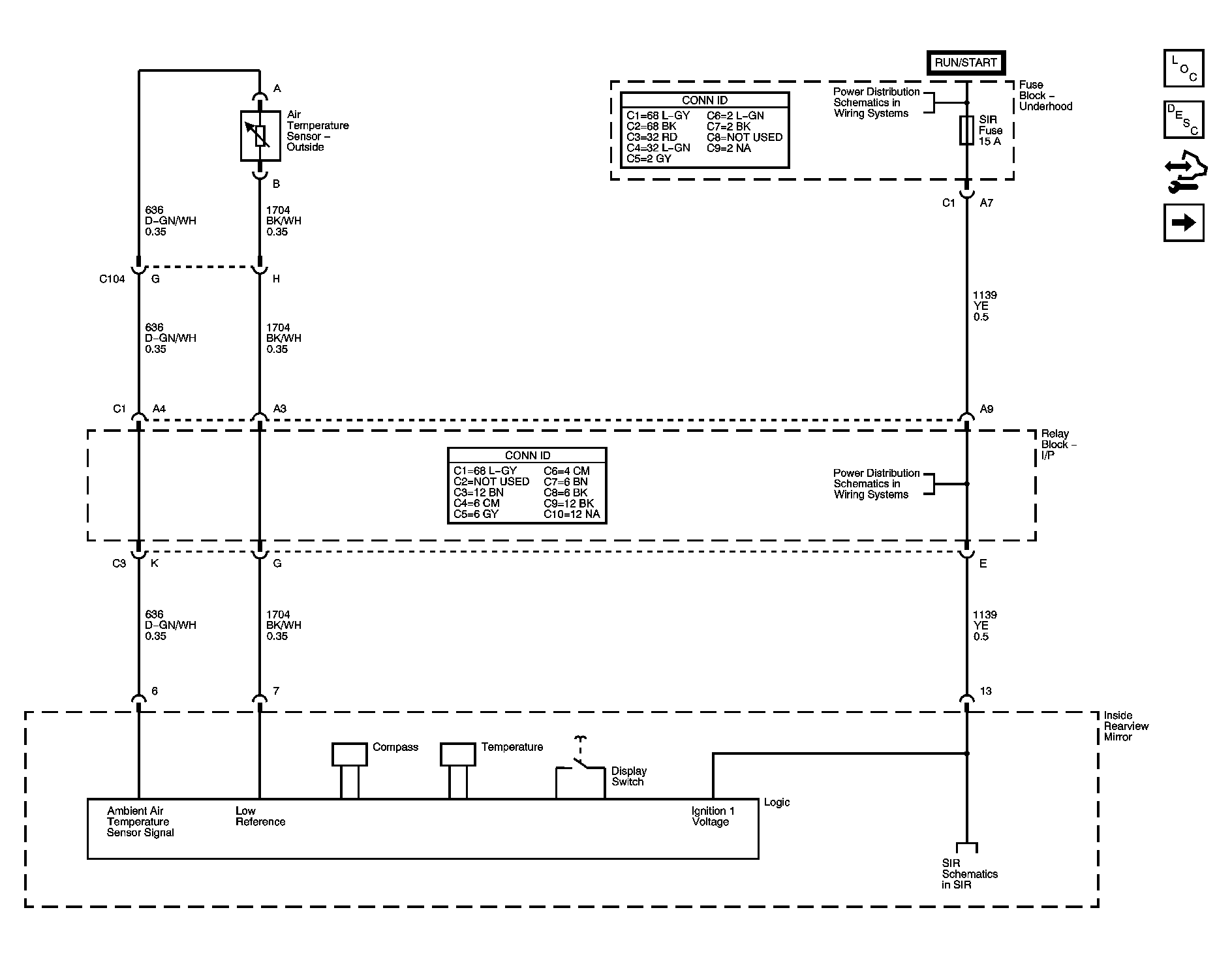

Fig 1: Power, Outside Air Temperature, and Light Sensors Schematics
GM1464596Courtesy of GENERAL MOTORS CORP.

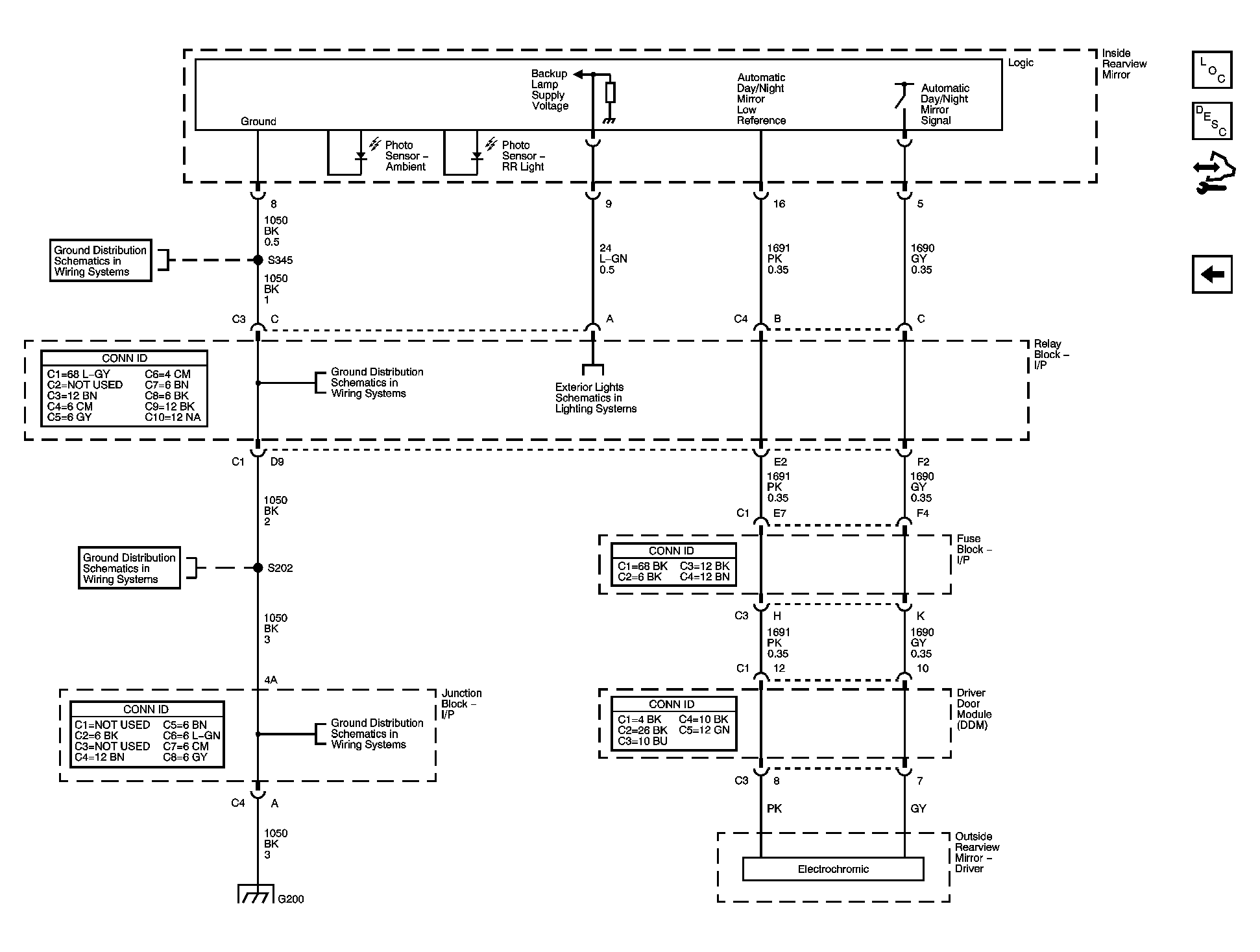

Fig 2: Ground and Electrochromic Schematics
GM1464598Courtesy of GENERAL MOTORS CORP.
