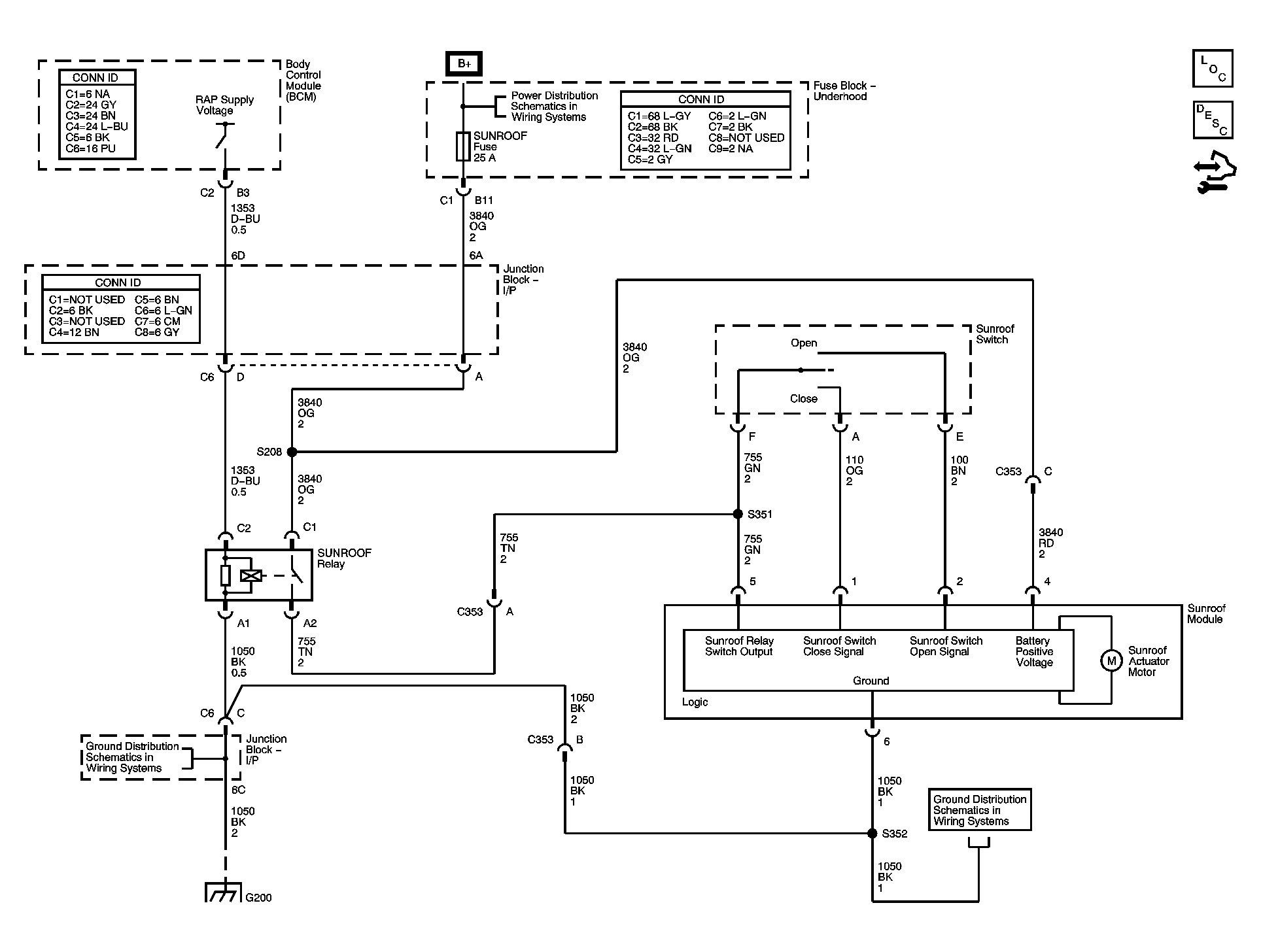

Home >> Cadillac >> 2005 >> Escalade ESV >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sunroof System & Luggage Carrier >> Schematic and Routing Diagrams >> Power Sunroof Schematics
