Rear Seat Schematics

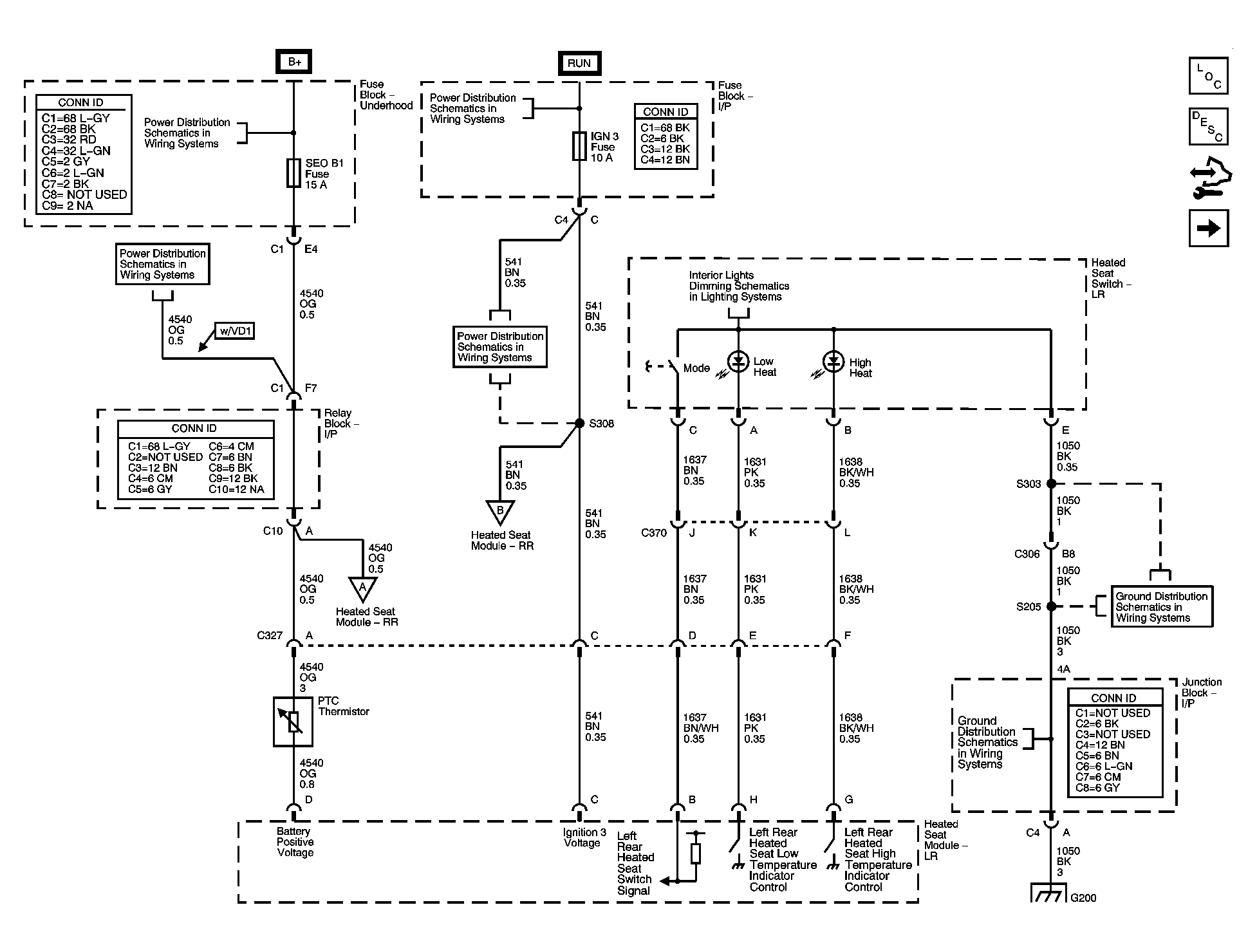

Fig 1: Rear Heated Seats Schematics 1 of 3 - Except ULT

GM1464568

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Heated Seats Schematics 2 of 3

GM1464571

Courtesy of GENERAL MOTORS CORP.

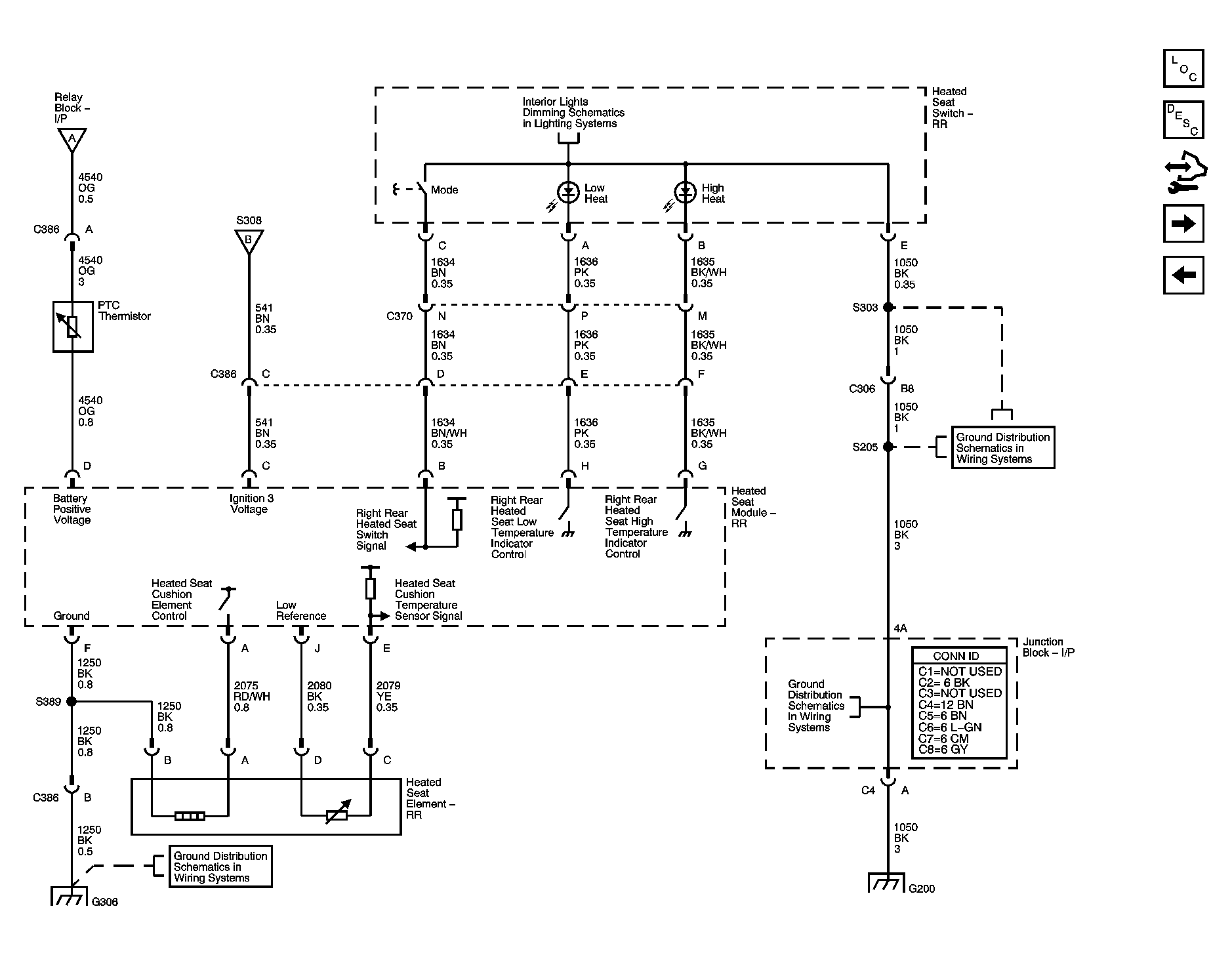

Fig 3: Rear Heated Seats Schematics 3 of 3

GM1464572

Courtesy of GENERAL MOTORS CORP.

Fig 4: Left Rear w/ULT Schematics 1 of 4

GM1464573

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Rear w/ULT Schematics 2 of 4

GM1464575

Courtesy of GENERAL MOTORS CORP.

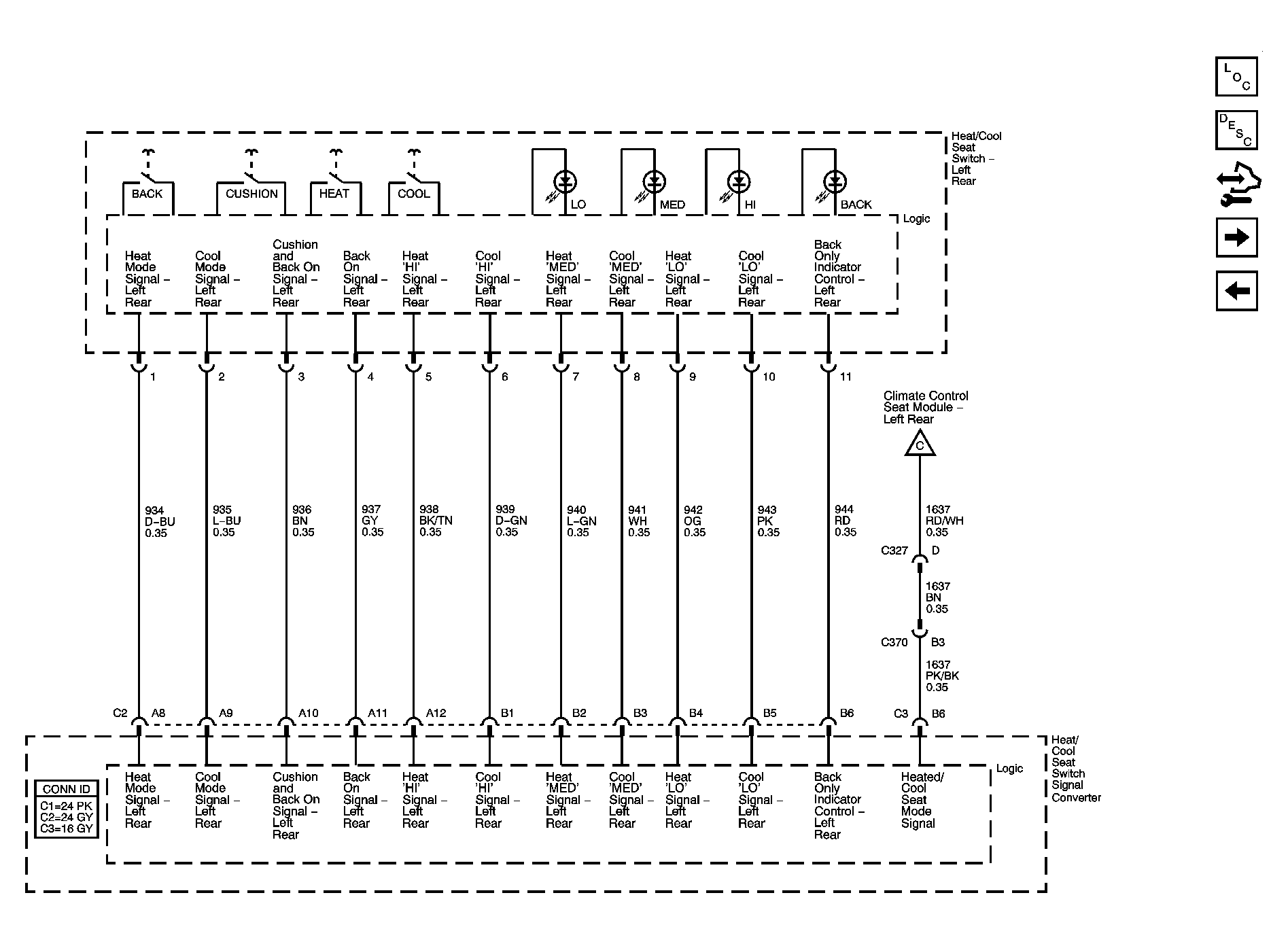

Fig 6: Left Rear w/ULT Schematics 3 of 4

GM1464577

Courtesy of GENERAL MOTORS CORP.

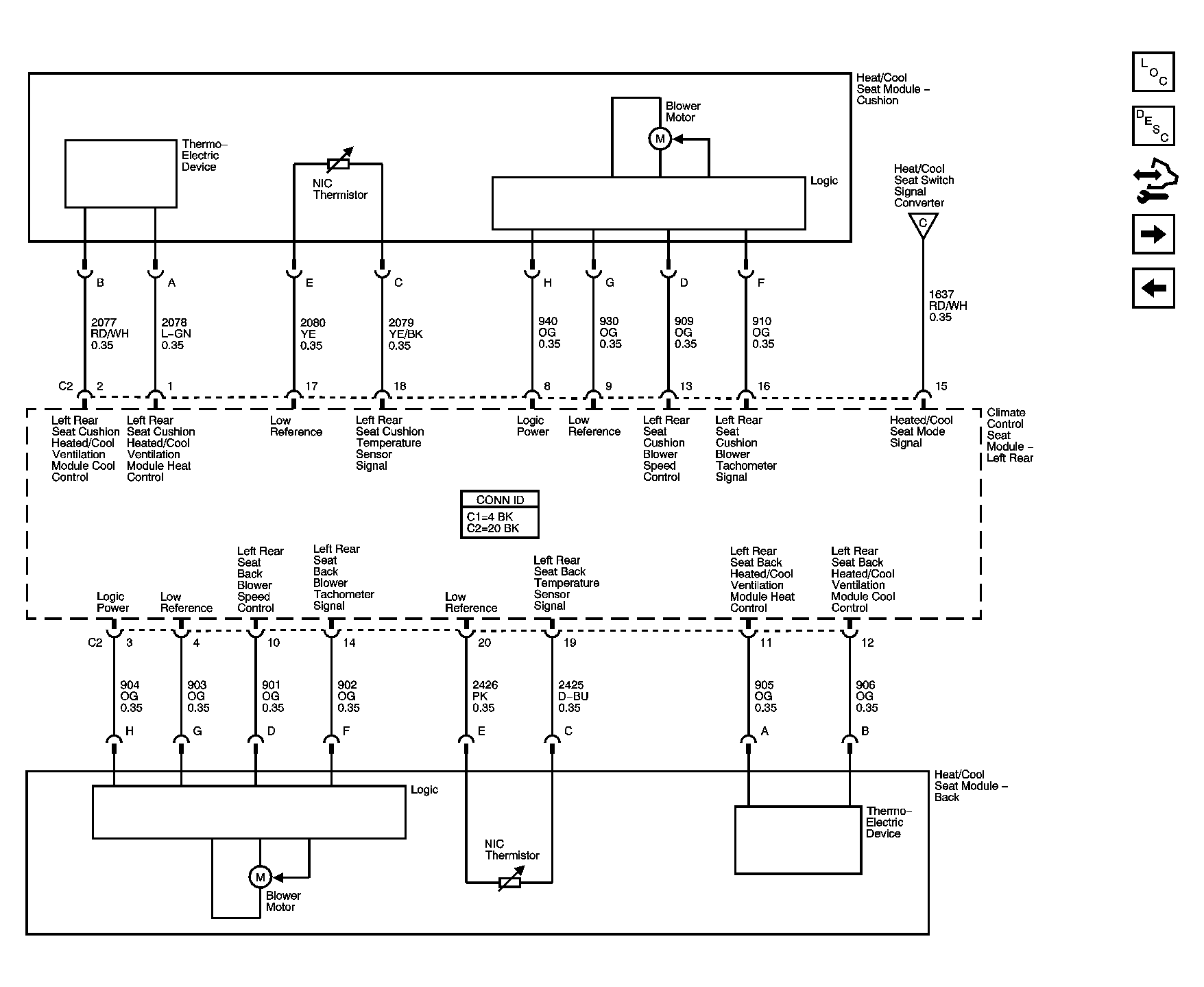

Fig 7: Left Rear w/ULT Schematics 4 of 4

GM1464580

Courtesy of GENERAL MOTORS CORP.

Fig 8: Right Rear w/ULT Schematics 1 of 4

GM1464581

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Rear w/ULT Schematics 2 of 4

GM1464583

Courtesy of GENERAL MOTORS CORP.

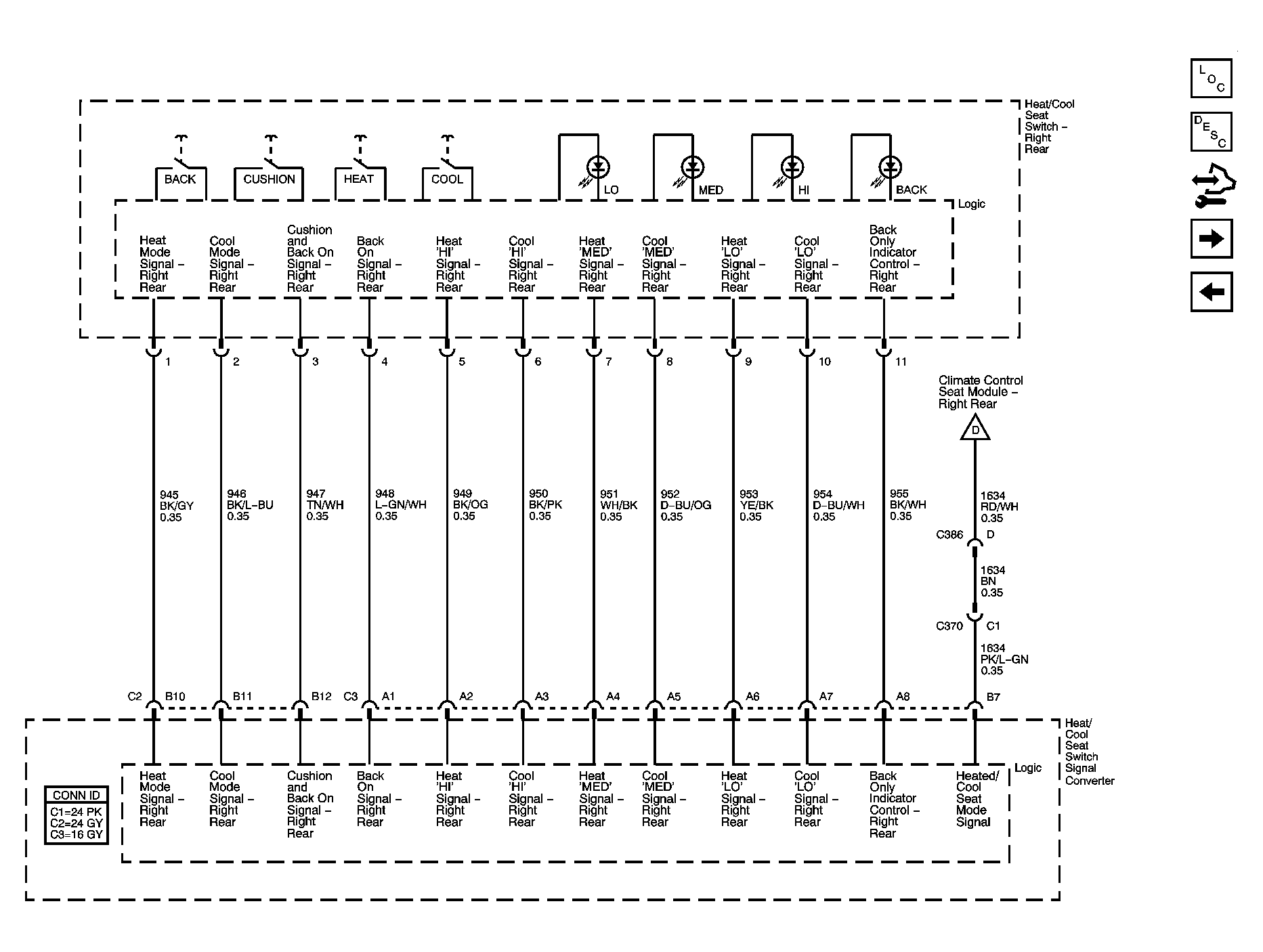

Fig 10: Right Rear w/ULT Schematics 3 of 4

GM1464584

Courtesy of GENERAL MOTORS CORP.

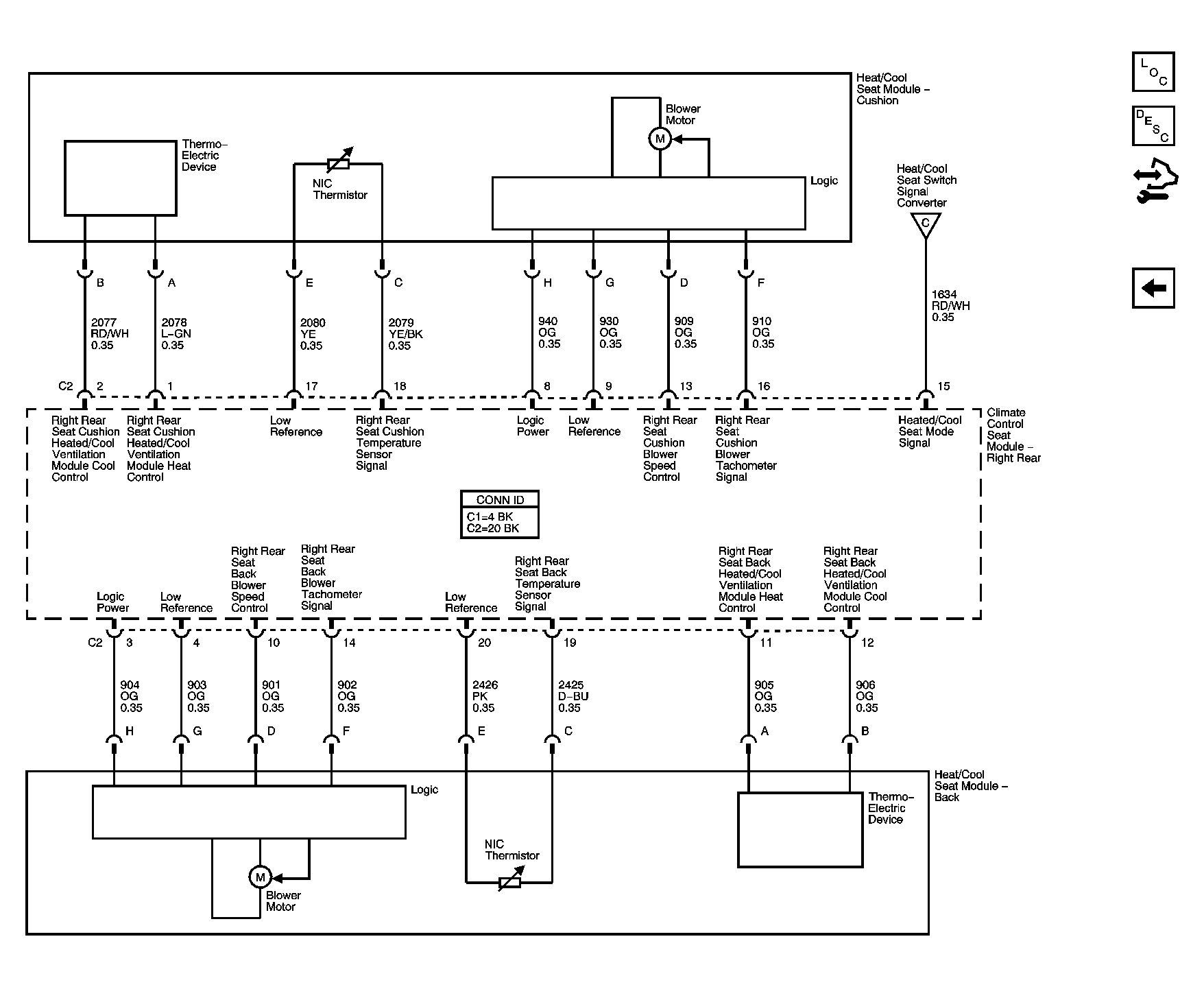

Fig 11: Right Rear w/ULT Schematics 4 of 4

GM1464585

Courtesy of GENERAL MOTORS CORP.
