Passenger Seat Schematics

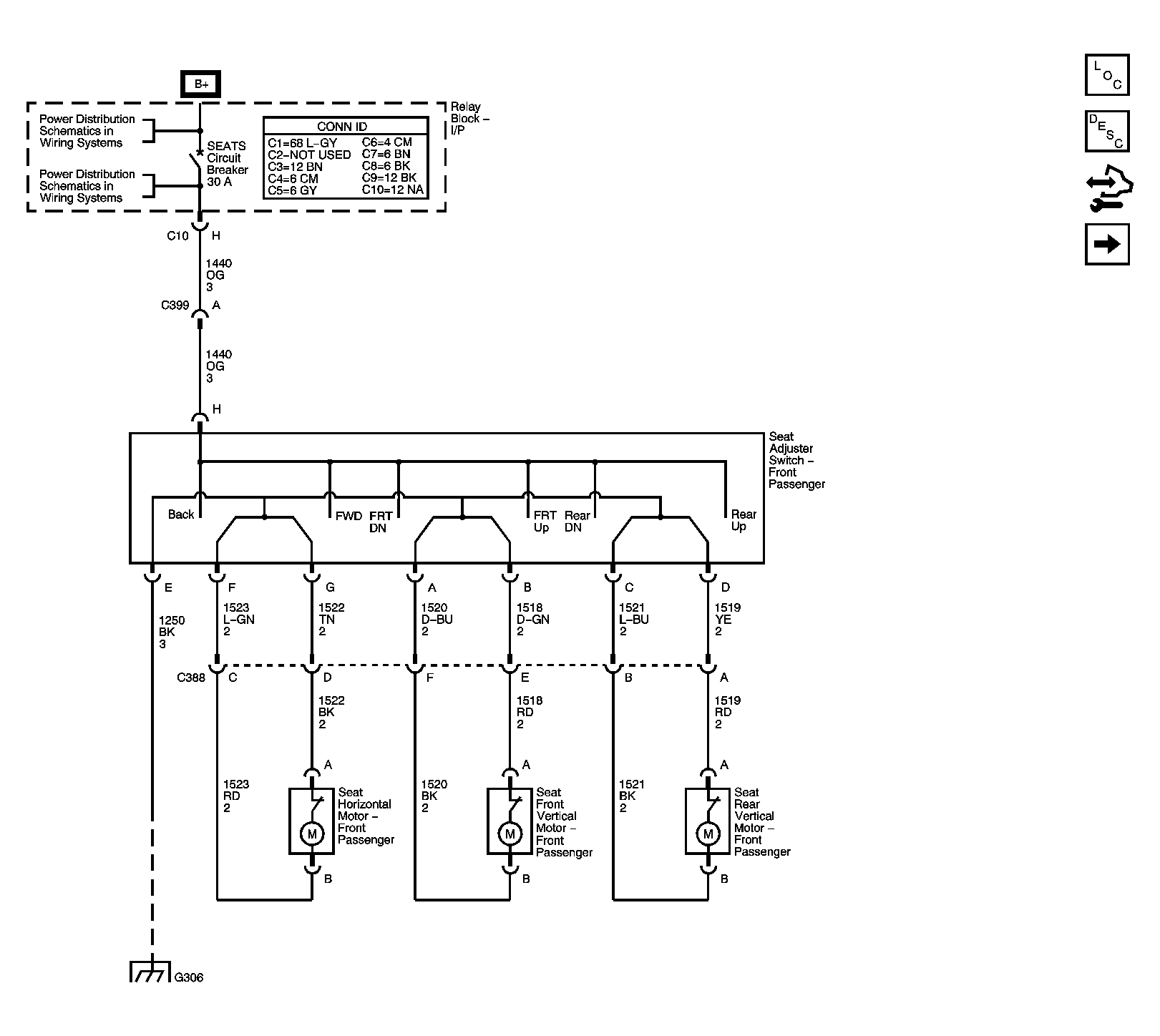

Fig 1: Front Passenger Seat Controls Schematics (AG2)

Courtesy of GENERAL MOTORS CORP.

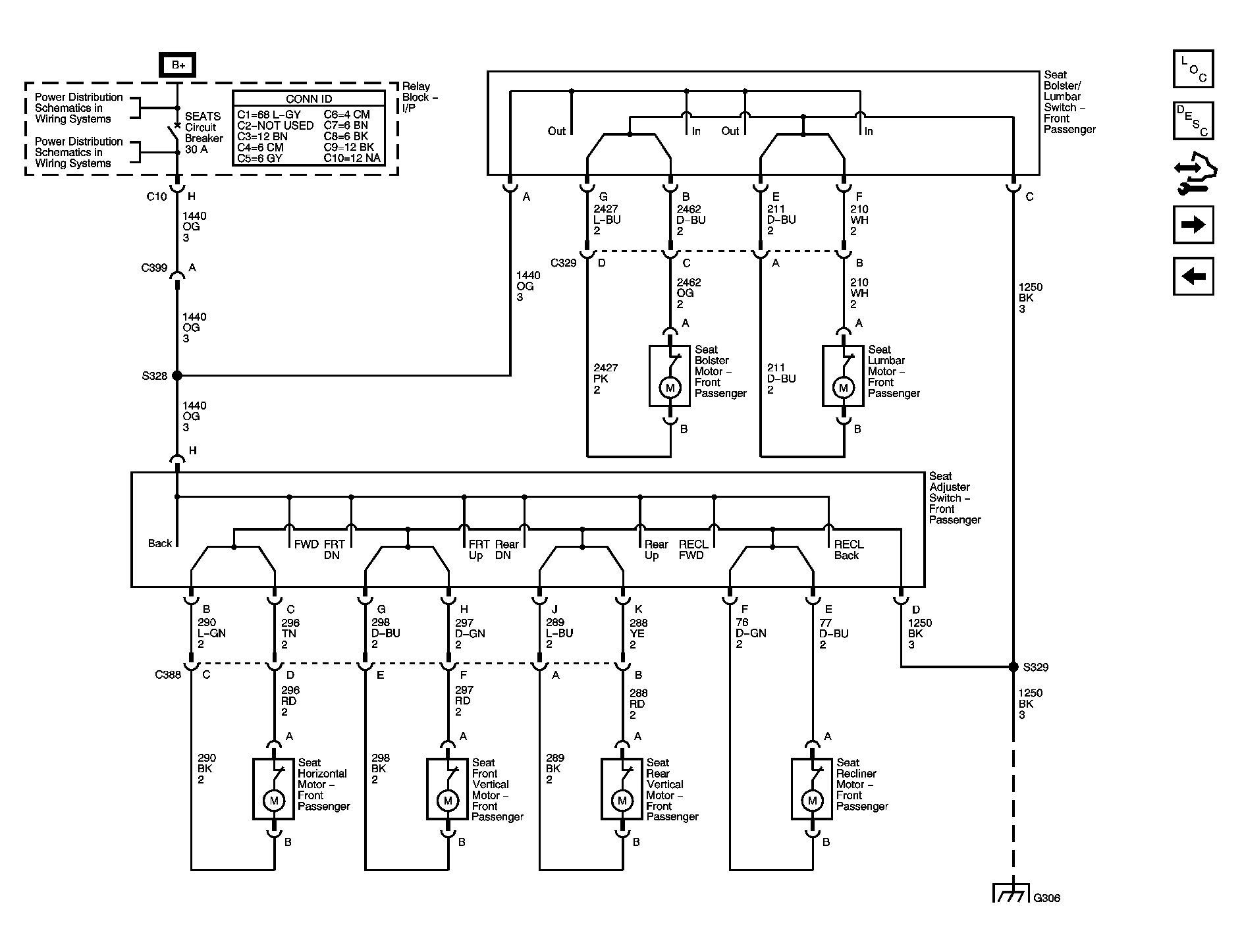

Fig 2: Front Passenger Seat Controls Schematics (AN3)

Courtesy of GENERAL MOTORS CORP.

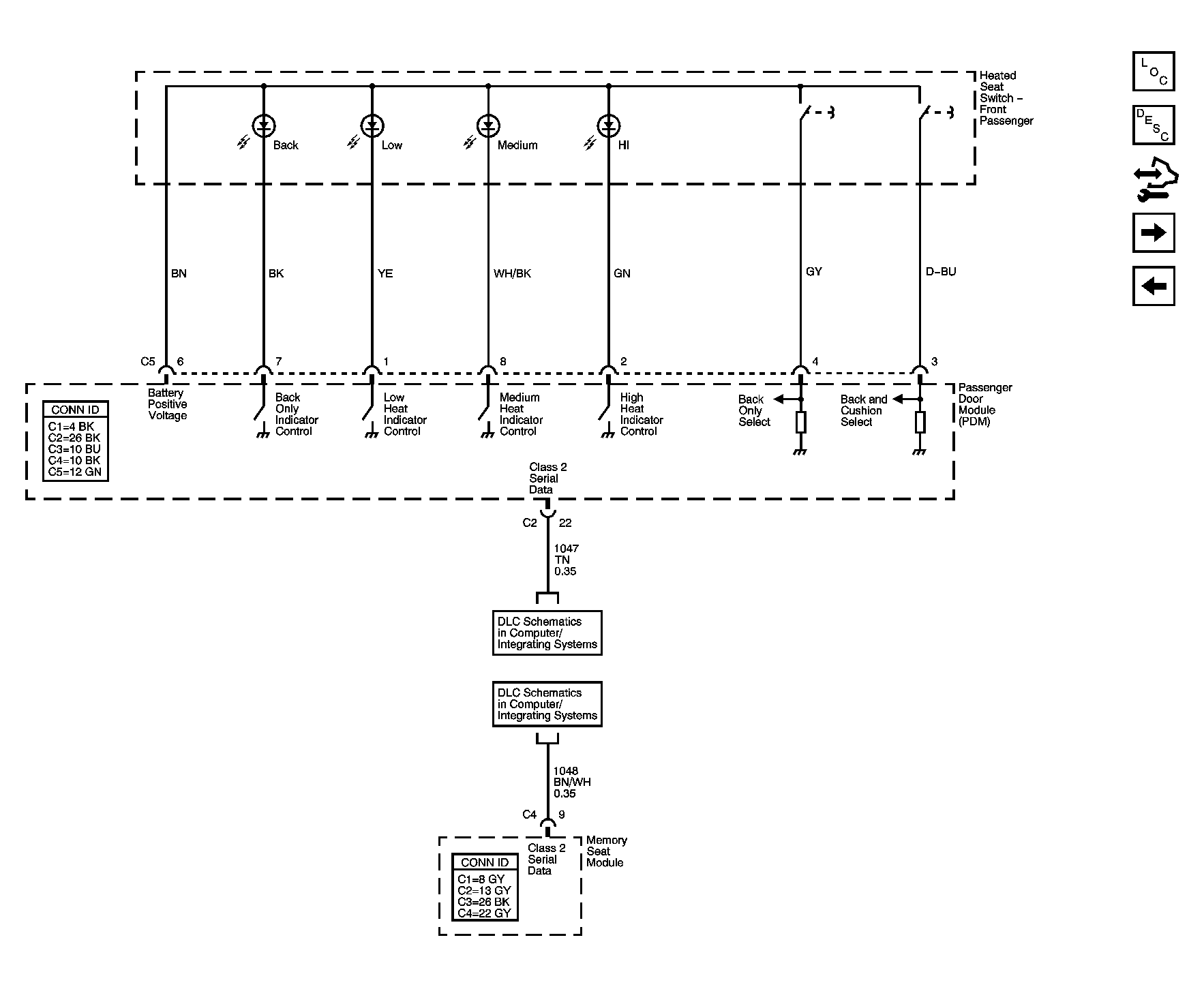

Fig 3: Heated Seat Controls - Front Passenger Schematics - Except ULTr

Courtesy of GENERAL MOTORS CORP.

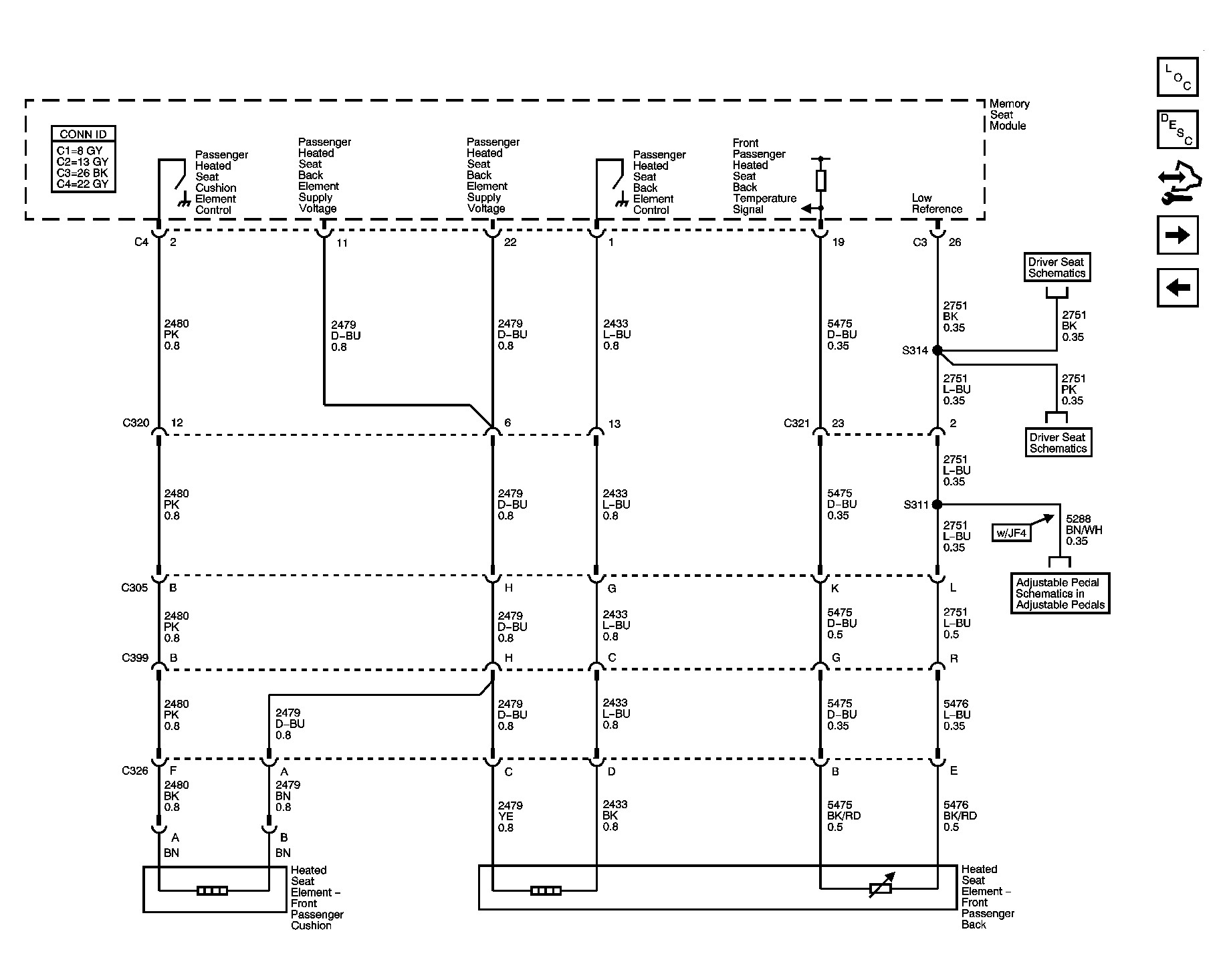

Fig 4: Front Passenger Heated Seat Elements Schematics - Except ULT

Courtesy of GENERAL MOTORS CORP.

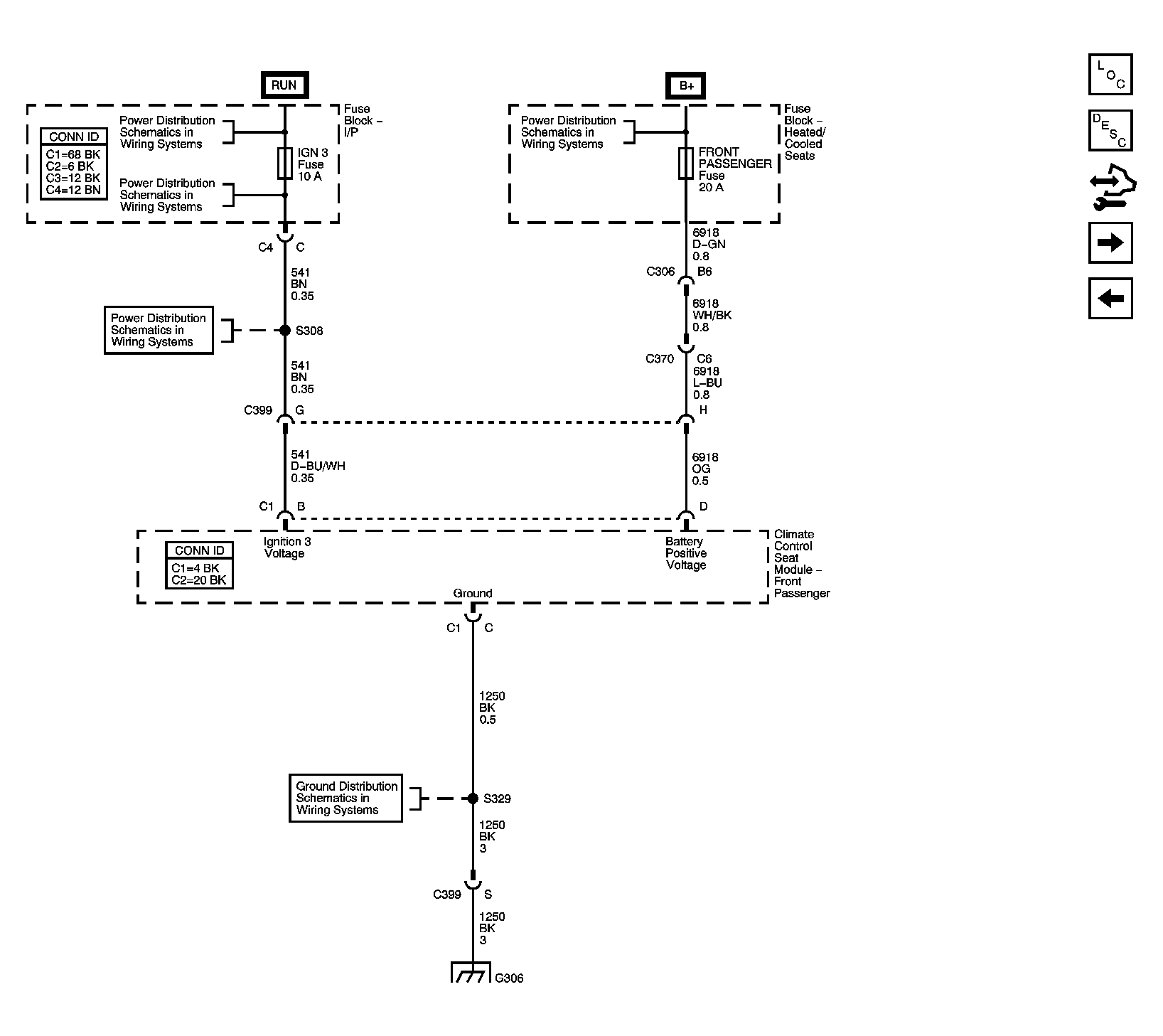

Fig 5: Heat Controls (AN3 w/ULT) Schematics 1 of 4

Courtesy of GENERAL MOTORS CORP.

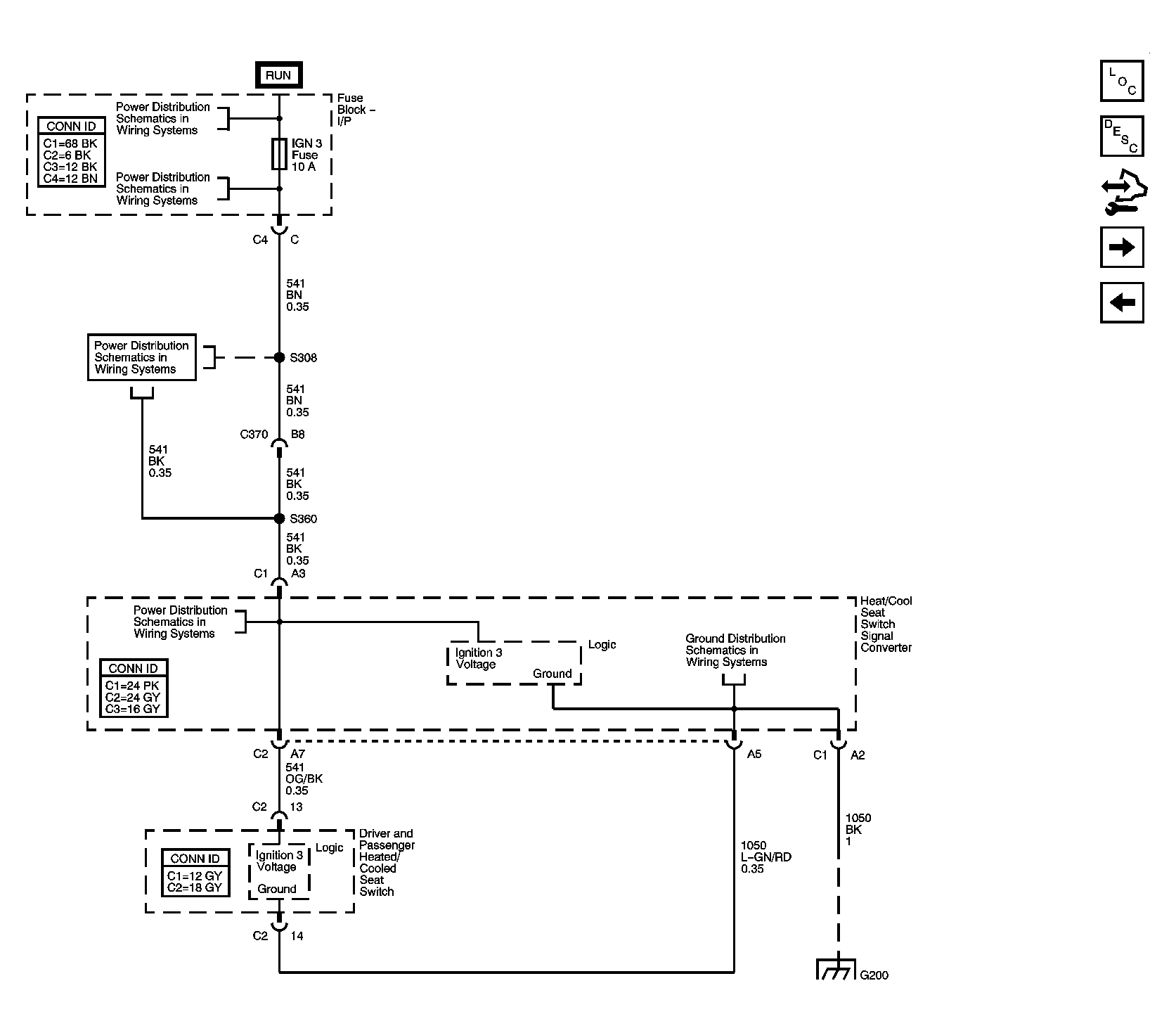

Fig 6: Heat Controls (AN3 w/ULT) Schematics 2 of 4

Courtesy of GENERAL MOTORS CORP.

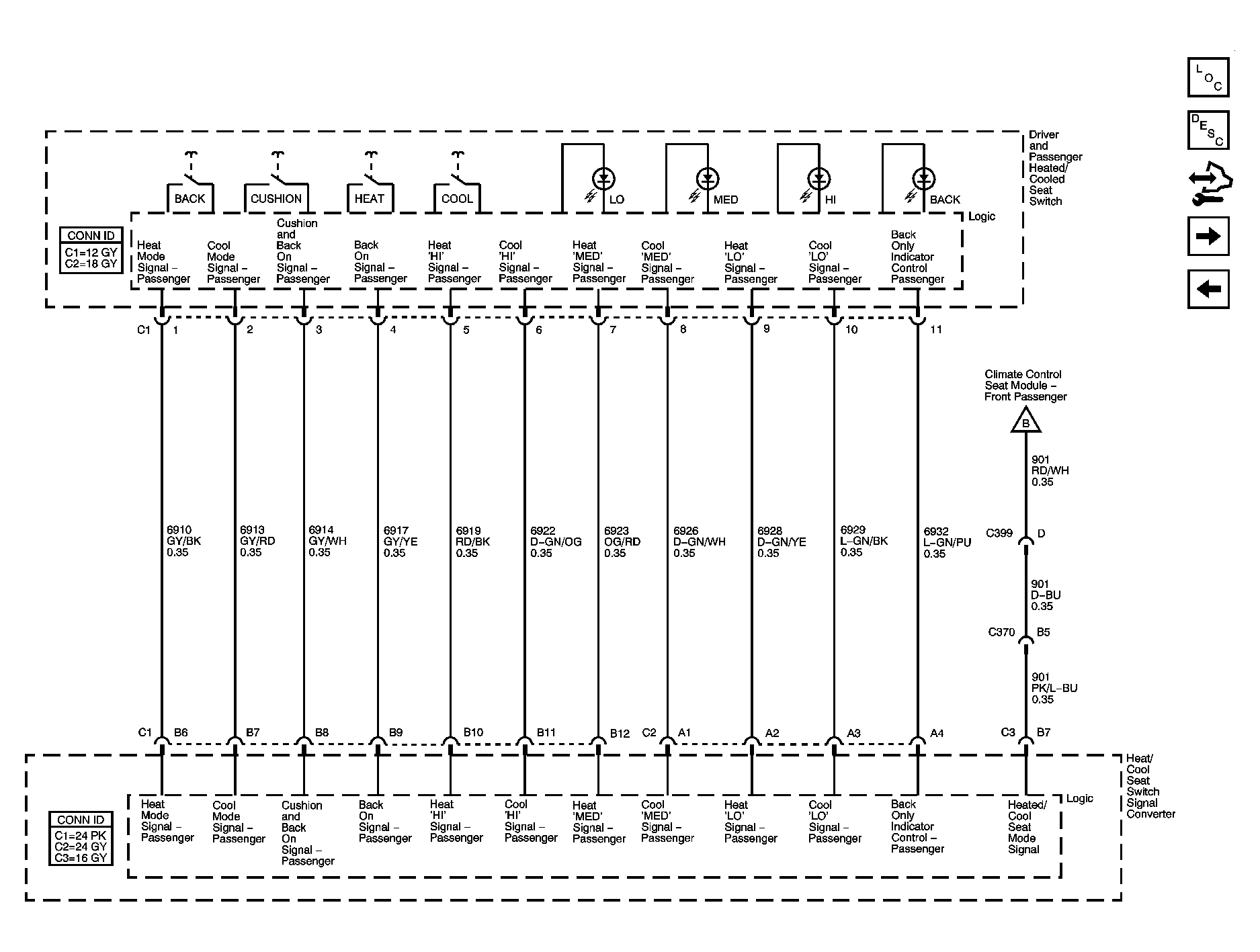

Fig 7: Heat Controls (AN3 w/ULT) Schematics 3 of 4

Courtesy of GENERAL MOTORS CORP.

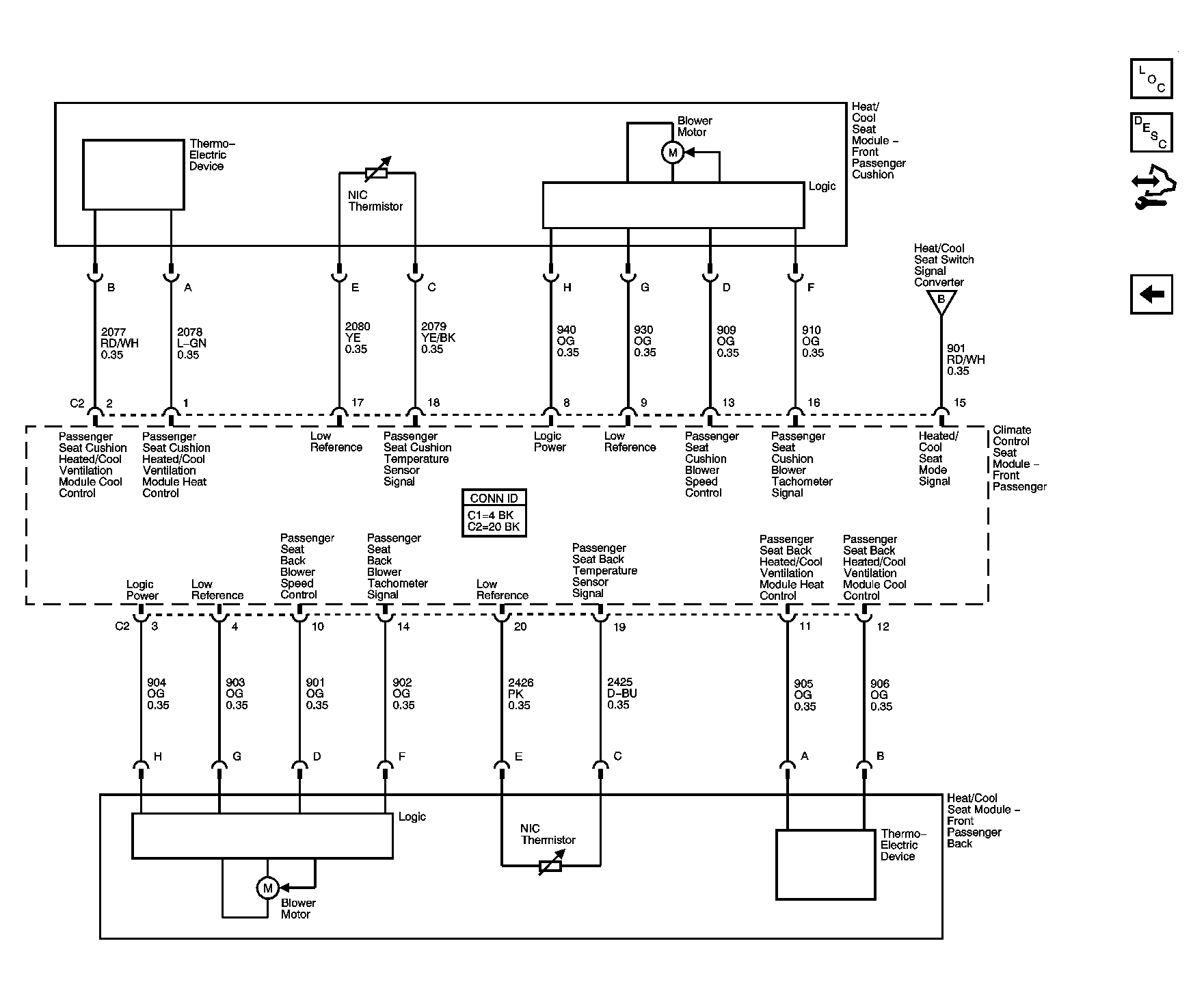

Fig 8: Heat Controls (AN3 w/ULT) Schematics 4 of 4

Courtesy of GENERAL MOTORS CORP.
