Driver Seat Schematics

Fig 1: Driver Seat Controls Schematics (AG2)

Courtesy of GENERAL MOTORS CORP.

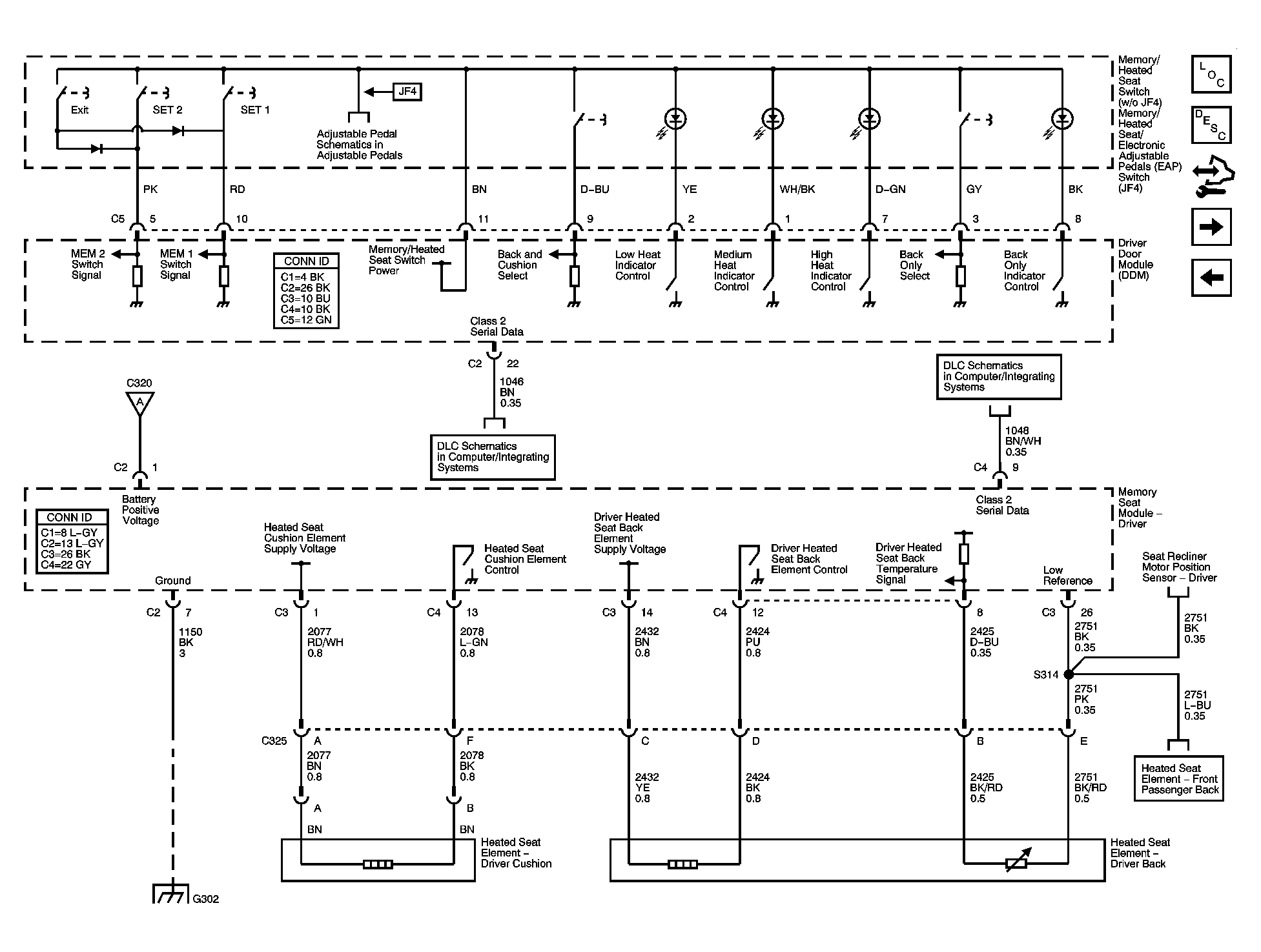

Fig 2: Heated Seat Controls - Driver Schematics - Except ULT

Courtesy of GENERAL MOTORS CORP.

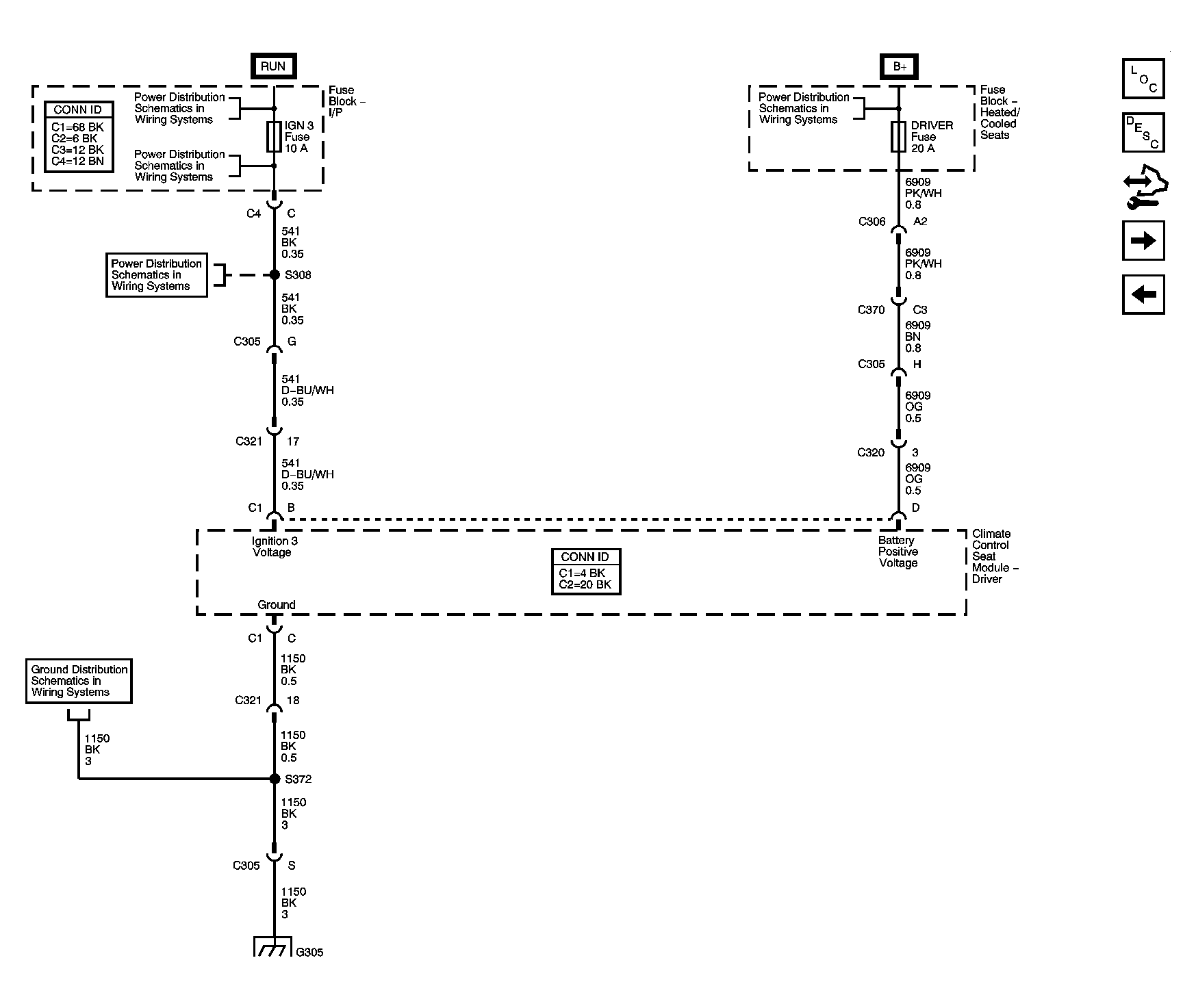

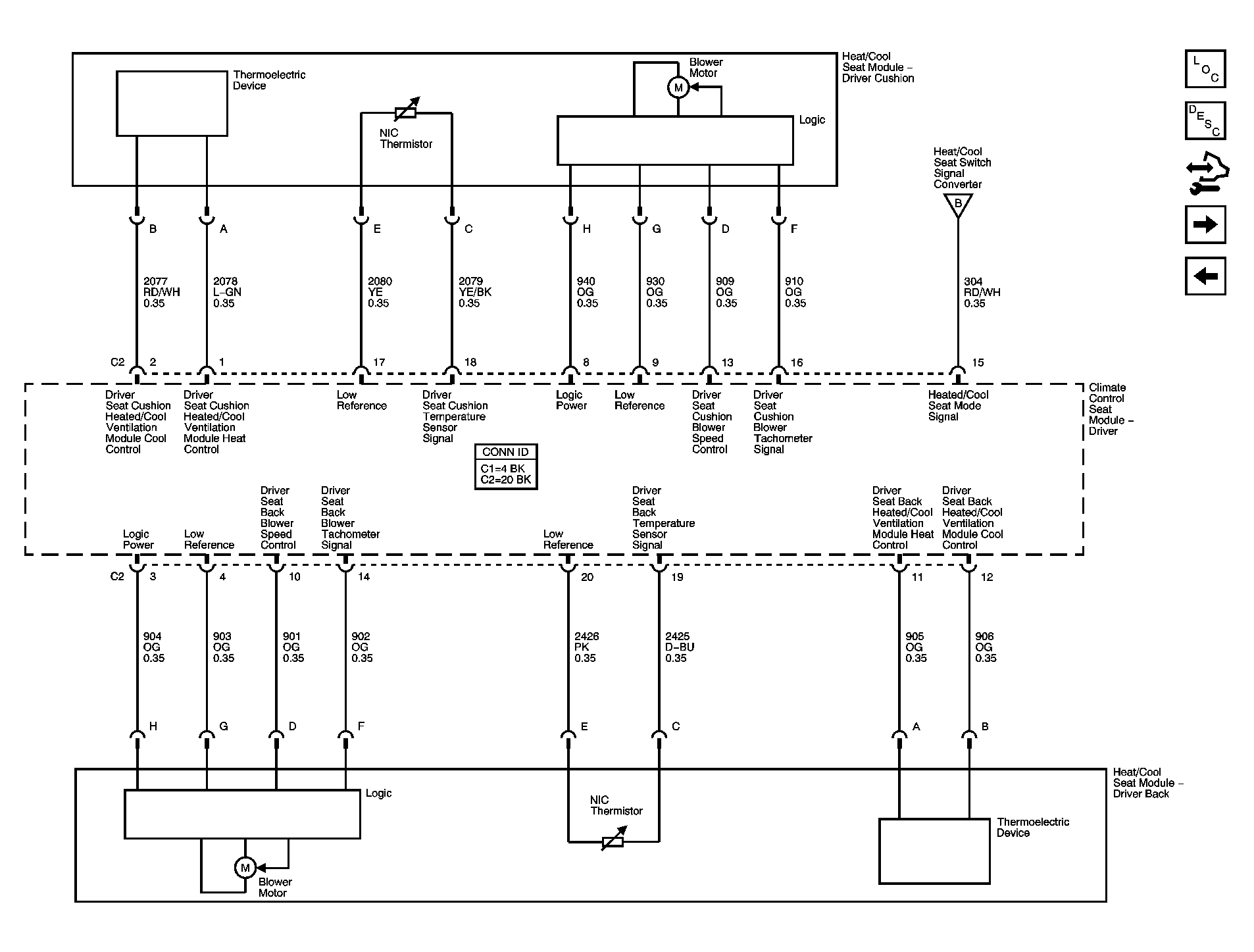

Fig 3: Heat Controls (AN3 w/ULT) Schematics 1 of 4

Courtesy of GENERAL MOTORS CORP.

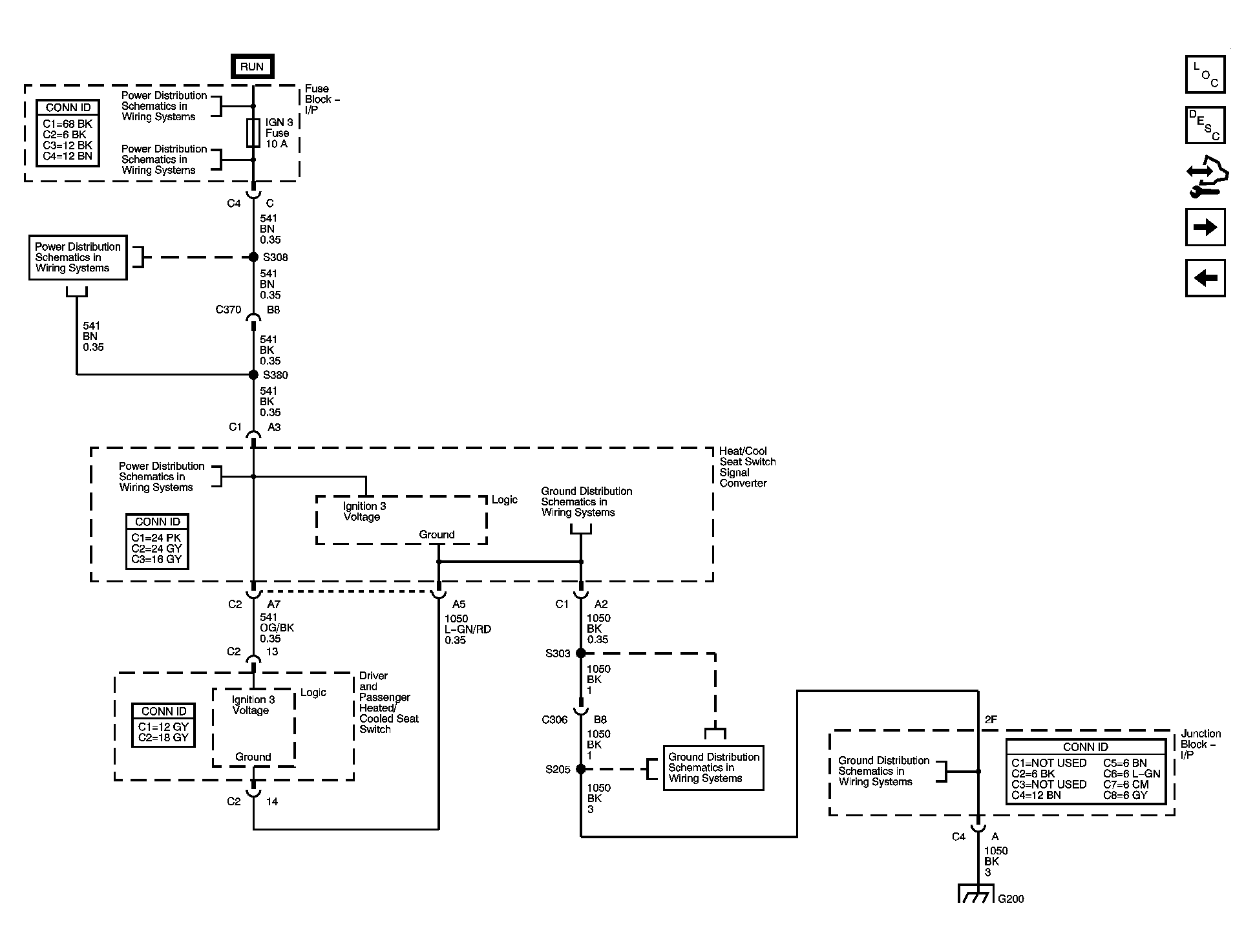

Fig 4: Heat Controls (AN3 w/ULT) Schematics 2 of 4

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heat Controls (AN3 w/ULT) Schematics 3 of 4

Courtesy of GENERAL MOTORS CORP.

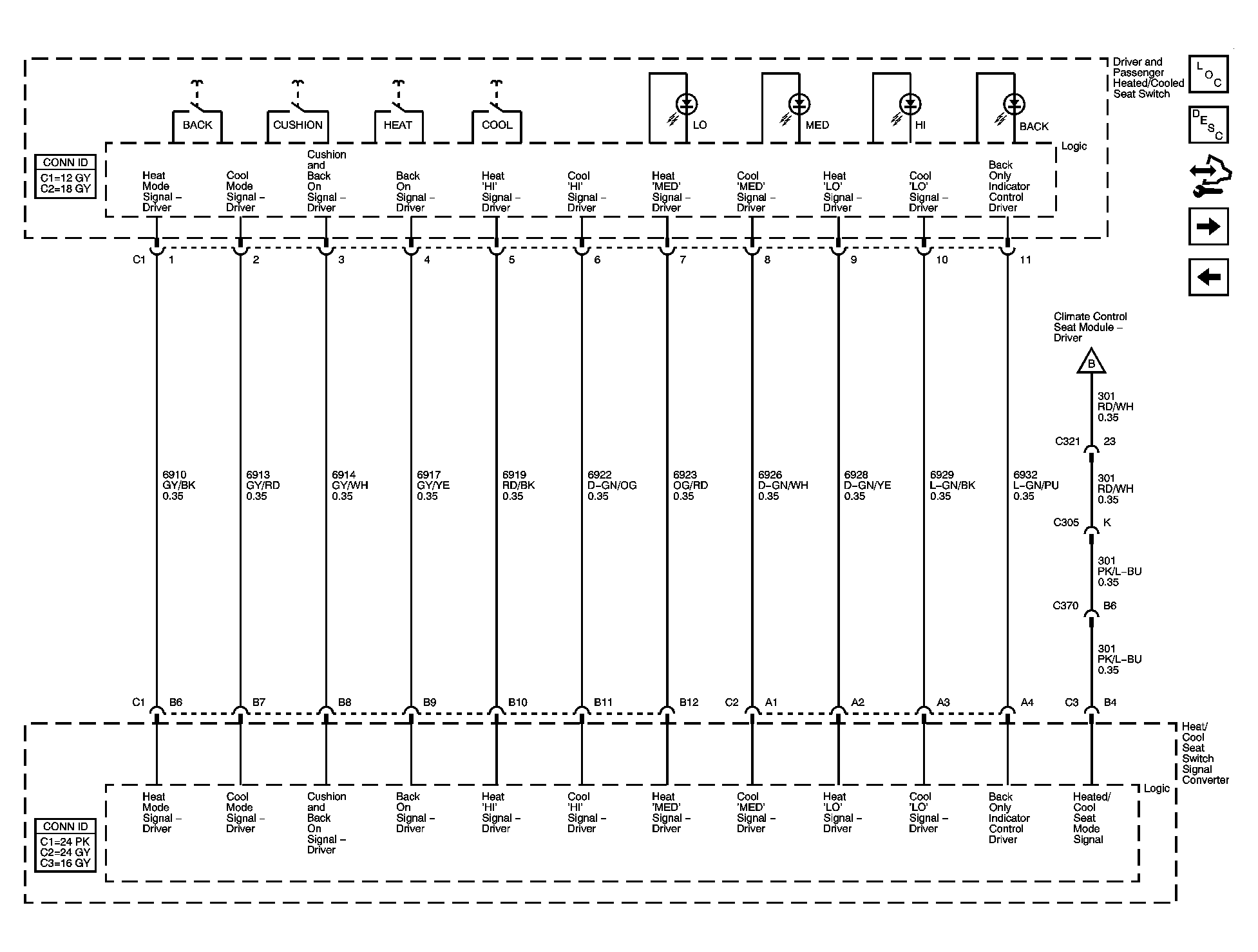

Fig 6: Heat Controls (AN3 w/ULT) Schematics 4 of 4

Courtesy of GENERAL MOTORS CORP.

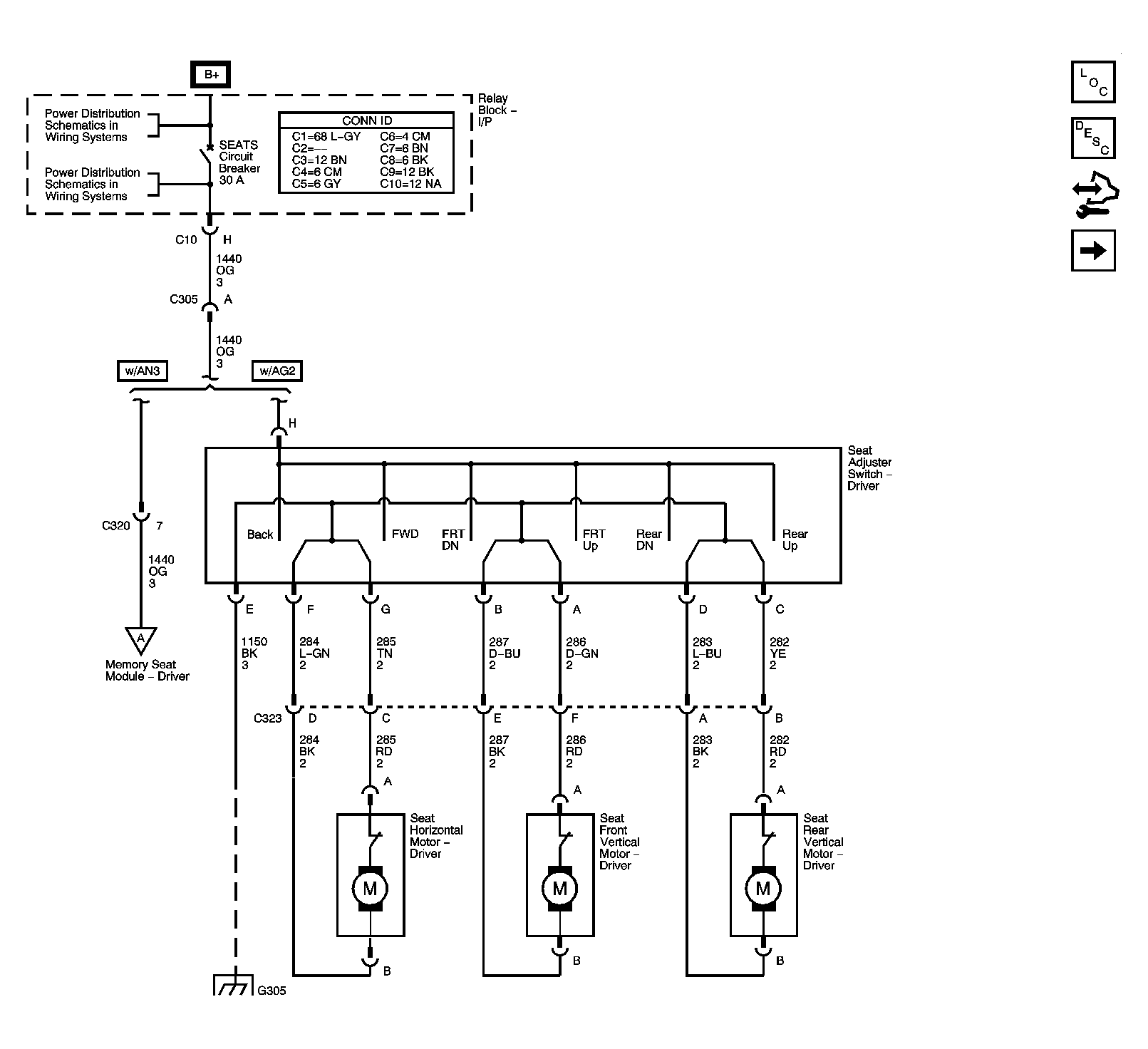

Fig 7: Seat Adjuster Switch Schematics

Courtesy of GENERAL MOTORS CORP.

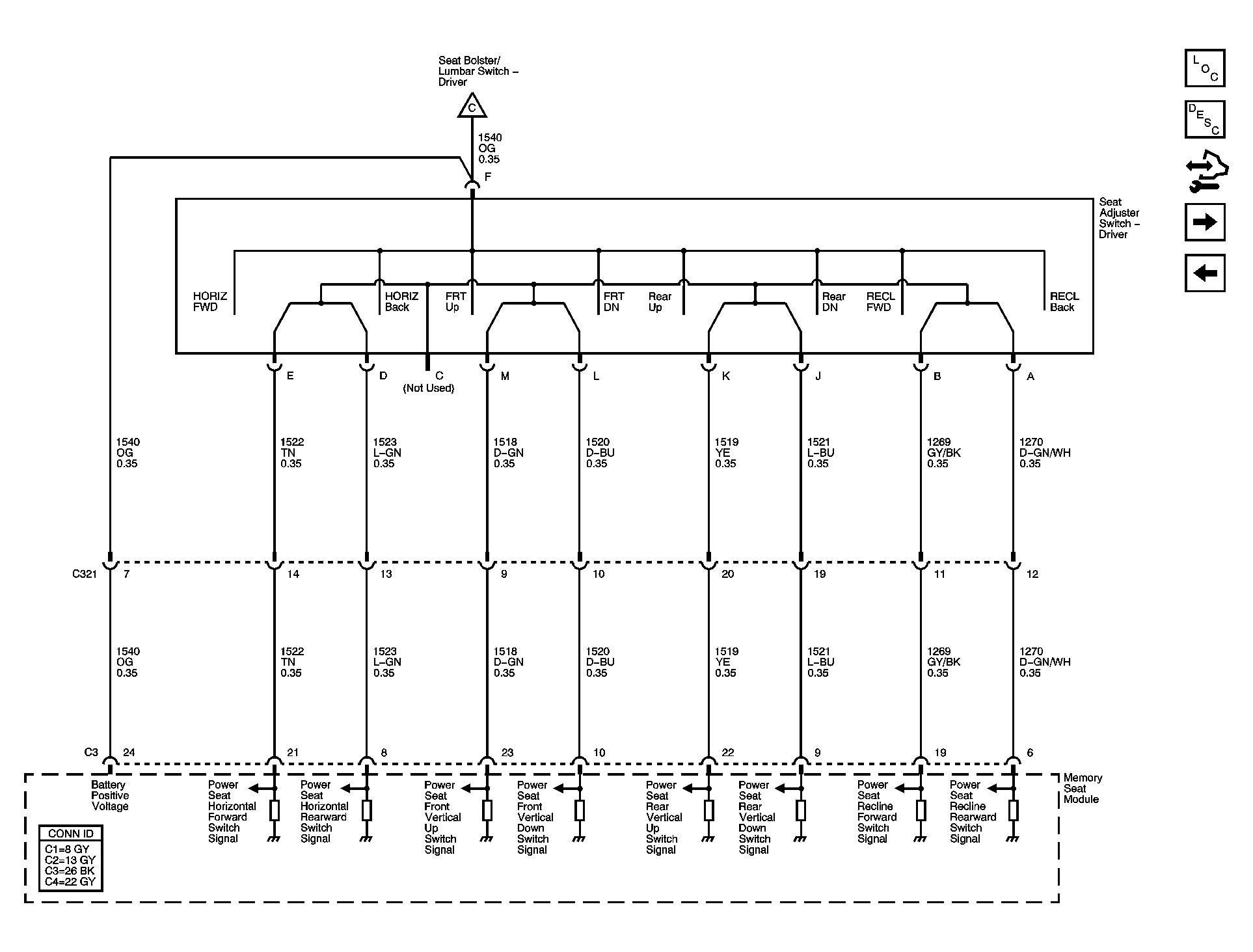

Fig 8: Lumbar/Bolster Switch Schematics

Courtesy of GENERAL MOTORS CORP.

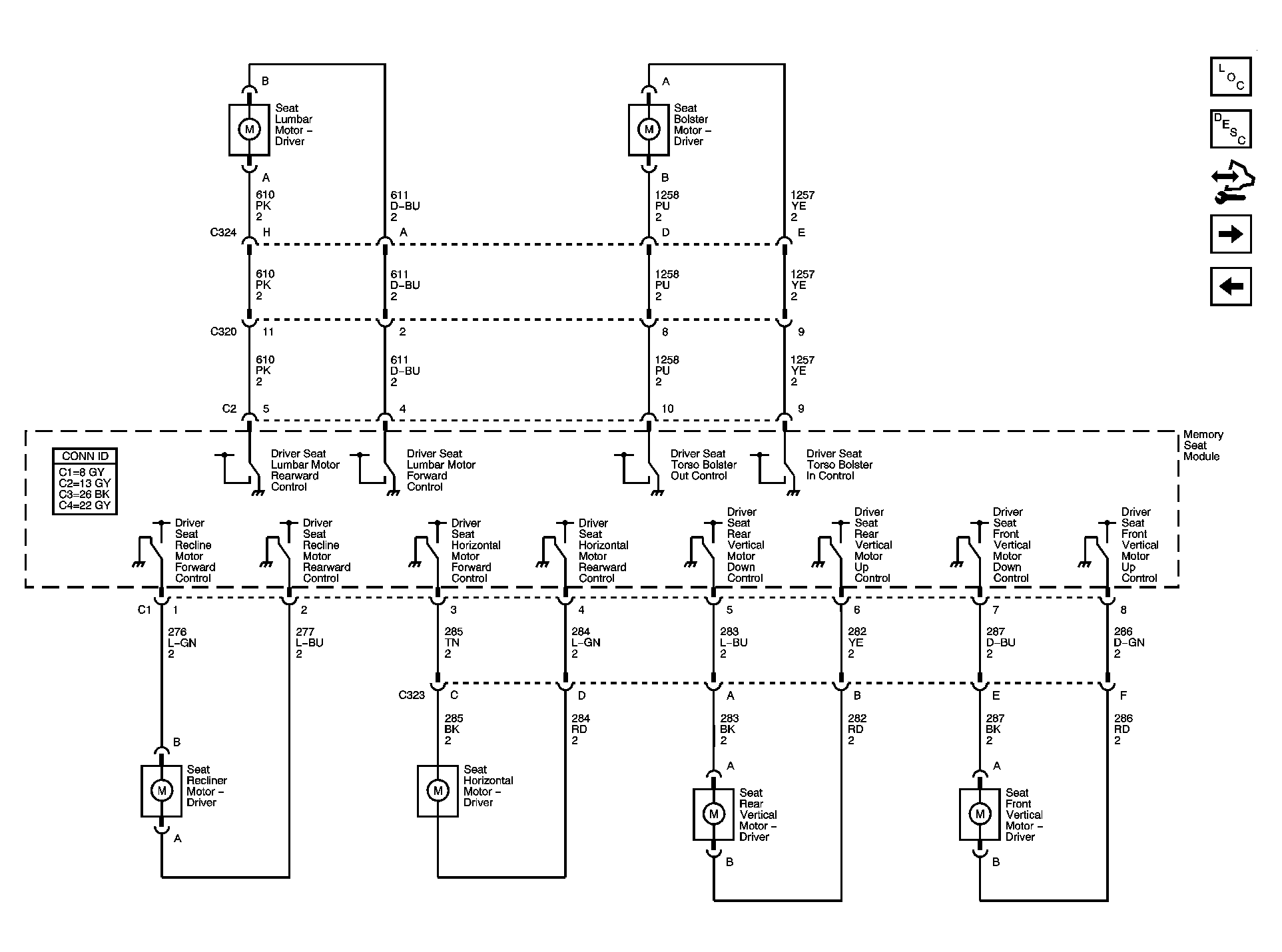

Fig 9: Seat Motors Schematics

Courtesy of GENERAL MOTORS CORP.

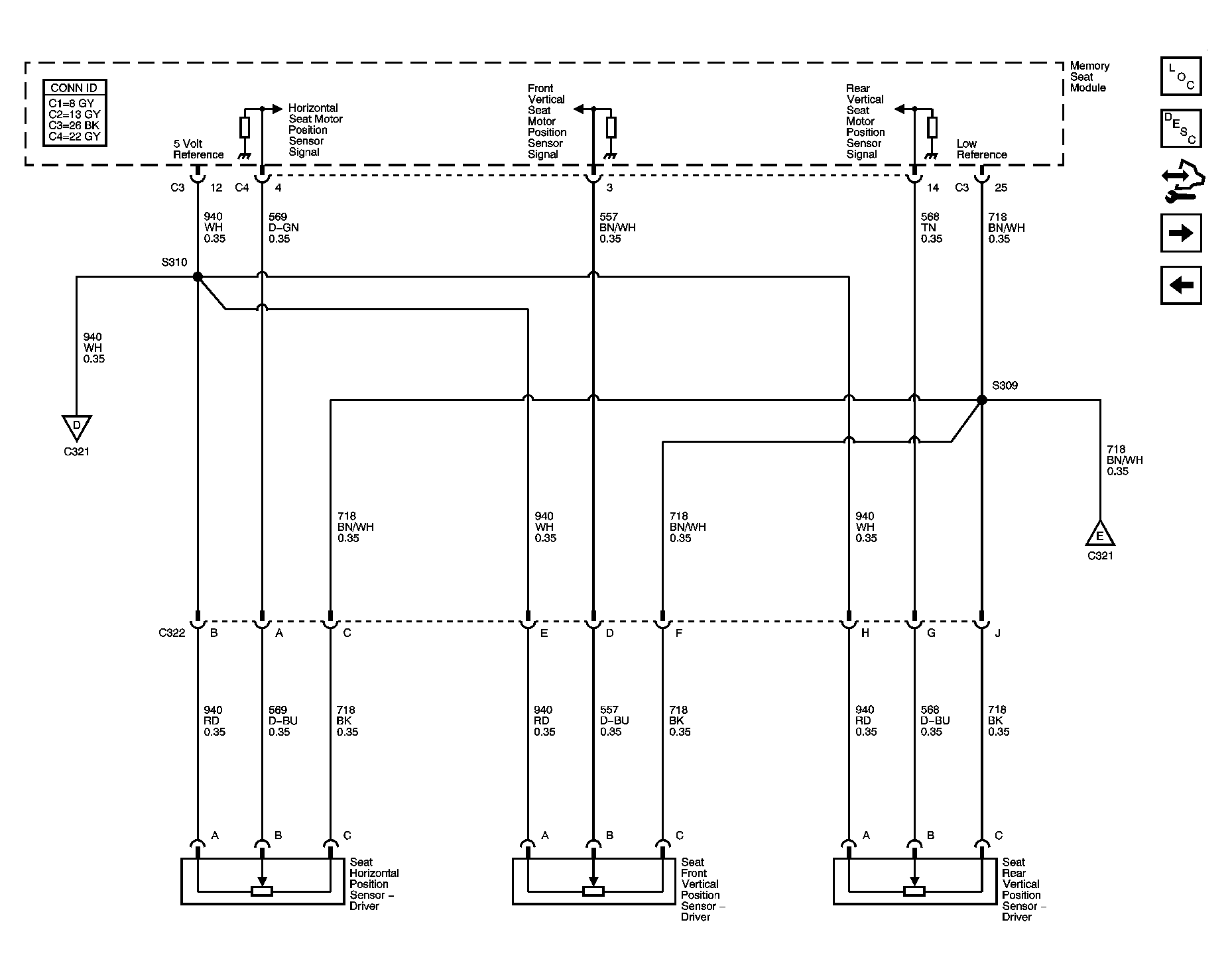

Fig 10: Seat Position Sensors Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

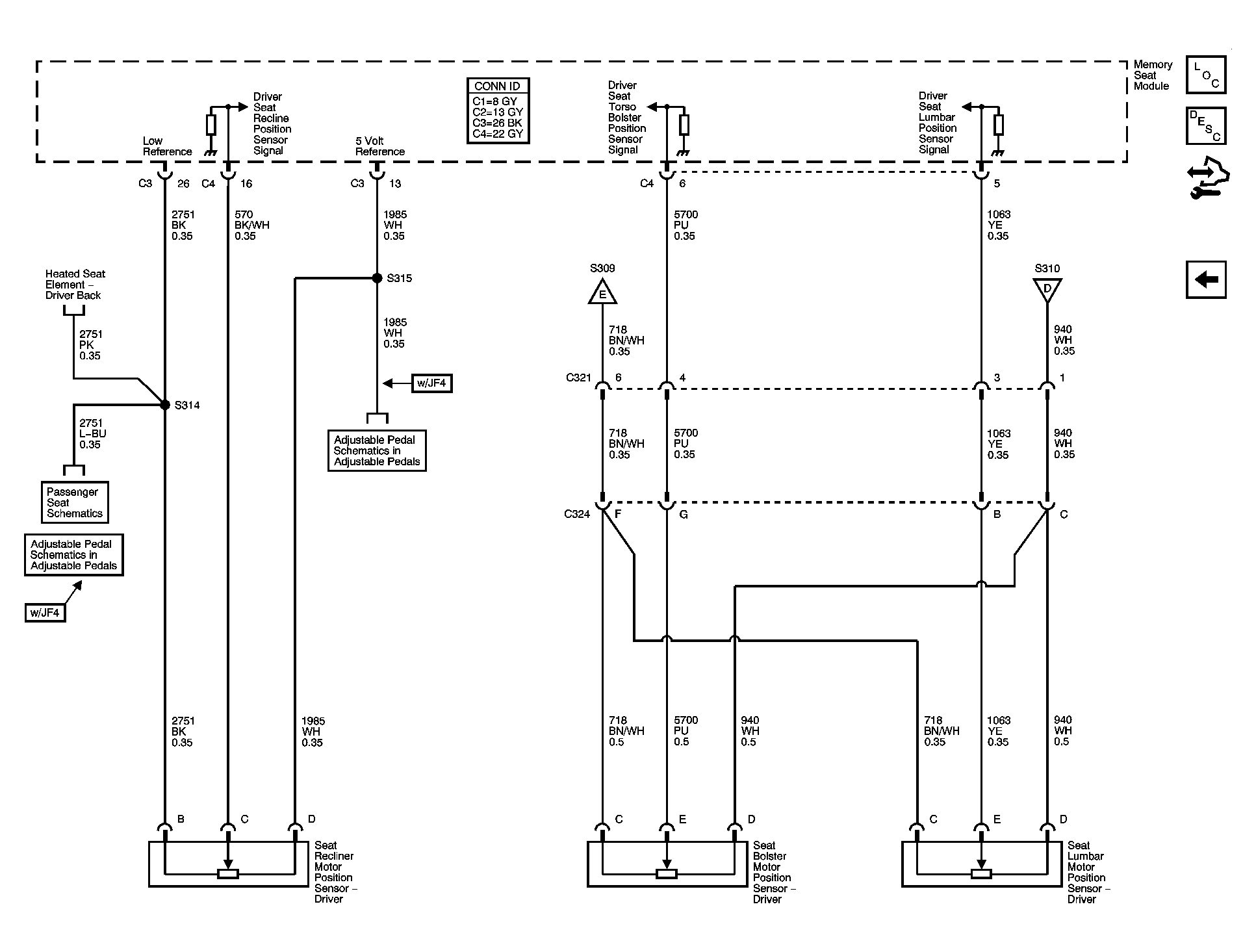

Fig 11: Seat Position Sensors Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.
