Theft Deterrent System - Immobilizer - Some Export Vehicles
>>
Schematic and Routing Diagrams
>>
Theft Deterrent System Schematics
Theft Deterrent System Schematics

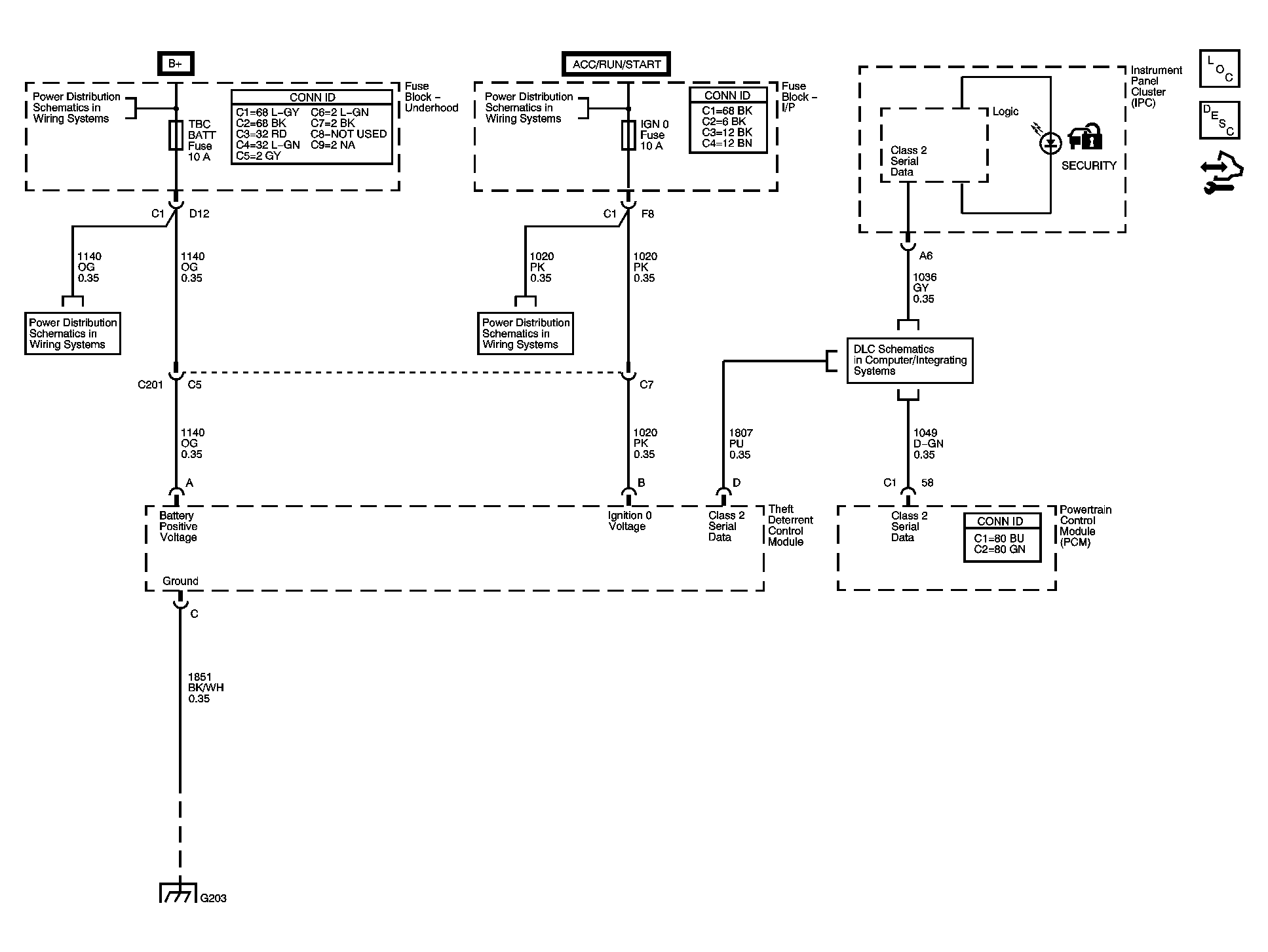

Fig 1: Theft Deterrent System Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
