Radio/Audio System Schematics (UQ7 w/o Y91 - Non Class 2 Amp)

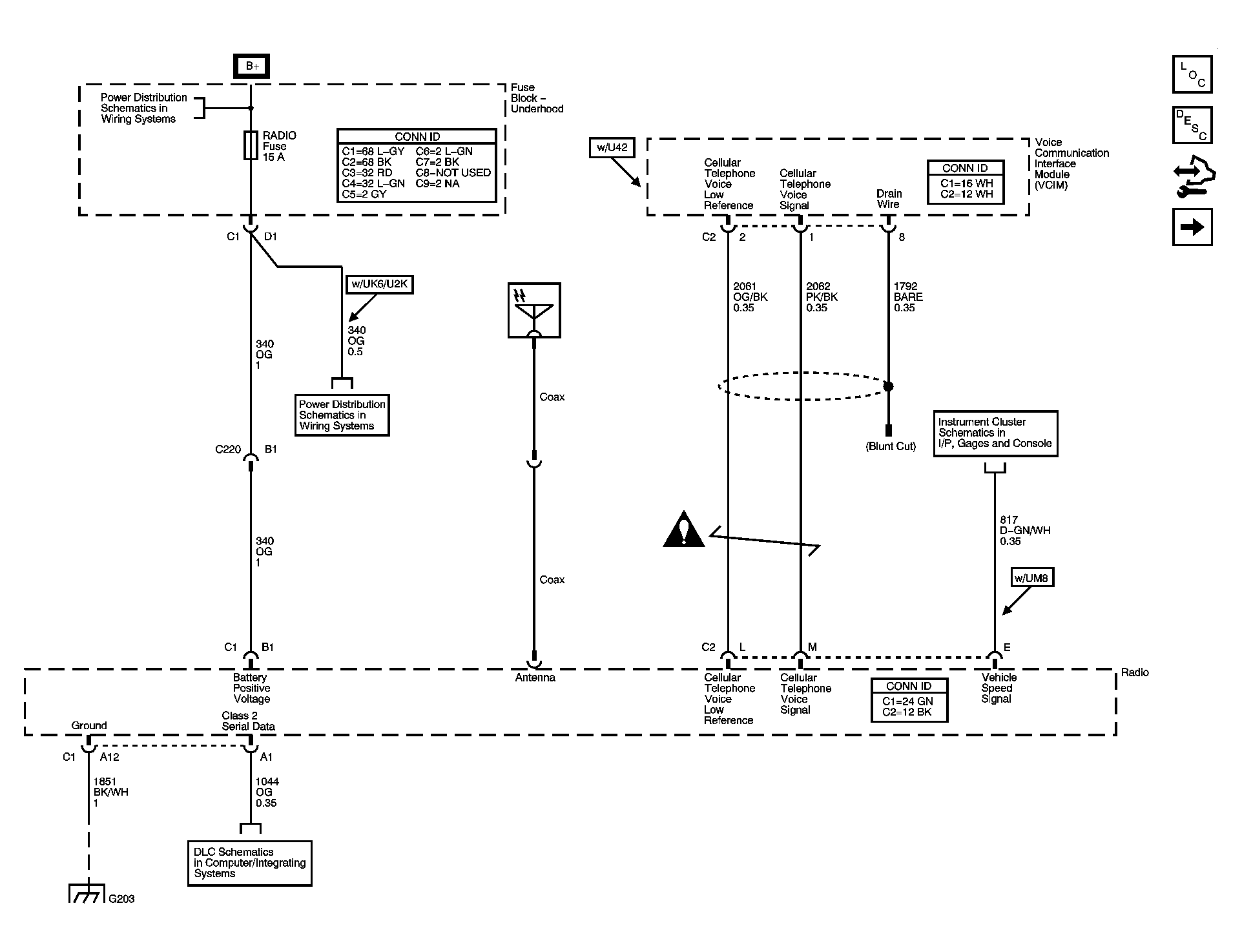

Fig 1: Power, Ground, Serial Data, And OnStar Audio Input Schematics

Courtesy of GENERAL MOTORS CORP.

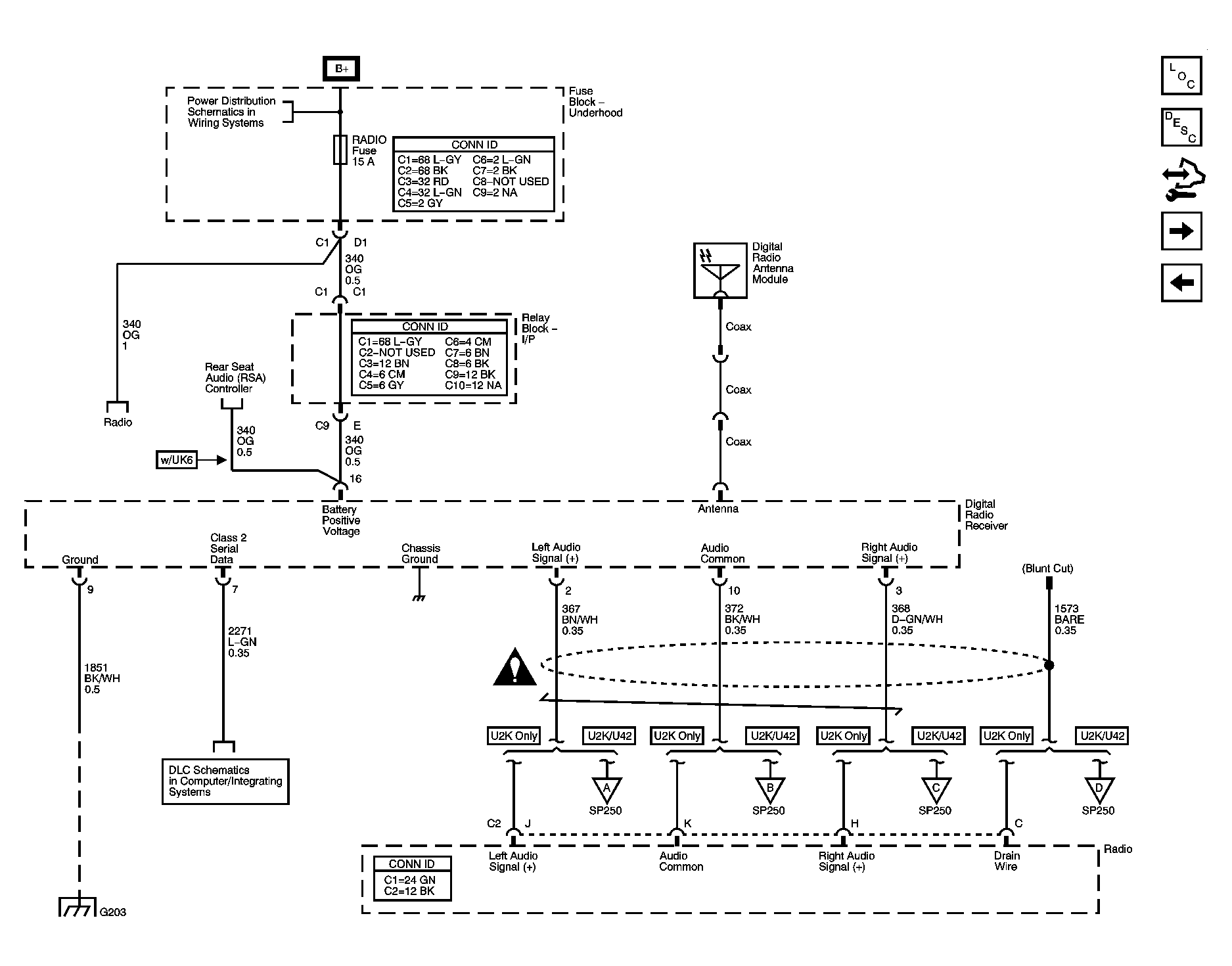

Fig 2: Digital Radio Receiver - U2K Schematics

Courtesy of GENERAL MOTORS CORP.

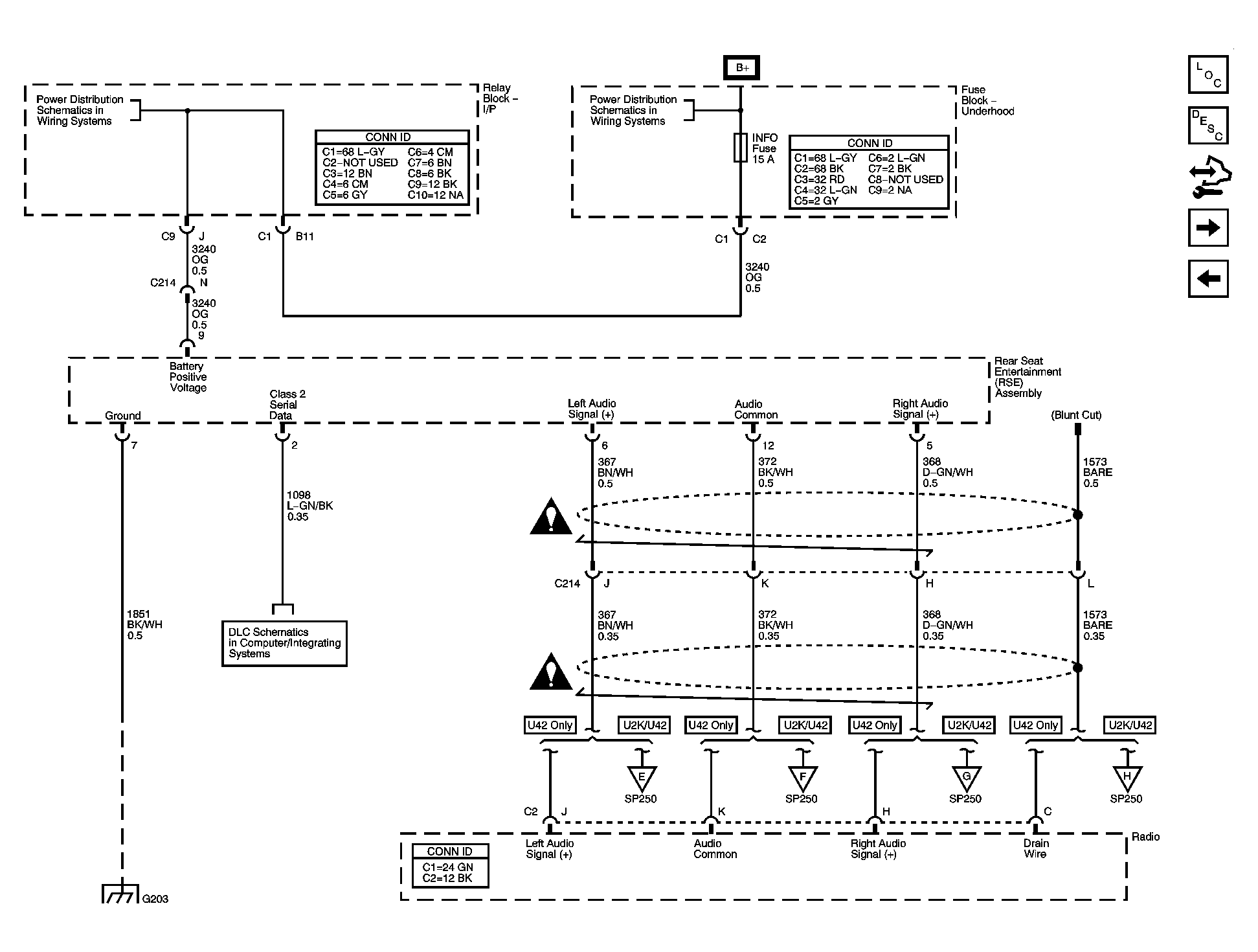

Fig 3: Rear Seat Entertainment - U42 Schematics

Courtesy of GENERAL MOTORS CORP.

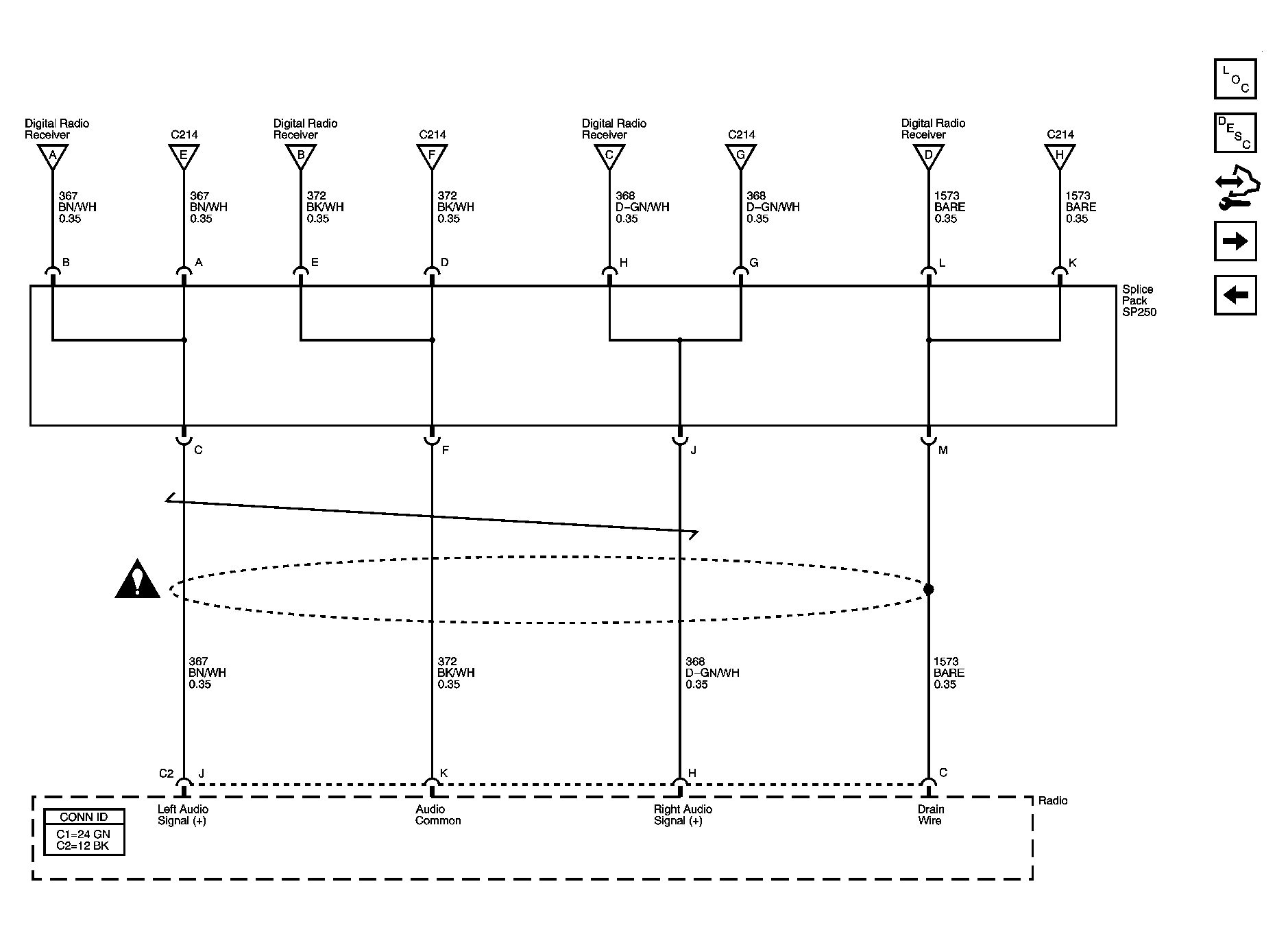

Fig 4: Splice Pack SP250 Schematics

Courtesy of GENERAL MOTORS CORP.

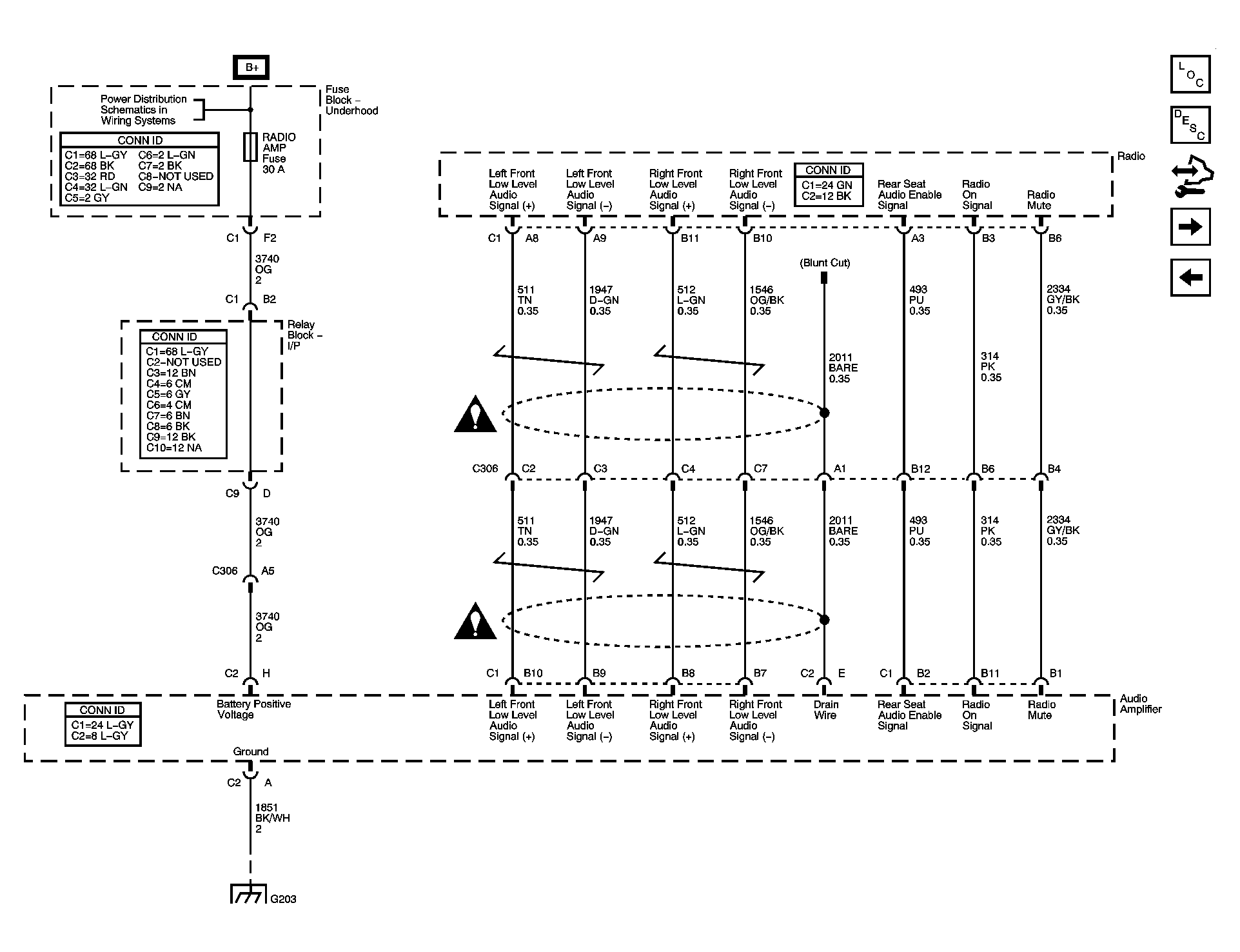

Fig 5: Amplifier Power, Ground, Front Audio, and Control Inputs Schematics

Courtesy of GENERAL MOTORS CORP.

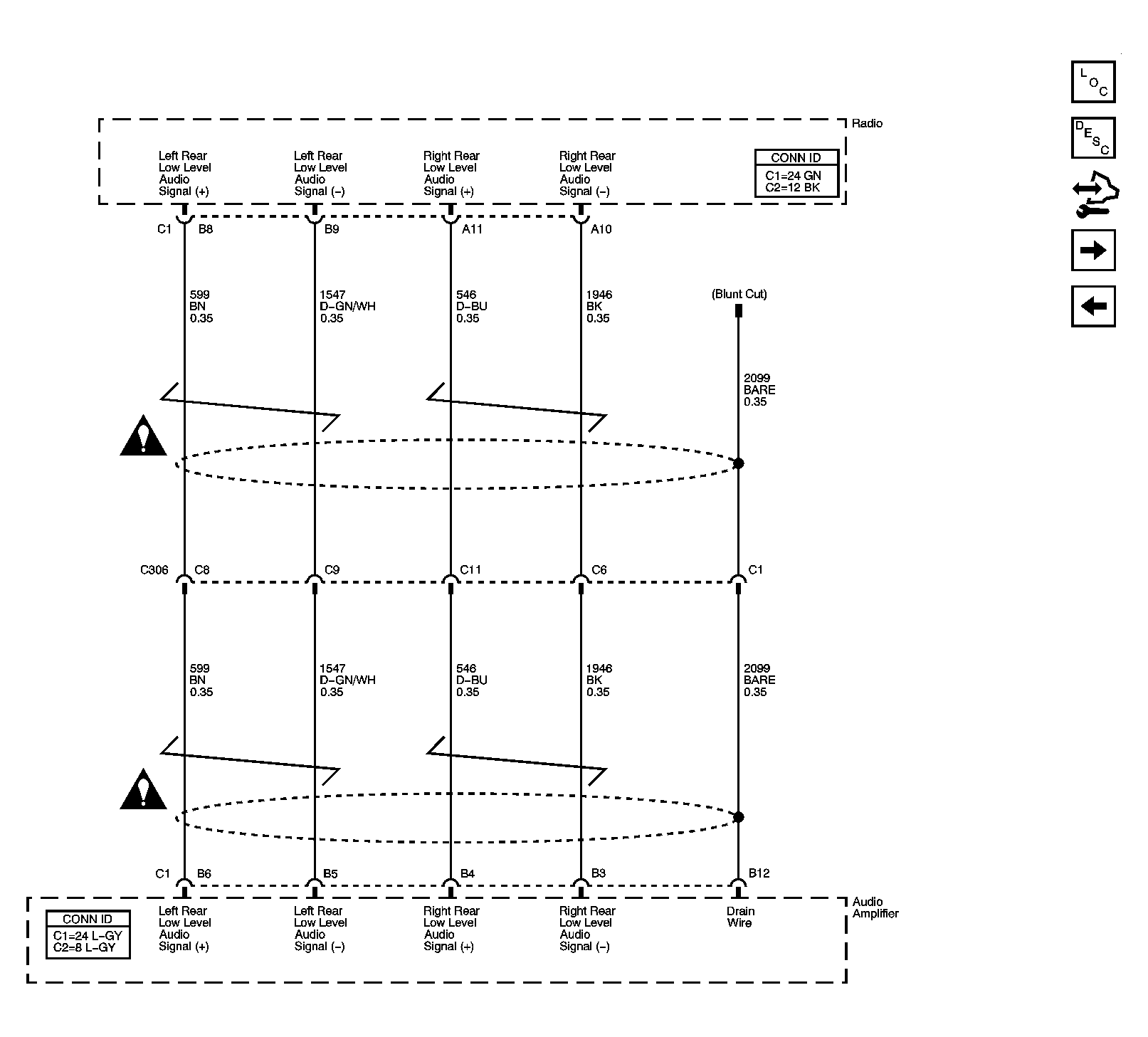

Fig 6: Amplifier Rear Audio Inputs - w/o UK6 Schematics

Courtesy of GENERAL MOTORS CORP.

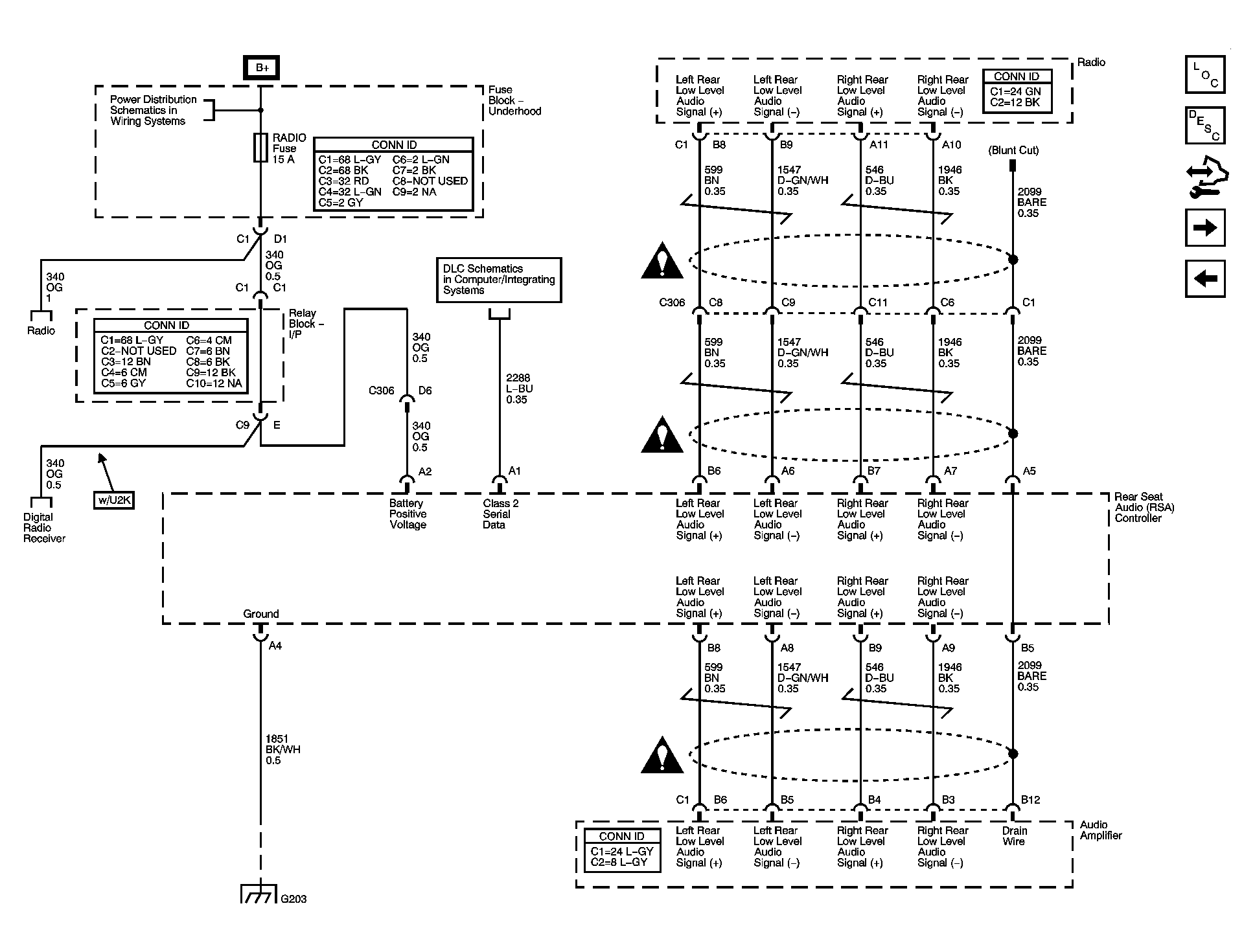

Fig 7: Amplifier Rear Audio Inputs and RSA Controller - w/UK6 Schematics

Courtesy of GENERAL MOTORS CORP.

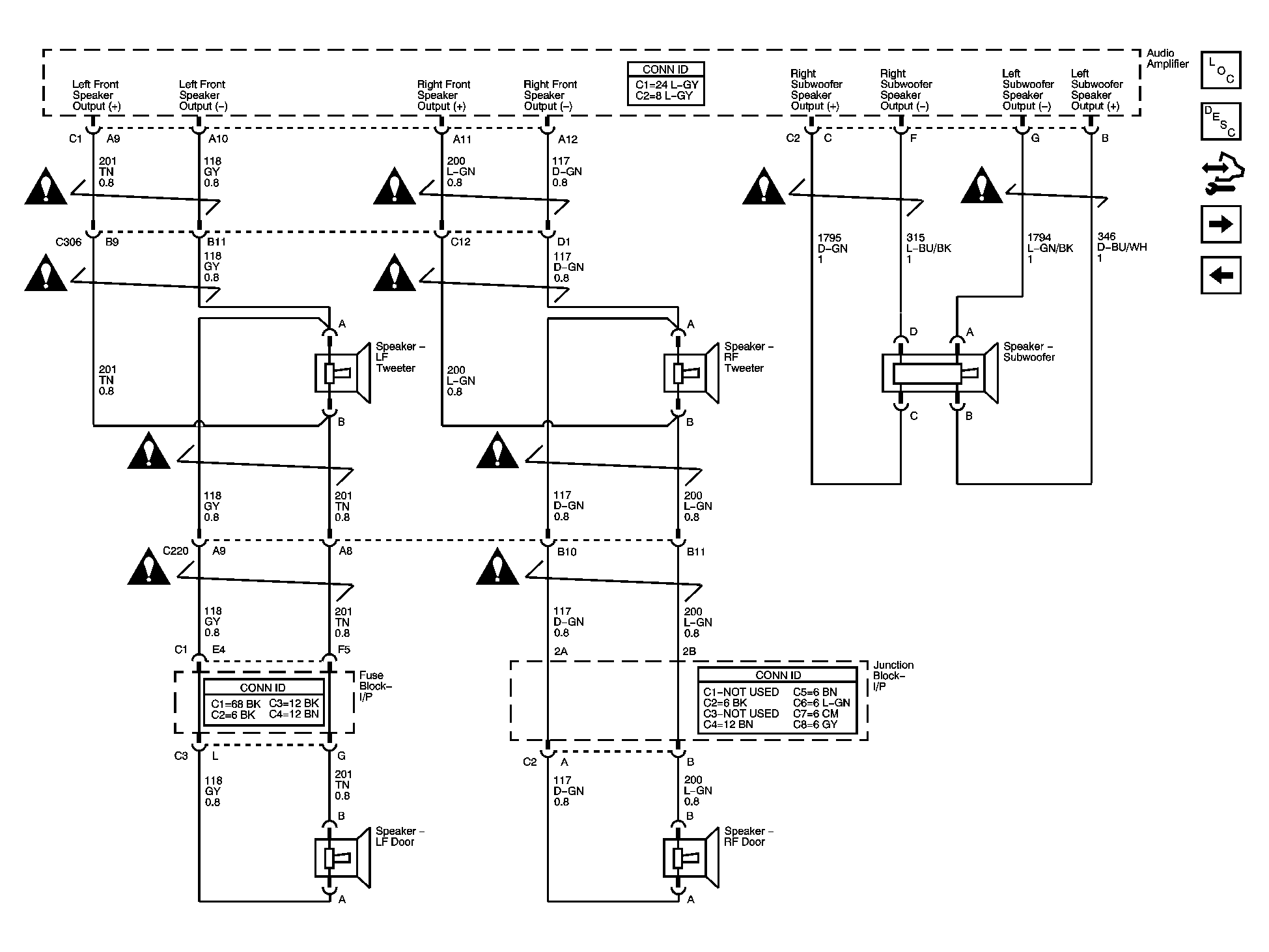

Fig 8: Front Speakers and Subwoofer Schematics

Courtesy of GENERAL MOTORS CORP.

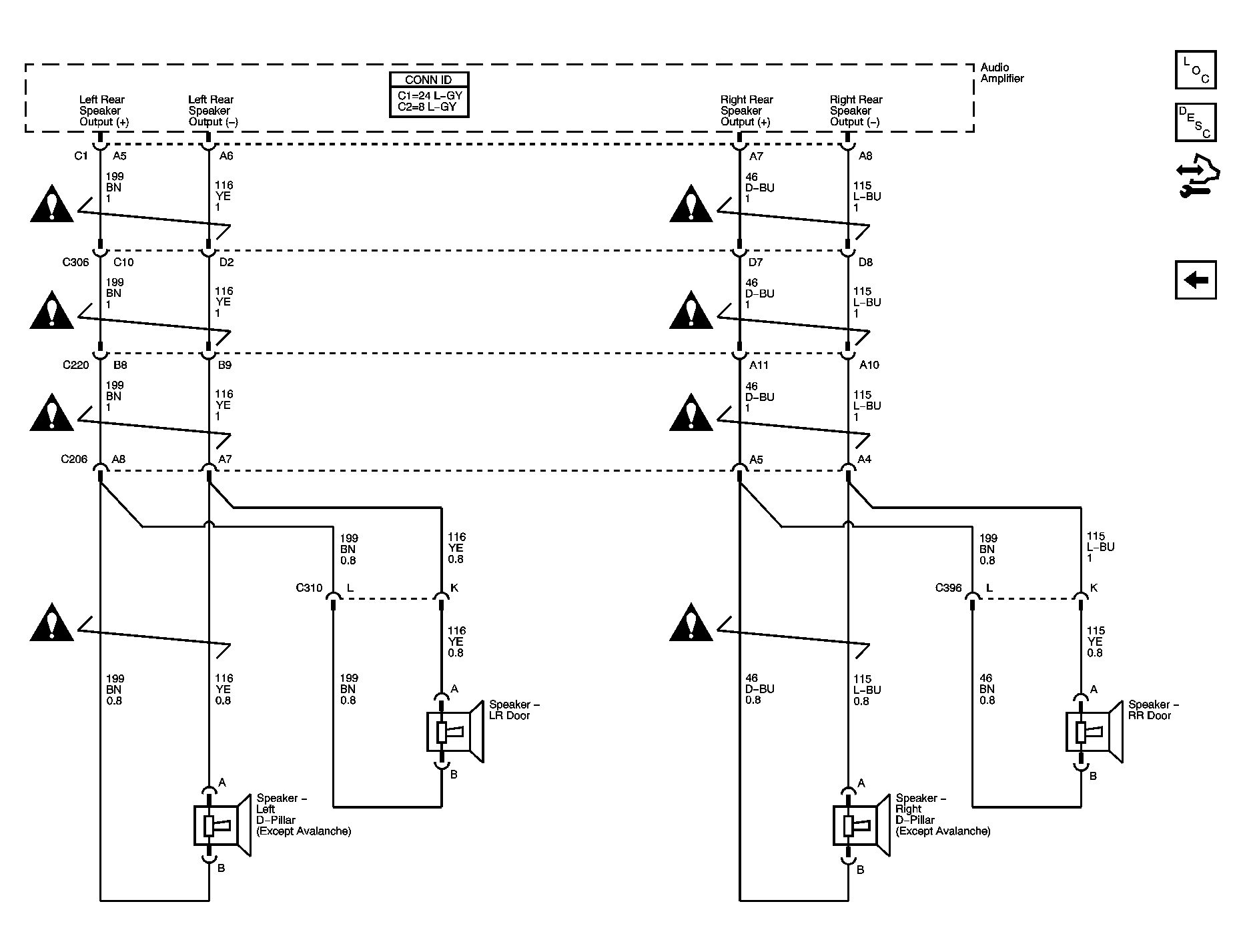

Fig 9: Rear Speakers Schematics

Courtesy of GENERAL MOTORS CORP.
