Rear Parking Assist Schematics

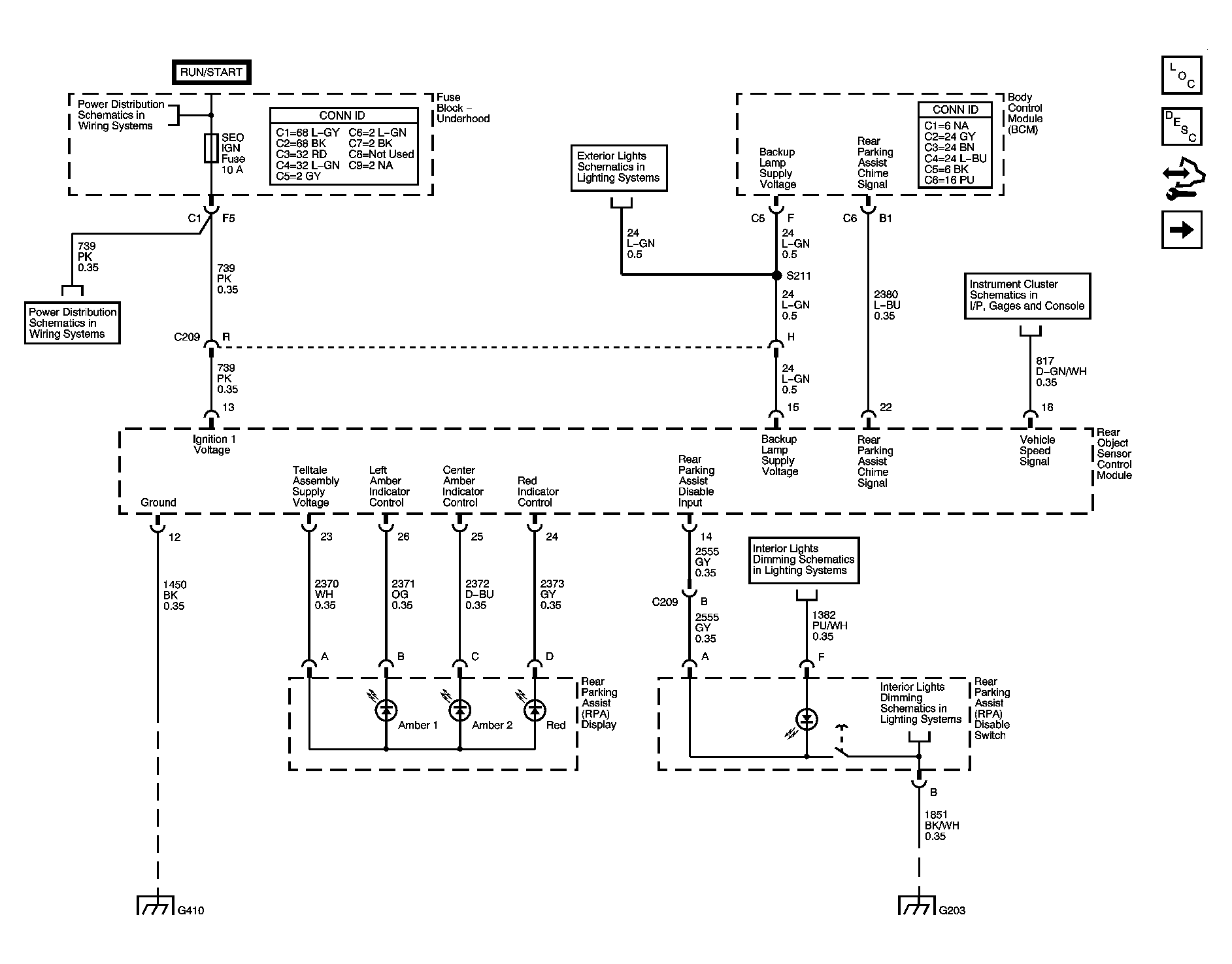

Fig 1: Rear Object Sensor Control Module, RPA Display, and RPA Disable Switch Schematics
GM1465191Courtesy of GENERAL MOTORS CORP.

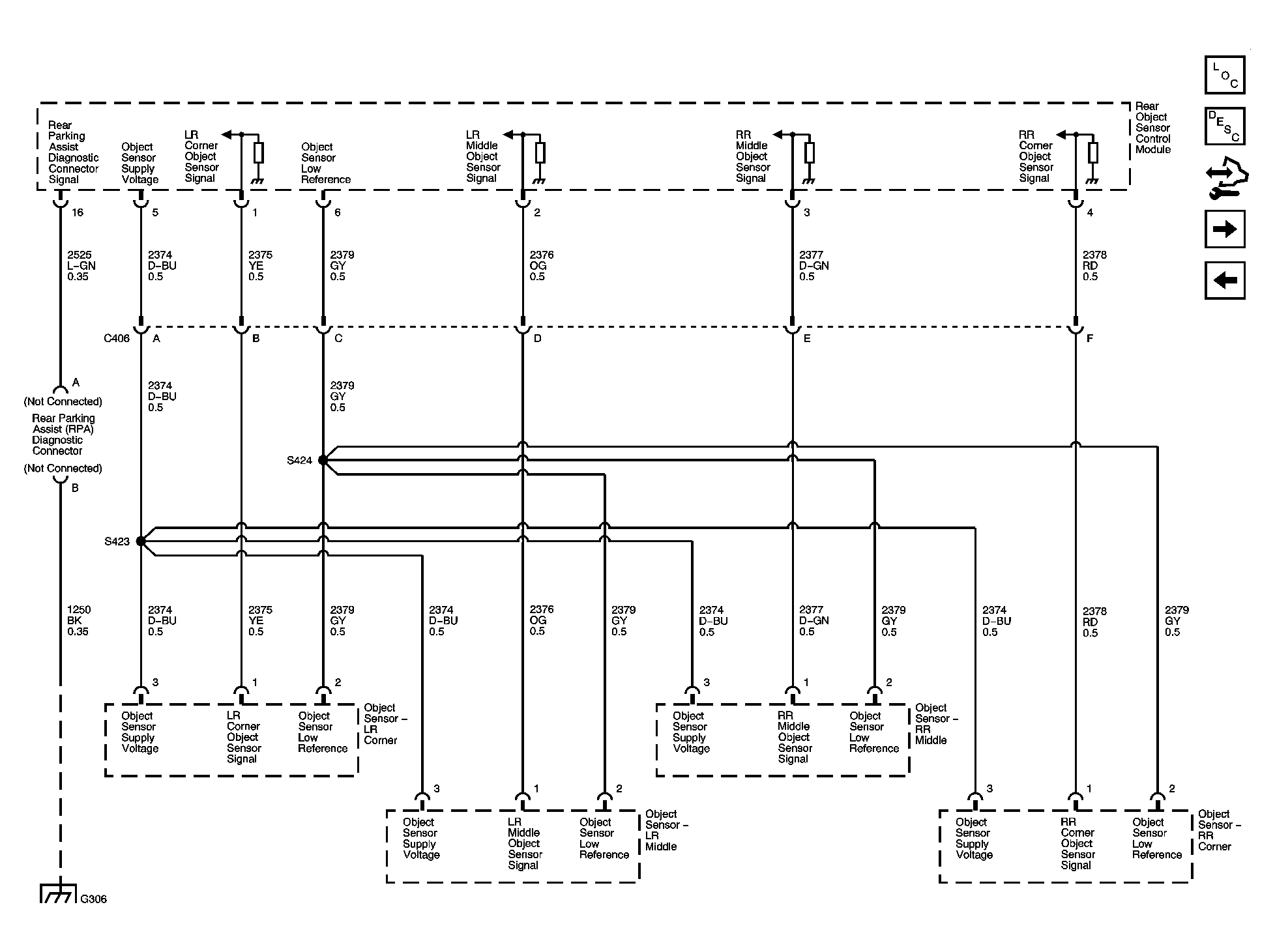

Fig 2: Rear Object Sensor Control Module and Object Sensors Schematics
GM1465192Courtesy of GENERAL MOTORS CORP.

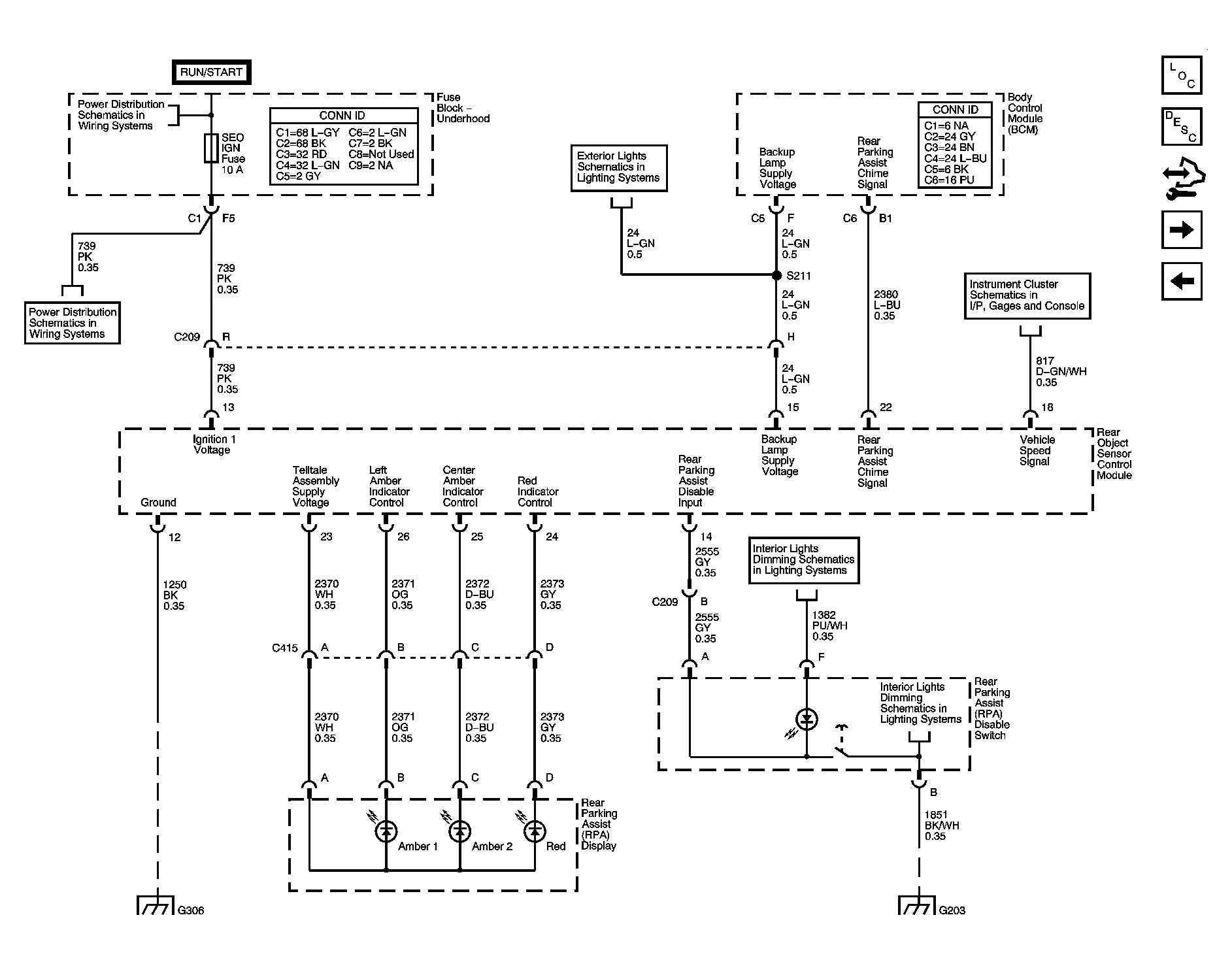

Fig 3: Rear Object Sensor Control Module, RPA Display and Disable Switch - Escalade EXT Schematics
GM1563158Courtesy of GENERAL MOTORS CORP.

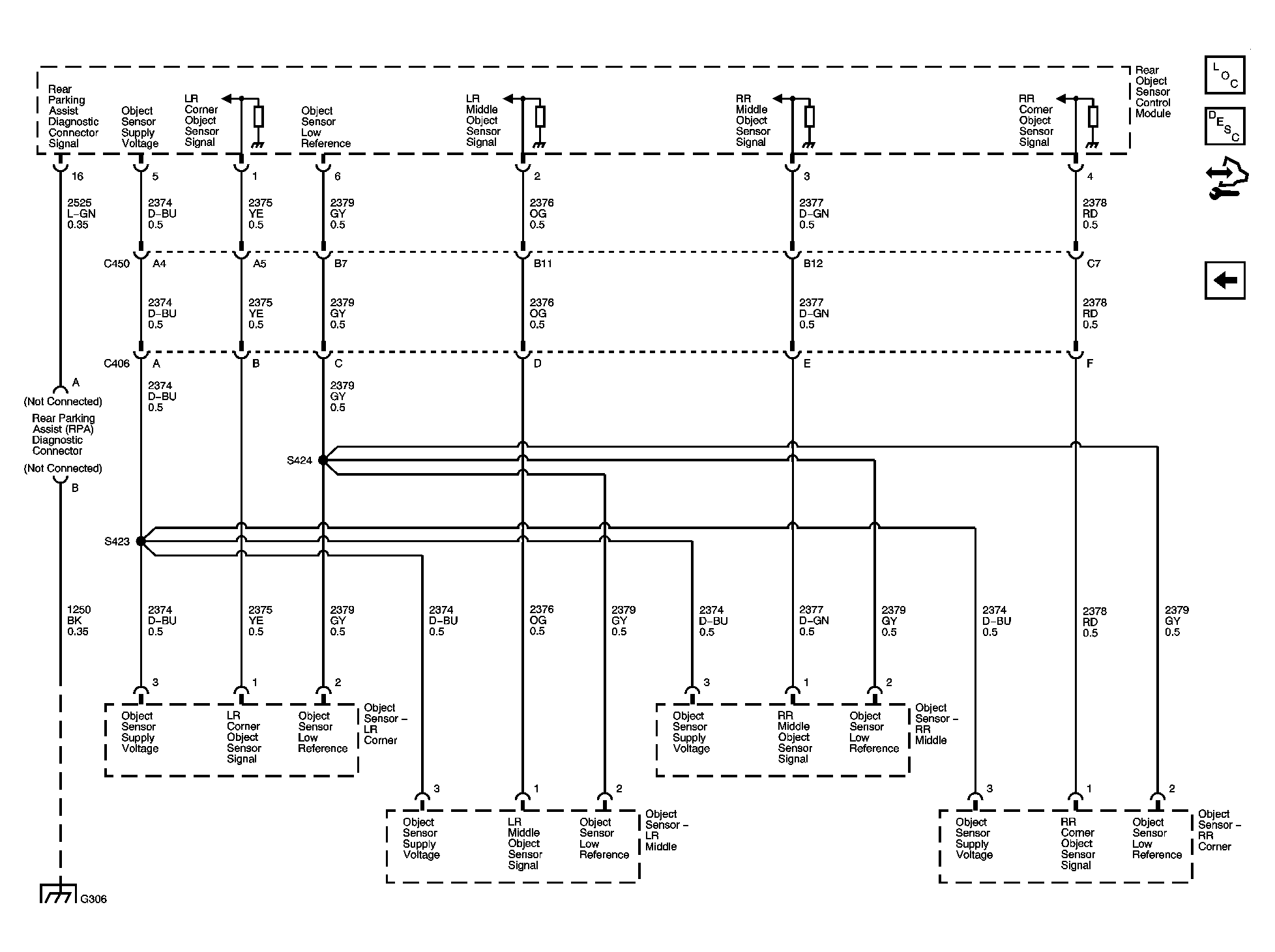

Fig 4: Rear Object Sensor Control Module and Object Sensors - Escalade EXT Schematics
GM1563159Courtesy of GENERAL MOTORS CORP.
