Instrument Cluster Schematics

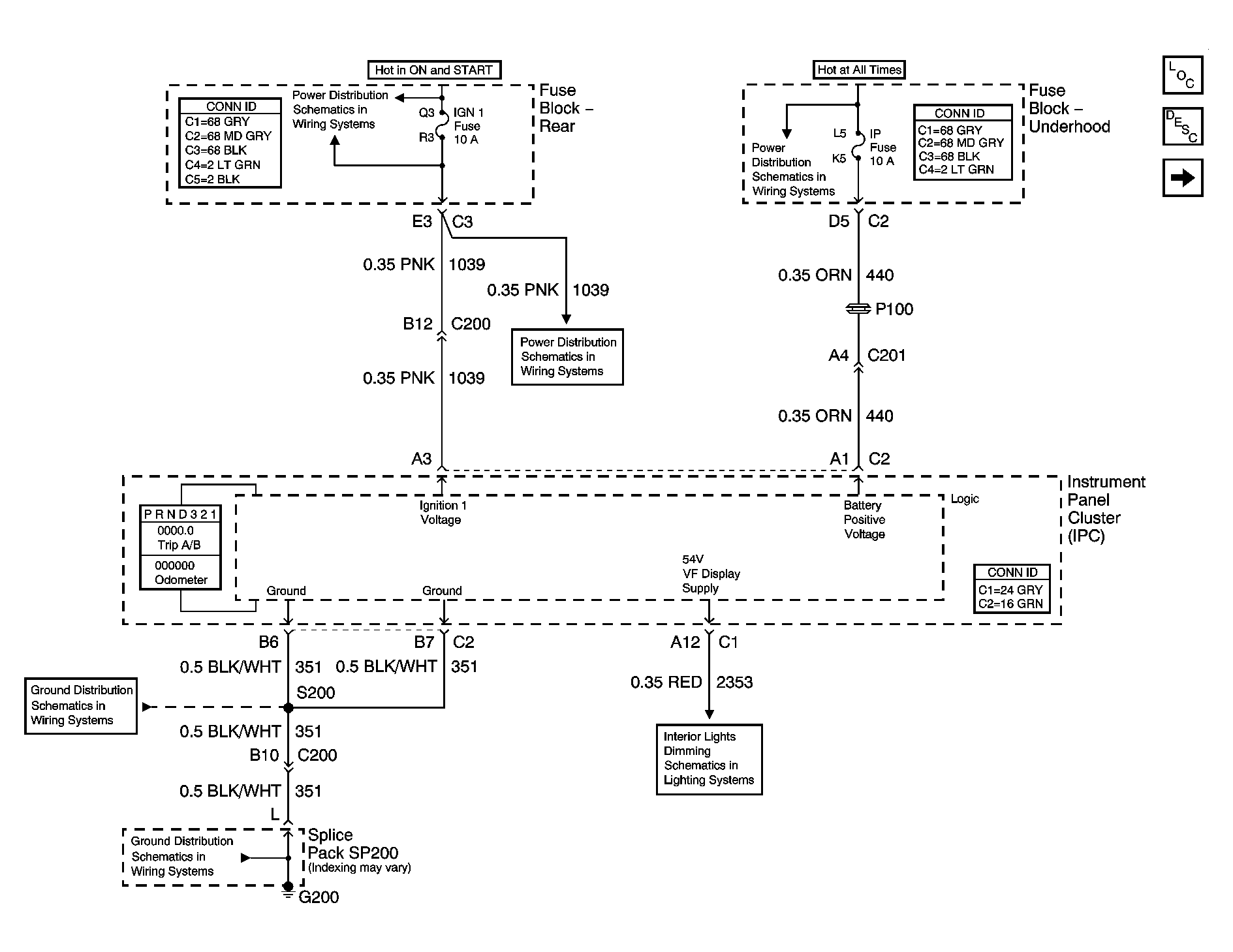

Fig 1: Power, Ground, and 54V VF Display Supply

Courtesy of GENERAL MOTORS CORP.

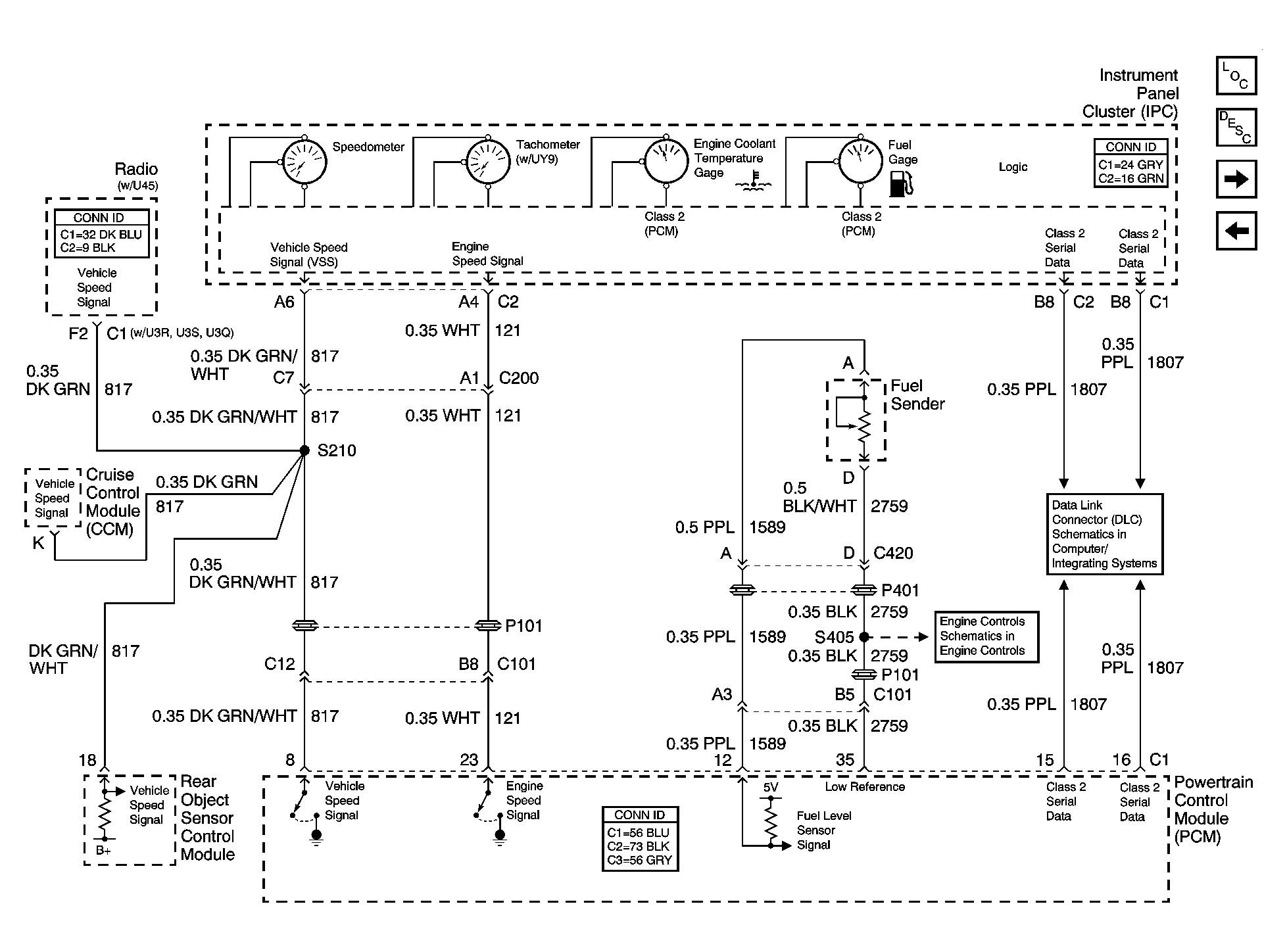

Fig 2: Gages and Class 2

Courtesy of GENERAL MOTORS CORP.

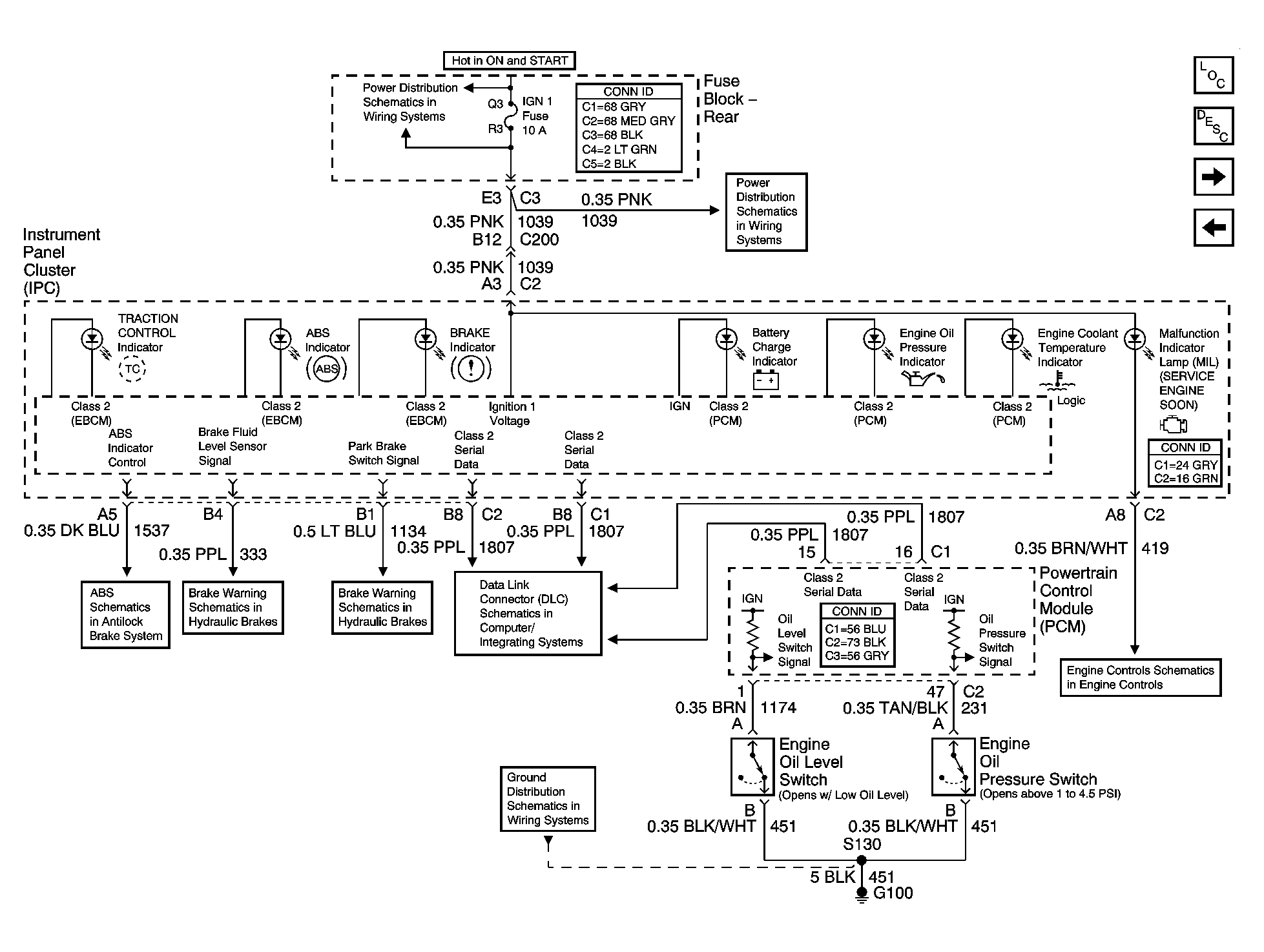

Fig 3: Brakes and Engine Indicators

Courtesy of GENERAL MOTORS CORP.

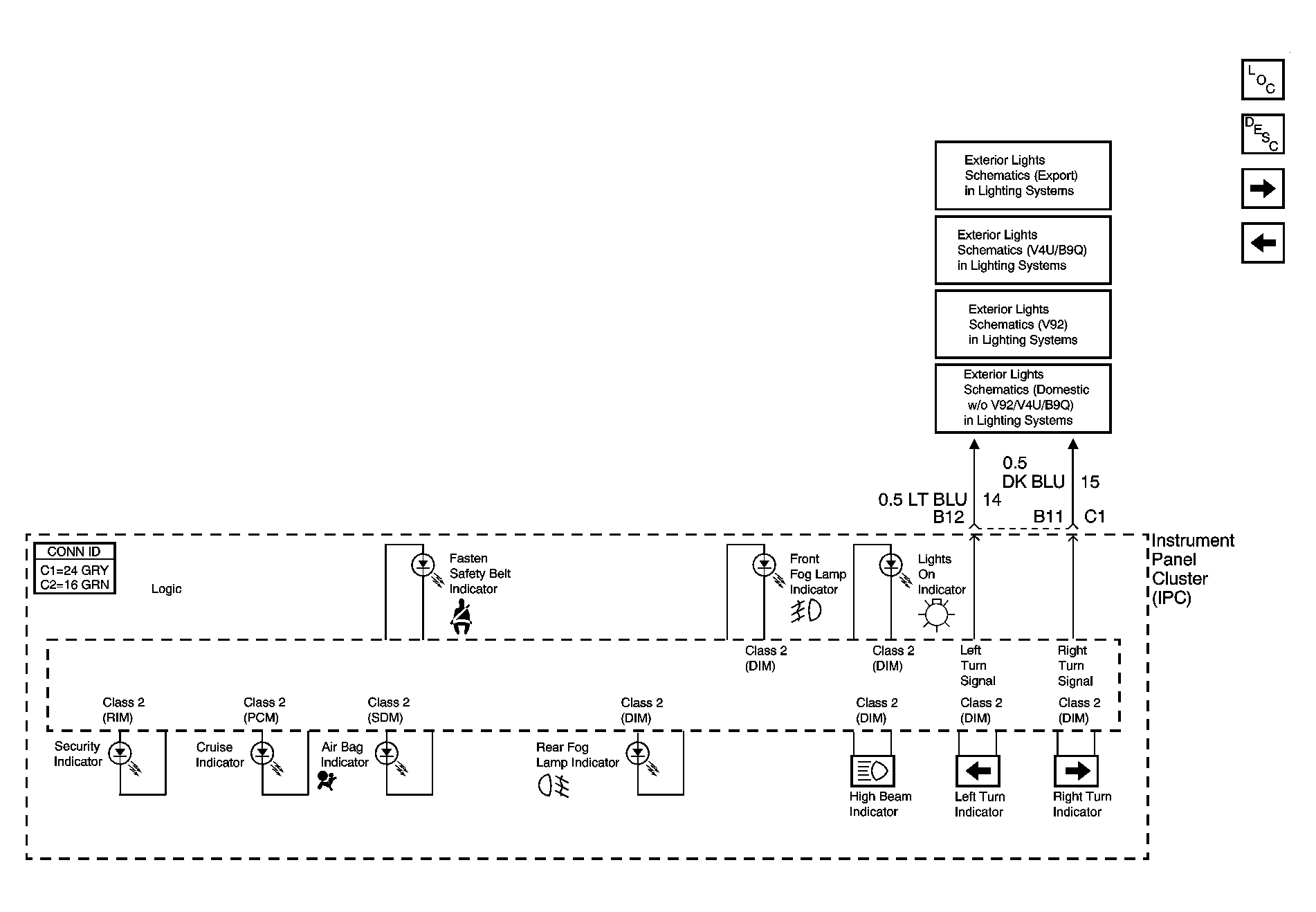

Fig 4: Lighting, Restraints, Security and Cruise Indicators

Courtesy of GENERAL MOTORS CORP.

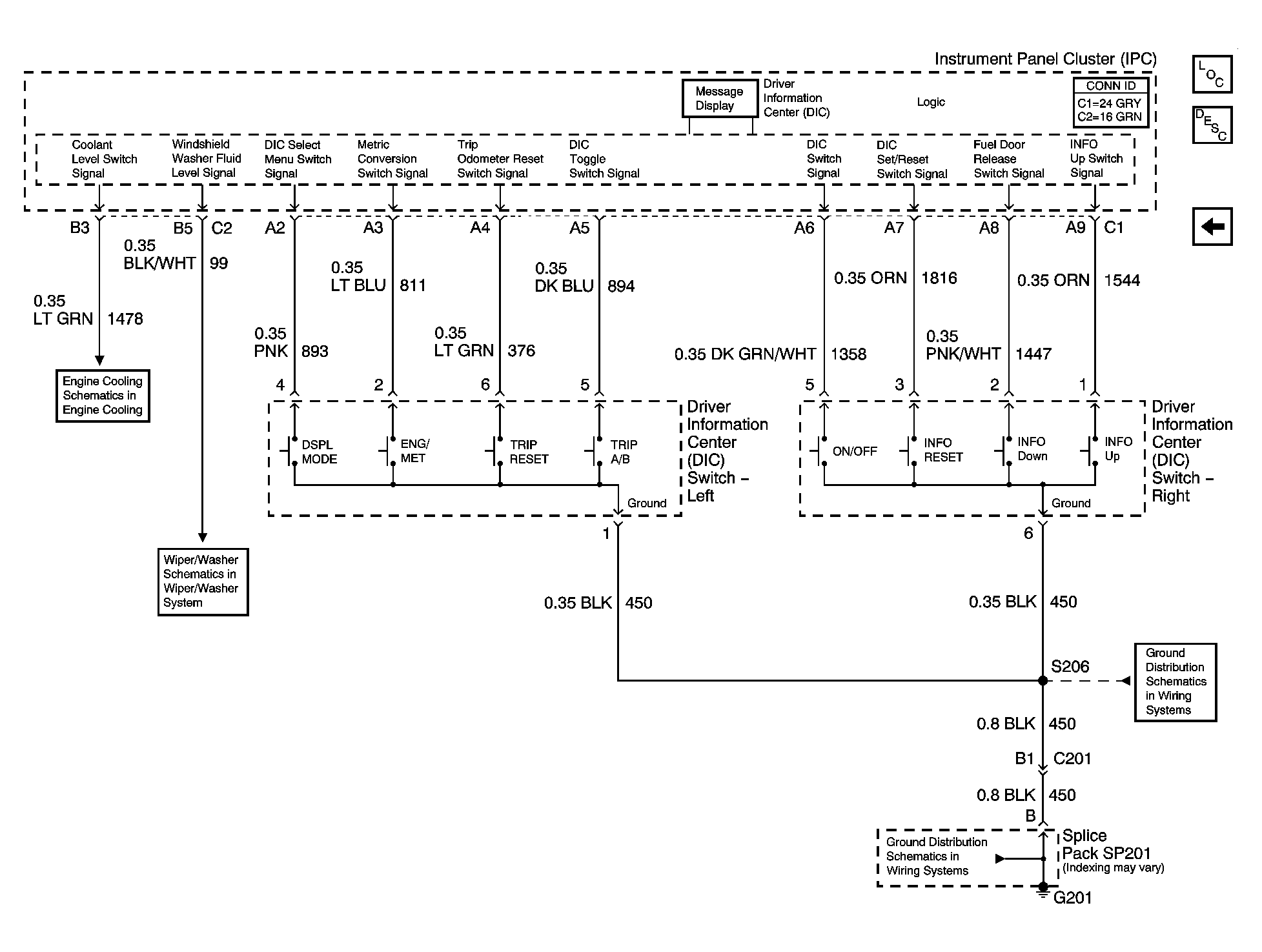

Fig 5: Driver Information Center

Courtesy of GENERAL MOTORS CORP.
