Audible Warnings Schematics

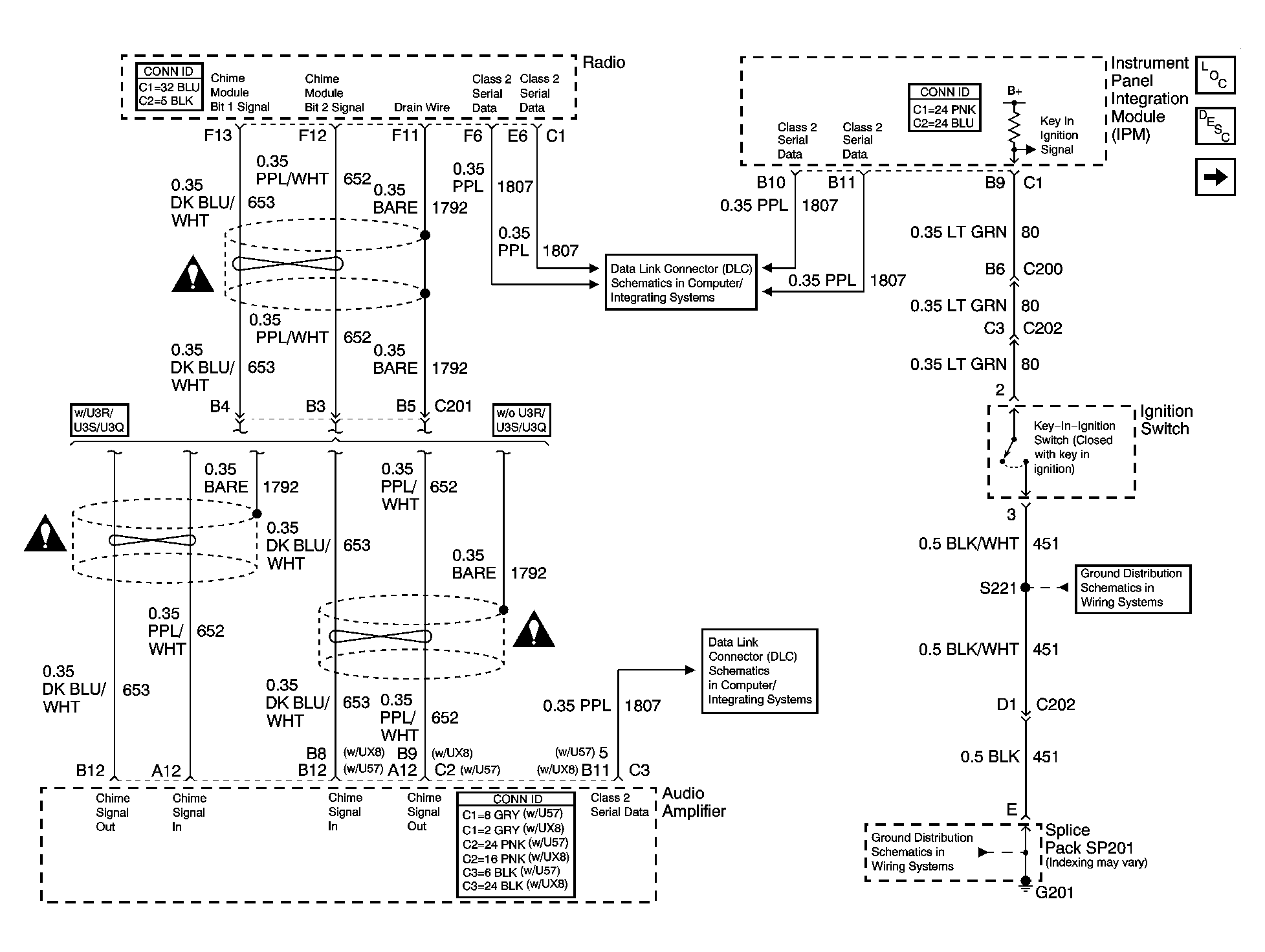

Fig 1: Radio Output, Left Front Door Open Signal and Key-In-Ignition Signal
GM1412124Courtesy of GENERAL MOTORS CORP.

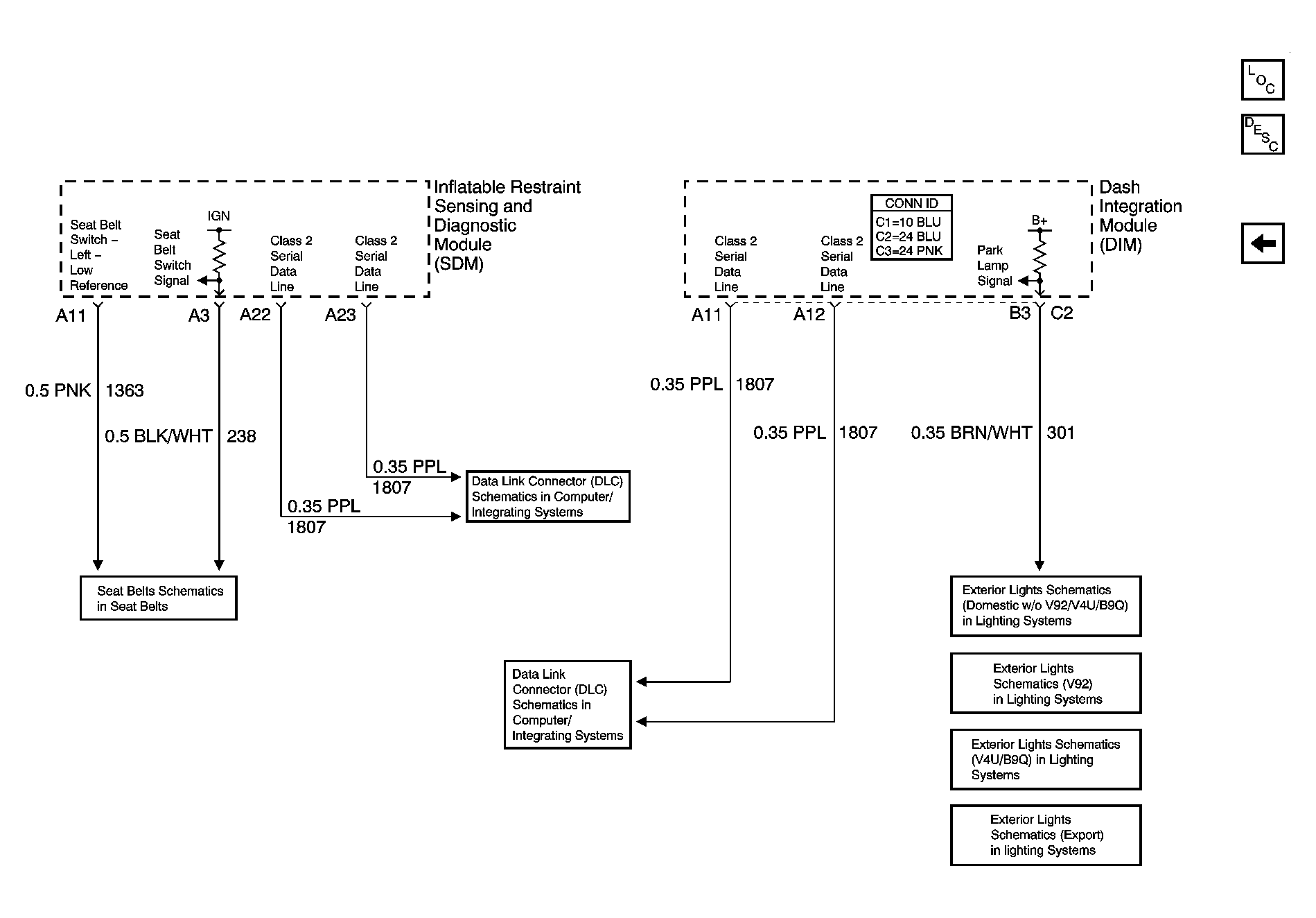

Fig 2: Seat Belt Switch Signal and Park Lamp Signal
GM1412127Courtesy of GENERAL MOTORS CORP.
