Door Lock/Indicator Schematics

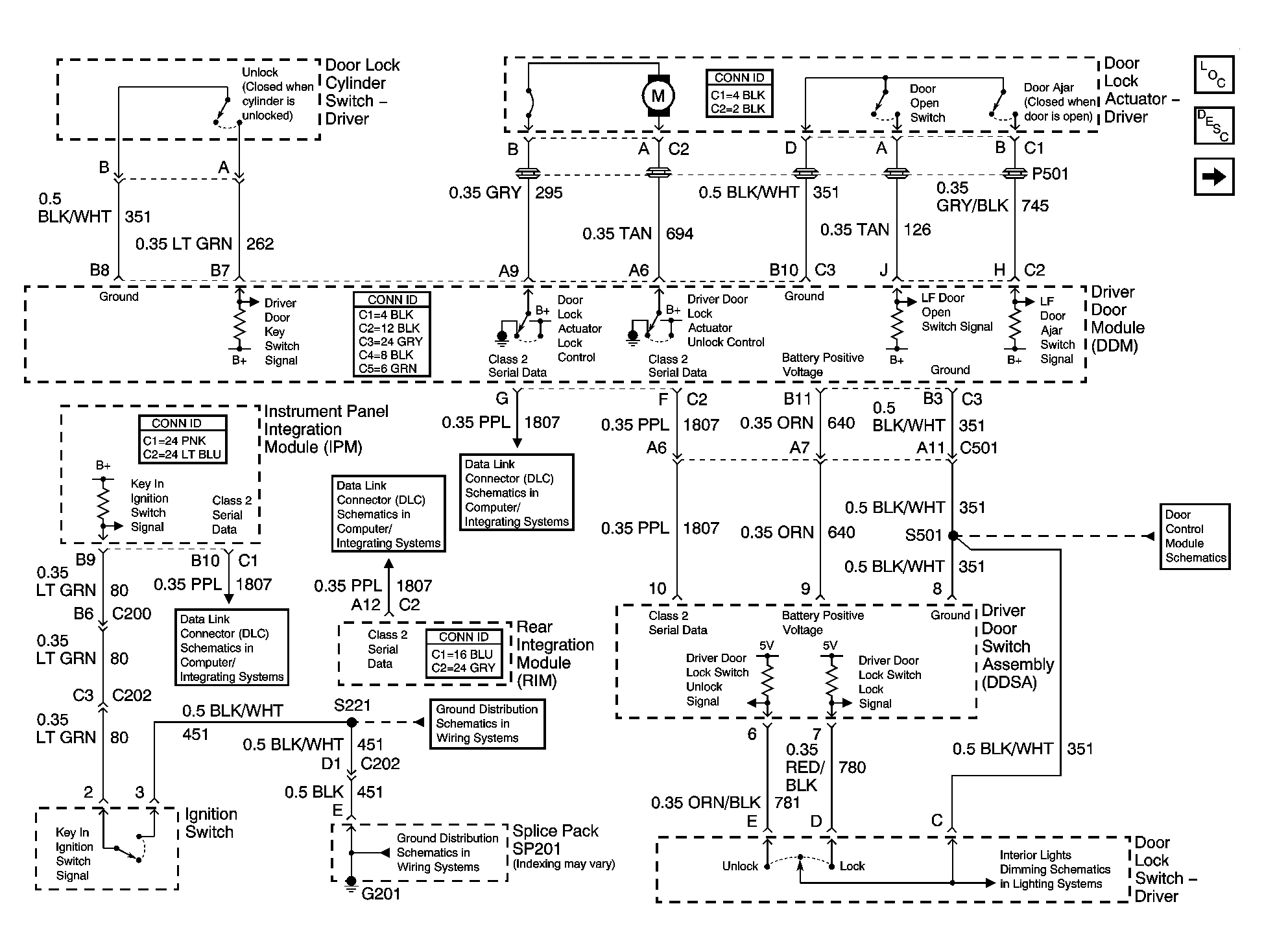

Fig 1: Driver Door Power Door Lock

Courtesy of GENERAL MOTORS CORP.

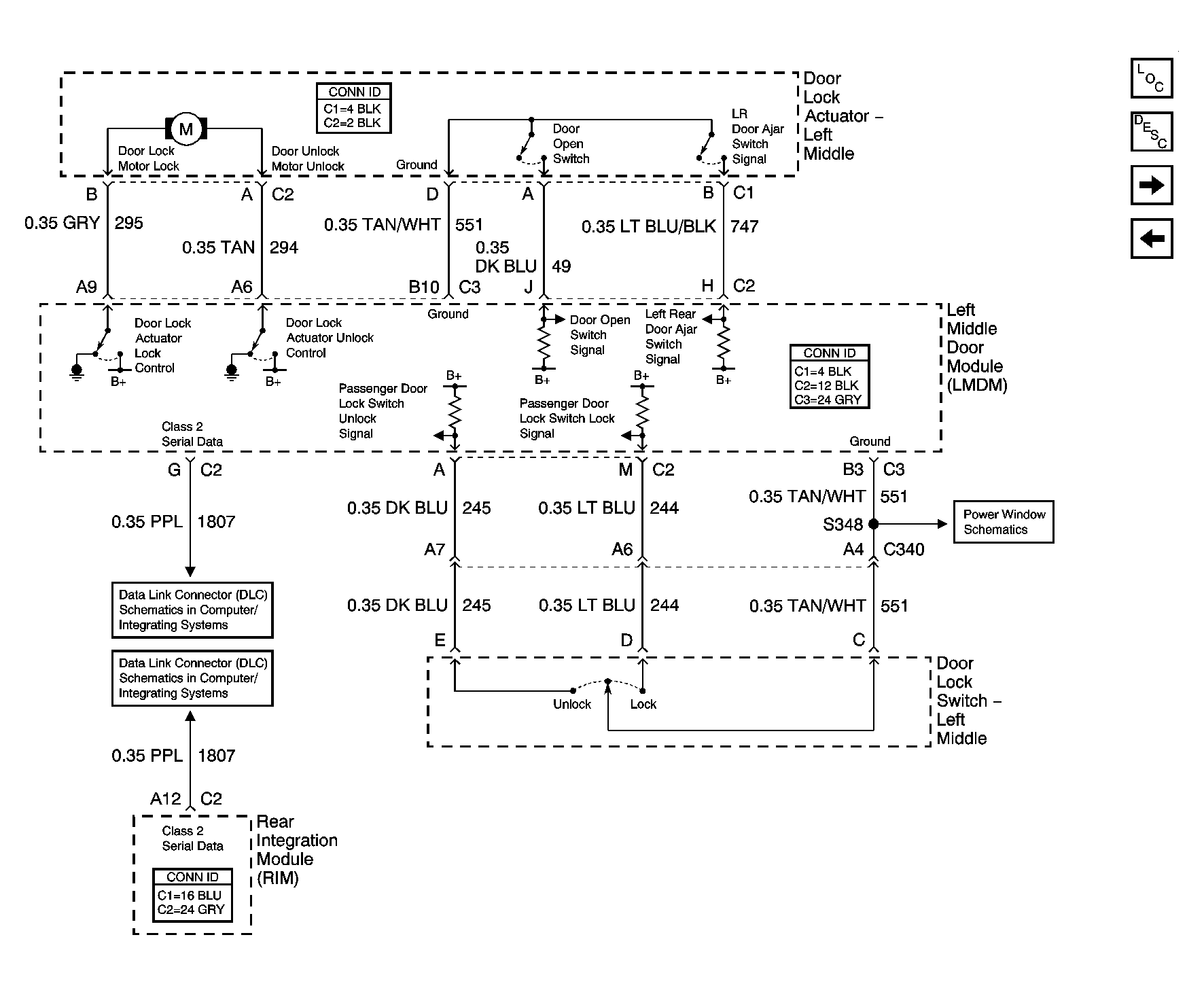

Fig 2: Left Middle Door Power Door Lock (V4U)

Courtesy of GENERAL MOTORS CORP.

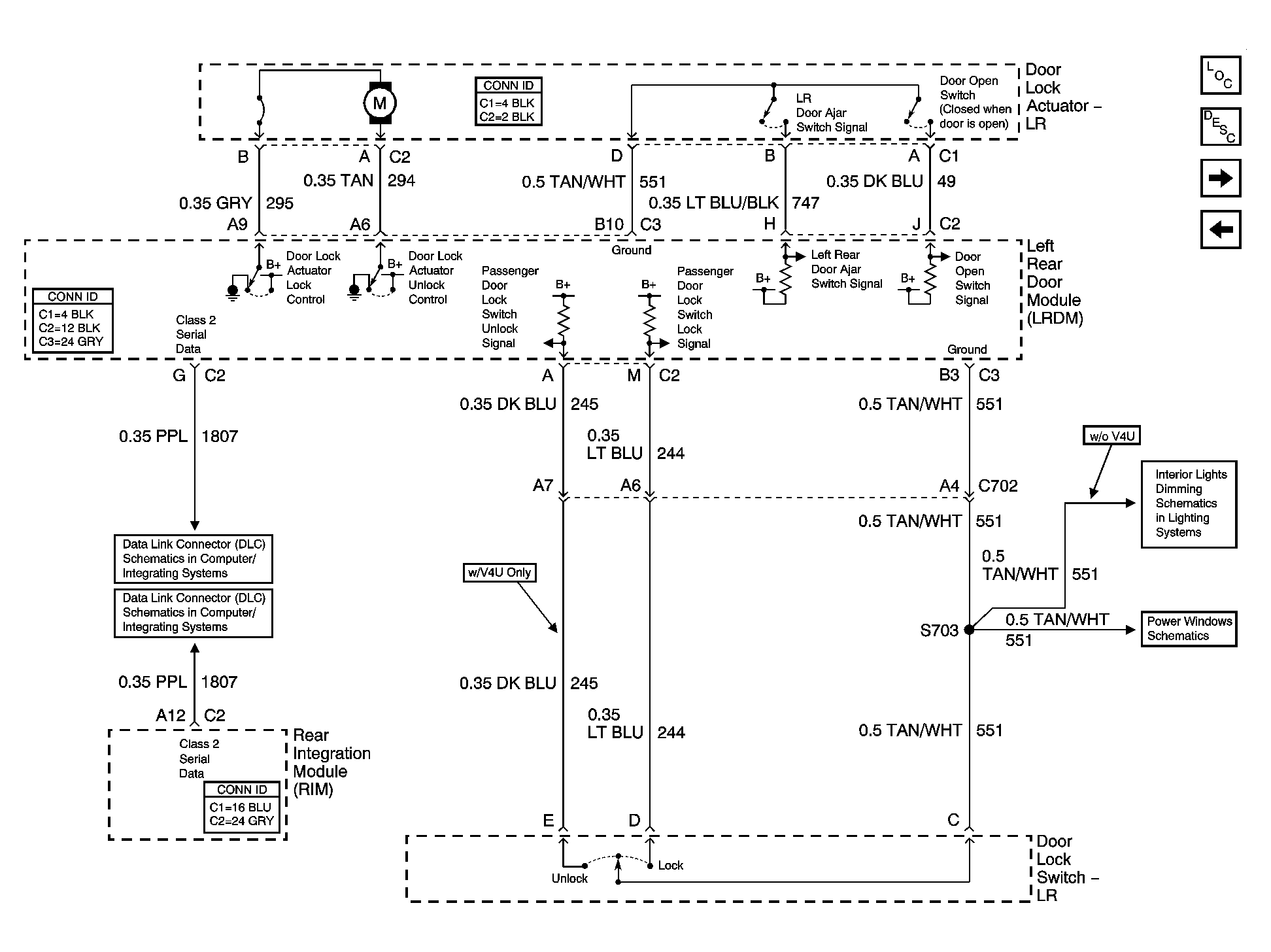

Fig 3: Left Rear Door Power Door Lock

Courtesy of GENERAL MOTORS CORP.

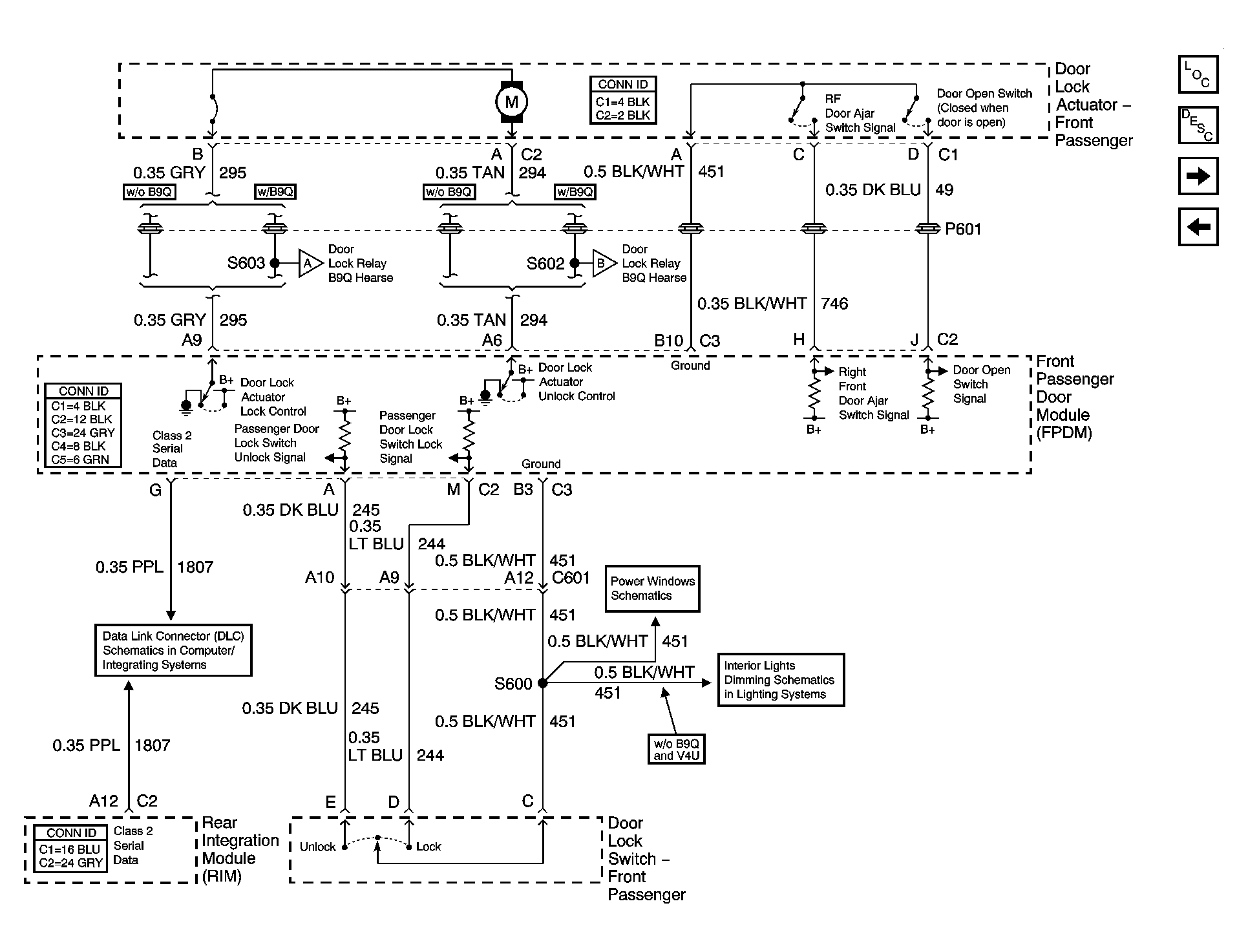

Fig 4: Right Front Door Power Door Lock

Courtesy of GENERAL MOTORS CORP.

Fig 5: Right Front Door Power Door Lock (B9Q)

Courtesy of GENERAL MOTORS CORP.

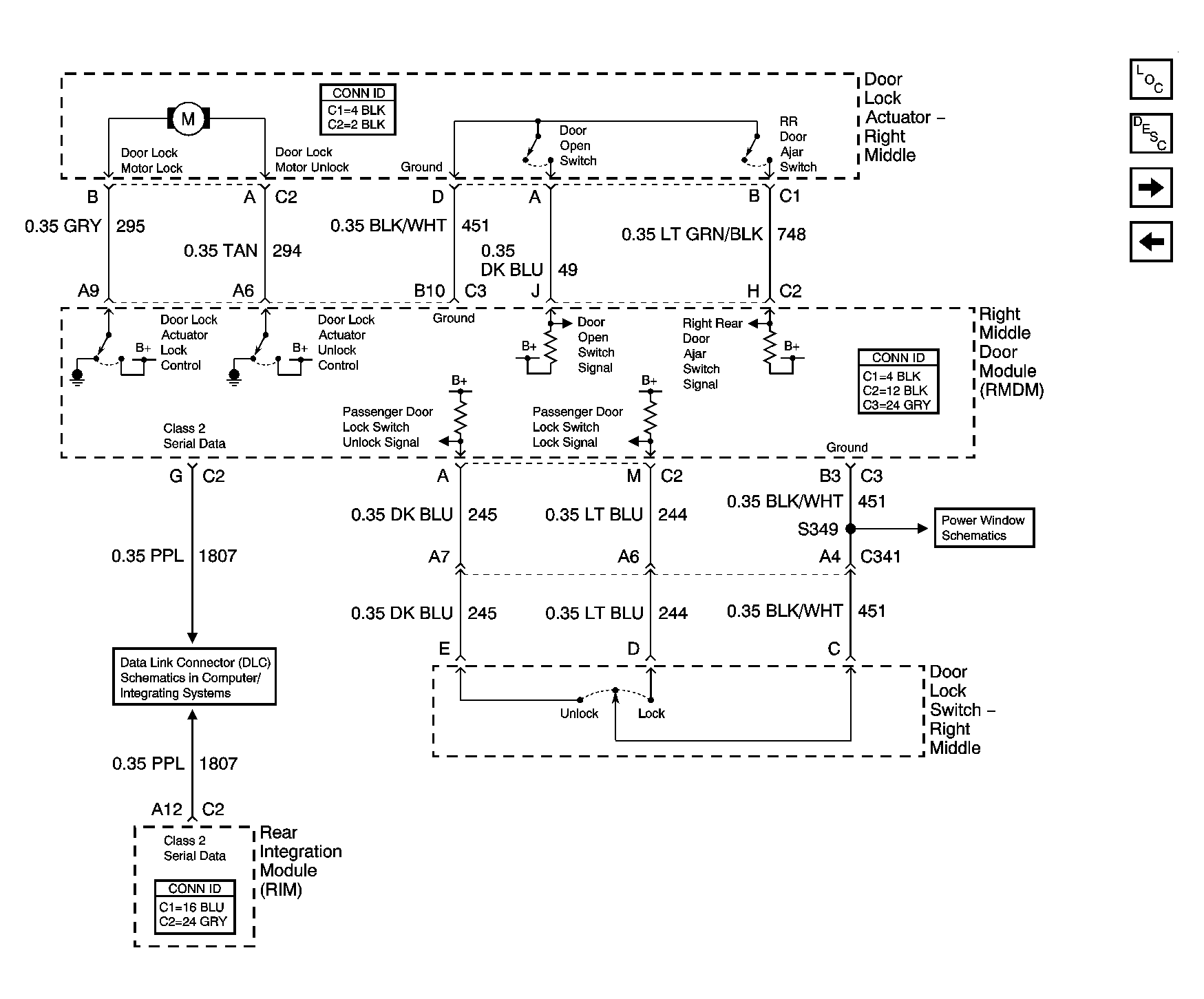

Fig 6: Right Middle Door Power Door Lock (V4U)

Courtesy of GENERAL MOTORS CORP.

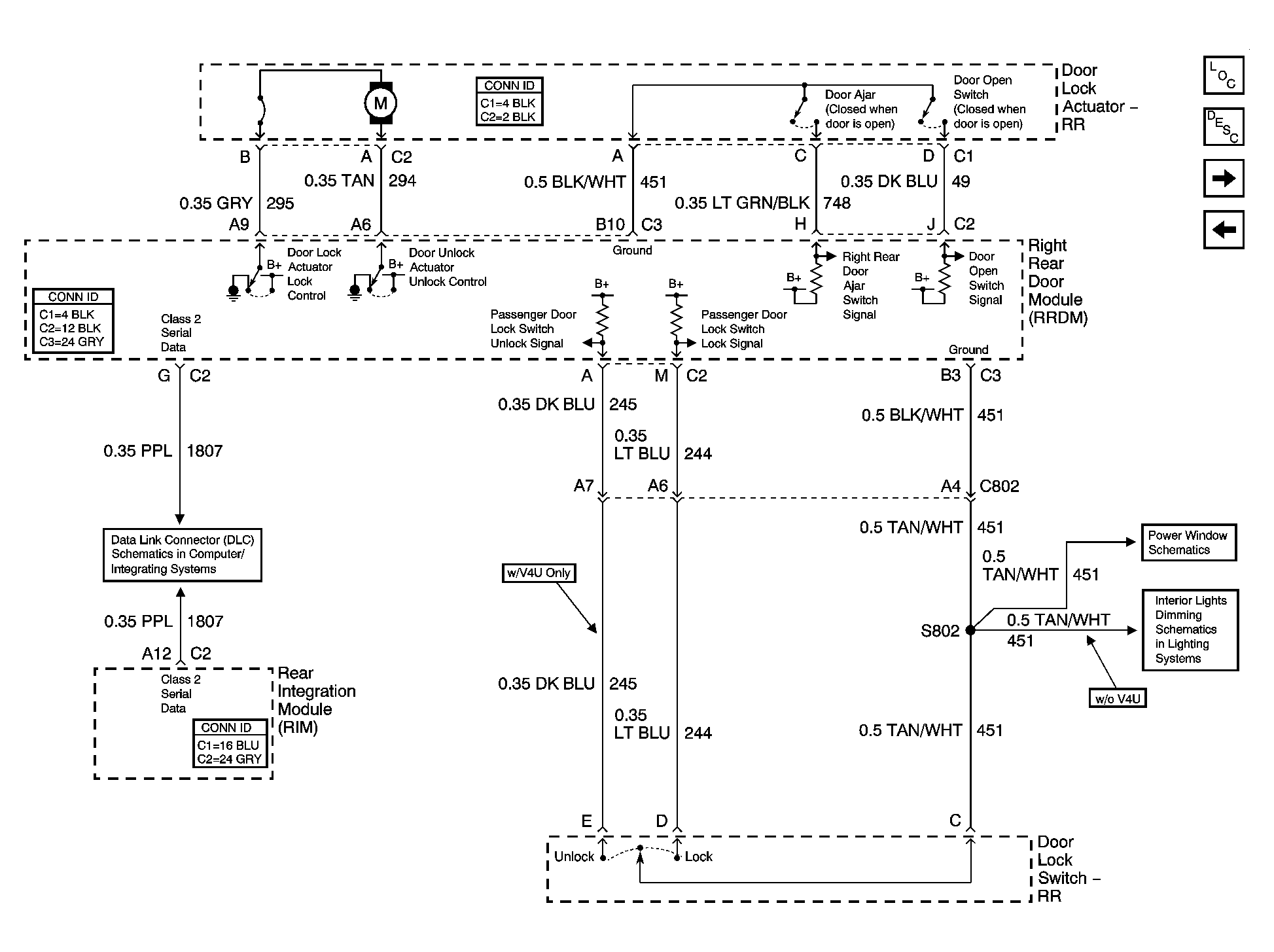

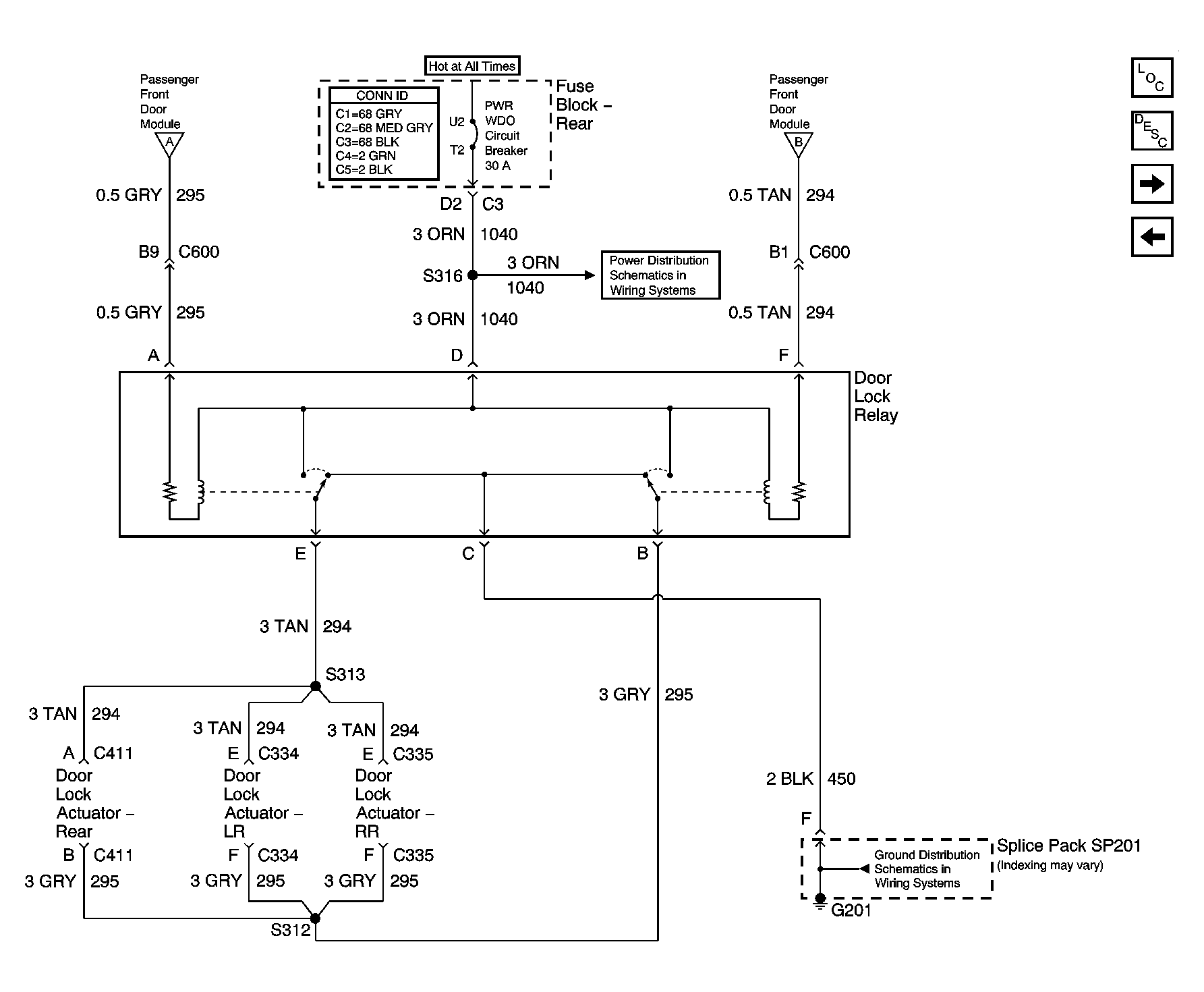

Fig 7: Right Rear Door Power Door Lock (w/o B9Q)

Courtesy of GENERAL MOTORS CORP.

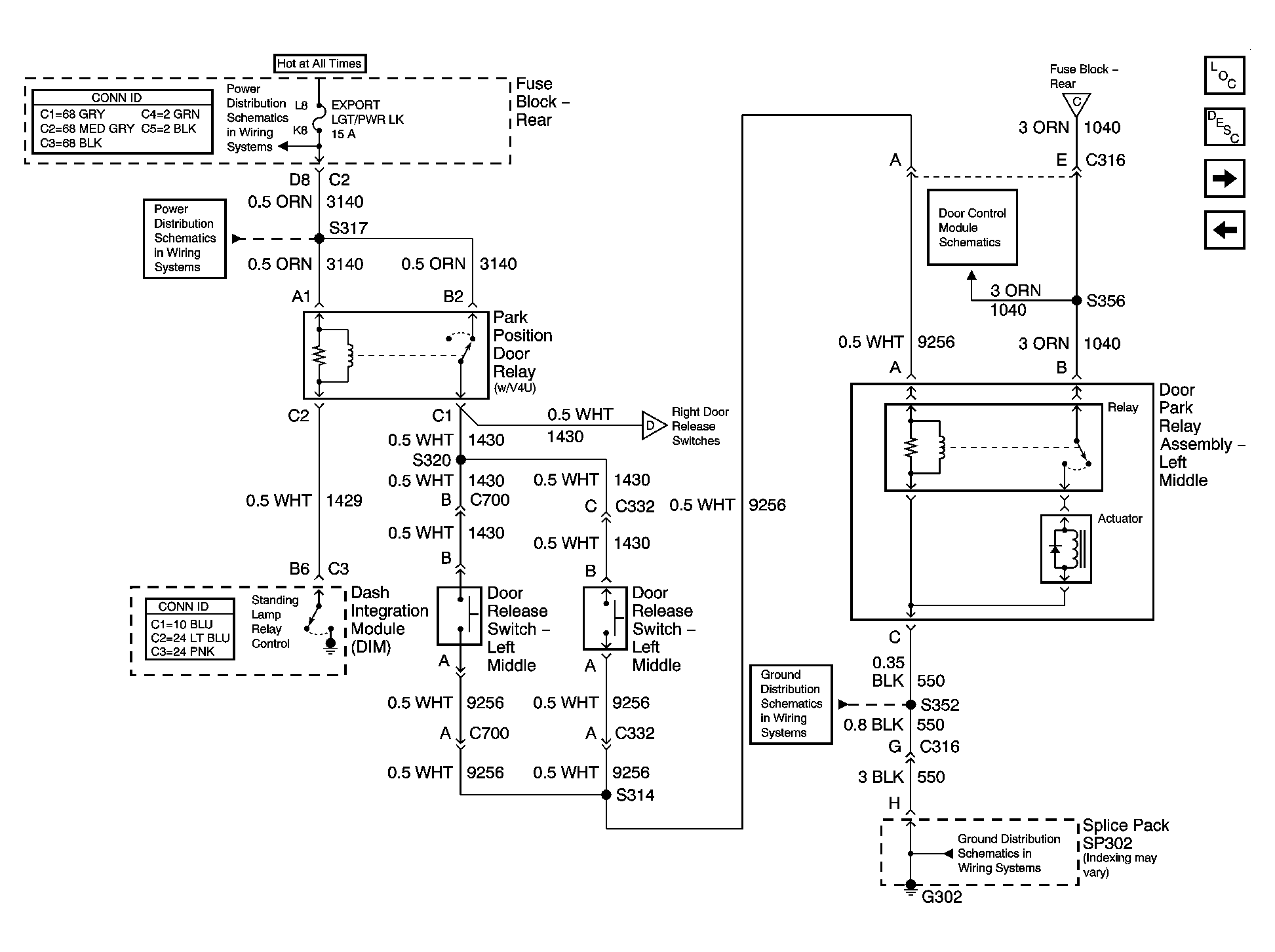

Fig 8: Power Door Locks Middle Door Release (V4U) - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

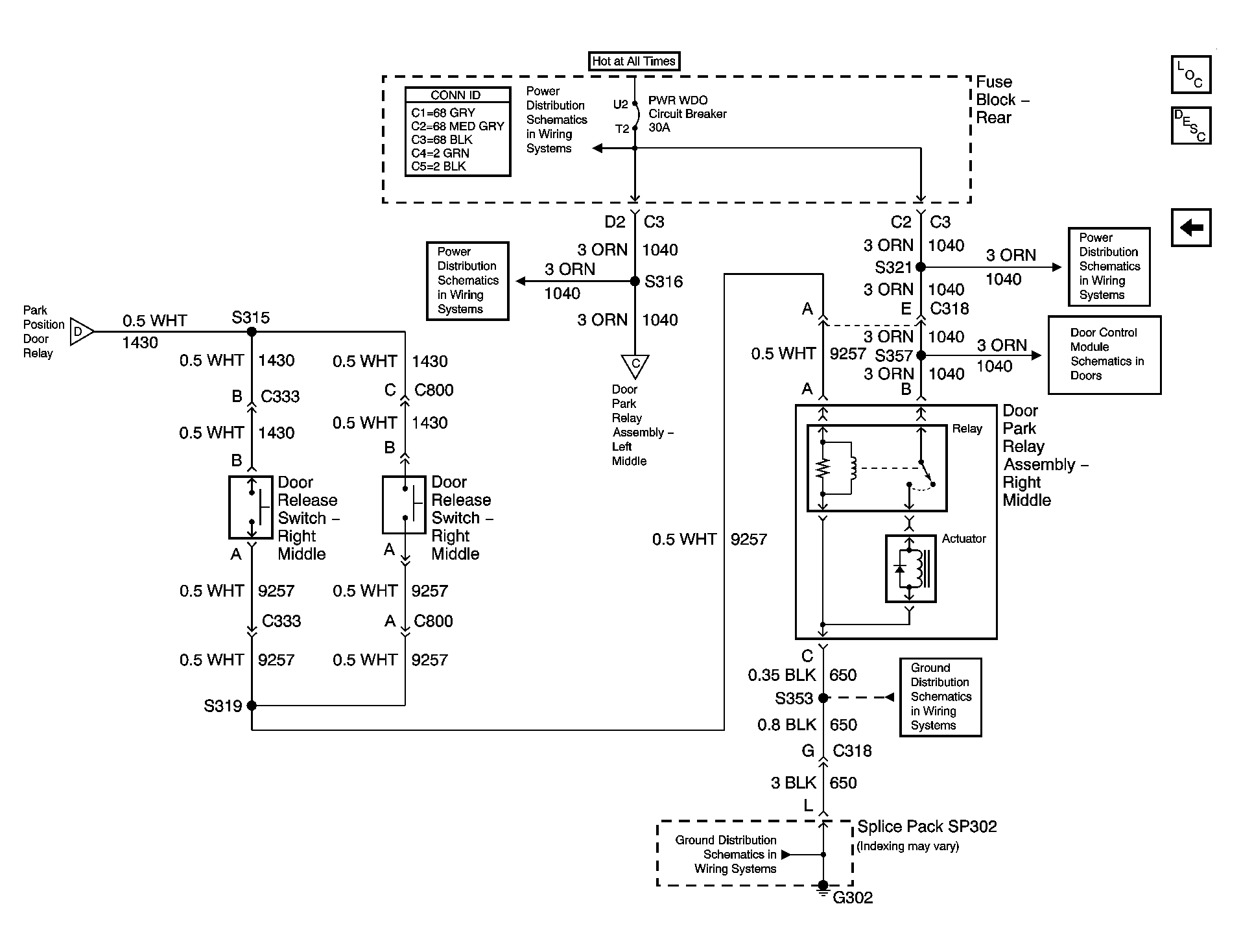

Fig 9: Power Door Locks Middle Door Release (V4U) - 2 Of 2

Courtesy of GENERAL MOTORS CORP.
