Headlights/Daytime Running Lights (DRL) Schematics

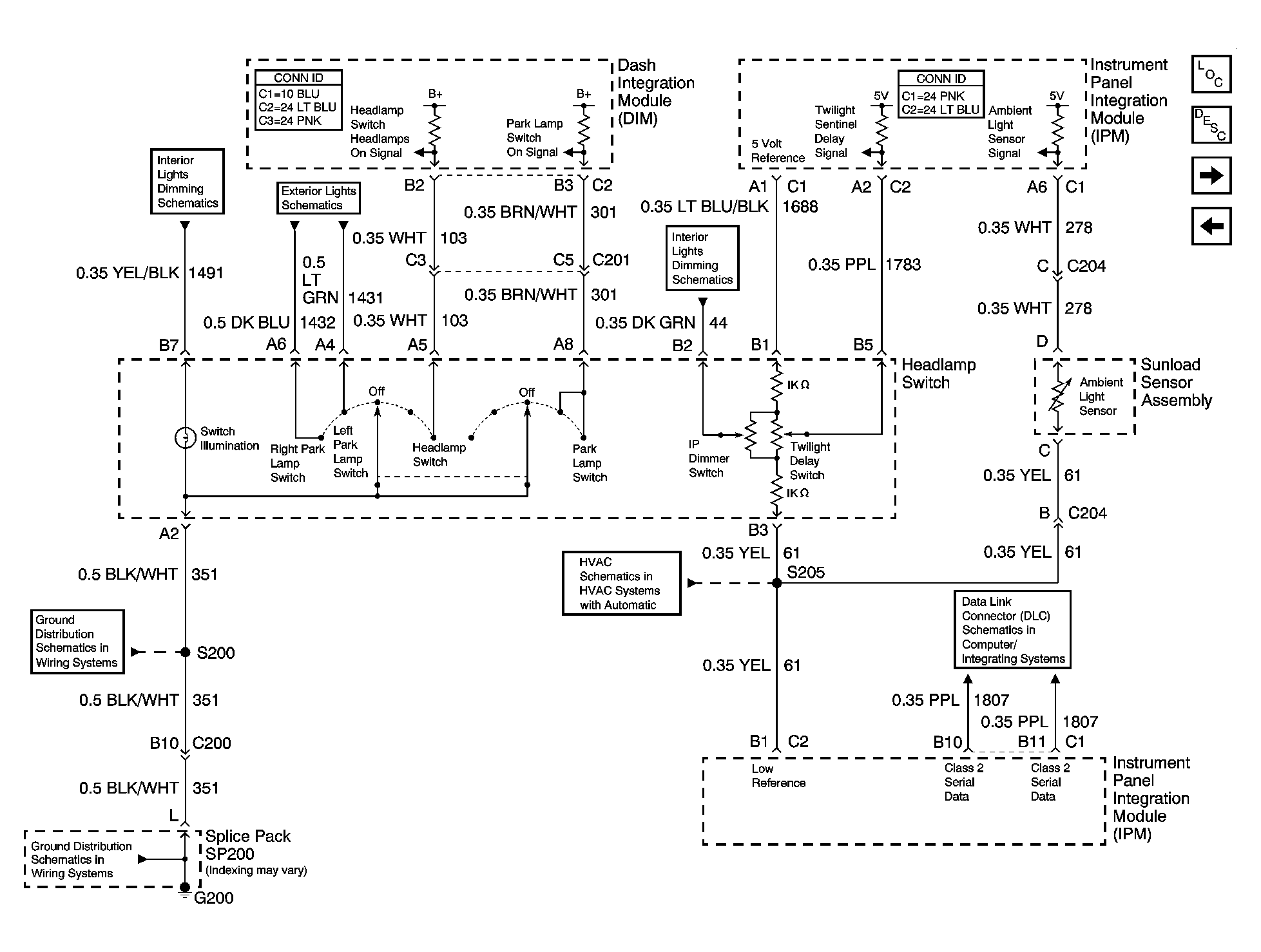

Fig 1: Headlamp Switch (Domestic)

Courtesy of GENERAL MOTORS CORP.

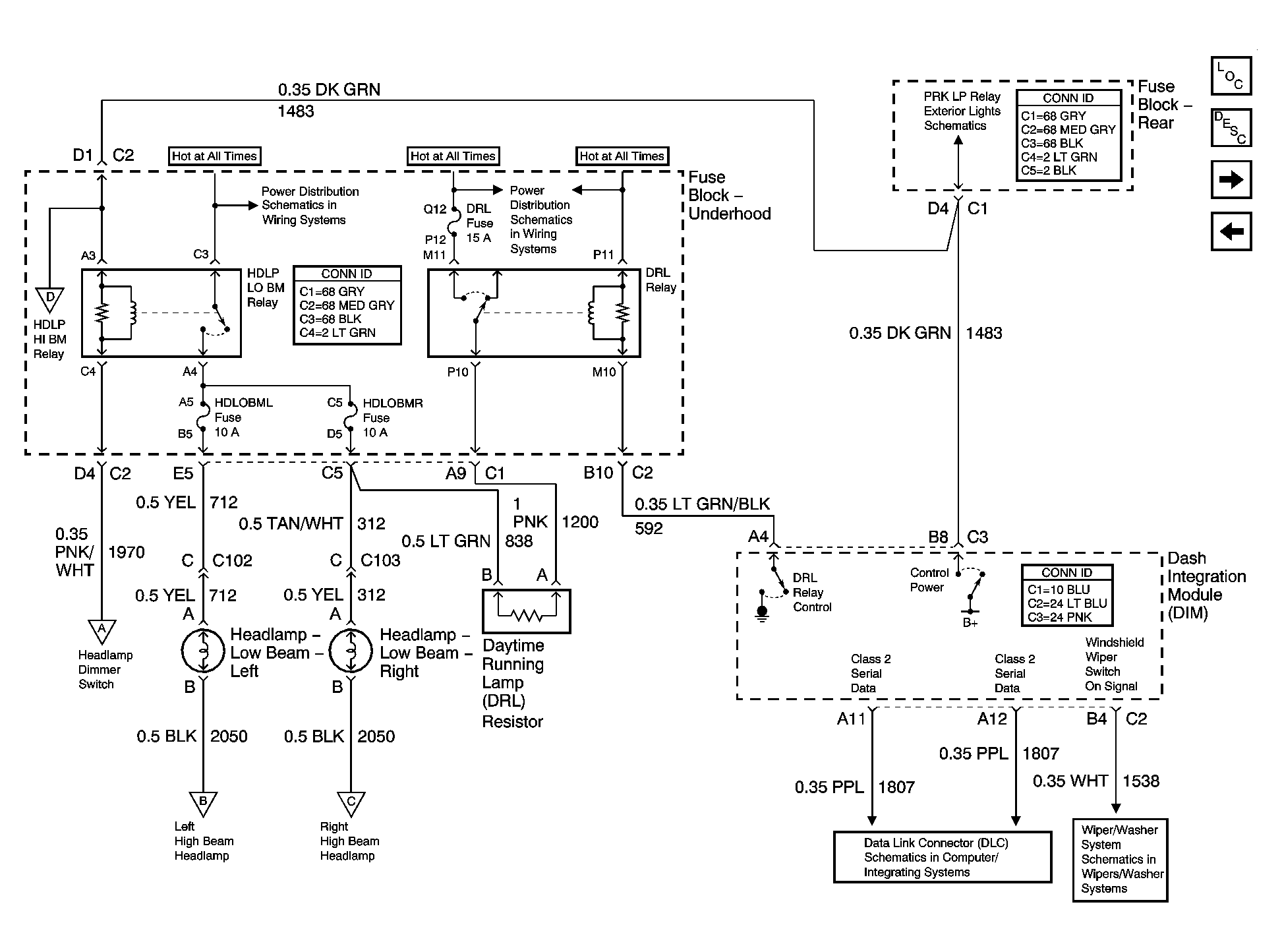

Fig 2: Low Beam Headlamps (Domestic)

Courtesy of GENERAL MOTORS CORP.

Fig 3: High Beam Headlamps (Domestic)

Courtesy of GENERAL MOTORS CORP.

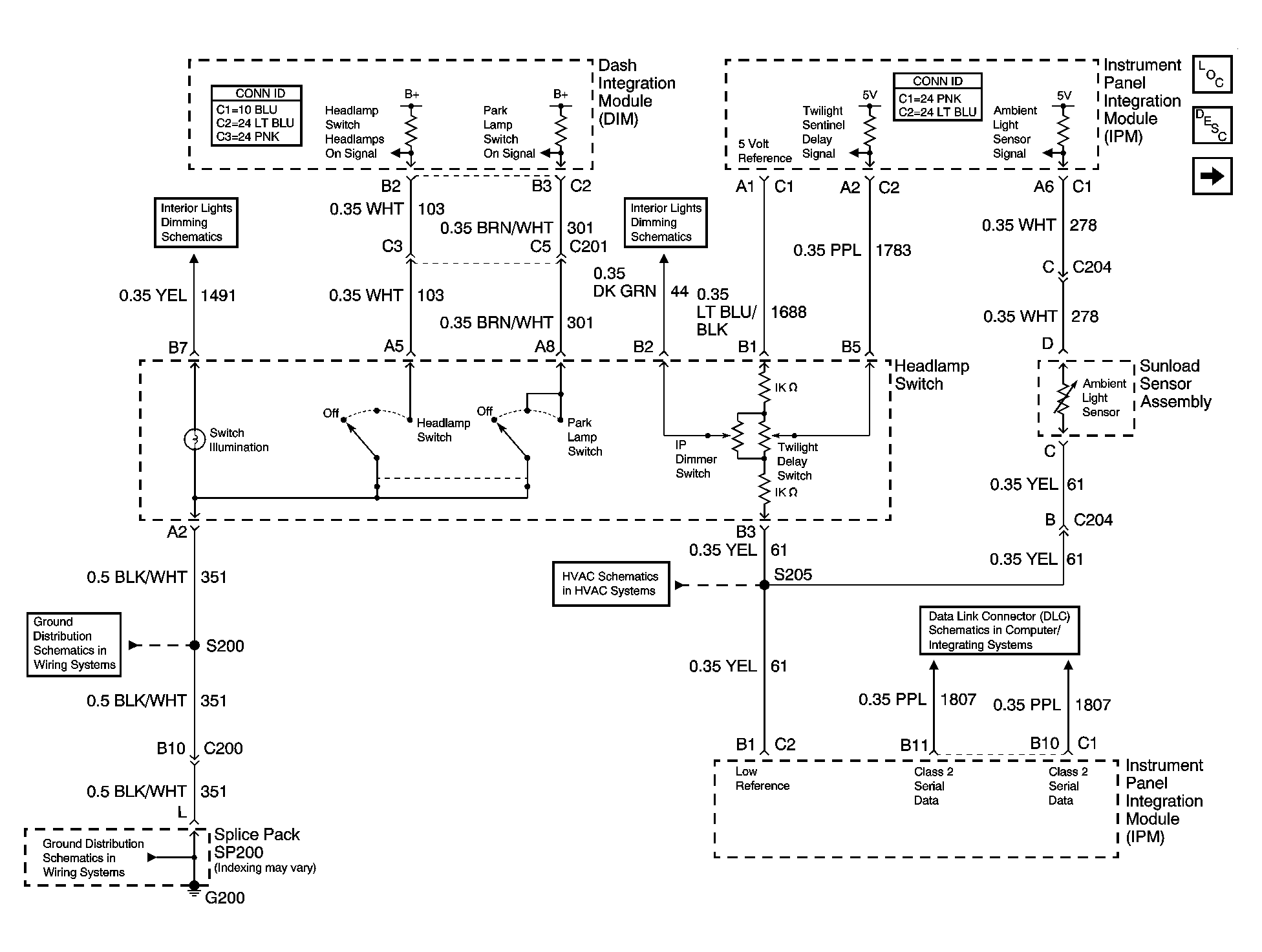

Fig 4: Headlamp Switch (Export)

Courtesy of GENERAL MOTORS CORP.

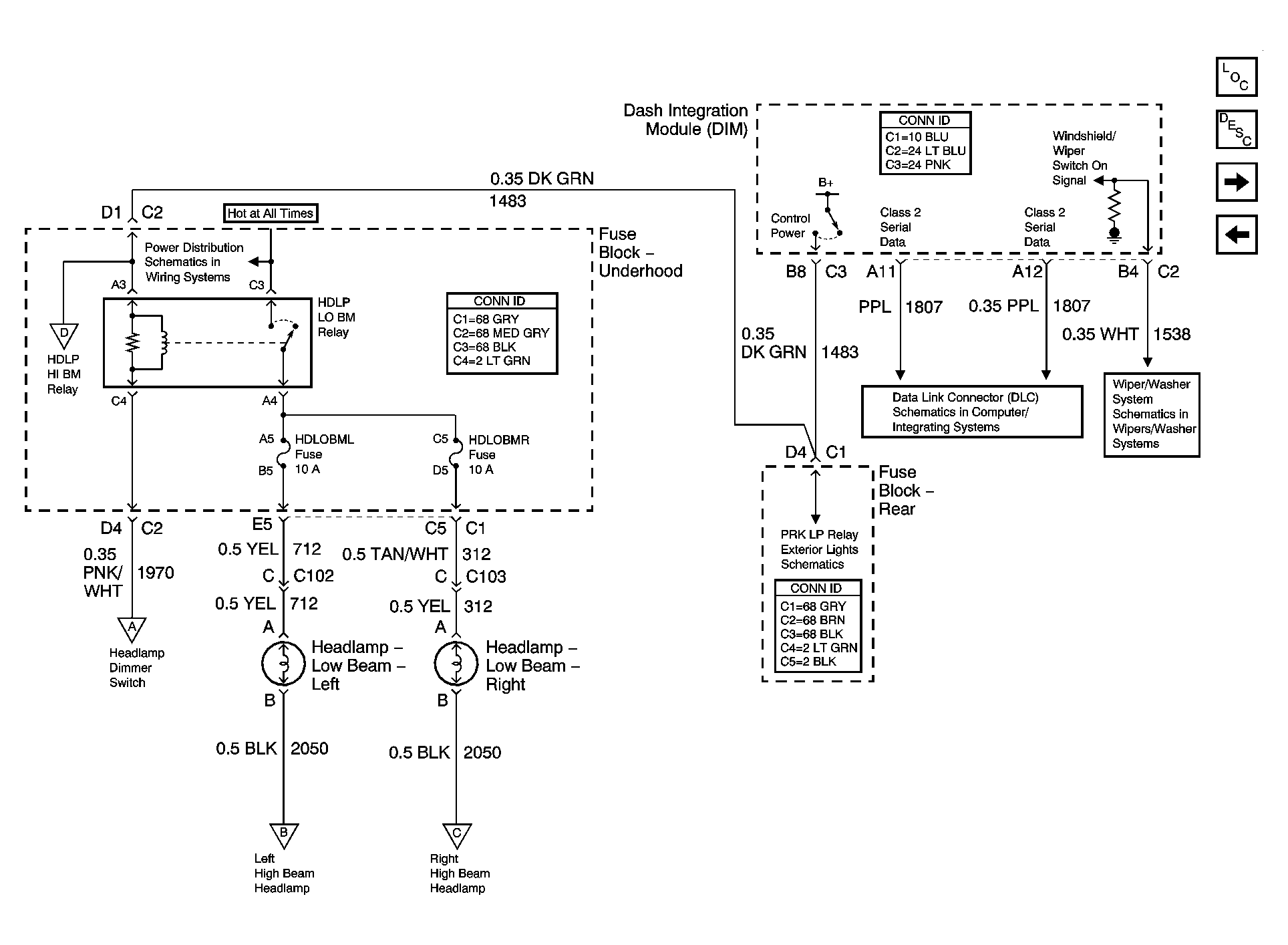

Fig 5: Low Beam Headlamps (Export)

Courtesy of GENERAL MOTORS CORP.

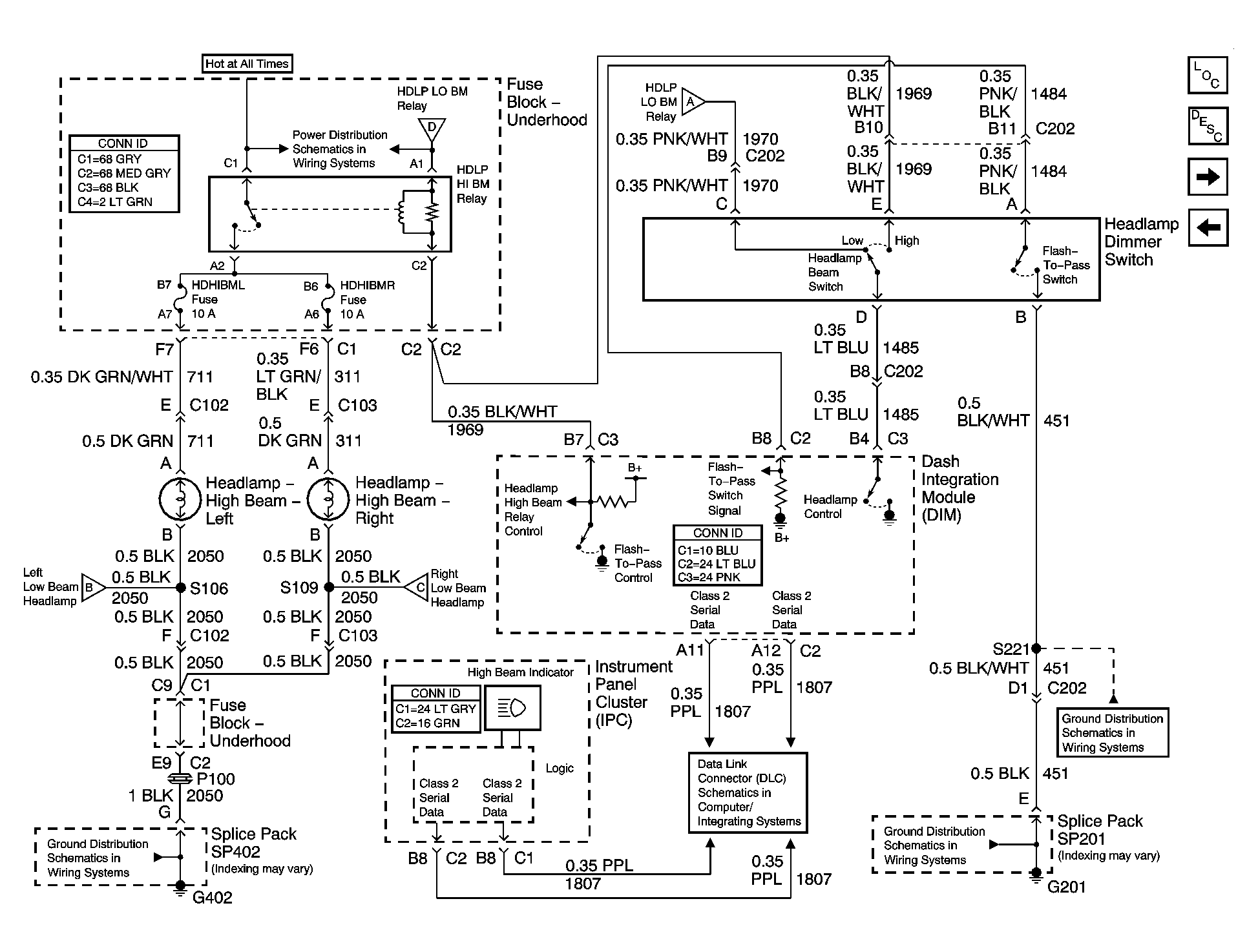

Fig 6: High Beam Headlamps (Export)

Courtesy of GENERAL MOTORS CORP.
