Night Vision Schematics

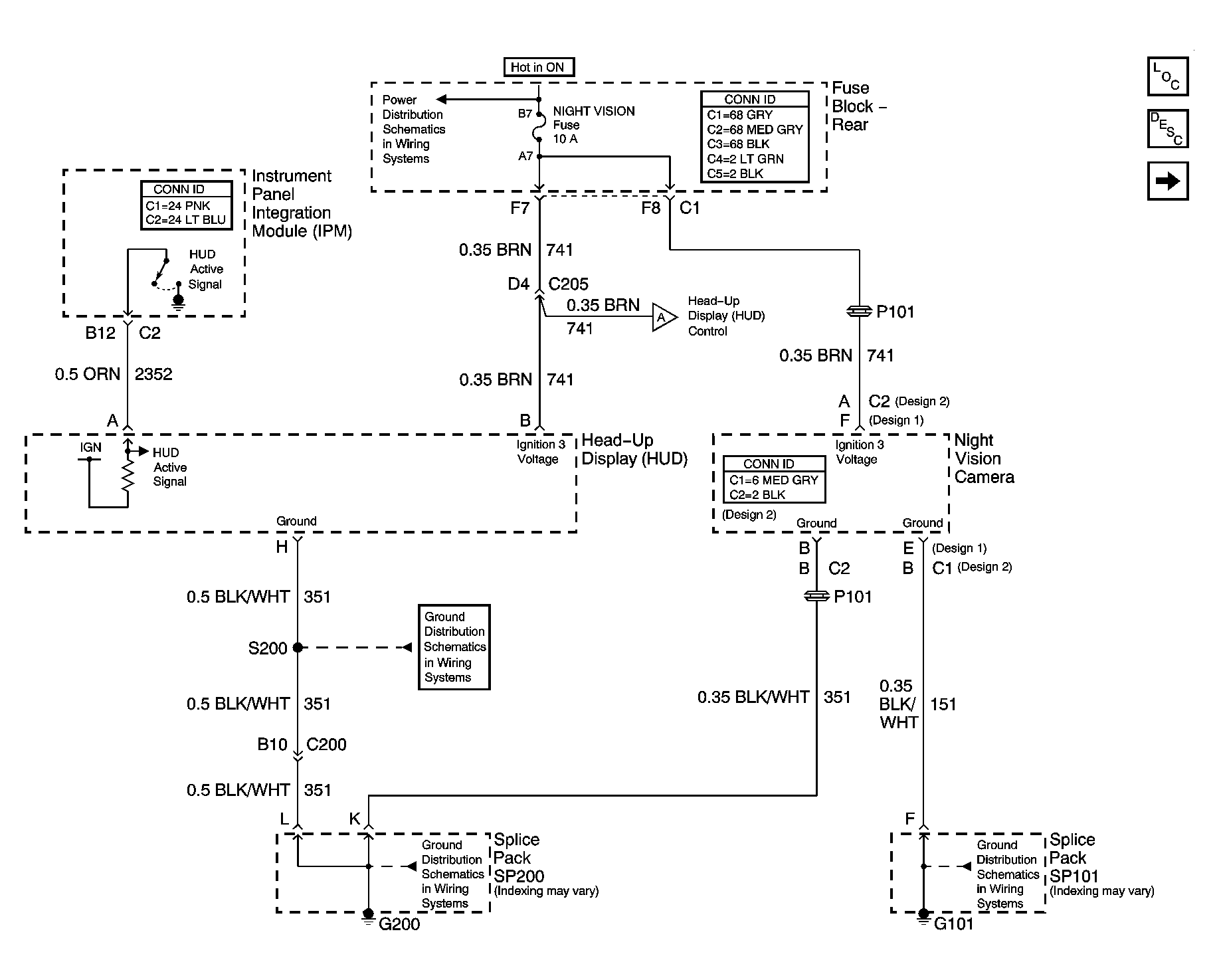

Fig 1: HUD and Night Vision Camera - Power and Ground
Courtesy of GENERAL MOTORS CORP.

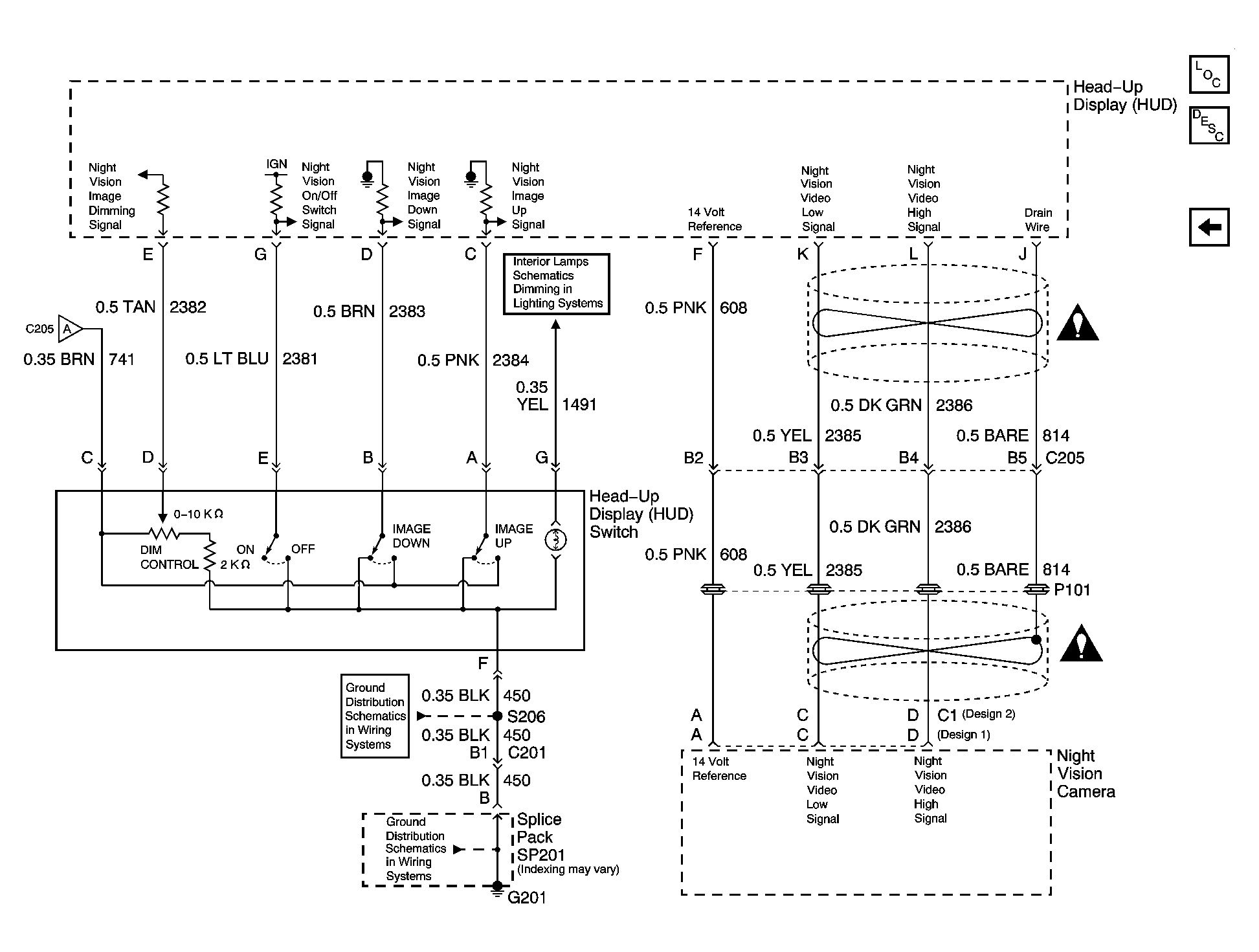

Fig 2: HUD Switch and Night Vision Camera Video Circuits
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
