Installation Procedure

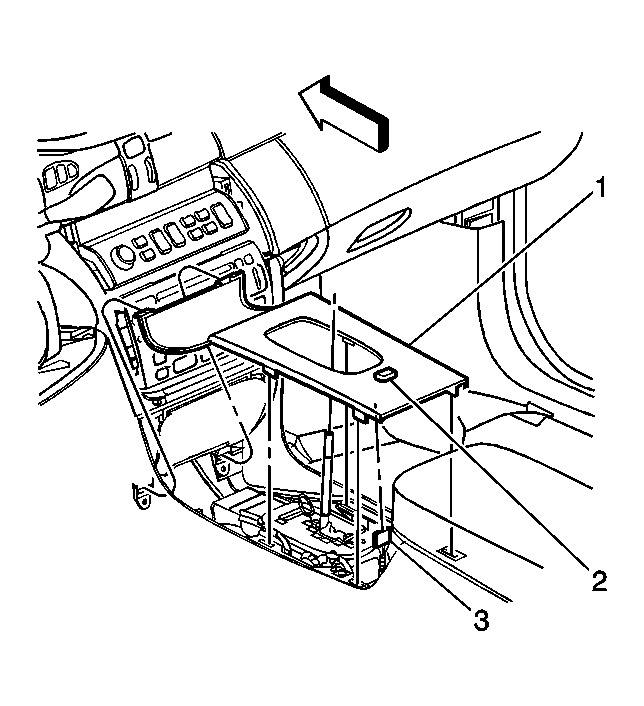

    Fig 1: View Of Console Trim Plate
    GM498469Courtesy of GENERAL MOTORS CORP.
  1. Align the front edge of the console trim plate (1).
    2. Fig 2: View Of Traction Control Switch Electrical Connector
    GM493842Courtesy of GENERAL MOTORS CORP.
  2. Lower the console trim plate into place over the shift handle.
  3. Connect the traction control switch electrical connector.
    4. Fig 3: View Of Console Trim Plate & Shift Handle
    GM493854Courtesy of GENERAL MOTORS CORP.
  4. Align the front 2 retainer clips and push forward on the console trim plate in order to engage the front clips.
    5. IMPORTANT: Make sure the retainers are aligned properly before attempting to engage the trim plate.
  5. Align the 4 rear trim plate clips with the console and push firmly into to place in order to engage the retainers.
