Installation Procedure

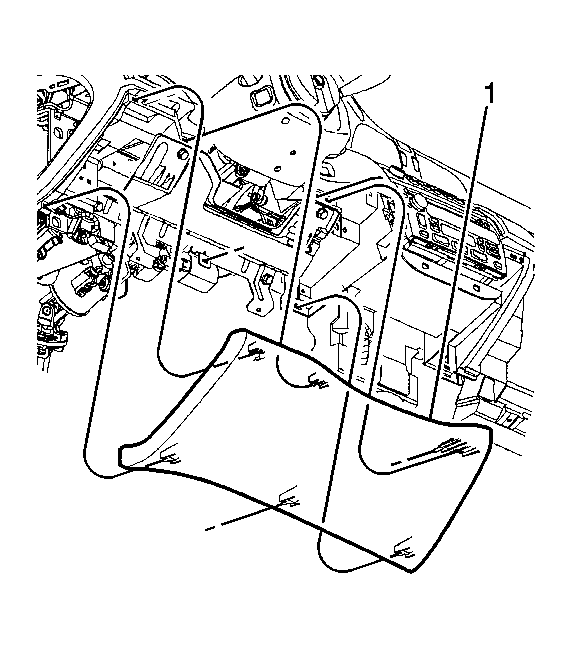

    Fig 1: View Of Knee Bolster Trim Panel - Left (Without UV2)
    GM474639Courtesy of GENERAL MOTORS CORP.
  1. Align the knee bolster trim (1) guide pins to the IP.
  2. Push forward firmly in order to engage the clips to the IP retainer.
