Installation Procedure

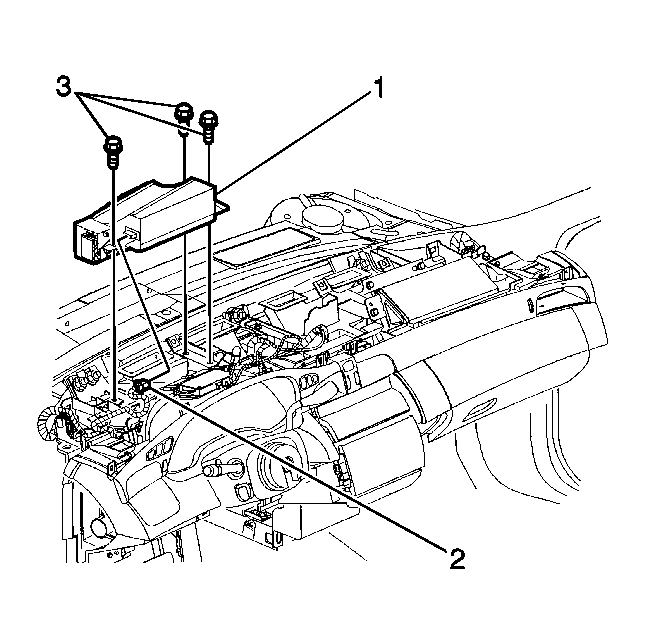

    Fig 1: View Of HUD, Electrical Connector & Fasteners
    GM474605Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (2) to the HUD (1).
  2. Install the HUD (1) to the I/P.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the fasteners (3) into the HUD (1).

    Tighten:  Tighten the fasteners to 2 N.m (18 lb. in.).

  4. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper (Standard Models)  or Trim Pad Replacement - Instrument Panel (I/P) Upper (WC2/WC8) .
