Installation Procedure

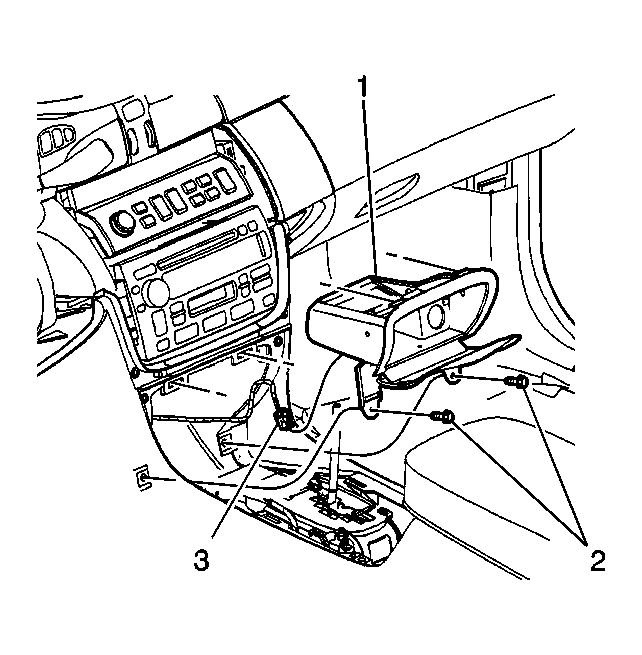

    Fig 1: View Of IP Compartment, Electrical Connector & Fasteners
    GM474660Courtesy of GENERAL MOTORS CORP.
  1. Partially install the compartment (1).
  2. Connect the electrical connector (3).
  3. Align the upper retainers with the IP and push on the top of the compartment in order to engage the upper retainers.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the bottom compartment (1) fasteners (2).

    Tighten:  Tighten the fasteners (2) to 2 N.m (18 lb. in.).

  5. Install the console trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .
