Installation Procedure

Fig 1: View Of Night Vision Camera Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Lower the hood and tighten the night vision mounting fasteners through the grill, in order to ensure the camera is aligned with the center of the grill opening (1).
Tighten: Tighten the night vision camera mounting fasteners to 9 N.m (80 lb. in.).

IMPORTANT: Make sure the retainers are fully turned and in the locked position.

Fig 2: View Of Three Camera Retainers

Courtesy of GENERAL MOTORS CORP.

Install the night vision camera to the mounting bracket and turn the retainers (1) 90 degrees.

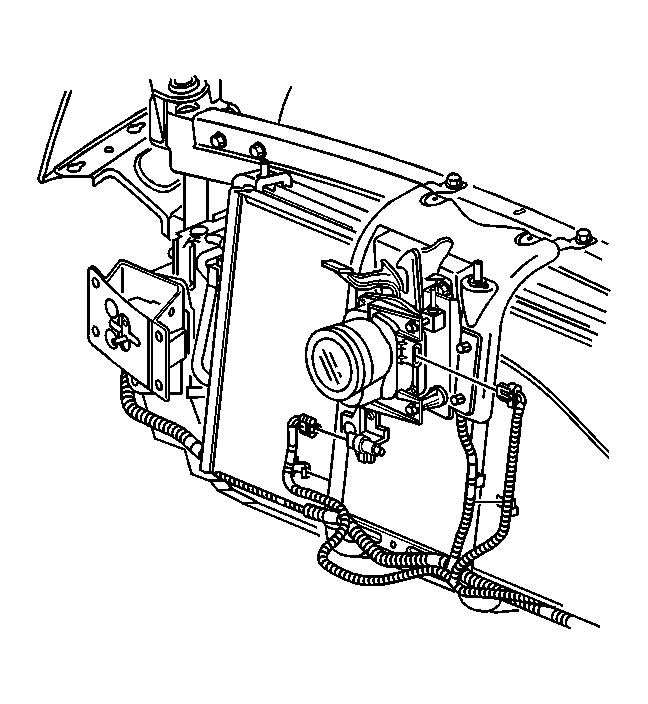

Fig 3: View Of Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Perform aiming procedure for night vision camera. Refer to Night Vision Camera Aiming .
