Instrument Panel, Gages and Console Component Views

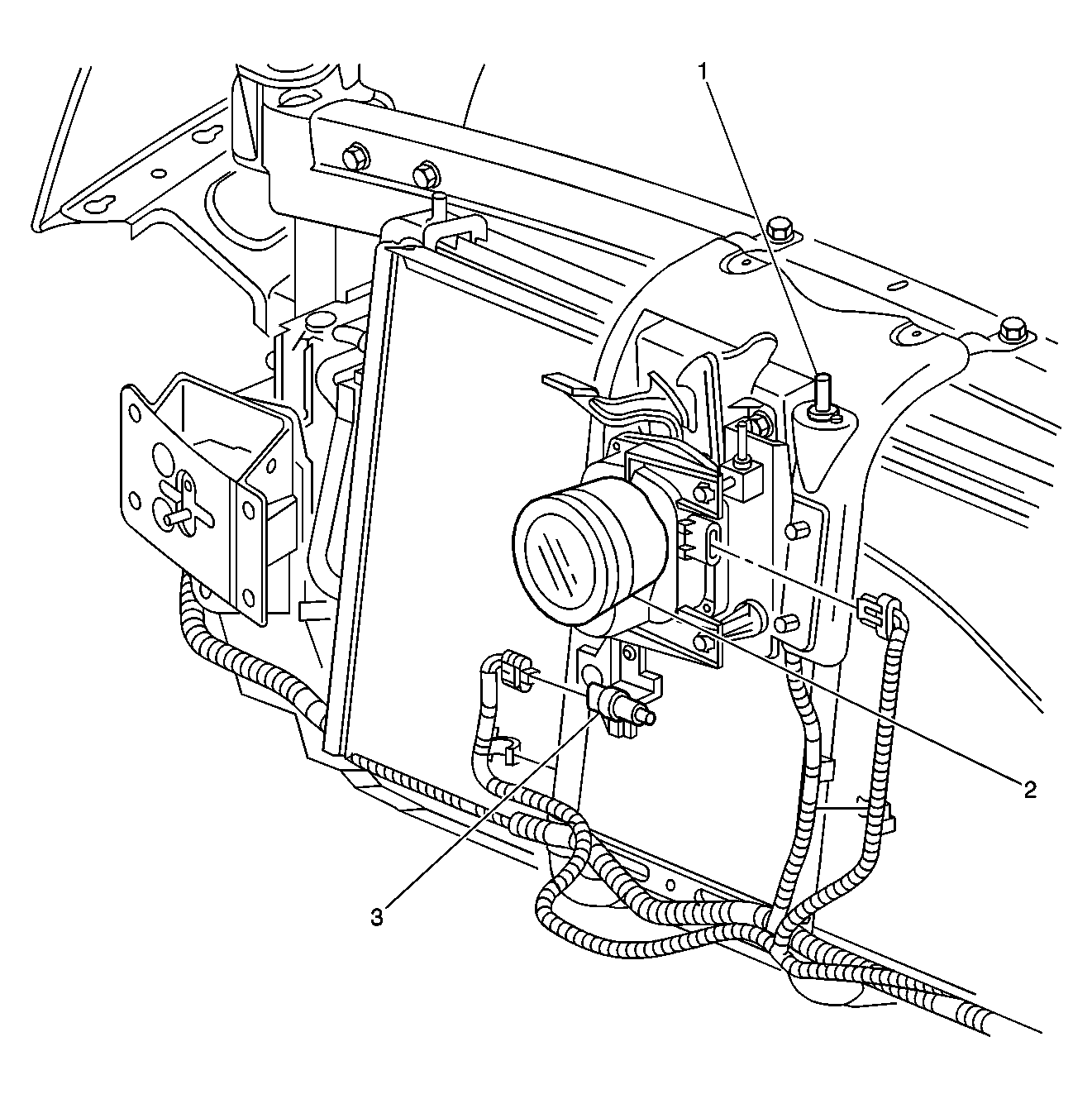

Fig 1: Behind Front Grille, At Center Of Radiator Core Support Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (Export)
2	Night Vision Camera
3	Ambient Air Temperature Sensor

Fig 2: CKP B, CKP A, Engine Oil Pressure Switch, and Engine Oil Level Switch Component Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor B
2	Crankshaft Position (CKP) Sensor A
3	Engine Oil Pressure (EOP) Switch
4	Engine Oil Level Switch

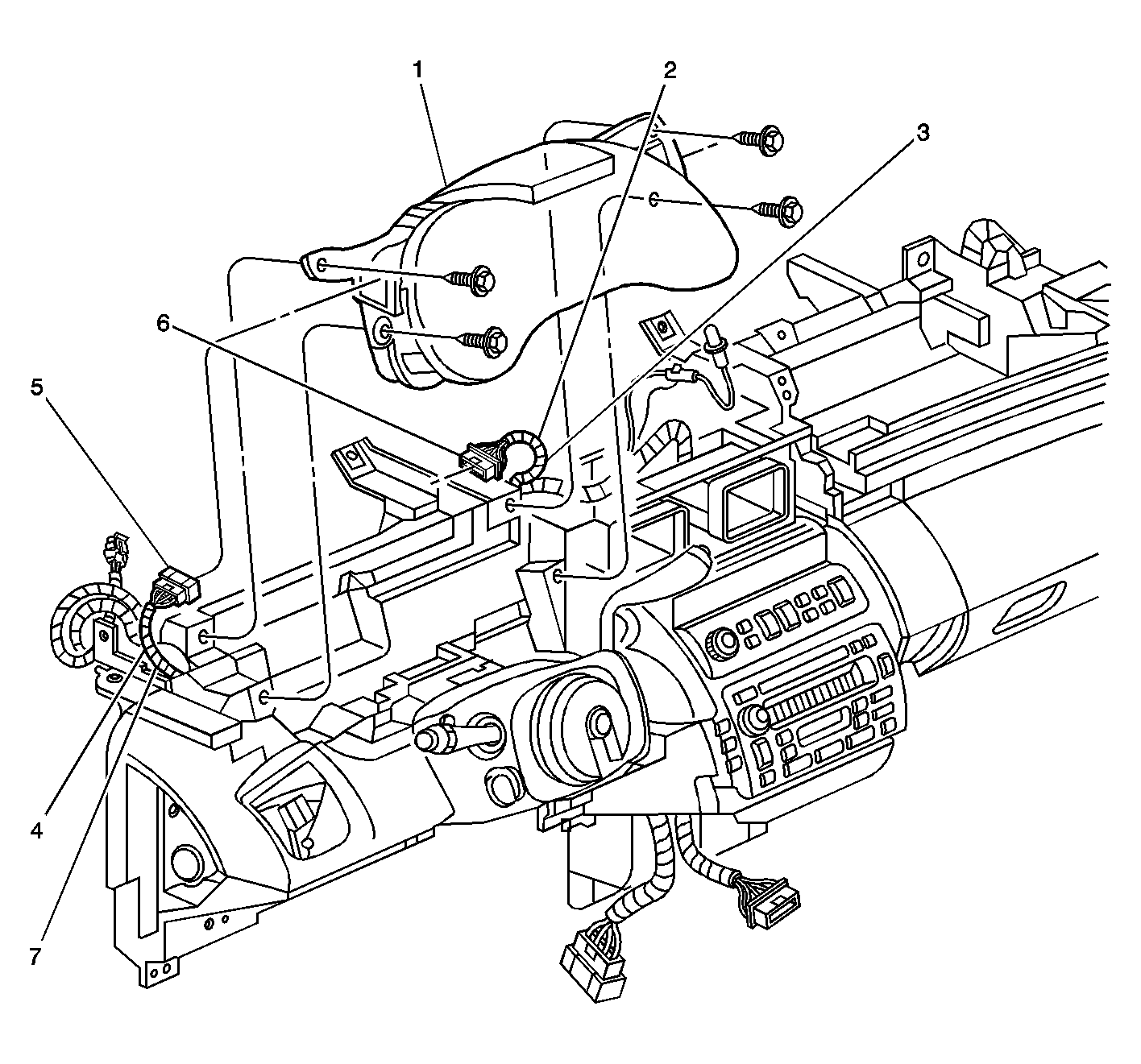

Fig 3: Passenger Compartment, Left Side Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	S206
3	S205
4	S200
5	Instrument Panel Cluster (IPC) C2
6	Instrument Panel Cluster (IPC) C1
7	S232

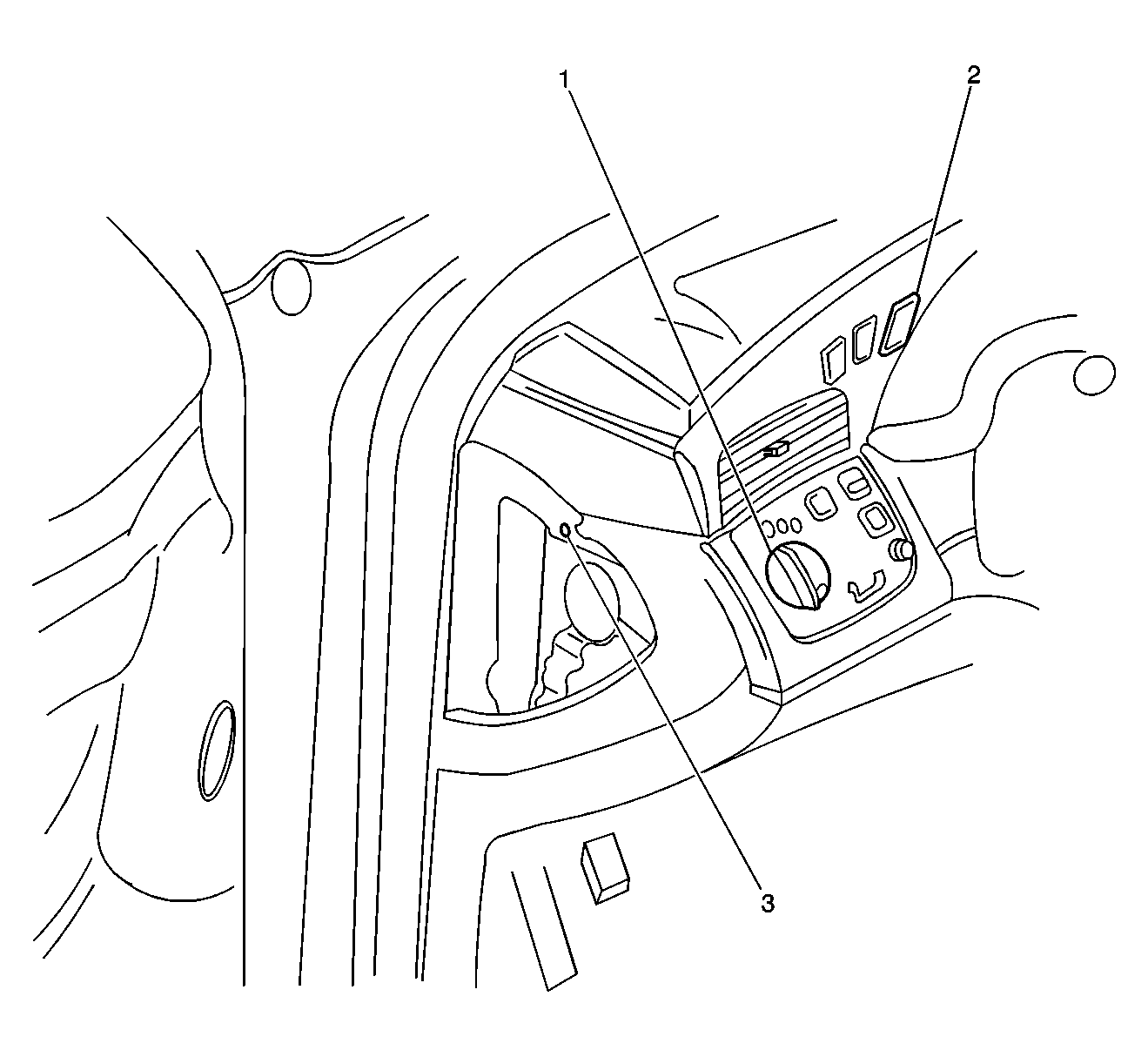

Fig 4: Left Side Of Instrument Panel, Near Instrument Cluster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Driver Information Center (DIC) Switch - Left
3	Air Temperature Sensor - Upper Left, Upper Right Similar

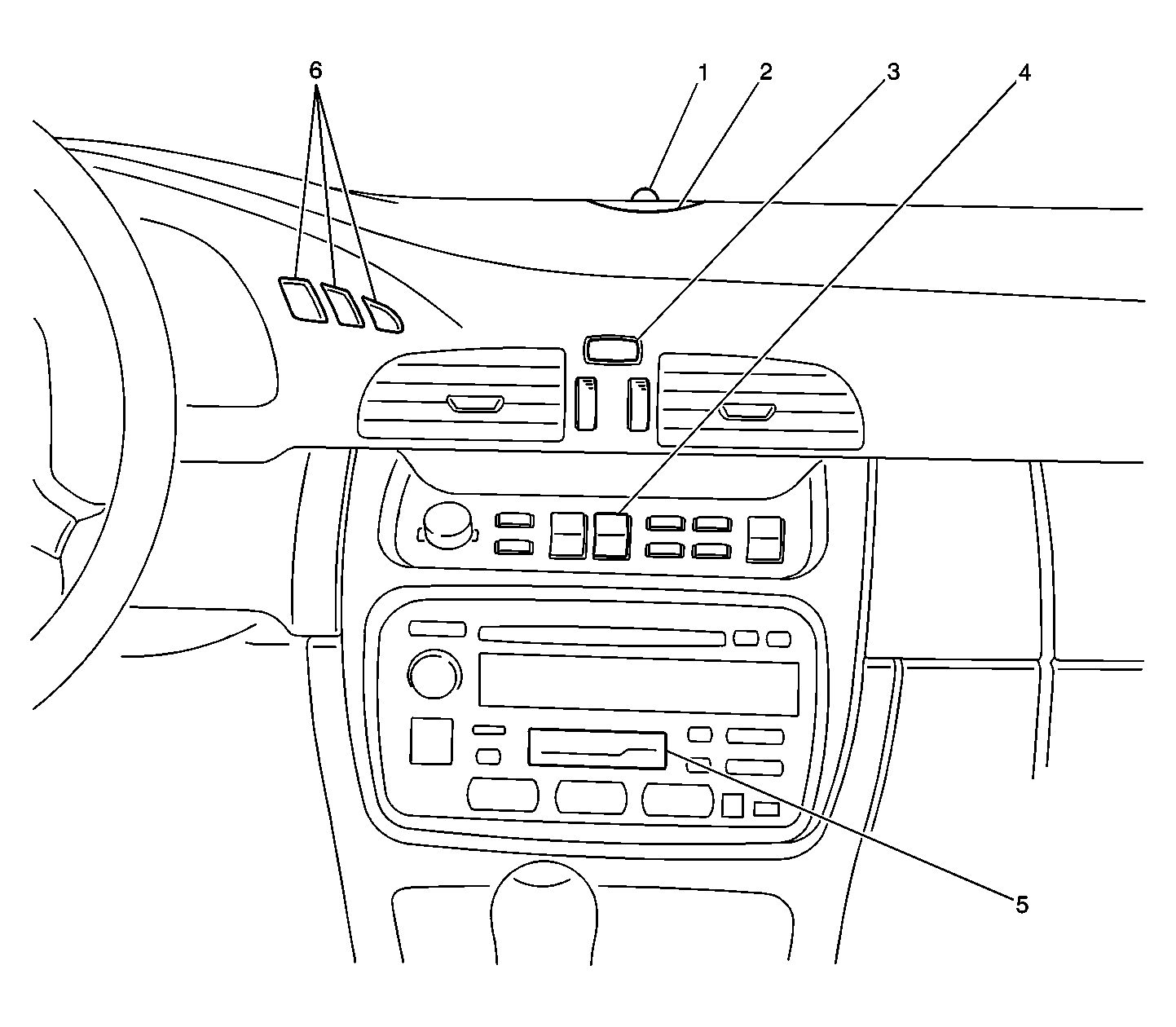

Fig 5: Passenger Compartment, Center Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Sensor Assembly
2	Speaker - Front I/P Midrange
3	Hazard Switch
4	Instrument Panel Integration Module (IPM)
5	Radio (w/o U3R, U3S, U3Q)
6	Driver Information Center (DIC) Switch - Right

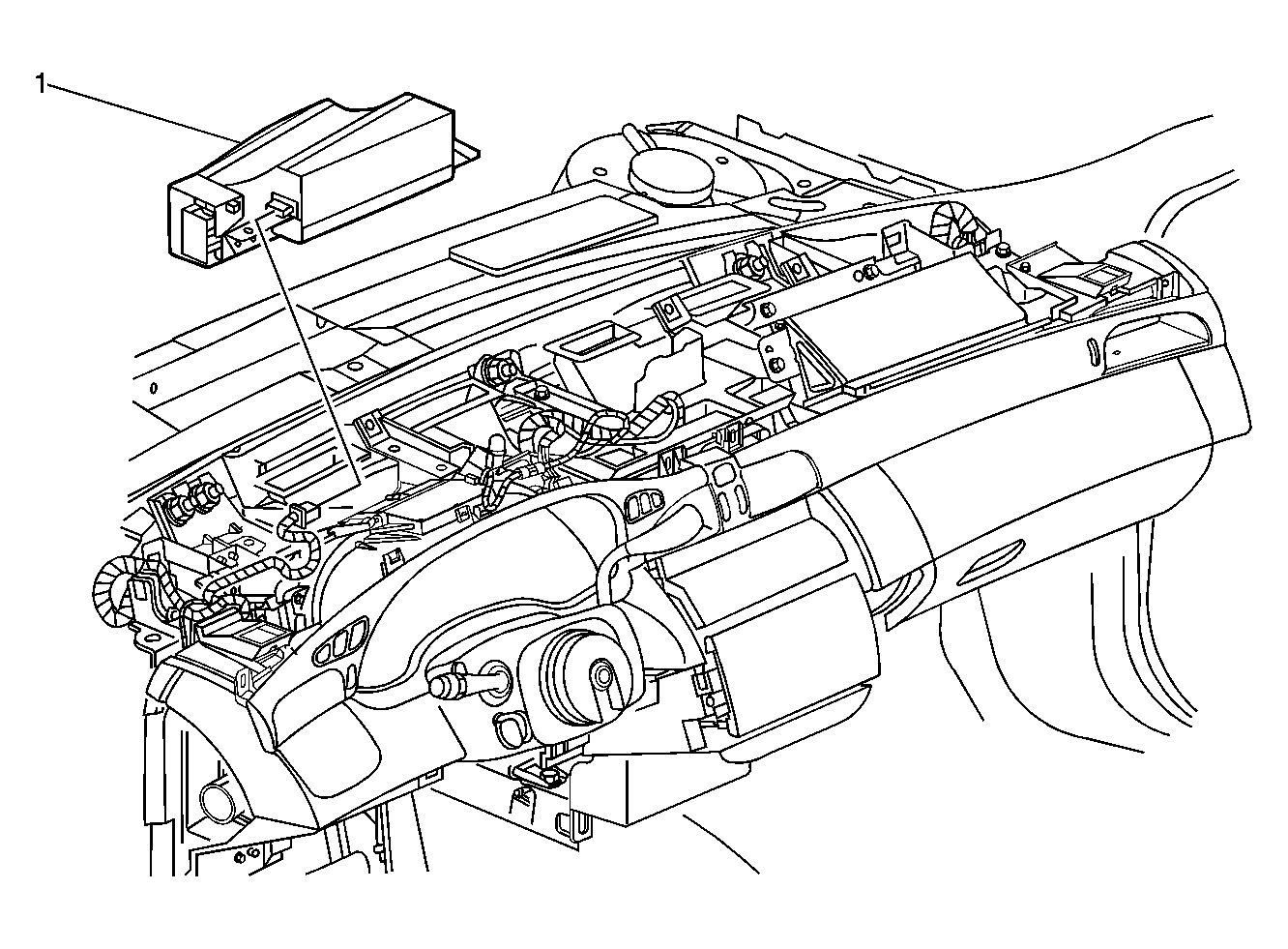

Fig 6: Left Side Of Instrument Panel, Under Dash Pad Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head-Up Display (UV2)

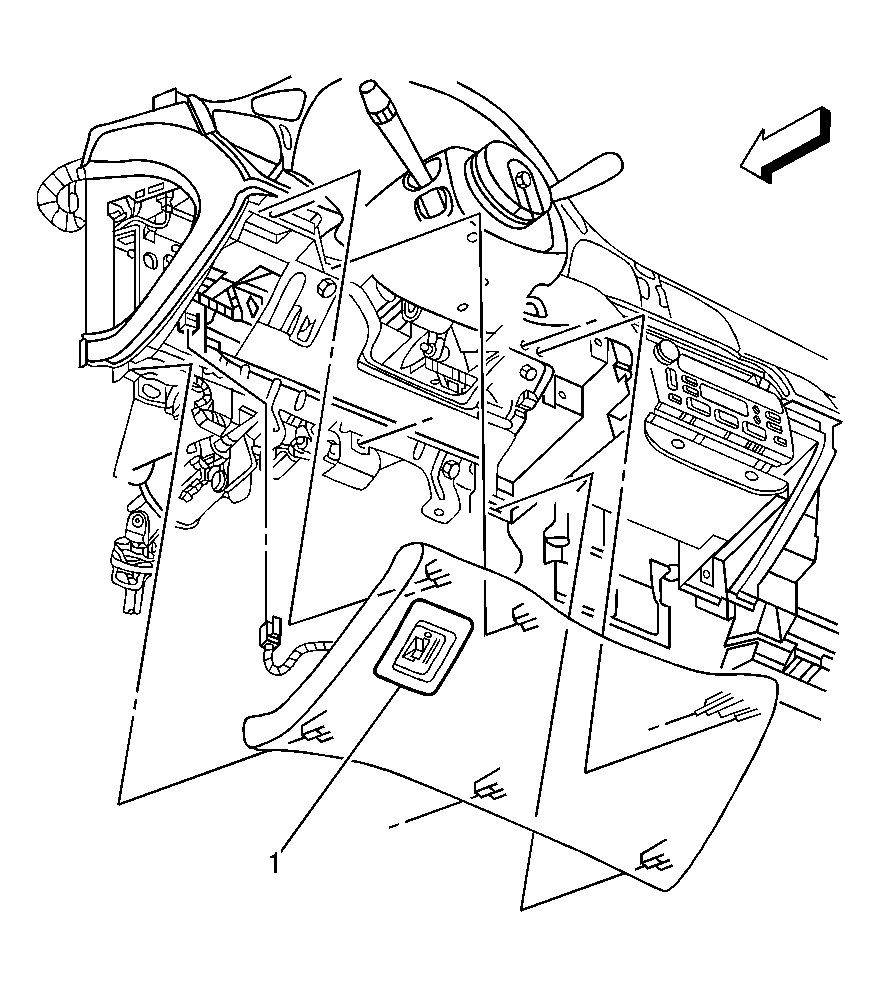

Fig 7: Lower Left Side Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head-Up Display Switch (UV6)
