Automatic Transmission System Hydraulic Diagrams

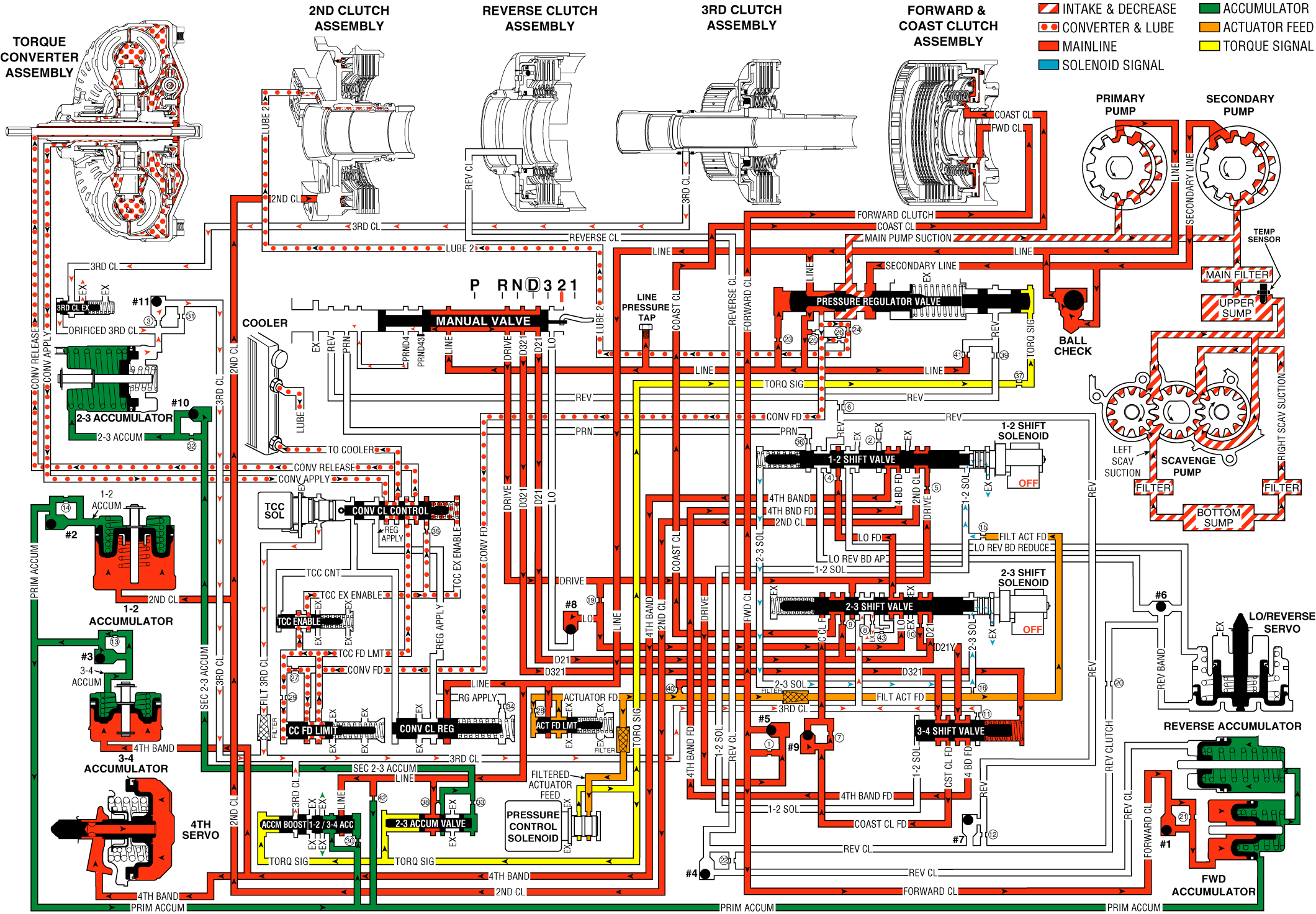

Fig 1: Park - Engine Running Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 2: Reverse Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 3: Neutral - Engine Running Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 4: Overdrive Range, First Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 5: Overdrive Range, Second Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 6: Overdrive Range, Third Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 7: Overdrive Range, Fourth Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 8: Overdrive Range, Fourth Gear - TCC Applied Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 9: Overdrive Range, 4-3 Downshift Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 10: Manual Third Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 11: Manual Second Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 12: Manual First Gear Fluid Flow Diagram

Courtesy of GENERAL MOTORS CORP.
