SIR Schematics

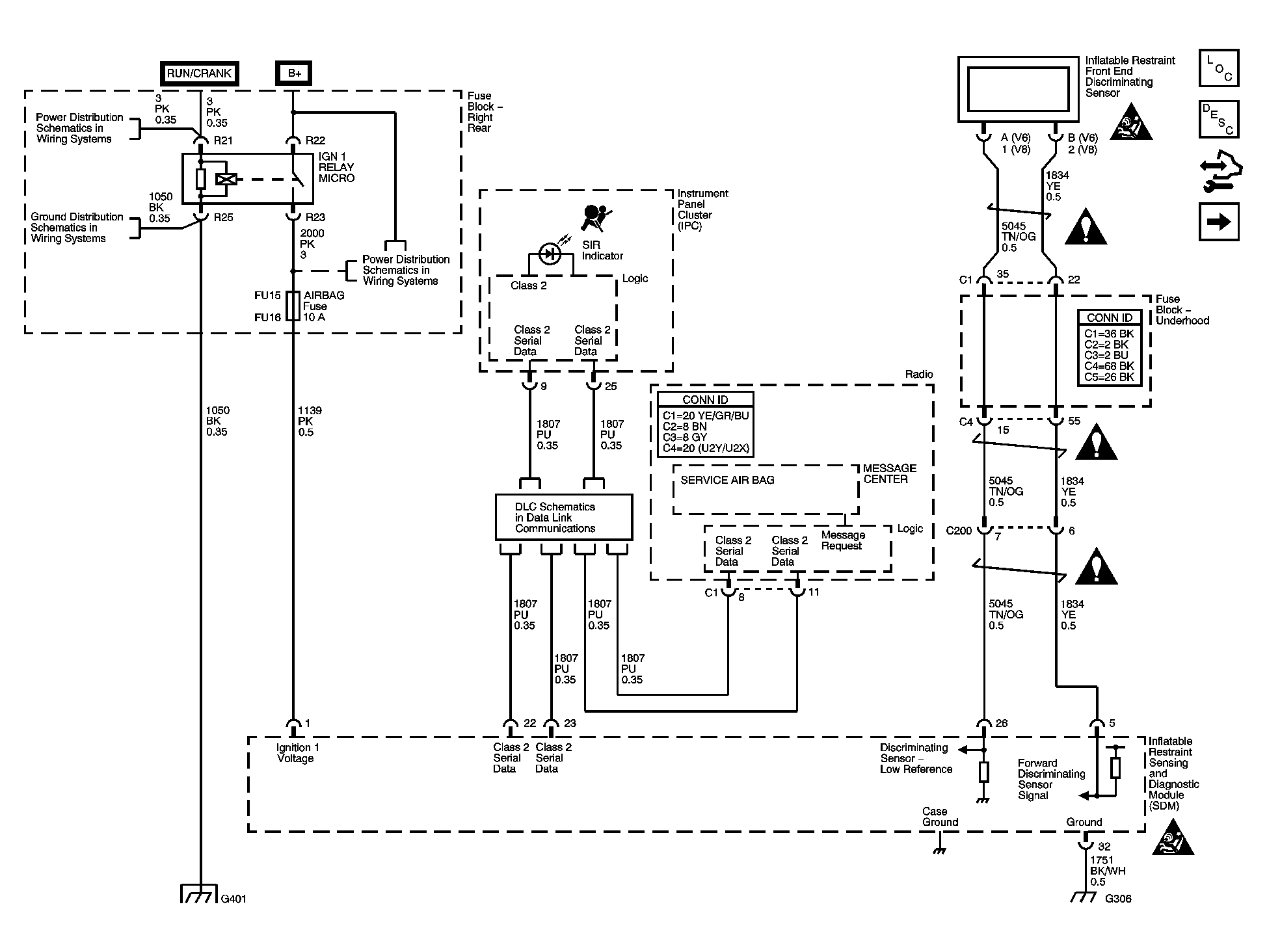

Fig 1: Schematic - Power, Ground, Indicator, DIC and Front End Discriminating Sensor
GM1471183Courtesy of GENERAL MOTORS CORP.

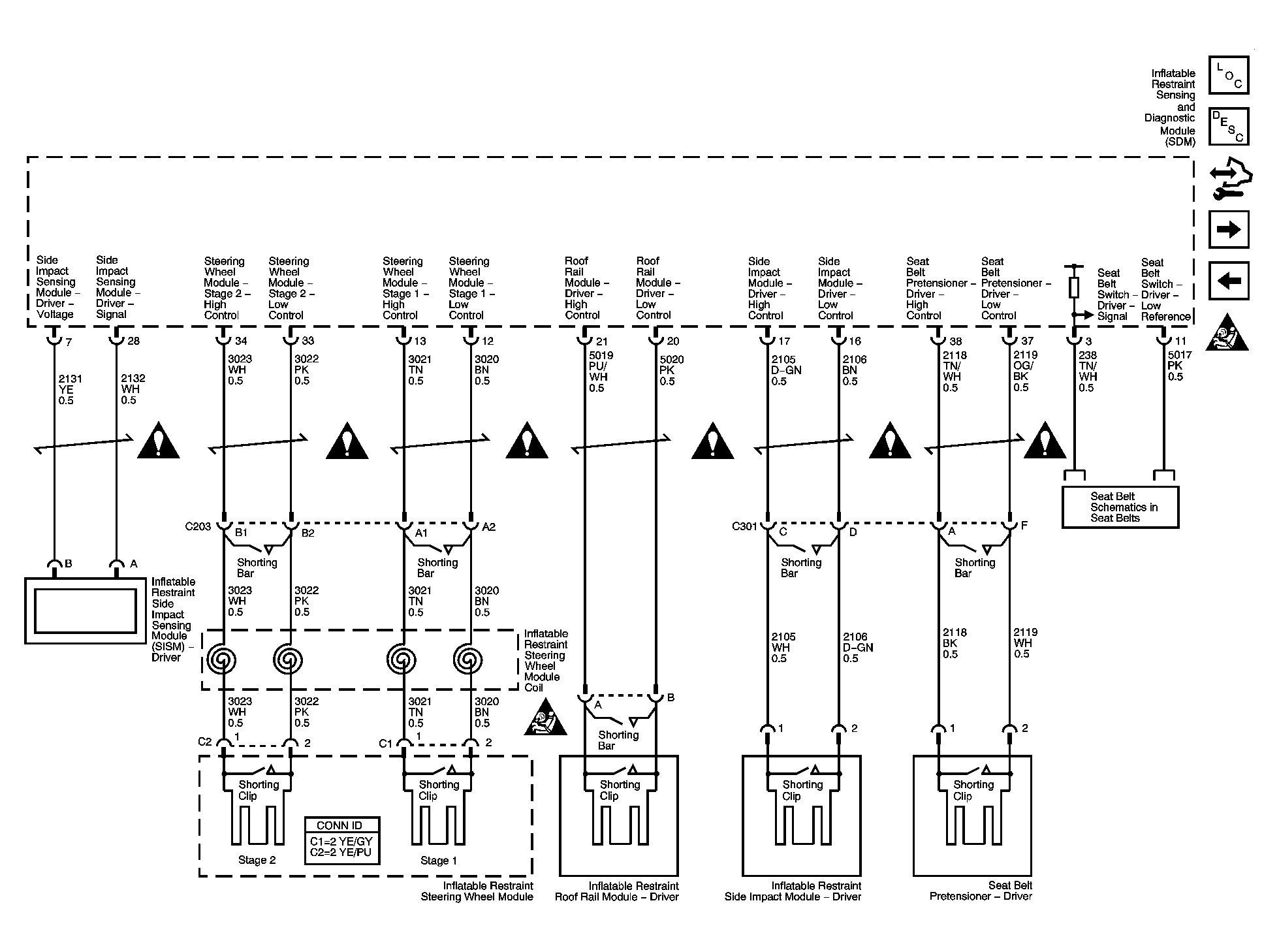

Fig 2: Schematic - Driver SIR Modules and Sensor
GM1471185Courtesy of GENERAL MOTORS CORP.

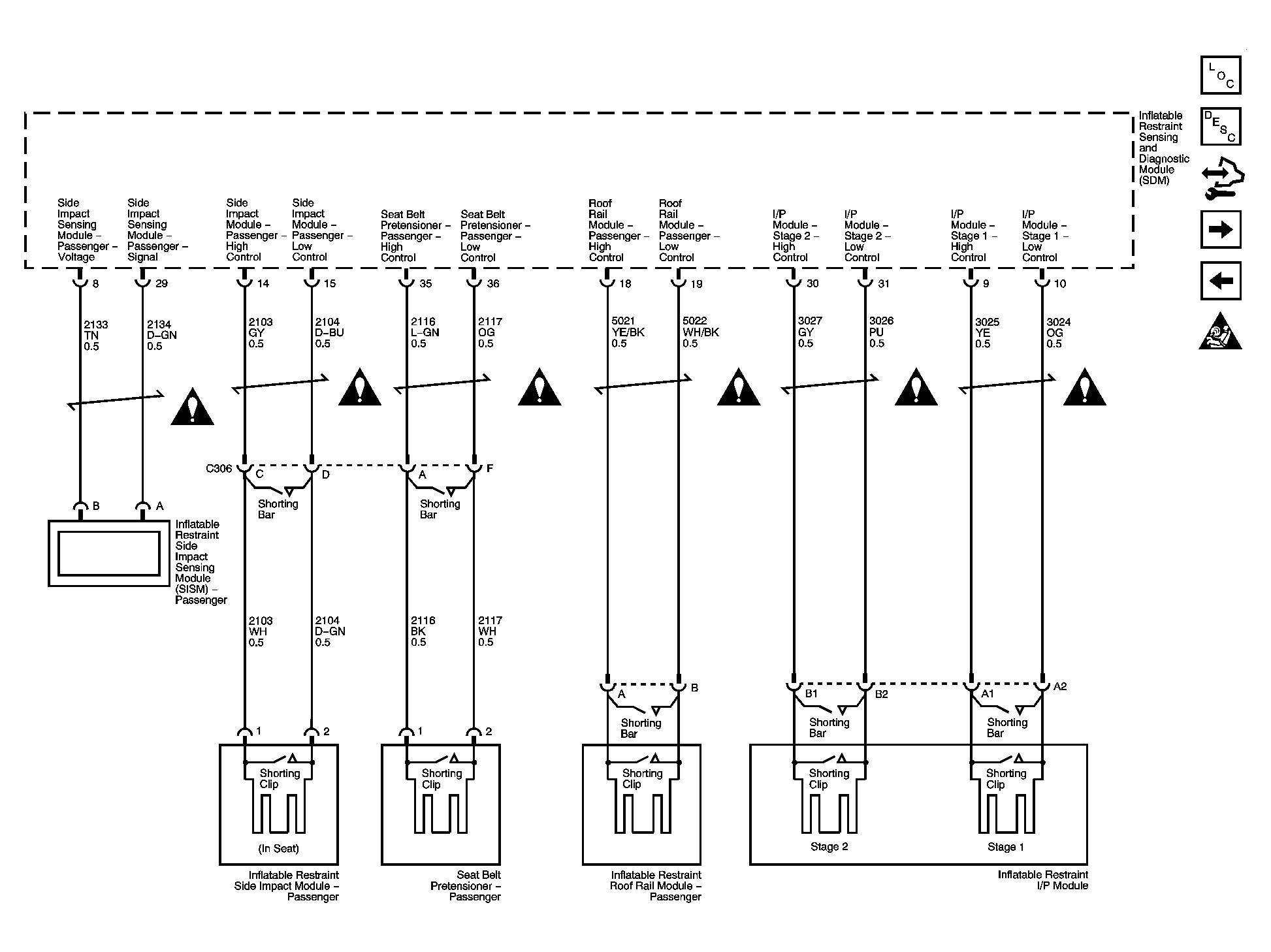

Fig 3: Schematic - Passenger SIR Modules and Sensor
GM1471187Courtesy of GENERAL MOTORS CORP.

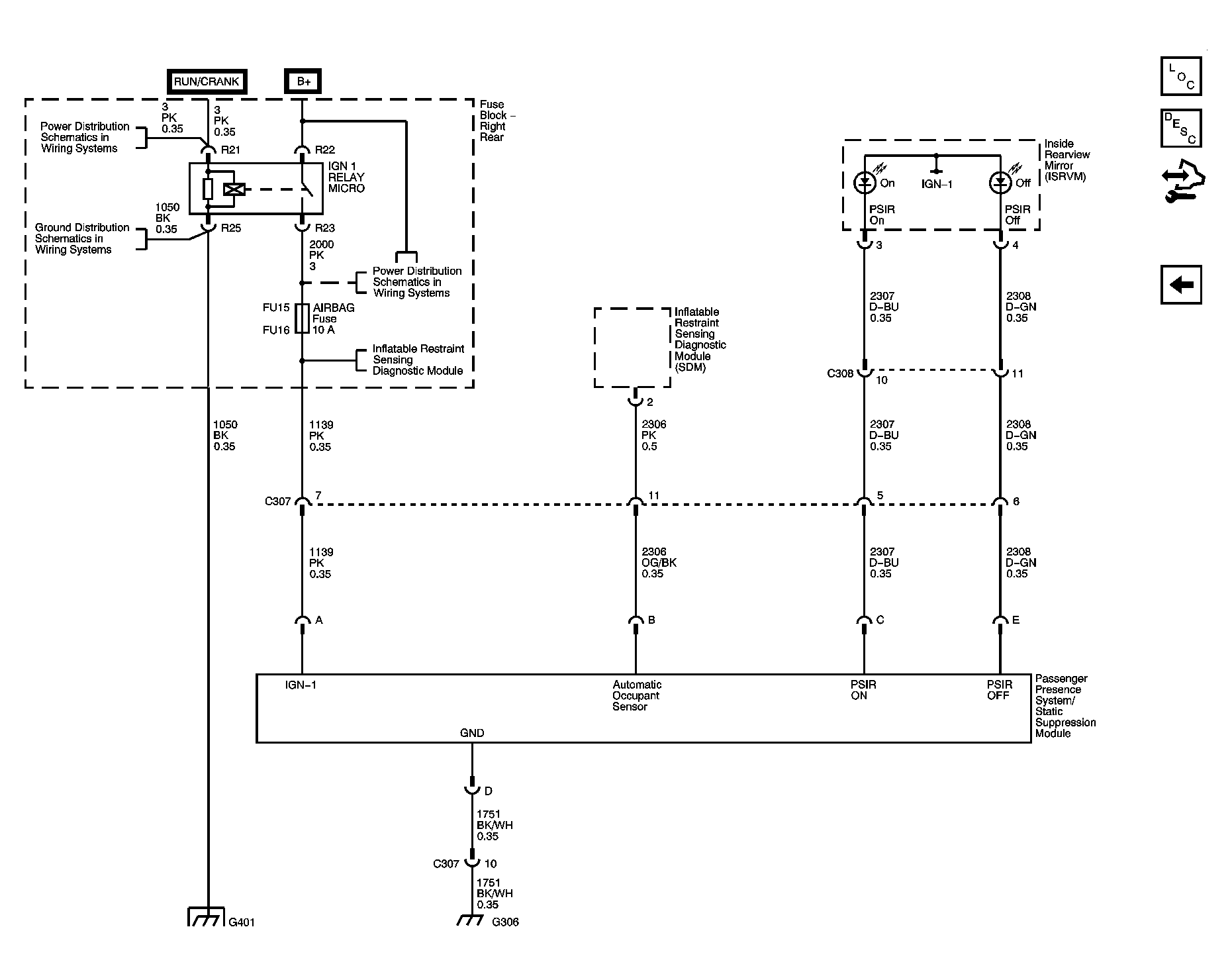

Fig 4: Schematic - Passenger Presence System / Static Suppression Module
GM1536012Courtesy of GENERAL MOTORS CORP.
