HVAC Schematics

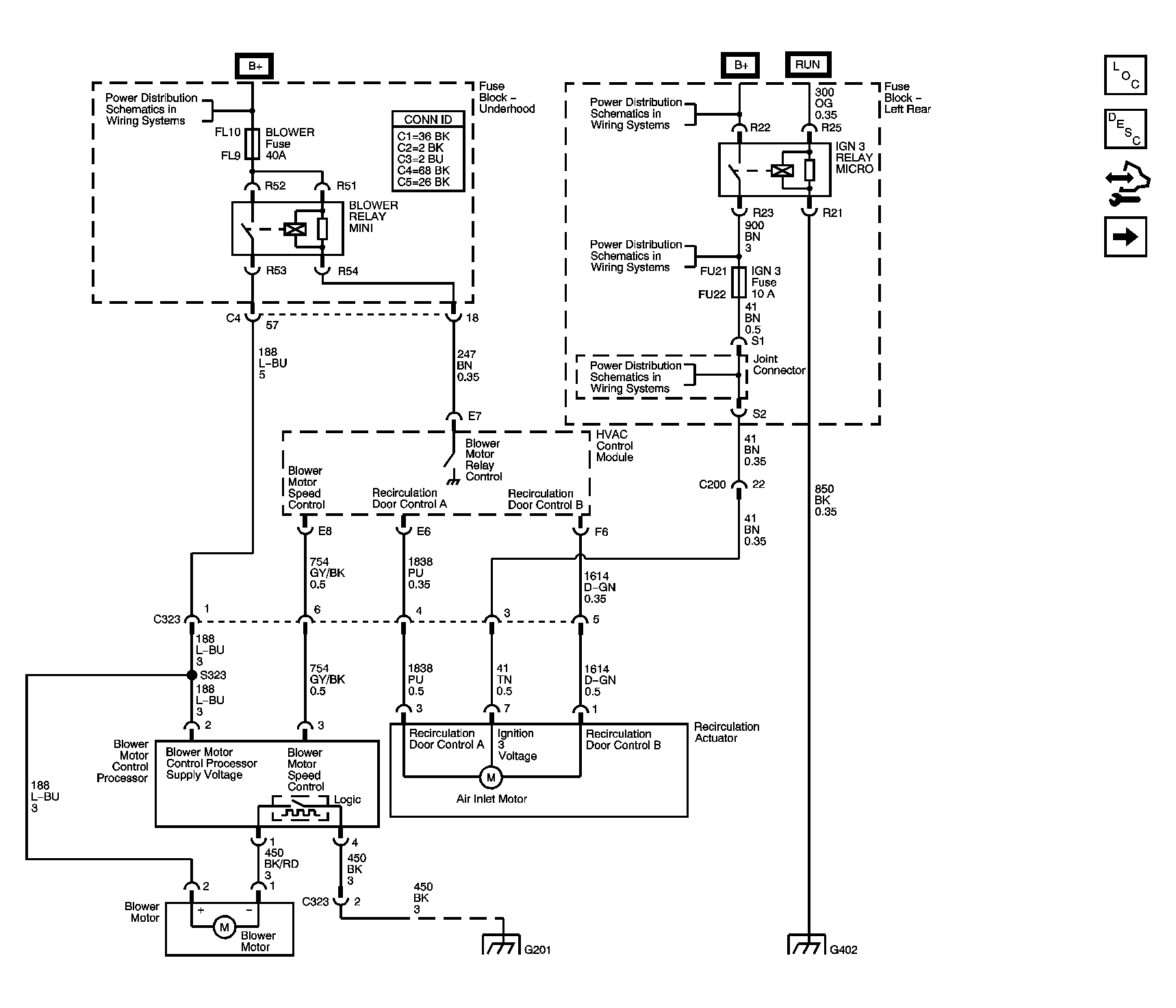

Fig 1: Schematic - Blower Motor Controls

Courtesy of GENERAL MOTORS CORP.

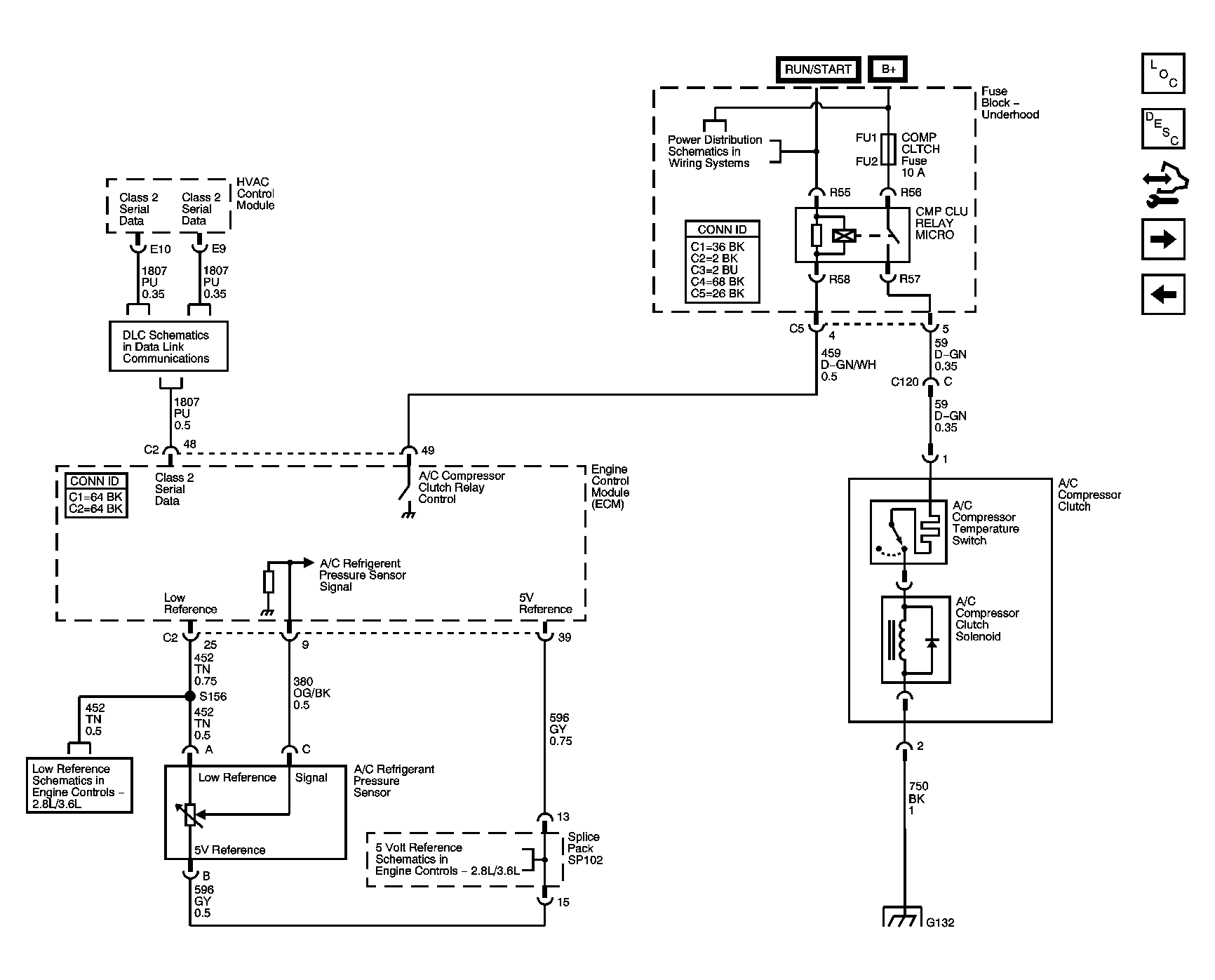

Fig 2: Schematic - A/C Compressor Controls - 2.8L/3.6L( LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

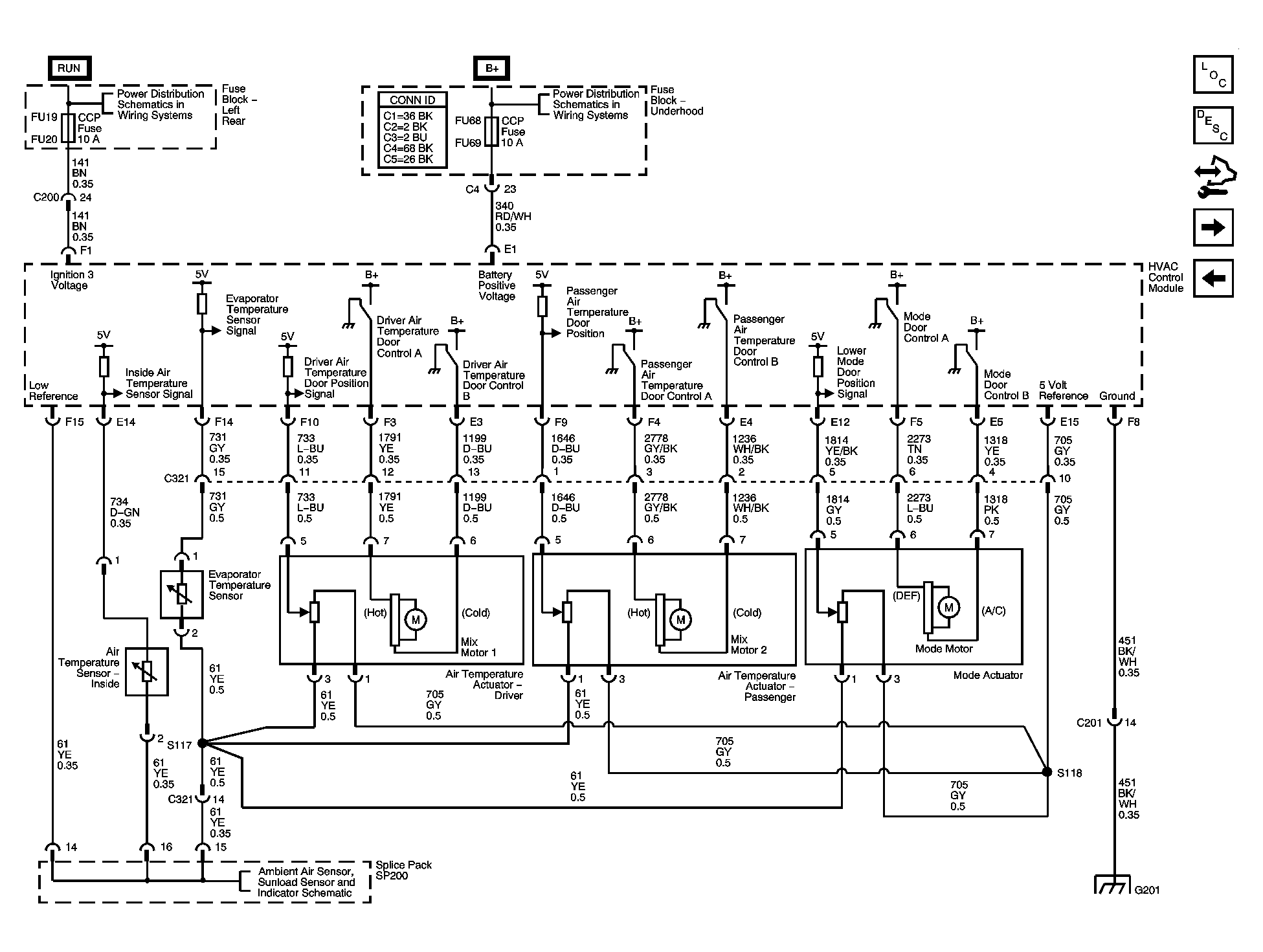

Fig 3: Schematic - A/C Compressor Controls - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

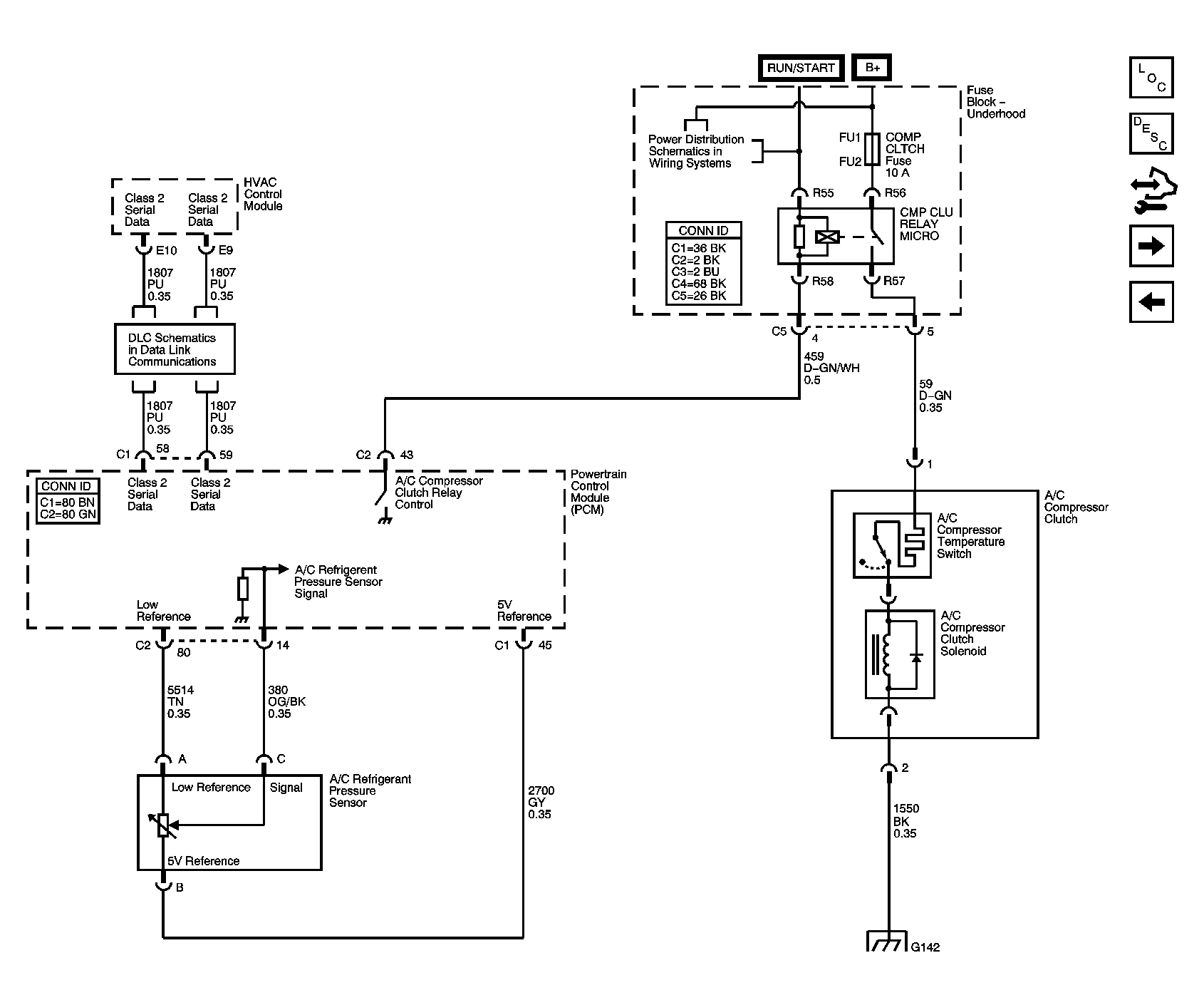

Fig 4: Schematic - Air Delivery and Temperature Control Actuators - LHD

Courtesy of GENERAL MOTORS CORP.

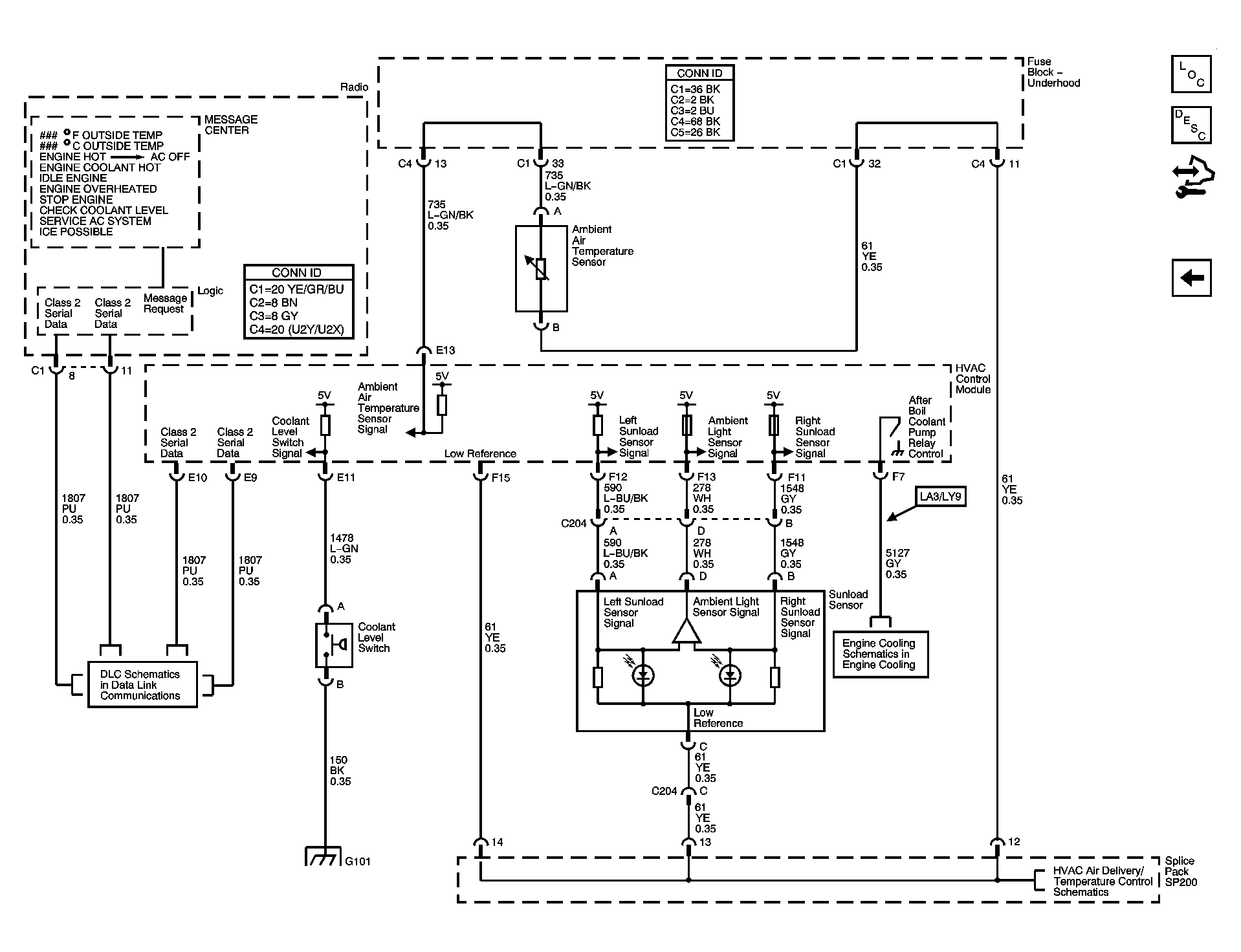

Fig 5: Schematic - Air Delivery and Temperature Control Actuators - RHD

Courtesy of GENERAL MOTORS CORP.

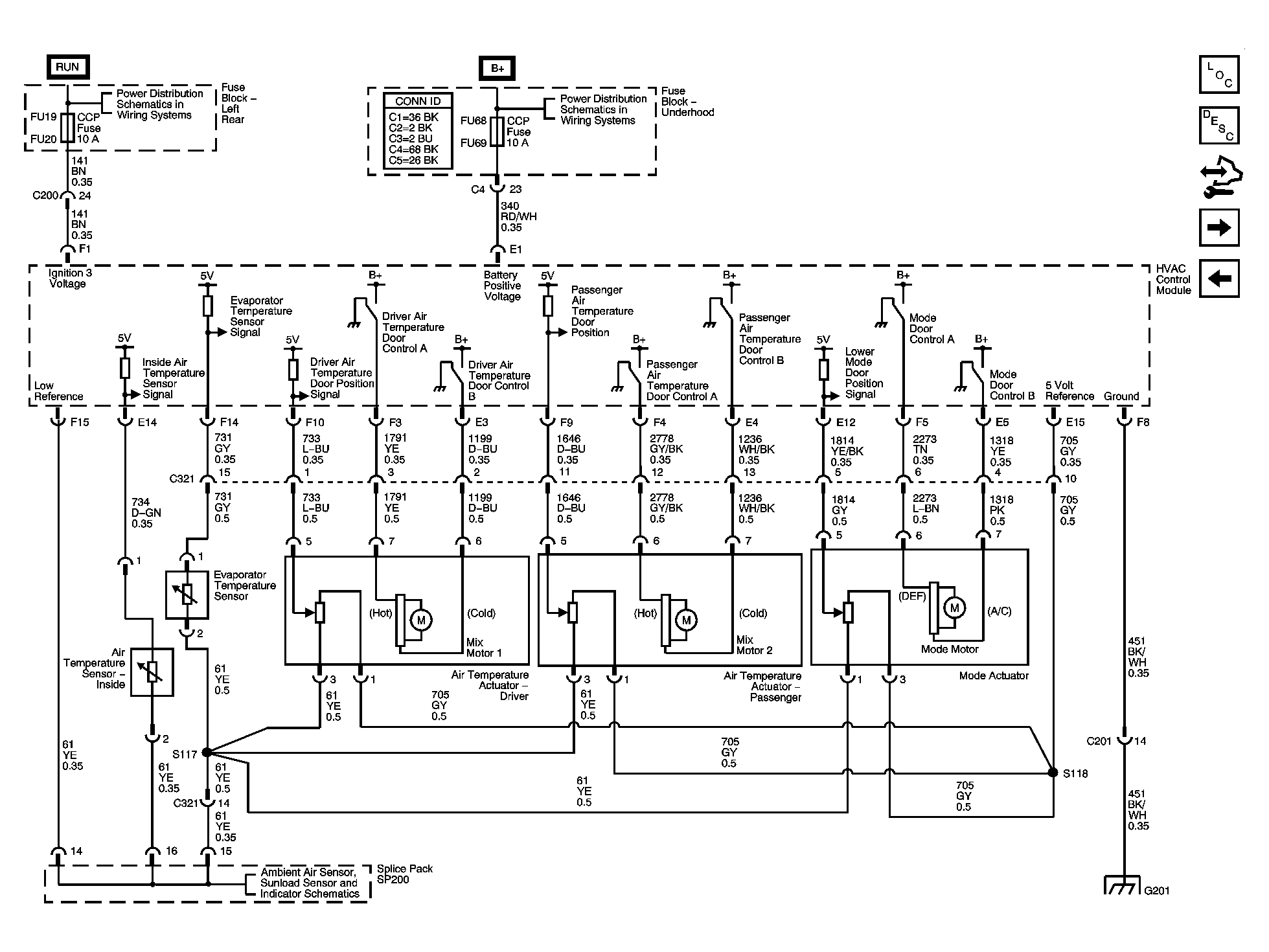

Fig 6: Schematic - Ambient Air Temperature Sensor, Sunload Sensor, Coolant Level Switch and DIC

Courtesy of GENERAL MOTORS CORP.
