Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

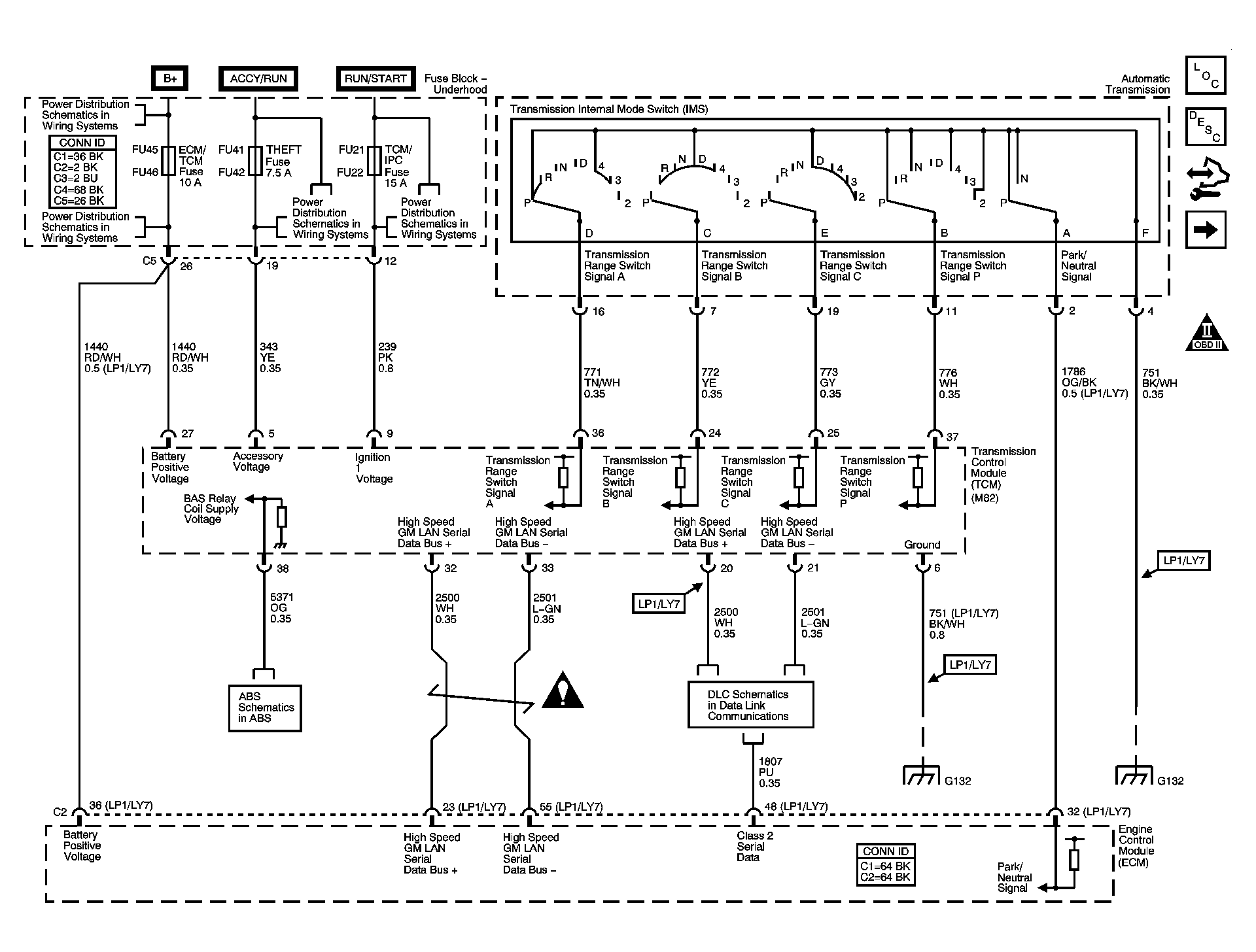

Fig 1: Schematic - Power, Ground, Serial Data, TCM and Internal Mode Switch (IMS)
GM1470742Courtesy of GENERAL MOTORS CORP.

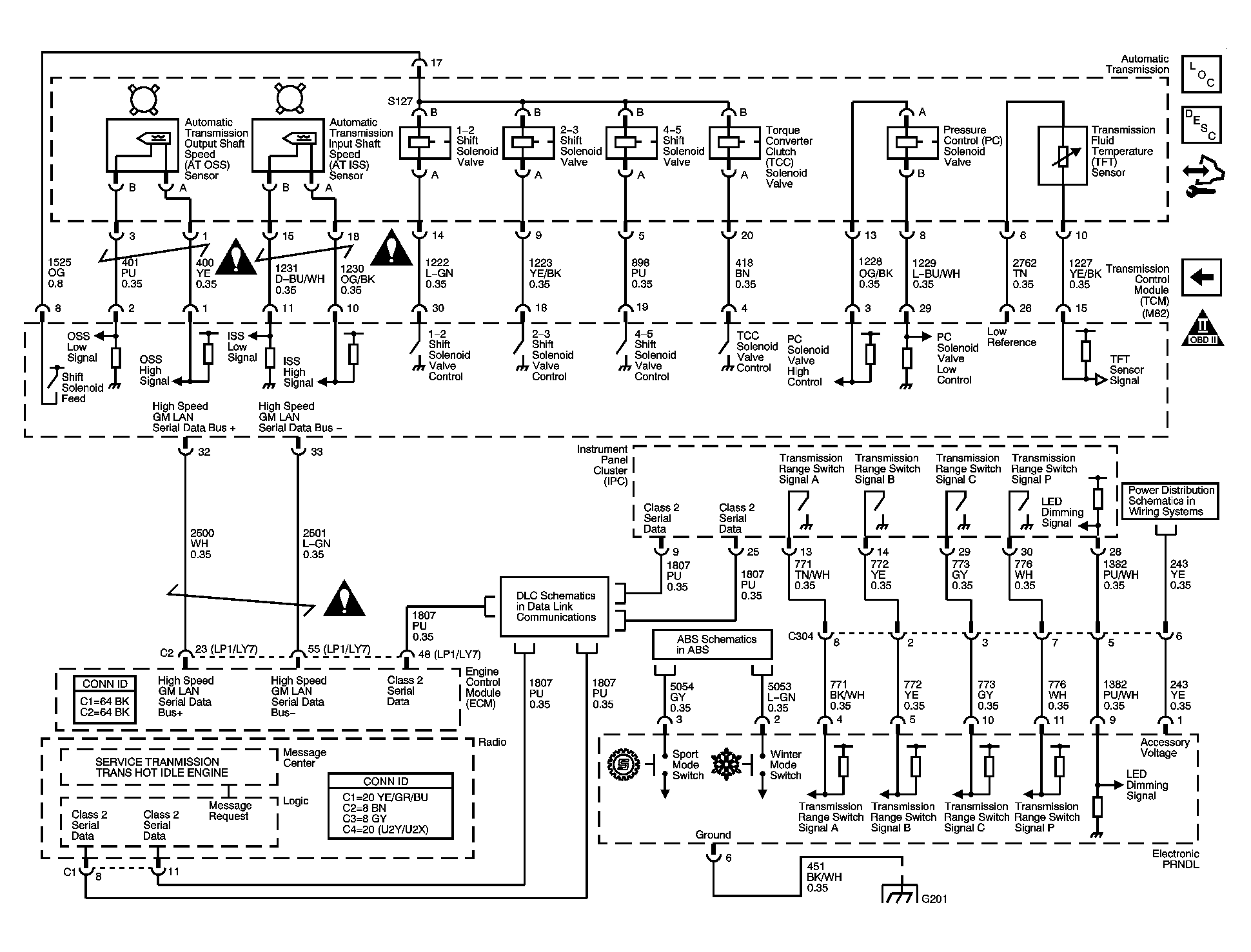

Fig 2: Schematic - Sensors, Solenoids, DIC & Electronic PRNDL
GM1470744Courtesy of GENERAL MOTORS CORP.
