Instrument Cluster Schematics

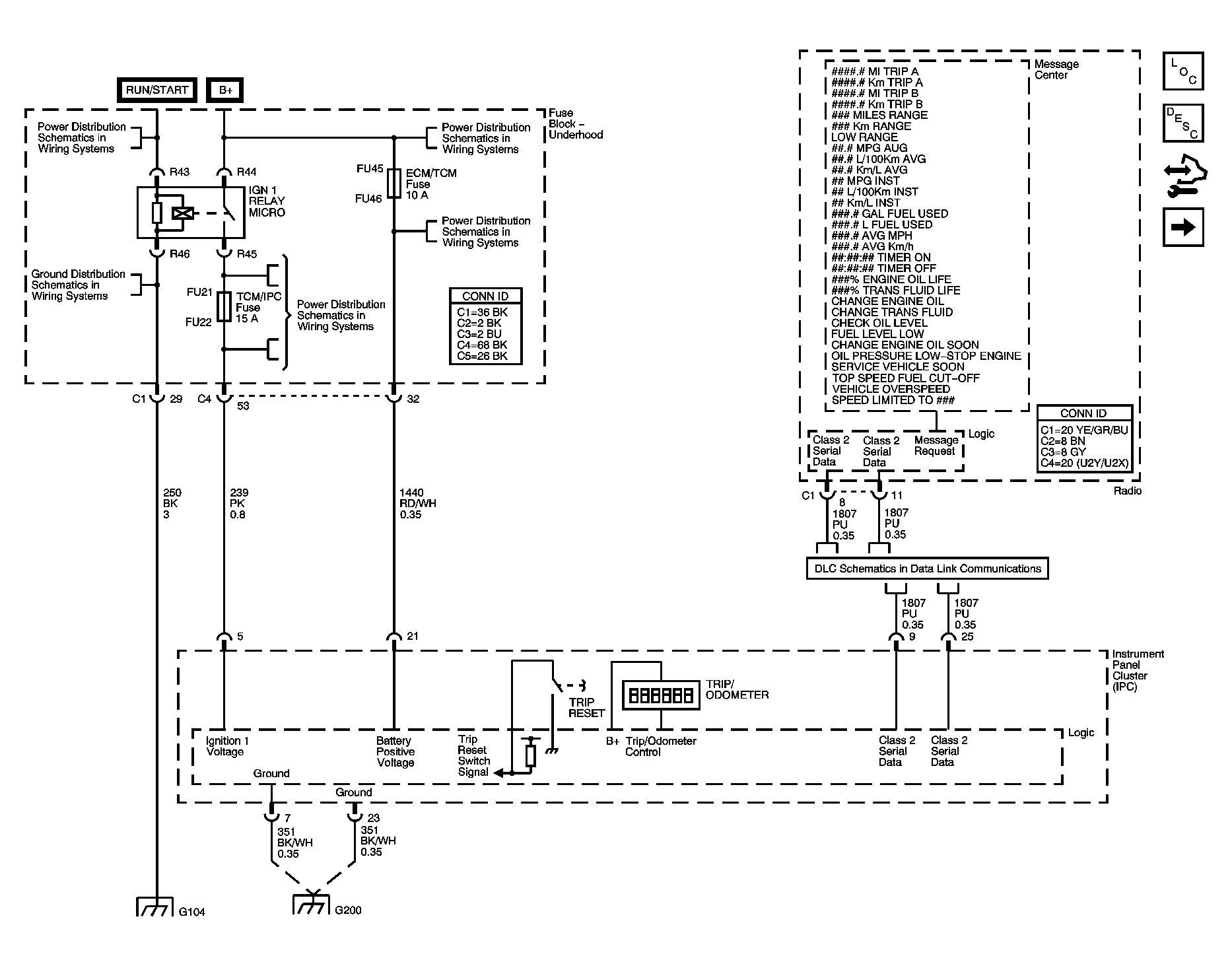

Fig 1: Schematics - Power, Ground, Serial Data, Odometer, and DIC

Courtesy of GENERAL MOTORS CORP.

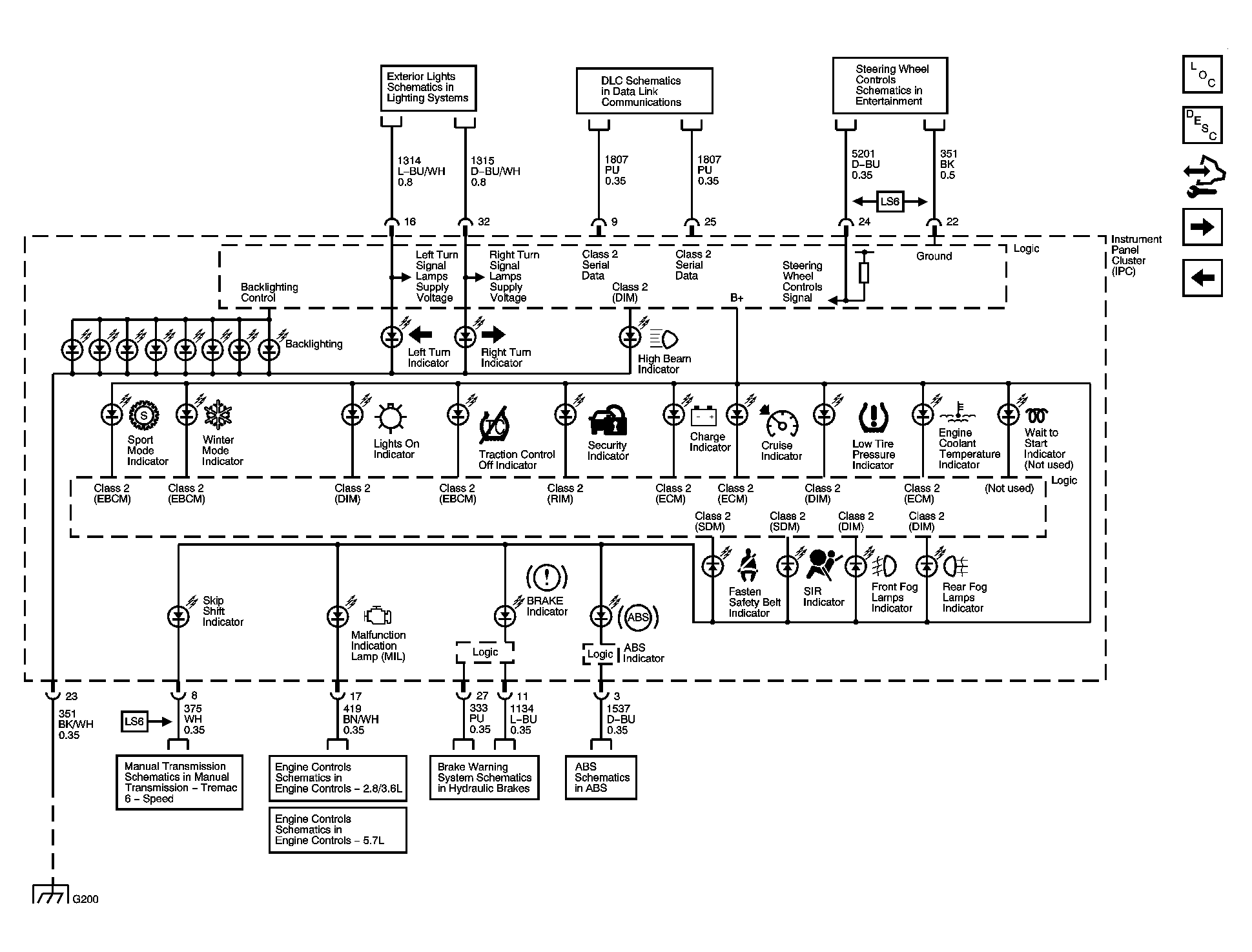

Fig 2: Schematic - Indicators

Courtesy of GENERAL MOTORS CORP.

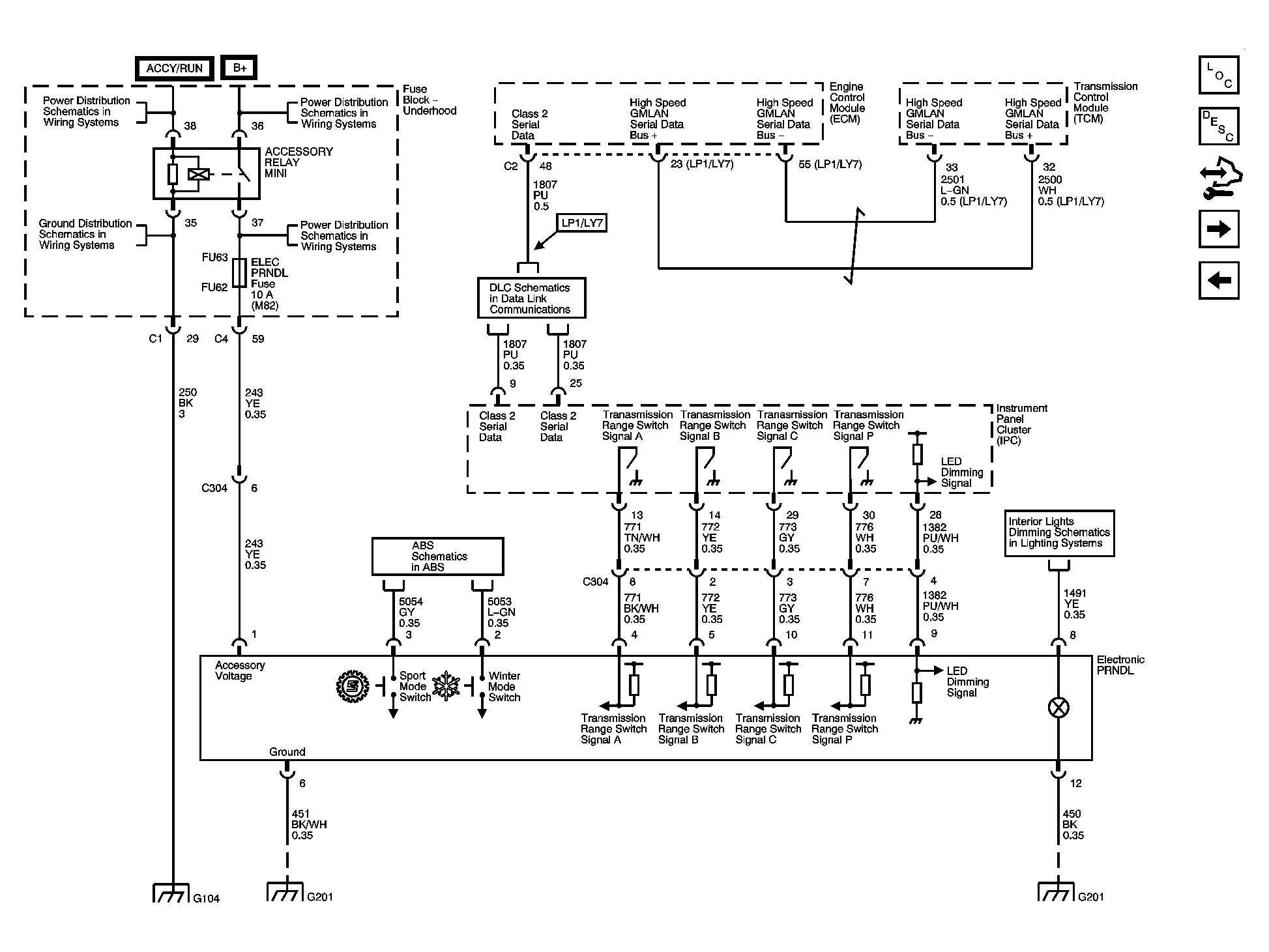

Fig 3: Schematic - Electronic PRNDL (M82)

Courtesy of GENERAL MOTORS CORP.

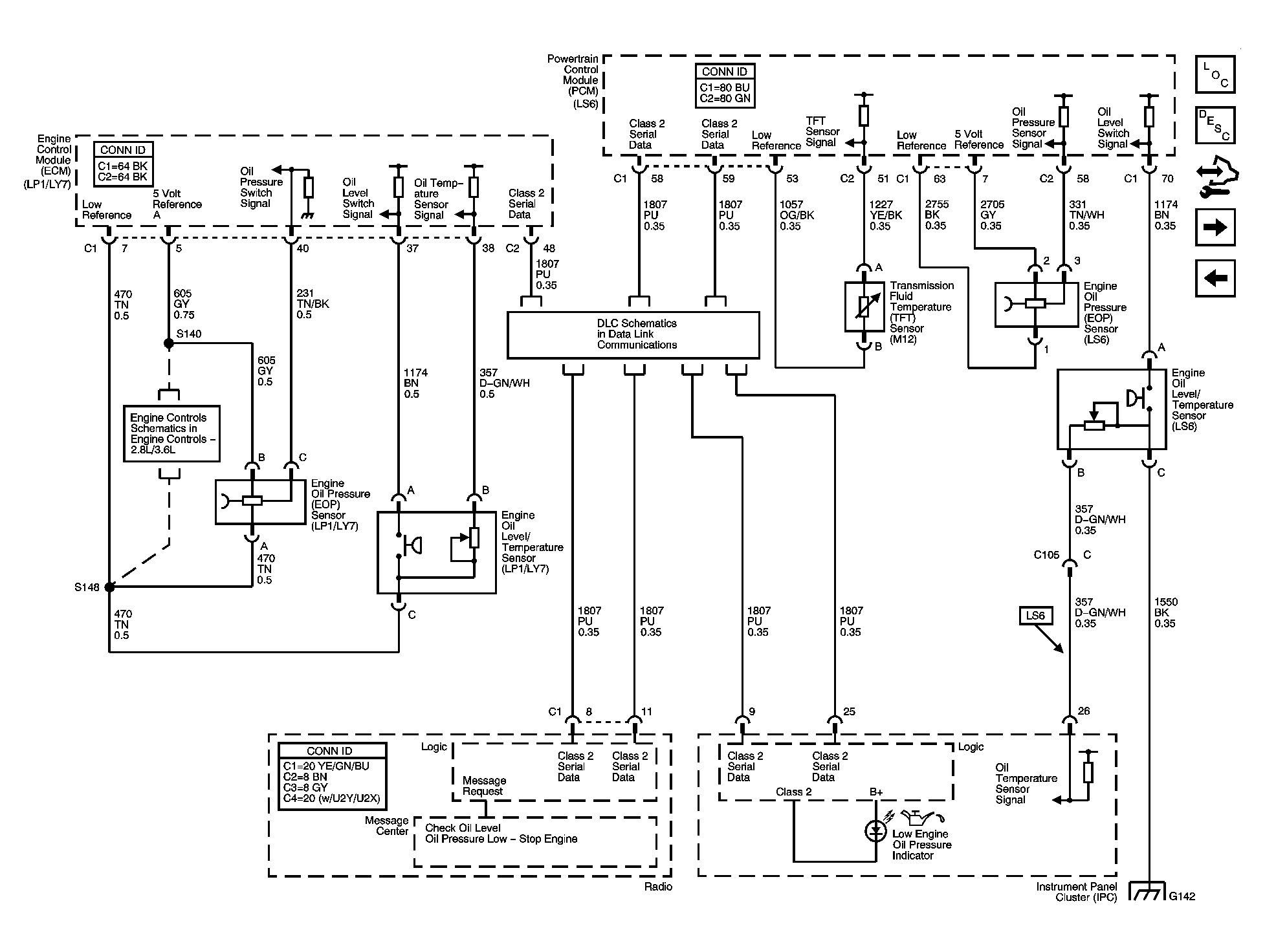

Fig 4: Schematics - EOP Sensors, Engine Oil Level/Temperature Sensors, DIC and Indicator

Courtesy of GENERAL MOTORS CORP.

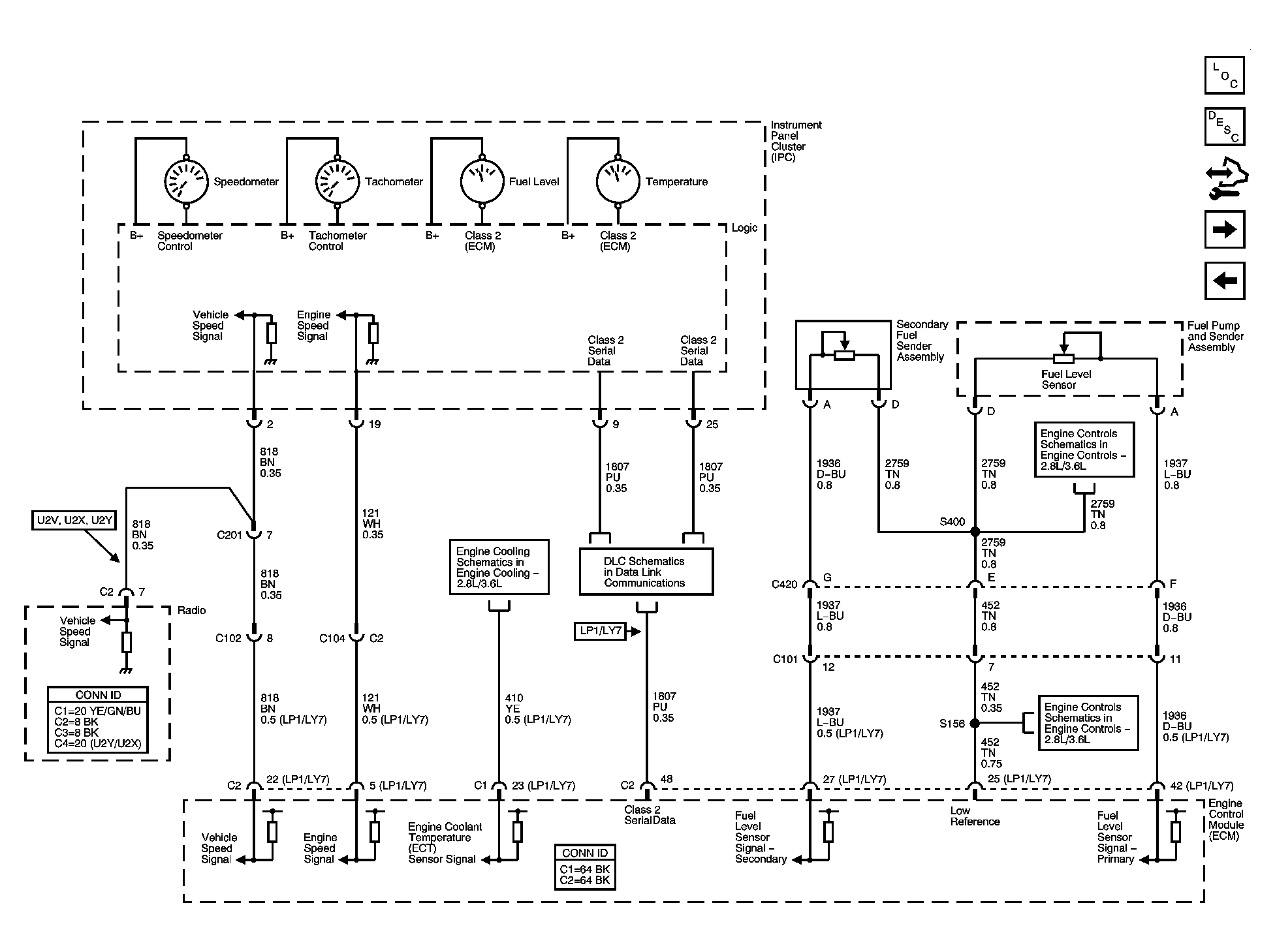

Fig 5: Schematic - Gages - 2.8L/3.6L (LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

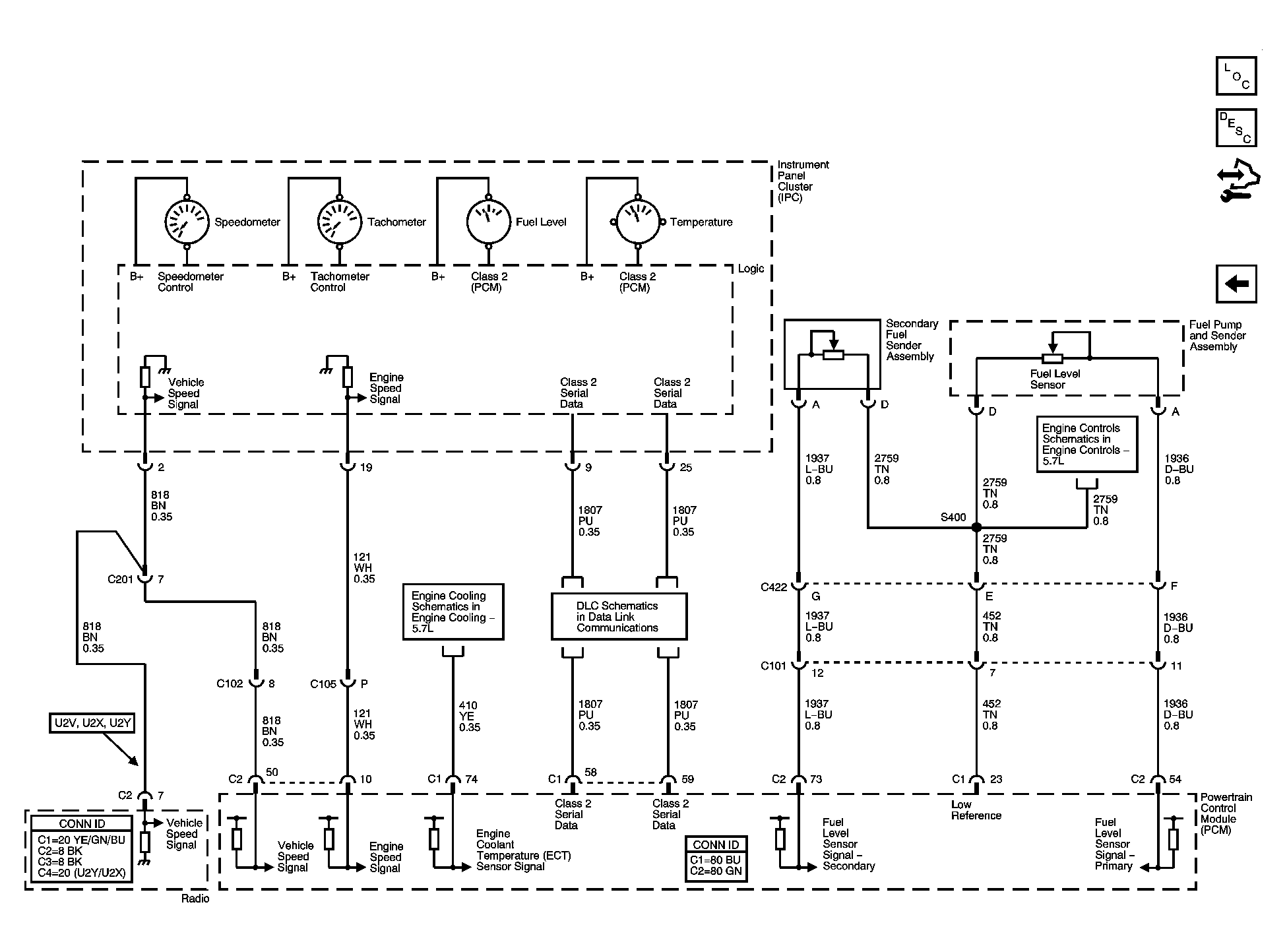

Fig 6: Schematic - Gages - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.
