Power Sunroof Schematics
Power Sunroof Schematics

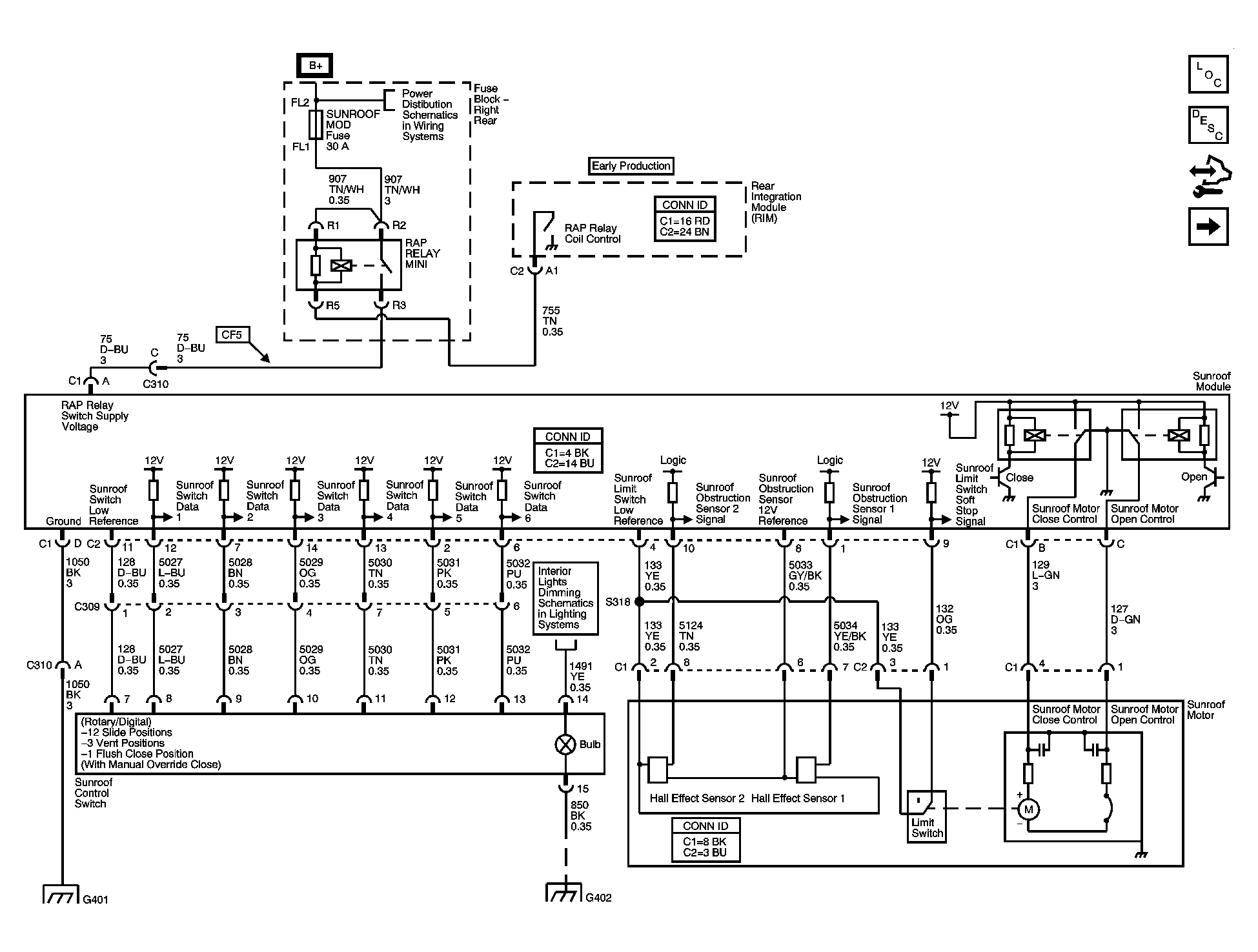

Fig 1: Schematic - Power Sunroof
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
