Passenger Seat Schematics

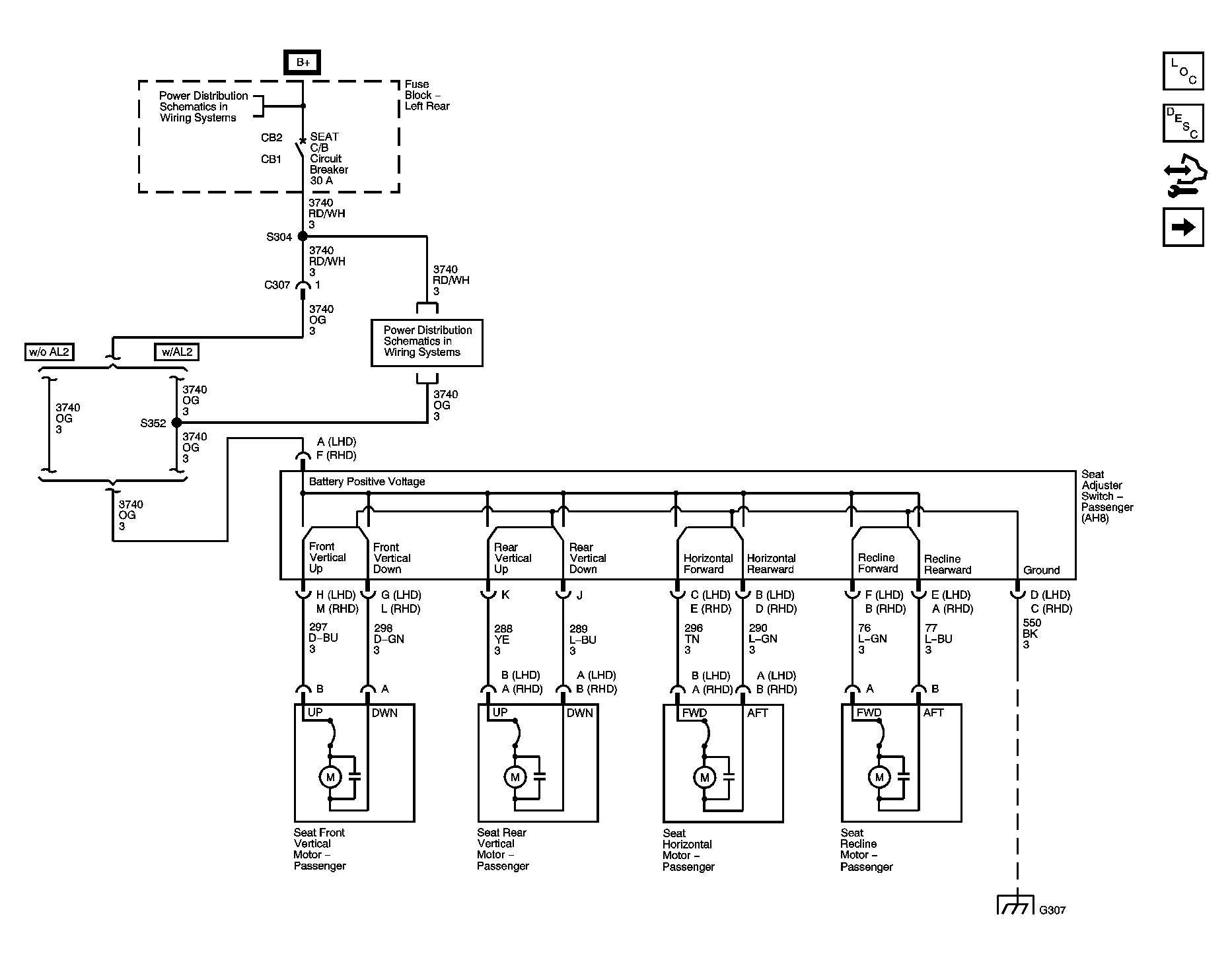

Fig 1: Power Seat - Passenger (AH8)
GM1471177Courtesy of GENERAL MOTORS CORP.

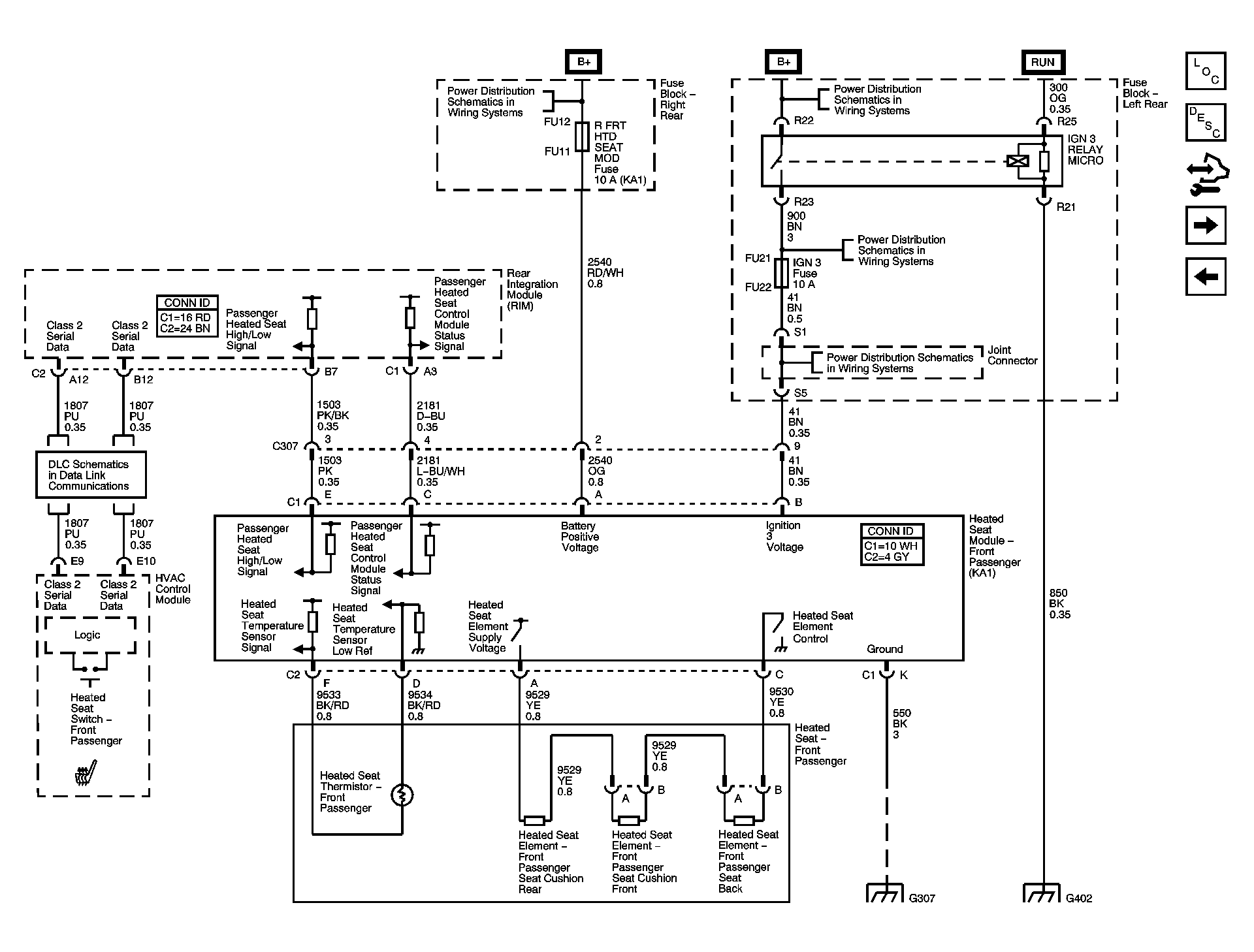

Fig 2: Heated Seat - Passenger (KA1)
GM1471178Courtesy of GENERAL MOTORS CORP.
Fig 3: Power Lumbar - Passenger (AL2)
GM1471179Courtesy of GENERAL MOTORS CORP.
