Theft Deterrent System Schematics

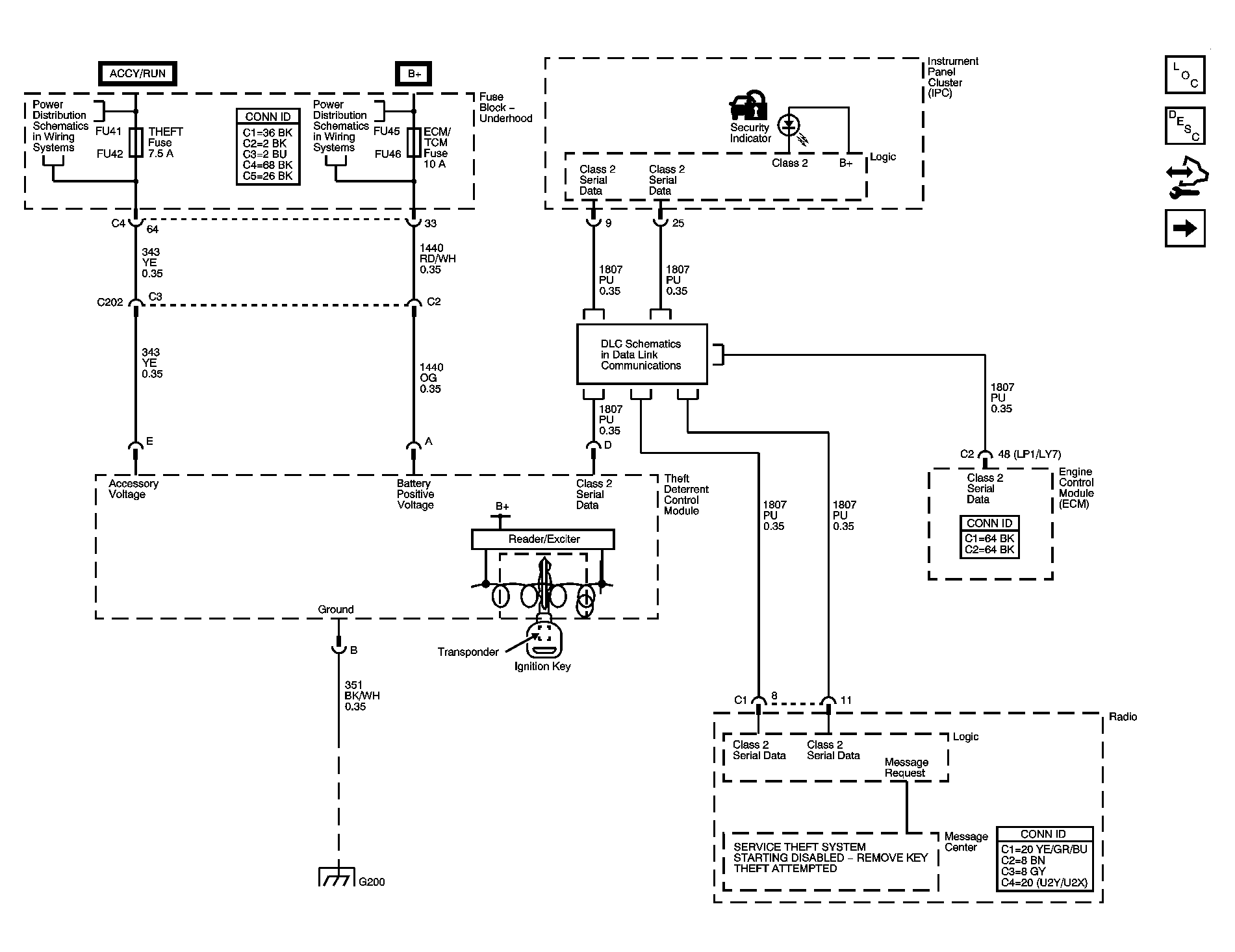

Fig 1: Schematic - Power, Ground, Serial Data, Theft Deterrent Control Module and Indicator

Courtesy of GENERAL MOTORS CORP.

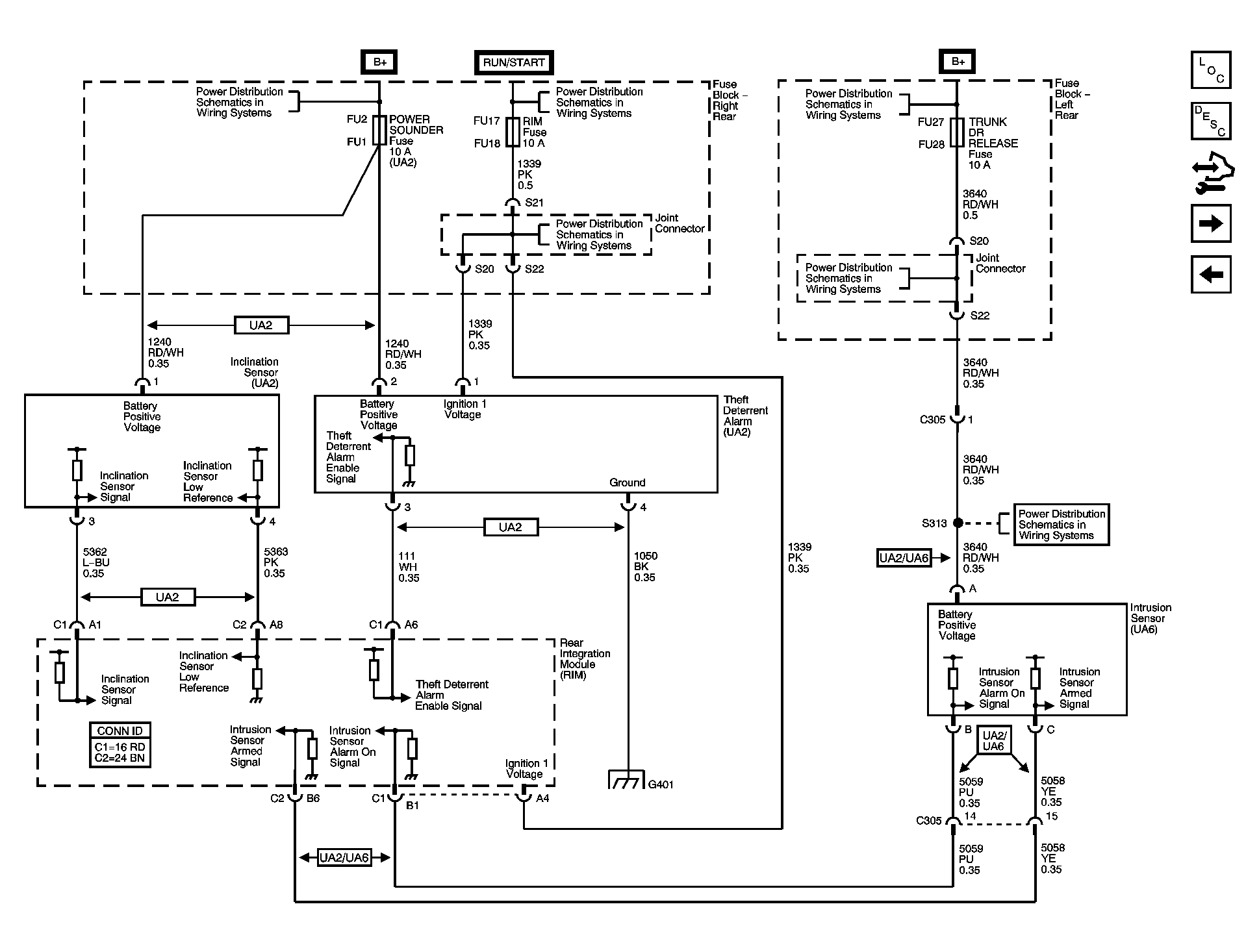

Fig 2: Schematic - Theft Deterrent Alarm, Intrusion Sensor and Inclination Sensor - Export w/ UA2

Courtesy of GENERAL MOTORS CORP.

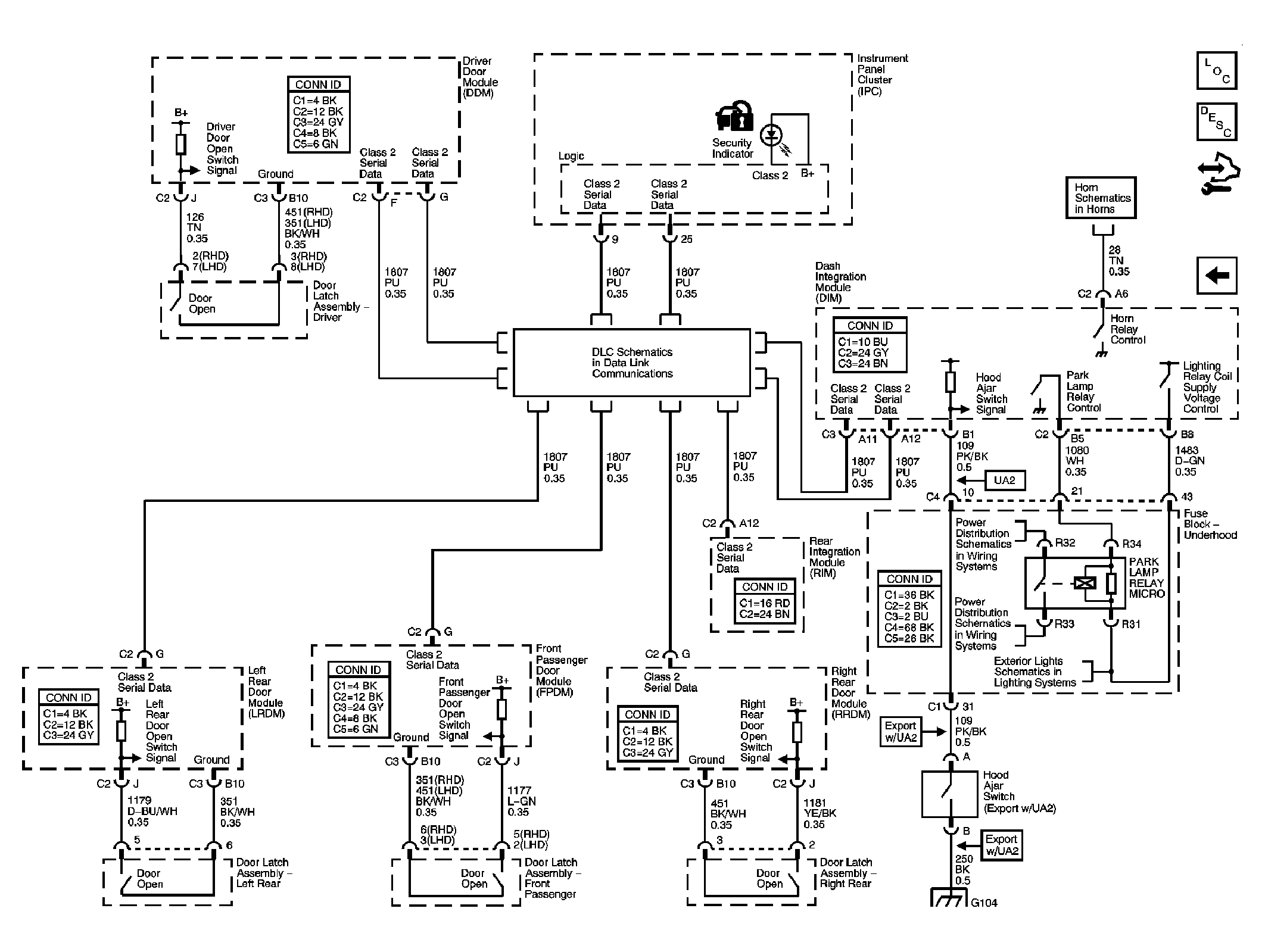

Fig 3: Schematic - Door Modules, Hood Ajar Switch (Export w/ UA2), Serial Data and Indicator

Courtesy of GENERAL MOTORS CORP.
