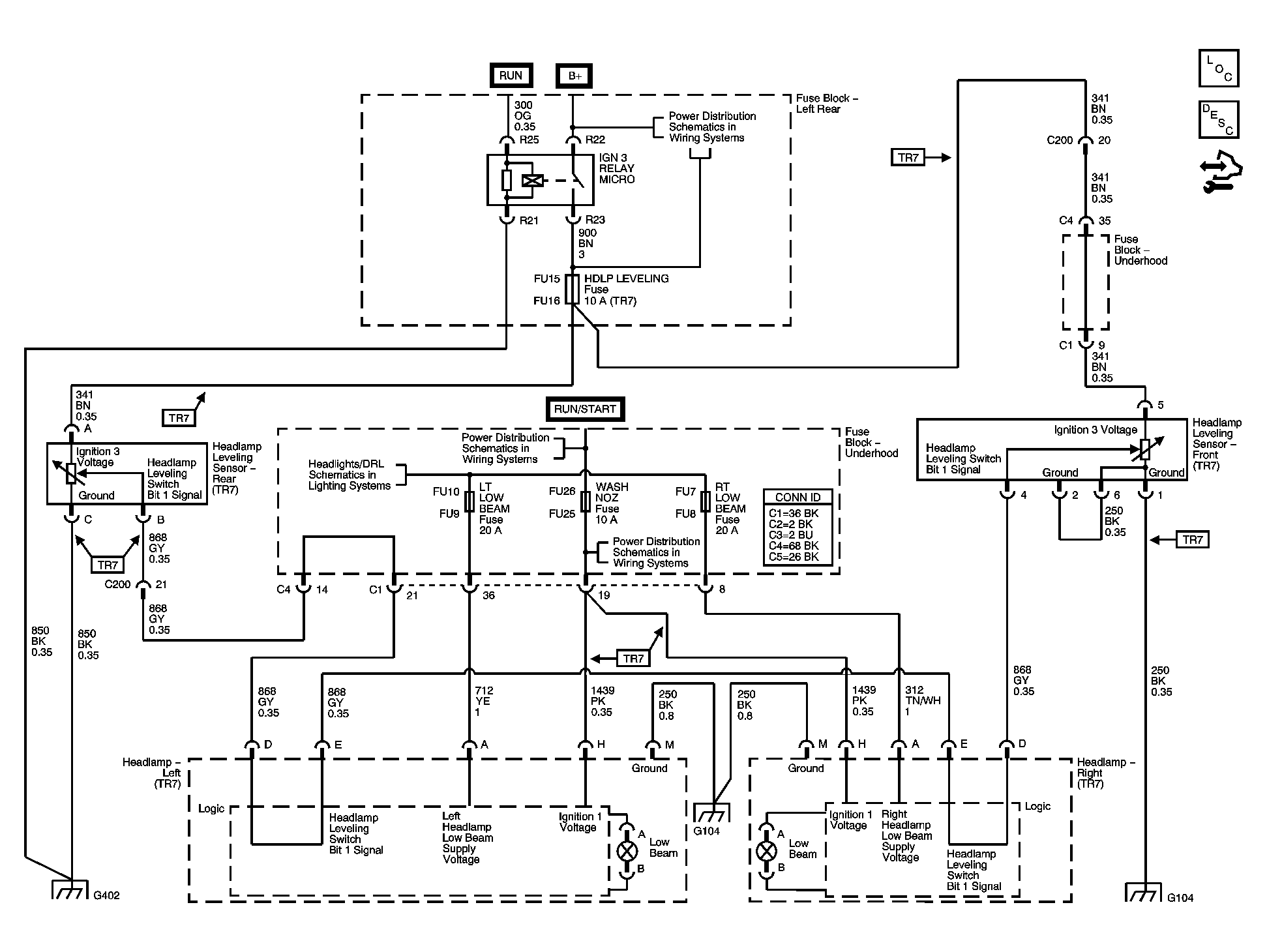

Home >> Cadillac >> 2005 >> CTS V >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems - Introduction And Removal & Installation >> Schematic and Routing Diagrams >> Headlight Leveling Schematics
