Exterior Lights Schematics

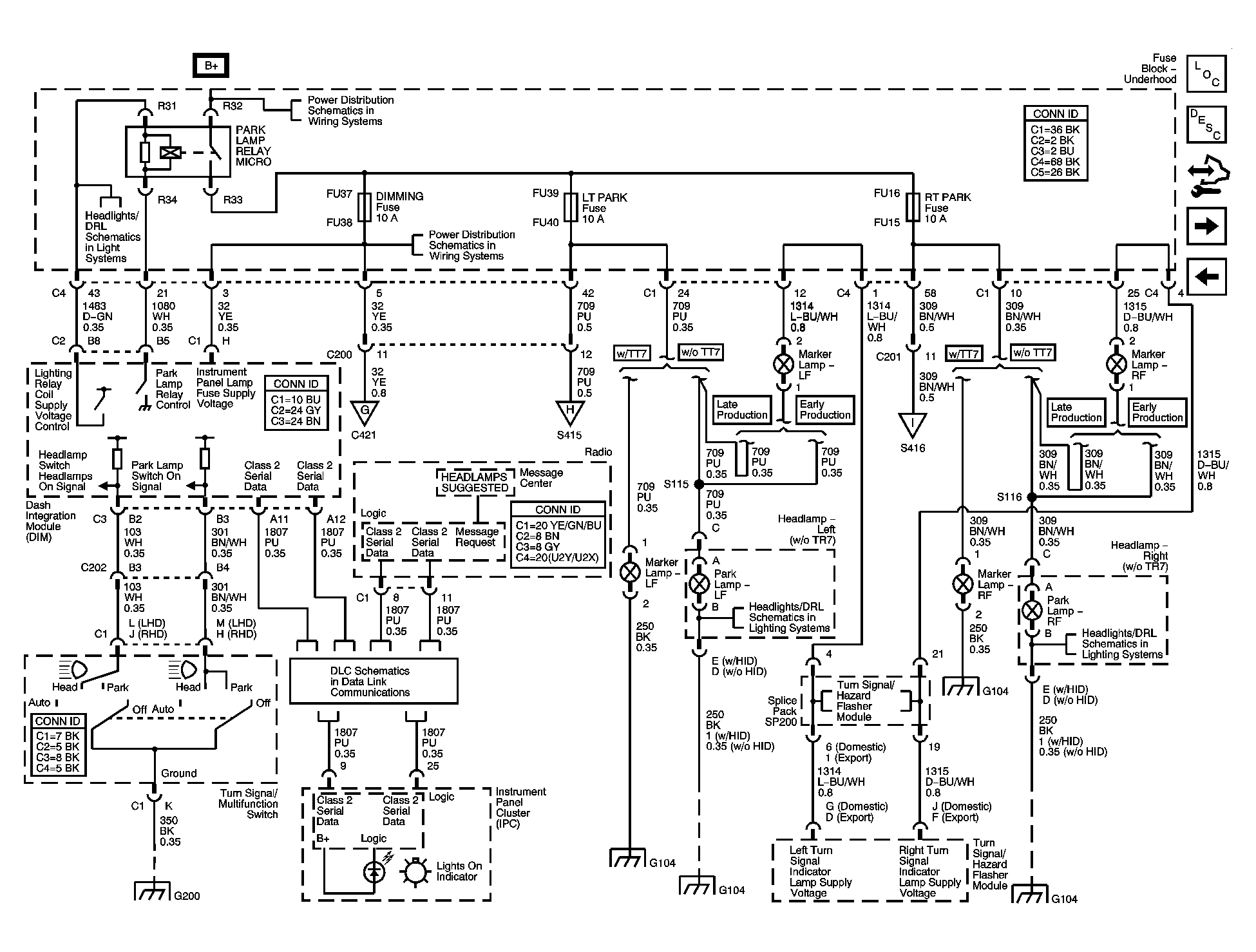

Fig 1: Schematic - Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.

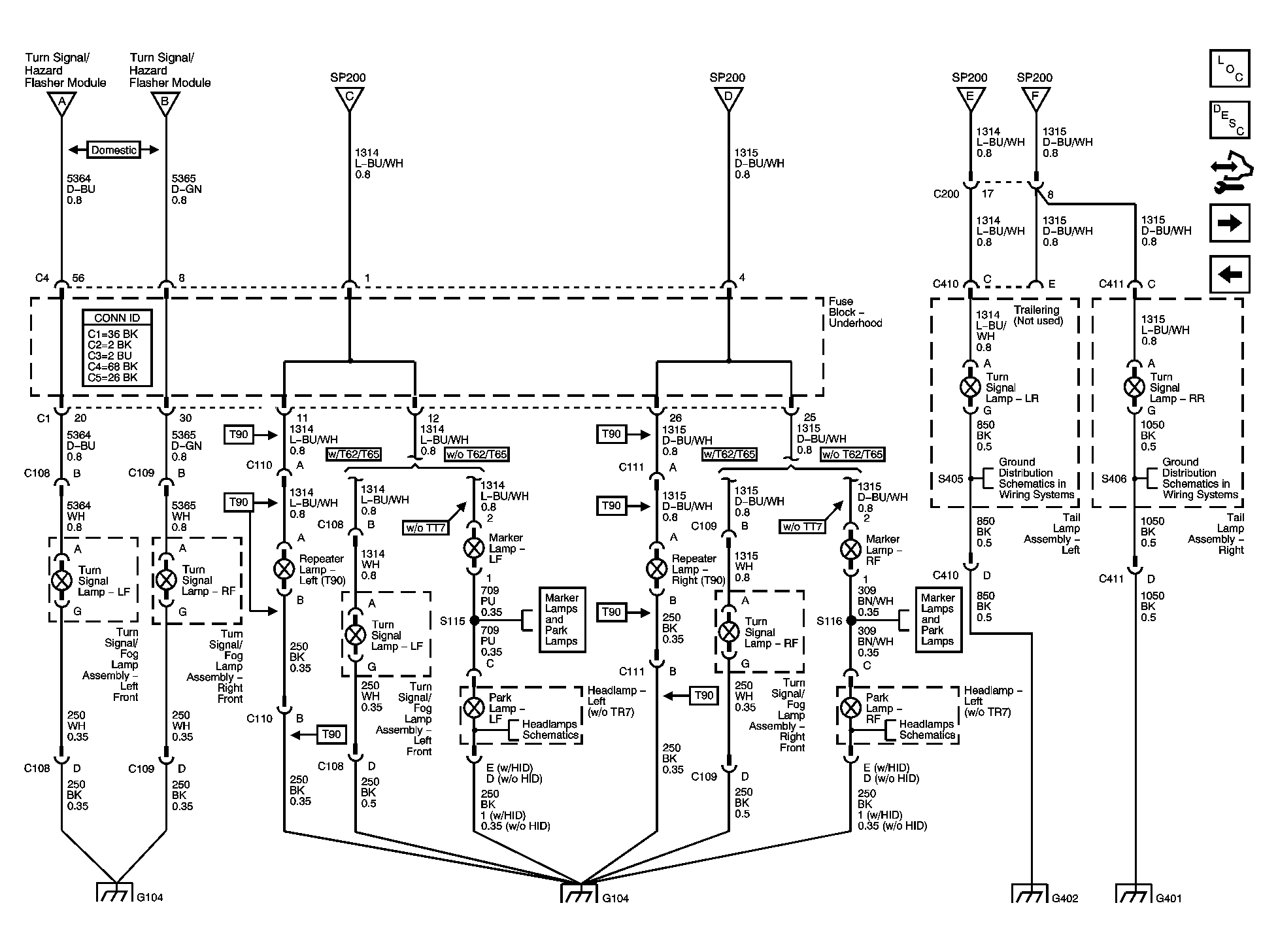

Fig 2: Schematic - Turn Signal Lamps (Domestic and Export) and Repeater Lamps (Export w/T90)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Schematic - Front Marker Lamps (w/TT7) and Front Park Lamps (w/o TT7)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Schematic - License Lamps (Domestic and Export), Rear Marker Lamps (Domestic) and Tail Lamps (Domestic)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Schematics - Position Lamp Controls (Export w/T79)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Schematic - Position Lamps, Park Lamps, and Tail Lamps (Export w/T79)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Schematic - Stop Lamps, BPP Sensor and BAS Fuse/Relay (Domestic and Export)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Schematic - Backup Lamps

Courtesy of GENERAL MOTORS CORP.
