Driver Information System Schematics

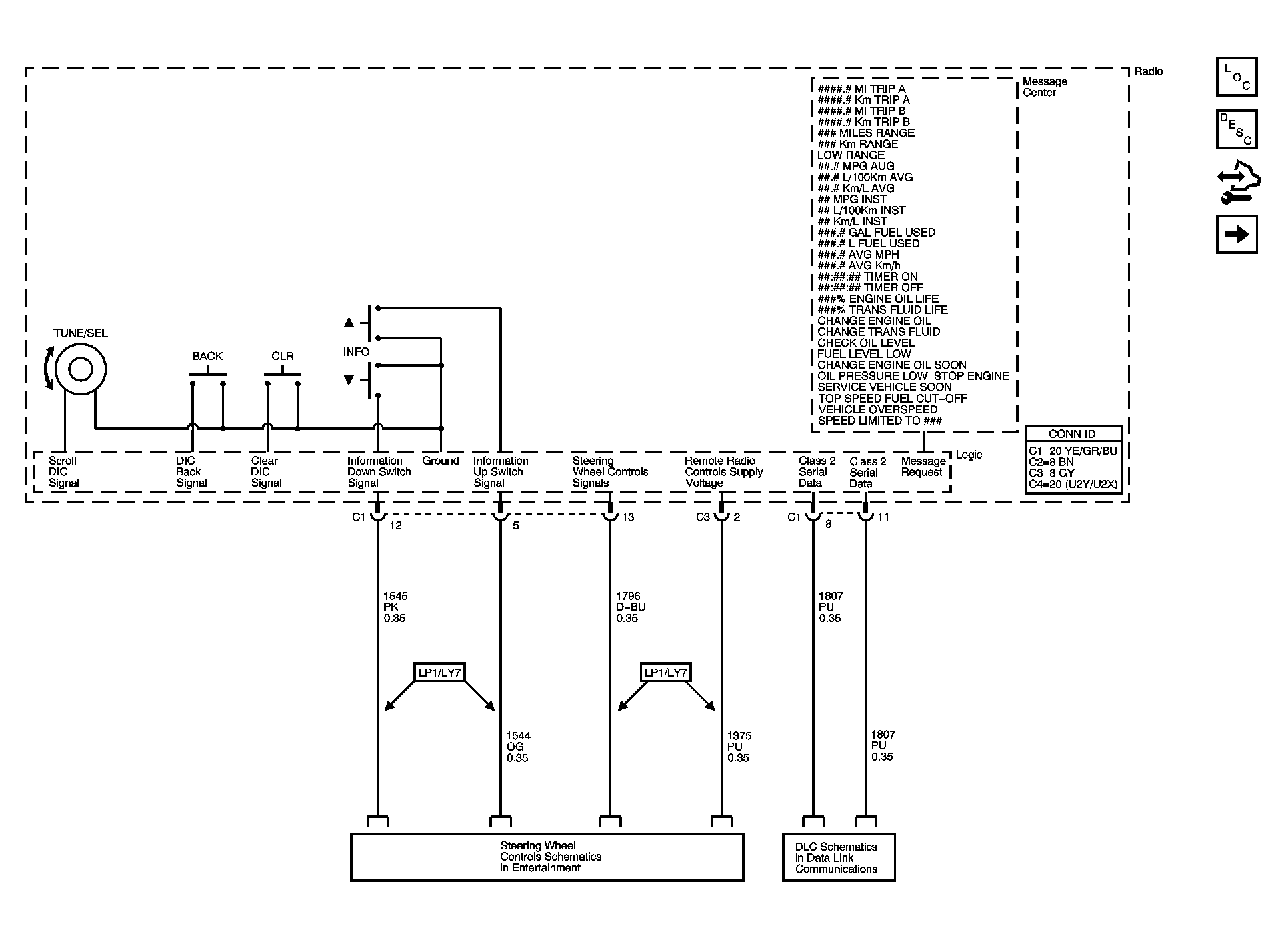

Fig 1: Schematics - Driver Information Center (DIC) System
GM1471094Courtesy of GENERAL MOTORS CORP.

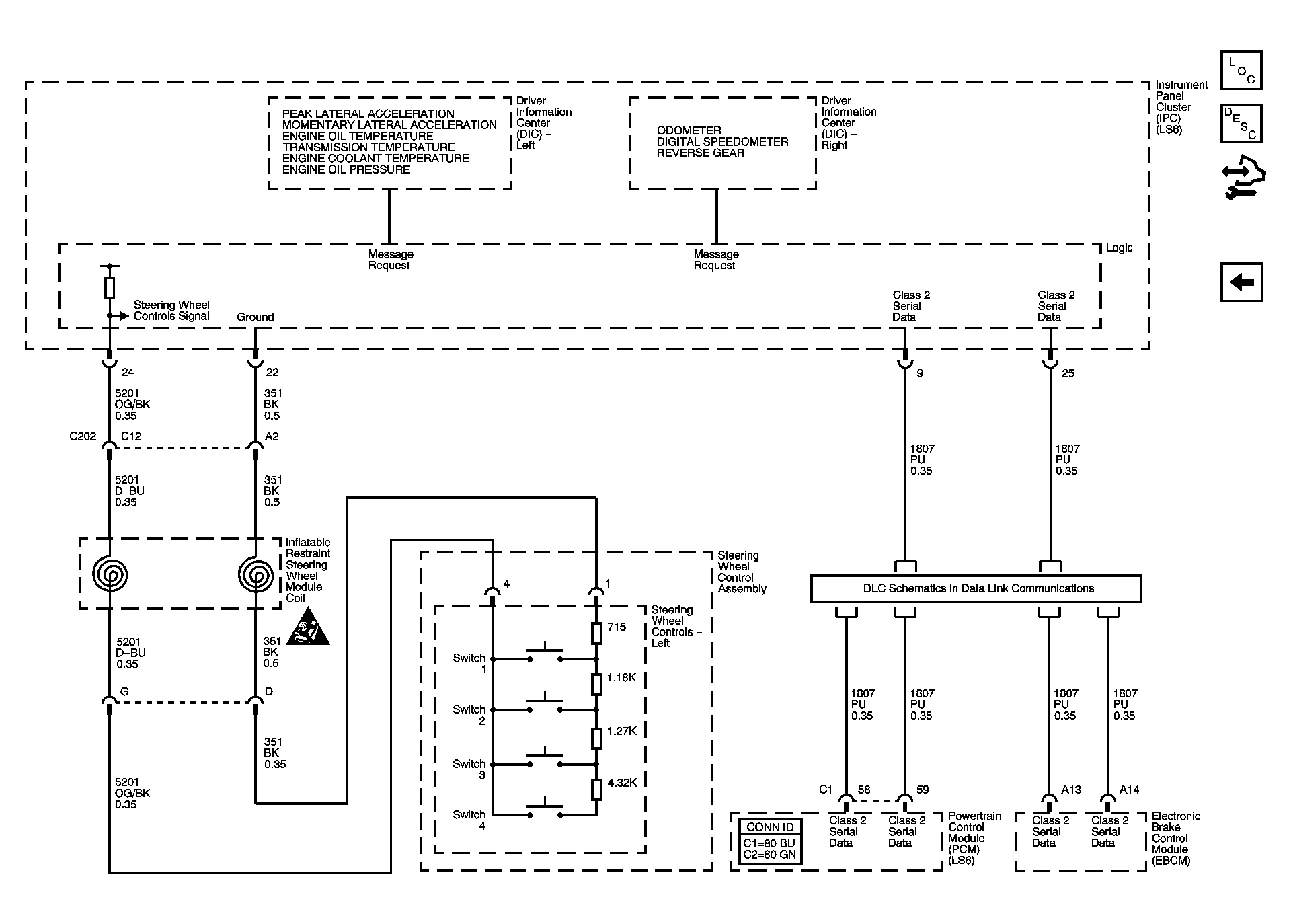

Fig 2: Schematic - Driver Information Center (DIC) System - 5.7L (LS6)
GM1471095Courtesy of GENERAL MOTORS CORP.
