Inline Harness Connector End Views

C119 Forward Lamp Harness to Headlamp Assembly Connector End View - Left Harness (w/o T90)

GM646412Courtesy of GENERAL MOTORS CORP.
GM893439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326642
  • Service: 15306395
  • 5-Way F GT 280 Series Sealed 5.8 (BK)
 Connector Part Information
  • OEM: 15326647
  • Service: 88953360
  • 5-Way M GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1350 Ground A BK 1350 Ground
B YE 712 Left Headlamp Low Beam Supply Voltage B YE 712 Left Headlamp Low Beam Supply Voltage
C D-GN 711 Left Headlamp High Beam Supply Voltage C D-GN/WH 711 Left Headlamp High Beam Supply Voltage
D D-BU 1314 Left Front Turn Signal Lamp Supply Voltage D L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
E BN 9 Park Lamp Supply Voltage E BN 9 Park Lamp Supply Voltage
C119 Forward Lamp Harness to Headlamp Assembly - Left Harness (T90) Connector End View

GM872518Courtesy of GENERAL MOTORS CORP.
GM872519Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326636
  • Service: See Catalog
  • 6-Way F (BK)
 Connector Part Information
  • OEM: 15326640
  • Service: 88953150
  • 6-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1350 Ground A BK 1350 Ground
B YE 712 Left Headlamp Low Beam Supply Voltage B YE 712 Left Headlamp Low Beam Supply Voltage
C D-GN 711 Left Headlamp High Beam Supply Voltage C D-GN 711 Left Headlamp High Beam Supply Voltage
D L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage D L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
E BN 9 Park Lamp Supply Voltage E BN 9 Park Lamp Supply Voltage
F - - Not Used F - - Not Used
C120 Forward Lamp Harness to Headlamp Assembly Connector End View - Right Harness (w/o T90)

GM646412Courtesy of GENERAL MOTORS CORP.
GM893439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326642
  • Service: 15306395
  • 5-Way F GT 280 Series Sealed 5.8 (BK)
 Connector Part Information
  • OEM: 15326647
  • Service: 88953360
  • 5-Way M GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1250 Ground A BK 1250 Ground
B YE 312 Right Headlamp Low Beam Supply Voltage B TN/WH 312 Right Headlamp Low Beam Supply Voltage
C D-GN 311 Right Headlamp High Beam Supply Voltage C L-GN/BK 311 Right Headlamp High Beam Supply Voltage
D D-BU 1315 Right Front Turn Signal Lamp Supply Voltage D D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
E BN 9 Park Lamp Supply Voltage E BN 9 Park Lamp Supply Voltage
C120 Forward Lamp Harness to Headlamp Assembly Connector End View - Right Harness (T90)

GM872518Courtesy of GENERAL MOTORS CORP.
GM872519Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326636
  • Service: See Catalog
  • 6-Way F (BK)
 Connector Part Information
  • OEM: 15326640
  • Service: 88953150
  • 6-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1250 Ground A BK 1250 Ground
B YE 312 Right Headlamp Low Beam Supply Voltage B YE 312 Right Headlamp Low Beam Supply Voltage
C D-GN 311 Right Headlamp High Beam Supply Voltage C D-GN 311 Right Headlamp High Beam Supply Voltage
D D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage D D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
E BN 9 Park Lamp Supply Voltage E BN 9 Park Lamp Supply Voltage
F - - Not Used F - - Not Used
C131 Forward Lamp Harness to Underhood Lamp Harness Connector End View

GM632351Courtesy of GENERAL MOTORS CORP.
GM632349Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326802
  • Service: 15306156
  • 2-Way F 150 Series Sealed (BK)
 Connector Part Information
  • OEM: 15326806
  • Service: 15306166
  • 2-Way M 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage A OG 1732 Courtesy Lamps Supply Voltage
B BK 1250 Ground B BK 1250 Ground
C139 Engine Harness to Ignition Coil (Bank 2) Jumper Harness Connector End View

GM1283903Courtesy of GENERAL MOTORS CORP.
GM1283901Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15317367
  • Service: 15306317
  • 7-Way F (BK)
 Connector Part Information
  • OEM: 15401773
  • Service: See Catalog
  • 7-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK 139 Run/Crank Ignition 1 Voltage A PK 139 Run/Crank Ignition 1 Voltage
B BK/WH 51 Signal Ground B BK 51 Signal Ground
C BN/WH 2130 Ignition Control Low Reference Bank 2 C BN 2130 Ignition Control Low Reference Bank 2
D D-GN/WH 2124 Ignition Control (4) D D-GN 2124 Ignition Control (4)
E L-BU/WH 2126 Ignition Control (6) E L-BU 2126 Ignition Control (6)
F PU/WH 2128 Ignition Control (8) F PU 2128 Ignition Control (8)
G OG/WH 2122 Ignition Control (2) G OG 2122 Ignition Control (2)
C140 Engine Harness to Ignition Coil (Bank 1) Jumper Harness Connector End View

GM1283903Courtesy of GENERAL MOTORS CORP.
GM1283901Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15317367
  • Service: 15306317
  • 7-Way F (BK)
 Connector Part Information
  • OEM: 15401773
  • Service: See Catalog
  • 7-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK 390 Run/Crank Ignition 1 Voltage A PK 390 Run/Crank Ignition 1 Voltage
B BK 510 Signal Ground B BK/WH 510 Signal Ground
C BN 2129 Ignition Control Low Reference Bank 1 C BN 2129 Ignition Control Low Reference Bank 1
D D-GN 2125 Ignition Control (5) D D-GN 2125 Ignition Control (5)
E L-BU 2123 Ignition Control (3) E L-BU 2123 Ignition Control (3)
F PU 2121 Ignition Control (1) F PU 2121 Ignition Control (1)
G OG 2127 Ignition Control (7) G OG 2127 Ignition Control (7)
C148 Engine Harness to Engine Valley Jumper Harness Connector End View

GM831372Courtesy of GENERAL MOTORS CORP.
GM831369Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326849
  • Service: 88986260
  • 12-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • OEM: 15326854
  • Service: See Catalog
  • 12-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 573 Crankshaft Position Sensor Signal (1) A YE 573 Crankshaft Position Sensor Signal (1)
B PU 574 Crankshaft Position Sensor Low Reference (1) B PU 574 Crankshaft Position Sensor Low Reference (1)
C L-GN 1867 Crankshaft Position Sensor 12-Volt Reference C L-GN 1867 Crankshaft Position Sensor 12-Volt Reference
D BK/WH 451 Signal Ground D BK/WH 451 Signal Ground
E L-GN 5282 Camshaft Phaser Exhaust Solenoid (1) E L-GN 5282 Camshaft Phaser Exhaust Solenoid (1)
F PU 5284 Camshaft Phaser Intake Solenoid (1) F PU 5284 Camshaft Phaser Intake Solenoid (1)
G D-BU 496 Knock Sensor Signal (1) G D-BU 496 Knock Sensor Signal (1)
H GY 1716 Knock Sensor Low Reference (1) H GY 1716 Knock Sensor Low Reference (1)
J L-BU 1876 Knock Sensor Signal (2) J L-BU 1876 Knock Sensor Signal (2)
K GY 2303 Knock Sensor Low Reference (2) K GY 2303 Knock Sensor Low Reference (2)
L OG/BK 5272 Camshaft Phaser Intake Solenoid (2) L OG/BK 5272 Camshaft Phaser Intake Solenoid (2)
M WH/BK 5283 Camshaft Phaser Exhaust Solenoid (2) M WH/BK 5283 Camshaft Phaser Exhaust Solenoid (2)
C159 Engine Harness to Wheel Speed Sensor Harness Connector End View

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052644
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (GY)
 Connector Part Information
  • OEM: 12162343
  • Service: 12162343
  • 2-Way M Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 873 Left Front Wheel Speed Sensor Low Reference A YE 873 Left Front Wheel Speed Sensor Low Reference
B L-BU 830 Wheel Speed Sensor Signal Left Front B L-BU 830 Wheel Speed Sensor Signal Left Front
C160 Engine Harness to Wheel Speed Sensor Harness Connector End View

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052644
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series Sealed (GY)
 Connector Part Information
  • OEM: 12162343
  • Service: 12162343
  • 2-Way M Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TN 833 Wheel Speed Sensor Low Reference Right Front A TN 833 Wheel Speed Sensor Low Reference Right Front
B D-GN 872 Wheel Speed Sensor Signal Right Front B D-GN 872 Wheel Speed Sensor Signal Right Front
C168 Forward Lamp Harness to Transmission Harness Connector End View

GM646430Courtesy of GENERAL MOTORS CORP.
GM806431Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326815
  • Service: 15306396
  • 4-Way F GT 150 Series Sealed 4.0 150 (BK)
 Connector Part Information
  • OEM: 15326820
  • Service: 15326820
  • 4-Way M GT 150 Series Sealed 4.0 150 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU/WH 1107 Left Front Damper Control A L-BU/WH 1107 Left Front Damper Control
B GY 1113 Left Front Damper Low Reference B GY 1113 Left Front Damper Low Reference
C L-BU/WH 1116 Right Front Damper Control C L-BU/WH 1116 Right Front Damper Control
D GY 1117 Right Front Damper Low Reference D GY 1117 Right Front Damper Low Reference
C180 Instrument Panel Harness to Engine Harness (Early) Connector End View

GM646433Courtesy of GENERAL MOTORS CORP.
GM655777Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336418
  • Service: 88987930
  • 38-Way F GT 150, 280 Series Sealed 4.0 5.2 (BK)
 Connector Part Information
  • OEM: 15317380
  • Service: See Catalog
  • 38-Way M GT 150, 280 Series Sealed 4.0 5.2 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BK/WH 1851 Signal Ground A1 BK/WH 1851 Signal Ground
A2 YE 1834 SIR Forward Sensor Signal (1) A2 YE 1834 SIR Forward Sensor Signal (1)
A3 GY 2260 SIR Forward Sensor Low Reference A3 GY 2260 SIR Forward Sensor Low Reference
A4 YE 2160 SIR Forward Sensor Signal (2) A4 YE 2160 SIR Forward Sensor Signal (2)
A5-A8 - - Not Used A5-A8 - - Not Used
B1 D-GN 2087 Combined Vehicle Inertial Sensor Supply Voltage B1 D-GN 2087 Combined Vehicle Inertial Sensor Supply Voltage
B2 L-BU 2088 Combined Vehicle Inertial Sensor Low Reference B2 L-BU 2088 Combined Vehicle Inertial Sensor Low Reference
B3 D-BU 716 Yaw Rate Sensor Signal (1) B3 D-BU 716 Yaw Rate Sensor Signal (1)
B4 L-GN/BK 1338 Yaw Rate Sensor Signal (2) B4 L-GN/BK 1338 Yaw Rate Sensor Signal (2)
B5 L-BU 1764 Steering Wheel Position Signal B B5 L-BU 1764 Steering Wheel Position Signal B
B6 - - Not Used B6 - - Not Used
B7 PU 1272 Accelerator Pedal Position Low Reference (2) B7 PU 1272 Accelerator Pedal Position Low Reference (2)
B8 TN 1274 Accelerator Pedal Position 5-Volt Reference (2) B8 TN 1274 Accelerator Pedal Position 5-Volt Reference (2)
B9 L-BU 1162 Accelerator Pedal Position Signal (2) B9 L-BU 1162 Accelerator Pedal Position Signal (2)
B10 BN 1271 Accelerator Pedal Position Low Reference (1) B10 BN 1271 Accelerator Pedal Position Low Reference (1)
B11 WH/BK 1164 Accelerator Pedal Position 5-Volt Reference (1) B11 WH/BK 1164 Accelerator Pedal Position 5-Volt Reference (1)
B12 D-BU 1161 Accelerator Pedal Position Signal (1) B12 D-BU 1161 Accelerator Pedal Position Signal (1)
C1-C10 - - Not Used C1-C10 - - Not Used
C11 L-GN 1763 Steering Wheel Position Signal A C11 L-GN 1763 Steering Wheel Position Signal A
C12 PK/BK 109 Hood Ajar Switch Signal (Export) C12 PK/BK 109 Hood Ajar Switch Signal (Export)
D1-D2 - - Not Used D1-D2 - - Not Used
D3 RD/WH 340 Battery Positive Voltage D3 RD/WH 340 Battery Positive Voltage
D4-D7 - - Not Used D4-D7 - - Not Used
D8 PU 5526 Tap Up/Tap Down Switch Signal D8 PU 5526 Tap Up/Tap Down Switch Signal
C180 Instrument Panel Harness to Engine Harness (Late) Connector End View

GM646433Courtesy of GENERAL MOTORS CORP.
GM655777Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15443822
  • Service: See Catalog
  • 38-Way F GT 150, 280 Series Sealed 4.0 5.2 (BK)
 Connector Part Information
  • OEM: 15317380
  • Service: See Catalog
  • 38-Way M GT 150, 280 Series Sealed 4.0 5.2 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BK/WH 1851 Signal Ground A1 BK/WH 1851 Signal Ground
A2 YE 1834 SIR Forward Sensor Signal (1) A2 YE 1834 SIR Forward Sensor Signal (1)
A3 GY 2260 SIR Forward Sensor Low Reference A3 GY 2260 SIR Forward Sensor Low Reference
A4 YE 2160 SIR Forward Sensor Signal (2) A4 YE 2160 SIR Forward Sensor Signal (2)
A5-A8 - - Not Used A5-A8 - - Not Used
B1 D-GN 2087 Combined Vehicle Inertial Sensor Supply Voltage B1 D-GN 2087 Combined Vehicle Inertial Sensor Supply Voltage
B2 L-BU 2088 Combined Vehicle Inertial Sensor Low Reference B2 L-BU 2088 Combined Vehicle Inertial Sensor Low Reference
B3 D-BU 716 Yaw Rate Sensor Signal (1) B3 D-BU 716 Yaw Rate Sensor Signal (1)
B4 L-GN/BK 1338 Yaw Rate Sensor Signal (2) B4 L-GN/BK 1338 Yaw Rate Sensor Signal (2)
B5 L-BU 1764 Steering Wheel Position Signal B B5 L-BU 1764 Steering Wheel Position Signal B
B6 - - Not Used B6 - - Not Used
B7 PU 1272 Accelerator Pedal Position Low Reference (2) B7 PU 1272 Accelerator Pedal Position Low Reference (2)
B8 TN 1274 Accelerator Pedal Position 5-Volt Reference (2) B8 TN 1274 Accelerator Pedal Position 5-Volt Reference (2)
B9 L-BU 1162 Accelerator Pedal Position Signal (2) B9 L-BU 1162 Accelerator Pedal Position Signal (2)
B10 BN 1271 Accelerator Pedal Position Low Reference (1) B10 BN 1271 Accelerator Pedal Position Low Reference (1)
B11 WH/BK 1164 Accelerator Pedal Position 5-Volt Reference (1) B11 WH/BK 1164 Accelerator Pedal Position 5-Volt Reference (1)
B12 D-BU 1161 Accelerator Pedal Position Signal (1) B12 D-BU 1161 Accelerator Pedal Position Signal (1)
C1-C10 - - Not Used C1-C10 - - Not Used
C11 L-GN 1763 Steering Wheel Position Signal A C11 L-GN 1763 Steering Wheel Position Signal A
C12 PK/BK 109 Hood Ajar Switch Signal (Export) C12 PK/BK 109 Hood Ajar Switch Signal (Export)
D1-D2 - - Not Used D1-D2 - - Not Used
D3 RD/WH 340 Battery Positive Voltage D3 RD/WH 340 Battery Positive Voltage
D4-D7 - - Not Used D4-D7 - - Not Used
D8 PU 5526 Tap Up/Tap Down Switch Signal D8 PU 5526 Tap Up/Tap Down Switch Signal
C184 Transmission Harness to Engine Harness Connector End View

GM646433Courtesy of GENERAL MOTORS CORP.
GM655777Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15443822
  • Service: 88987930
  • 38-Way F GT 150, 280 Series Sealed 4.0 5.2 (BK)
 Connector Part Information
  • OEM: 15317380
  • Service: See Catalog
  • 38-Way M GT 150, 280 Series Sealed 4.0 5.2 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BK/WH 451 Signal Ground A1 BK/WH 451 Signal Ground
A2 RD/WH 244 Battery Positive Voltage A2 RD/WH 244 Battery Positive Voltage
A3 YE/BK 43 Accessory Voltage A3 YE/BK 43 Accessory Voltage
A4 PK 239 Run/Crank Ignition 1 Voltage A4 PK 239 Run/Crank Ignition 1 Voltage
A5 L-BU 193 Secondary Fuel Level Sensor Signal A5 L-BU 193 Secondary Fuel Level Sensor Signal
A6 WH 17 Stop Lamp Switch Signal A6 WH 17 Stop Lamp Switch Signal
A7 PK 123 Run/Crank Ignition 1 Voltage A7 PK 123 Run/Crank Ignition 1 Voltage
A8 D-GN/WH 465 Fuel Pump Relay Control A8 D-GN/WH 465 Fuel Pump Relay Control
B1 PU/WH 120 Left Front Strut Position Sensor Voltage Reference B1 PU/WH 120 Left Front Strut Position Sensor Voltage Reference
B2 - - Not Used B2 - - Not Used
B3 OG 885 Wheel Speed Sensor Low Reference Left Rear B3 OG 885 Wheel Speed Sensor Low Reference Left Rear
B4 WH 883 Wheel Speed Sensor Low Reference Right Rear B4 WH 883 Wheel Speed Sensor Low Reference Right Rear
B5 D-GN 890 Fuel Tank Pressure Sensor Signal B5 D-GN 890 Fuel Tank Pressure Sensor Signal
B6 RD/WH 284 Battery Positive Voltage B6 RD/WH 284 Battery Positive Voltage
B7 GY 270 Fuel Tank Pressure Sensor 5-Volt Reference B7 GY 270 Fuel Tank Pressure Sensor 5-Volt Reference
B8 OG/BK 178 Transmission Park/Neutral Signal B8 OG/BK 178 Transmission Park/Neutral Signal
B9 - - Not Used B9 - - Not Used
B10 TN/BK 2501 High Speed GMLAN Serial Data (+) B10 TN/BK 2501 High Speed GMLAN Serial Data (+)
B11 - - Not Used B11 - - Not Used
B12 PU/WH 1205 Right Front Strut Position Sensor Voltage Reference B12 PU/WH 1205 Right Front Strut Position Sensor Voltage Reference
C1 L-BU/BK 120 Left Front Strut Position Sensor Low Reference C1 L-BU/BK 120 Left Front Strut Position Sensor Low Reference
C2 TN/WH 1207 Left Front Strut Position Sensor Signal C2 TN/WH 1207 Left Front Strut Position Sensor Signal
C3 TN 884 Wheel Speed Sensor Signal Left Rear C3 TN 884 Wheel Speed Sensor Signal Left Rear
C4 BN 882 Wheel Speed Sensor Signal Right Rear C4 BN 882 Wheel Speed Sensor Signal Right Rear
C5 PU 552 Tap Up/Tap Down Switch Signal C5 PU 552 Tap Up/Tap Down Switch Signal
C6 BN 554 Fuel Pump Speed Control Feedback Signal C6 BN 554 Fuel Pump Speed Control Feedback Signal
C7 - - Not Used C7 - - Not Used
C8 PK 133 Run/Crank Ignition 1 Voltage C8 PK 133 Run/Crank Ignition 1 Voltage
C9 - - Not Used C9 - - Not Used
C10 TN 2501 High Speed GMLAN Serial Data (-) C10 TN 2501 High Speed GMLAN Serial Data (-)
C11 TN/WH 1213 Right Front Strut Position Sensor Signal C11 TN/WH 1213 Right Front Strut Position Sensor Signal
C12 L-BU/BK 1212 Right Front Strut Position Sensor Low Reference C12 L-BU/BK 1212 Right Front Strut Position Sensor Low Reference
D1-D5 - - Not Used D1-D5 - - Not Used
D6 TN 808 Sensor Low Reference D6 TN 808 Sensor Low Reference
D7 WH 131 EVAP Canister Vent Solenoid Control D7 WH 131 EVAP Canister Vent Solenoid Control
D8 D-BU 193 Primary Fuel Level Sensor Signal D8 D-BU 193 Primary Fuel Level Sensor Signal
C186 Engine Harness to Forward Lamp Harness Connector End View

GM646383Courtesy of GENERAL MOTORS CORP.
GM632345Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326863
  • Service: 15306410
  • 16-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • OEM: 15326868
  • Service: 15306364
  • 16-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 1834 SIR Forward Sensor Signal (1) A YE 1834 SIR Forward Sensor Signal (1)
B YE 2160 SIR Forward Sensor Signal (2) B YE 2160 SIR Forward Sensor Signal (2)
C GY 2700 A/C Pressure Sensor 5-Volt Reference C GY 2700 A/C Pressure Sensor 5-Volt Reference
D OG/BK 380 A/C Refrigerant Pressure Sensor Signal D OG/BK 380 A/C Refrigerant Pressure Sensor Signal
E - - Not Used E - - Not Used
F D-GN 335 Low Speed Cooling Fan Relay Control F D-GN 335 Low Speed Cooling Fan Relay Control
G-H - - Not Used G-H - - Not Used
J BK/WH 1851 Signal Ground J BK/WH 1851 Signal Ground
K GY 2260 SIR Forward Sensor Low Reference K GY 2260 SIR Forward Sensor Low Reference
L BK/WH 2751 Signal Ground L BK/WH 2751 Signal Ground
M PK/BK 109 Hood Ajar Switch Signal (Export) M PK/BK 109 Hood Ajar Switch Signal (Export)
N-S - - Not Used N-S - - Not Used
C231 Instrument Panel Harness to Steering Column Harness Connector End View

GM768086Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15359287
  • Service: 15359287
  • 40-Way F GR 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15359284
  • Service: 15359284
  • 40-Way M GR 150, 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 L-BU 1764 Steering Wheel Position Signal B A2 L-BU 1764 Steering Wheel Position Signal B
A3 BN 2112 Steering Column Tilt Motor Down Control A3 BN 2112 Steering Column Tilt Motor Down Control
A4 PK 2111 Steering Column Tilt Motor Up Control A4 PK 2111 Steering Column Tilt Motor Up Control
A5 TN 2110 Steering Column Telescope Motor Rearward A5 TN 2110 Steering Column Telescope Motor Rearward
A6 OG 2098 Steering Column Telescope Motor Forward A6 OG 2098 Steering Column Telescope Motor Forward
A7 D-GN 5737 Adaptive Cruise Control Gap Up/Down Switch Signal A7 D-GN 5737 Adaptive Cruise Control Gap Up/Down Switch Signal
A8 - - Not Used A8 - - Not Used
B1-B2 - - Not Used B1-B2 - - Not Used
B3 PK/WH 1970 Headlamp Low Beam Relay Control B3 PK/WH 1970 Headlamp Low Beam Relay Control
B4-B5 - - Not Used B4-B5 - - Not Used
B6 OG 2154 Steering Column Tilt Motor Signal B6 OG 2154 Steering Column Tilt Motor Signal
B7 BK 1450 Ground B7 BK 1450 Ground
B8 D-BU/WH 1415 Right Front Turn Signal Switch Signal B8 D-BU/WH 1415 Right Front Turn Signal Switch Signal
B9 PK 94 Windshield Washer Switch Signal B9 PK 94 Windshield Washer Switch Signal
B10 PU 524 Headlamp Dimmer Switch High Beam Signal B10 PU 524 Headlamp Dimmer Switch High Beam Signal
B11 BN 1356 Flash To Pass Switch Signal B11 BN 1356 Flash To Pass Switch Signal
B12 TN 28 Horn Relay Control B12 TN 28 Horn Relay Control
C1 OG 192 Front Fog Lamp Switch Signal C1 OG 192 Front Fog Lamp Switch Signal
C2 WH 103 Headlamp Switch On Signal C2 WH 103 Headlamp Switch On Signal
C3 BN/WH 301 Park Lamp Switch On Signal C3 BN/WH 301 Park Lamp Switch On Signal
C4 L-BU 1872 Park Lamp Switch Off Signal (2) C4 L-BU 1872 Park Lamp Switch Off Signal (2)
C5 YE 1977 Rear Fog Lamp Relay Control (Export) C5 YE 1977 Rear Fog Lamp Relay Control (Export)
C6 OG 2153 Steering Column Telescope Motor Signal C6 OG 2153 Steering Column Telescope Motor Signal
C7 GY 1884 Cruise Control Set/Coast/Resume/Accelerate Switch Signal C7 GY 1884 Cruise Control Set/Coast/Resume/Accelerate Switch Signal
C8 L-BU/WH 1414 Left Front Turn Signal Switch Signal C8 L-BU/WH 1414 Left Front Turn Signal Switch Signal
C9 - - Not Used C9 - - Not Used
C10 D-GN 2087 Combined Vehicle Inertial Sensor Supply Voltage C10 D-GN 2087 Combined Vehicle Inertial Sensor Supply Voltage
C11 PU 1375 Remote Radio Control Head Accessory Supply Voltage C11 PU 1375 Remote Radio Control Head Accessory Supply Voltage
C12 YE 1491 Backlight Lamp Control C12 YE 1491 Backlight Lamp Control
D1 L-BU 1714 Windshield Wiper Switch Low Signal D1 L-BU 1714 Windshield Wiper Switch Low Signal
D2 L-GN 1763 Steering Wheel Position Signal A D2 L-GN 1763 Steering Wheel Position Signal A
D3 PK 1039 Run/Crank Ignition 1 Voltage D3 PK 1039 Run/Crank Ignition 1 Voltage
PK 1039 Run/Crank Ignition 1 Voltage
D4 L-GN 1715 Windshield Wiper Switch High Signal D4 L-GN 1715 Windshield Wiper Switch High Signal
D5 GY 788 Memory Mirror Position Sensor 5-Volt Reference D5 GY 788 Memory Mirror Position Sensor 5-Volt Reference
GY 788 Memory Mirror Position Sensor 5-Volt Reference
D6 TN 782 Memory Seat/Mirror Sensor Low Reference D6 TN 782 Memory Seat/Mirror Sensor Low Reference
TN 782 Memory Seat/Mirror Sensor Low Reference
D7 L-BU 2088 Combined Vehicle Inertial Sensor Low Reference D7 L-BU 2088 Combined Vehicle Inertial Sensor Low Reference
D8 D-BU 1796 Steering Column Radio Control Signal D8 D-BU 1796 Steering Column Radio Control Signal
C311 Instrument Panel Harness to Vanity Mirror Lamp Connector End View - Left

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12047663
  • Service: 12085481
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage A OG 1732 Courtesy Lamps Supply Voltage
B BK 1550 Ground B BK 1550 Ground
C333 Folding Top Harness to Intrusion Sensor Harness (Export) Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
GM287973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12047782
  • Service: 12117371
  • 3-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD/WH 240 Battery Positive Voltage A RD/WH 240 Battery Positive Voltage
B PU 5059 Intrusion Sensor Alarm On Signal B PU 5059 Intrusion Sensor Alarm On Signal
C YE 5058 Intrusion Sensor Armed Signal C YE 5058 Intrusion Sensor Armed Signal
C375 Instrument Panel Harness to Driver Seat Harness Connector End View

GM655774Courtesy of GENERAL MOTORS CORP.
GM655773Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15317325
  • Service: 15317325
  • 22-Way F GT 150, 280 Series (L-GY)
 Connector Part Information
  • OEM: 15317322
  • Service: 15317322
  • 22-Way M GT 150, 280 Series (L-GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PK 1139 Run/Crank Ignition 1 Voltage A1 PK 1139 Run/Crank Ignition 1 Voltage
A2 PK 1501 Driver Heated Seat High/Low Signal A2 PK 1501 Driver Heated Seat High/Low Signal
A3 - - Not Used A3 - - Not Used
A4 RD/WH 1540 Battery Positive Voltage A4 RD/WH 1540 Battery Positive Voltage
A5 BK 1150 Ground A5 BK 1150 Ground
A6 RD/WH 1640 Battery Positive Voltage A6 RD/WH 1640 Battery Positive Voltage
A7 RD/WH 2240 Battery Positive Voltage A7 RD/WH 2240 Battery Positive Voltage
A8-A11 - - Not Used A8-A11 - - Not Used
B1 RD/WH 440 Battery Positive Voltage B1 RD/WH 440 Battery Positive Voltage
B2 TN/WH 238 Left Seat Belt Switch Signal B2 TN/WH 238 Left Seat Belt Switch Signal
B3 L-GN 5055 Left Seat Position Switch Signal B3 L-GN 5055 Left Seat Position Switch Signal
B4 - - Not Used B4 - - Not Used
B5 YE 116 Left Rear Speaker Signal (-) B5 YE 116 Left Rear Speaker Signal (-)
B6 BN 199 Left Rear Speaker (+) B6 BN 199 Left Rear Speaker (+)
B7 L-BU 115 Right Rear Speaker Signal (-) B7 L-BU 115 Right Rear Speaker Signal (-)
B8 D-BU 46 Right Rear Speaker (+) B8 D-BU 46 Right Rear Speaker (+)
B9 PK 5057 Seat Position Switch Low Reference B9 PK 5057 Seat Position Switch Low Reference
B10 BN/WH 1048 Seat Control Module Class 2 Serial Data B10 BN/WH 1048 Seat Control Module Class 2 Serial Data
B11 BN 1244 Instrument Panel Lamp Supply Voltage (2) B11 BN 1244 Instrument Panel Lamp Supply Voltage (2)

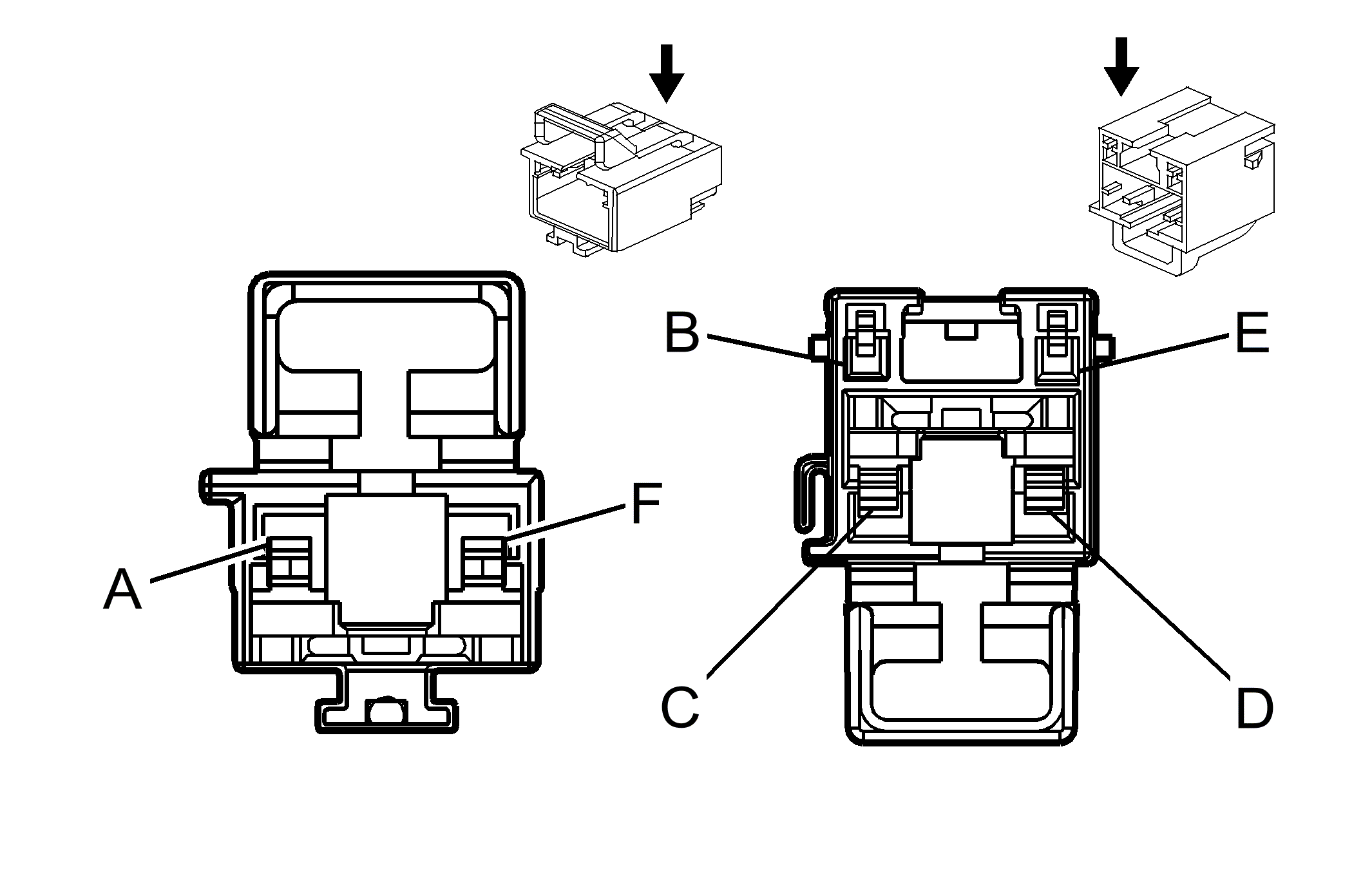

C377 Instrument Panel Harness to Driver Seat Harness Connector End View

GM1409645Courtesy of GENERAL MOTORS CORP.
GM258658Courtesy of GENERAL MOTORS CORP.
-
Connector Part Information
  • OEM: 15304656
  • Service: See Catalog
  • 2-Way F GT 250 Series (YE)
  • OEM: 15304653
  • Service: See Catalog
  • 4-Way F GT 250 Series (YE)
 Connector Part Information
  • OEM: 15304649
  • Service: See Catalog
  • 6-Way M 150 Series (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 2118 Left Seat Belt Pretensioner High Control A TN/WH 2118 Left Seat Belt Pretensioner High Control
B - - Not Used B - - Not Used
C WH 2137 Left Front Side Impact Module High Control C BN 2137 Left Front Side Impact Module High Control
D GN 2138 Left Front Side Impact Module Low Control D YE/BK 2138 Left Front Side Impact Module Low Control
E - - Not Used E - - Not Used
F WH 2119 Left Seat Belt Pretensioner Low Control F OG/BK 2119 Left Seat Belt Pretensioner Low Control
C379 Instrument Panel Harness to Driver Seat Harness Connector End View

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15304692
  • Service: 15304692
  • 18-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15336468
  • Service: 15336468
  • 18-Way M GT 150, 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 OG 2154 Steering Column Tilt Motor Signal A1 OG 2154 Steering Column Tilt Motor Signal
A2 PK 2094 Steering Column Tilt and Telescope Forward Switch Signal A2 PK 2094 Steering Column Tilt and Telescope Forward Switch Signal
A3 OG 2095 Steering Column Tilt and Telescope Rearward Switch Signal A3 OG 2095 Steering Column Tilt and Telescope Rearward Switch Signal
A4 BN 2112 Steering Column Tilt Motor Down Control A4 BN 2112 Steering Column Tilt Motor Down Control
A5 PK 2111 Steering Column Tilt Motor Up Control A5 PK 2111 Steering Column Tilt Motor Up Control
A6 GY 788 Memory Mirror Position Sensor 5-Volt Reference A6 GY 788 Memory Mirror Position Sensor 5-Volt Reference
A7-A9 - - Not Used A7-A9 - - Not Used
B1 OG 2153 Steering Column Telescope Motor Signal B1 OG 2153 Steering Column Telescope Motor Signal
B2 - - Not Used B2 - - Not Used
B3 YE 2097 Steering Column Tilt and Telescope Down Switch Signal B3 YE 2097 Steering Column Tilt and Telescope Down Switch Signal
B4 TN 782 Memory Seat/Mirror Sensor Low Reference B4 TN 782 Memory Seat/Mirror Sensor Low Reference
B5 TN 2110 Steering Column Telescope Motor Rearward B5 TN 2110 Steering Column Telescope Motor Rearward
B6 OG 2098 Steering Column Telescope Motor Forward B6 OG 2098 Steering Column Telescope Motor Forward
B7 GY 2096 Steering Column Tilt and Telescope Up Switch Signal B7 GY 2096 Steering Column Tilt and Telescope Up Switch Signal
B8-B9 - - Not Used B8-B9 - - Not Used
C380 Instrument Panel Harness to Passenger Seat Harness Connector End View

GM1409645Courtesy of GENERAL MOTORS CORP.
GM258658Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15304656
  • Service: See Catalog
  • 2-Way F GT 250 Series (YE)
  • OEM: 15304653
  • Service: See Catalog
  • 4-Way F GT 250 Series (YE)
 Connector Part Information
  • OEM: 15304649
  • Service: See Catalog
  • 6-Way M 150 280 GT (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 2116 Right Seat Belt Pretensioner High Control A L-GN 2116 Right Seat Belt Pretensioner High Control
B - - Not Used B - - Not Used
C WH 2135 Right Front Side Impact Module High Control C TN/WH 2135 Right Front Side Impact Module High Control
D D-GN 2136 Right Front Side Impact Module Low Control D L-GN 2136 Right Front Side Impact Module Low Control
E - - Not Used E - - Not Used
F WH 2117 Right Seat Belt Pretensioner Low Control F OG 2117 Right Seat Belt Pretensioner Low Control
C382 Instrument Panel Harness to Passenger Seat Harness Connector End View

GM655774Courtesy of GENERAL MOTORS CORP.
GM655773Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15317325
  • Service: 15317325
  • 22-Way F GT 150, 280 Series (L-GY)
 Connector Part Information
  • OEM: 15317322
  • Service: 15317322
  • 22-Way M GT 150, 280 Series (L-GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PK 1139 Run/Crank Ignition 1 Voltage A1 PK 1139 Run/Crank Ignition 1 Voltage
A2 PK/BK 1503 Passenger Heated Seat High/Low Signal A2 PK/BK 1503 Passenger Heated Seat High/Low Signal
A3 - - Not Used A3 - - Not Used
A4 RD/WH 1540 Battery Positive Voltage A4 RD/WH 1540 Battery Positive Voltage
A5 BK 750 Ground A5 BK 750 Ground
A6 RD/WH 3240 Battery Positive Voltage A6 RD/WH 3240 Battery Positive Voltage
A7 RD/WH 2240 Battery Positive Voltage A7 RD/WH 2240 Battery Positive Voltage
A8-A11 - - Not Used A8 - - Not Used
B1-B2 - - Not Used B1-B2 - - Not Used
B3 L-BU 5056 Right Seat Position Switch Signal B3 L-BU 5056 Right Seat Position Switch Signal
B4 PK 5057 Seat Position Switch - Low Reference B4 PK 5057 Seat Position Switch - Low Reference
PK 5057 Seat Position Switch - Low Reference
B5 YE 116 Left Rear Speaker Signal (-) B5 YE 116 Left Rear Speaker Signal (-)
YE 116 Left Rear Speaker Signal (-)
B6 BN 199 Left Rear Speaker (+) B6 BN 199 Left Rear Speaker (+)
BN 199 Left Rear Speaker (+)
B7 L-BU 115 Right Rear Speaker Signal (-) B7 L-BU 115 Right Rear Speaker Signal (-)
L-BU 115 Right Rear Speaker Signal (-)
B8 D-BU 46 Right Rear Speaker (+) B8 D-BU 46 Right Rear Speaker (+)
D-BU 46 Right Rear Speaker (+)
B9-B11 - - Not Used B9-B11 - - Not Used
C400 Transmission Harness to Transmission Connector End View

GM821224Courtesy of GENERAL MOTORS CORP.
GM817690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10756491
  • Service: 10756491
  • 20-Way F (BK)
 Connector Part Information
  • OEM: 10756491
  • Service: 10756491
  • 20-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 YE 400 OSS High Signal 1 YE 400 OSS High Signal
2 OG/BK 1786 Park/Neutral Signal 2 OG/BK 1786 Park/Neutral Signal
3 PU 401 OSS Low Signal 3 PU 401 OSS Low Signal
4 BK 1050 Ground 4 BK 1050 Ground
5 PU 898 Shift Solenoid Valve 3 High Control 5 PU 898 Shift Solenoid Valve 3 High Control
6 TN 2762 Low Reference 6 TN 2762 Low Reference
7 YE 772 Transmission Range Switch Signal B 7 YE 772 Transmission Range Switch Signal B
8 L-BU/WH 1229 PC Solenoid Valve Low Control 8 L-BU/WH 1229 PC Solenoid Valve Low Control
9 YE/BK 1223 2-3 Shift Solenoid Valve Control 9 YE/BK 1223 2-3 Shift Solenoid Valve Control
10 YE/BK 1227 TFT Sensor Signal 10 YE/BK 1227 TFT Sensor Signal
11 WH 776 Transmission Range Switch Signal P 11 WH 776 Transmission Range Switch Signal P
12 - - Not Used 12 - - Not Used
13 OG/BK 1228 PC Solenoid Valve High Control 13 OG/BK 1228 PC Solenoid Valve High Control
14 L-GN 1222 1-2 Shift Solenoid Valve Control 14 L-GN 1222 1-2 Shift Solenoid Valve Control
15 D-BU/WH 1231 AT ISS Low Signal 15 D-BU/WH 1231 AT ISS Low Signal
16 TN/WH 771 Transmission Range Switch Signal A 16 TN/WH 771 Transmission Range Switch Signal A
17 OG 1525 Solenoid Supply Voltage 17 OG 1525 Solenoid Supply Voltage
18 OG/BK 1230 AT ISS High Signal 18 OG/BK 1230 AT ISS High Signal
19 GY 773 Transmission Range Switch Signal C 19 GY 773 Transmission Range Switch Signal C
20 BN 418 TCC PWM Solenoid Valve Control 20 BN 418 TCC PWM Solenoid Valve Control

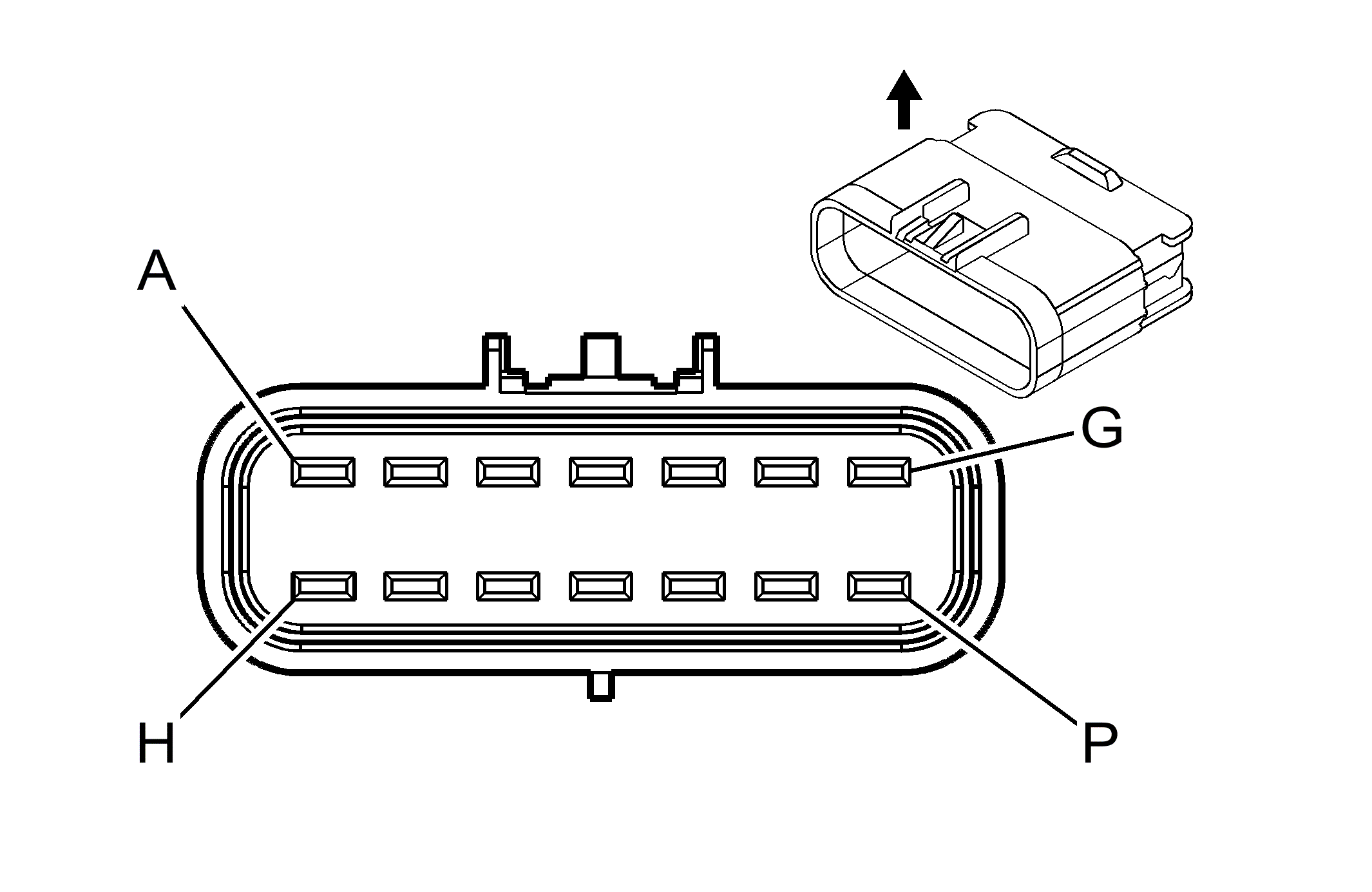

C420 Transmission Harness to Fuel Tank Harness Connector End View

GM1362561Courtesy of GENERAL MOTORS CORP.
GM1362562Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326917
  • Service: 15326917
  • 14-Way F GT 280 Series Sealed (BK)
 Connector Part Information
  • OEM: 15326922
  • Service: 15326922
  • 14-Way M GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK 239 Ignition 1 Voltage A PK 239 Ignition 1 Voltage
B BK 850 Ground B BK 850 Ground
C RD/WH 2840 Battery Positive Voltage C RD/WH 2840 Battery Positive Voltage
D WH 1310 EVAP Canister Vent Solenoid Control D WH 1310 EVAP Canister Vent Solenoid Control
E L-BU 1937 Fuel Level Sensor Signal- Secondary E L-BU 1937 Fuel Level Sensor Signal- Secondary
F TN 808 Low Reference F TN 808 Low Reference
G D-GN 890 Fuel Tank Pressure Sensor Signal G D-GN 890 Fuel Tank Pressure Sensor Signal
H GY 2709 5-Volt Reference H GY 2709 5-Volt Reference
J D-BU 1936 Fuel Level Sensor Signal-Primary J D-BU 1936 Fuel Level Sensor Signal-Primary
K BK 850 Ground K BK 850 Ground
L D-GN/WH 465 Fuel Pump Relay Control L D-GN/WH 465 Fuel Pump Relay Control
M BN 5546 Fuel Pump Speed Control Feedback Signal M BN 5546 Fuel Pump Speed Control Feedback Signal
N-P - - Not Used N-P - - Not Used
C433 Instrument Panel Harness to Folding Top Harness Connector End View

GM698669Courtesy of GENERAL MOTORS CORP.
GM698671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326886
  • Service: See Catalog
  • 4-Way F GT 280 Series (BK)
 Connector Part Information
  • OEM: 15326890
  • Service: 88953361
  • 4-Way M GT 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN 1927 Radio Antenna/Rear Window Defog Control Module Supply Voltage A RD 1927 Radio Antenna/Rear Window Defog Control Module Supply Voltage
B BK 1150 Ground B BK 1150 Ground
C YE 743 Accessory Voltage C YE 743 Accessory Voltage
D GY/BK 896 Hard Top Connected Signal D GY/BK 896 Hard Top Connected Signal
C435 Instrument Panel Harness to Folding Top Harness Connector End View

GM646384Courtesy of GENERAL MOTORS CORP.
GM646388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332158
  • Service: 88953270
  • 10-Way F GT 280 Series (BK)
 Connector Part Information
  • OEM: 15332158
  • Service: 88953270
  • 10-Way M GT 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 5744 Left Side Luggage Barrier Limit Switch Signal A L-GN 5744 Left Side Luggage Barrier Limit Switch Signal
B PU 5513 Movable Roof Module Class 2 Serial Data B PU 5513 Movable Roof Module Class 2 Serial Data
C L-GN 2166 Convertible Top Cover Release Switch Supply Voltage C L-GN 2166 Convertible Top Cover Release Switch Supply Voltage
D D-BU 2167 Convertible Top Cover Ajar Switch Supply Voltage D D-BU 2167 Convertible Top Cover Ajar Switch Supply Voltage
E RD/WH 240 Battery Positive Voltage (Export) E RD/WH 240 Battery Positive Voltage (Export)
F PU 5059 Intrusion Sensor Alarm On Signal (Export) F PU 5059 Intrusion Sensor Alarm On Signal (Export)
G YE 5058 Intrusion Sensor Armed Signal (Export) G YE 5058 Intrusion Sensor Armed Signal (Export)
H-J - - Not Used H-J - - Not Used
K PK 5960 Trunk Latch Clear Switch Signal K PK 5960 Trunk Latch Clear Switch Signal
C437 Instrument Panel Harness to Transmission Harness Connector End View

GM1243663Courtesy of GENERAL MOTORS CORP.
GM1391783Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332132
  • Service: 88953364
  • 3-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332133
  • Service: 88987881
  • 3-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TN/BK 2500 High Speed GMLAN Serial Data (+) A TN/BK 2500 High Speed GMLAN Serial Data (+)
B TN 2501 High Speed GMLAN Serial Data (-) B TN 2501 High Speed GMLAN Serial Data (-)
C - - Not Used C - - Not Used
C439 Transmission Harness to Suspension Damper Connector End View - LR Harness

GM635009Courtesy of GENERAL MOTORS CORP.
GM333041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052641
  • Service: 12102747
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12162000
  • Service: 12167120
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD 1114 Left Rear Damper Control A D-BU/WH 1114 Left Rear Damper Control
B BK 1115 Left Rear Damper Low Reference B D-GN 1115 Left Rear Damper Low Reference
C440 Transmission Harness to Suspension Damper Connector End View - RR Harness

GM635009Courtesy of GENERAL MOTORS CORP.
GM333041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052641
  • Service: 12102747
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12162000
  • Service: 12167120
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD 1118 Left Rear Damper Control A D-BU/WH 1118 Right Rear Damper Control
B BK 1119 Left Rear Damper Low Reference B D-GN 1119 Right Rear Damper Low Reference
C455 Instrument Panel Harness to Deck Lid Harness Connector End View

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15304692
  • Service: 15304692
  • 18-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15336468
  • Service: 15336468
  • 18-Way M GT 150, 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 L-BU 20 Stop Lamp Supply Voltage A1 L-BU 20 Stop Lamp Supply Voltage
A2 L-GN 24 Backup Lamp Supply Voltage A2 L-GN 24 Backup Lamp Supply Voltage
A3 BN 9 Park Lamp Supply Voltage A3 BN 9 Park Lamp Supply Voltage
A4 - - Not Used A4 - - Not Used
A5 BK 1150 Ground A5 BK 1150 Ground
A6 OG/BK 744 Rear Compartment Lid Ajar Switch A6 OG/BK 744 Rear Compartment Lid Ajar Switch
A7-A9 - - Not Used A7-A9 - - Not Used
B1-B2 - - Not Used B1-B2 - - Not Used
B3 OG 122 Rear Fog Lamp Supply Voltage (EUR) B3 OG 122 Rear Fog Lamp Supply Voltage (EUR)
B4 RD/WH 1340 Battery Positive Voltage B4 RD/WH 1340 Battery Positive Voltage
B5-B6 - - Not Used B5-B6 - - Not Used
B7 TN 1576 Rear Compartment Lock Actuator Unlock B7 TN 1576 Rear Compartment Lock Actuator Unlock
B8-B9 - - Not Used B8-B9 - - Not Used
C459 Fuel Tank Harness to Fuel Tank Jumper Connector End View - Left Harness

GM684908Courtesy of GENERAL MOTORS CORP.
GM697038Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326631
  • Service: 15306360
  • 4-Way F GT 280 Series Sealed (BK)
 Connector Part Information
  • OEM: 15326633
  • Service: 15306361
  • 4-Way M GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 120 Fuel Pump Speed Output Circuit A GY 120 Fuel Pump Speed Output Circuit
B BK 808 Low Reference B TN 808 Low Reference
C D-BU 1936 Fuel Level Sensor Signal-Primary C D-BU 1936 Fuel Level Sensor Signal-Primary
D BK 9531 Fuel Pump Motor Low Reference D PK 1580 Fuel Pump Motor Low Reference
C460 Fuel Tank Harness to Fuel Tank Jumper Connector End View - Right Harness

GM632357Courtesy of GENERAL MOTORS CORP.
GM646396Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326829
  • Service: 88953153
  • 6-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • OEM: 15326833
  • Service: 15326833
  • 6-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 1937 Fuel Level Sensor Signal - Secondary A L-BU 1937 Fuel Level Sensor Signal - Secondary
B BK 808 Low Reference B TN 808 Low Reference
C BK/WH 850 Ground C BK/WH 850 Ground
D D-GN 890 Fuel Tank Pressure Sensor Signal D D-GN 890 Fuel Tank Pressure Sensor Signal
E GY 2709 5-Volt Reference E GY 2709 5-Volt Reference
F - - Not Used F - - Not Used
C480 Instrument Panel Harness to Rear Parking Assist Harness Connector End View

GM697039Courtesy of GENERAL MOTORS CORP.
GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052848
  • Service: 12101854
  • 6-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12124107
  • Service: 12101852
  • 6-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 2375 Left Rear Corner Object Sensor Signal A YE 2375 Left Rear Corner Object Sensor Signal
B OG 2376 Left Rear Middle Object Sensor Signal B OG 2376 Left Rear Middle Object Sensor Signal
C D-GN 2377 Right Rear Middle Object Sensor Signal C D-GN 2377 Right Rear Middle Object Sensor Signal
D PU 2378 Right Rear Corner Object Sensor Signal D PU 2378 Right Rear Corner Object Sensor Signal
E D-BU 2374 Object Sensor Supply Voltage E D-BU 2374 Object Sensor Supply Voltage
F GY 2379 Object Sensor Low Reference F GY 2379 Object Sensor Low Reference
C482 Instrument Panel Harness to Radio Antenna Module Connector End View - Right Jumper

GM35451Courtesy of GENERAL MOTORS CORP.
GM816551Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059251
  • Service: 12101848
  • 2-Way F Metri-Pack 150 Series (RD)
 Connector Part Information
  • OEM: 12059252
  • Service: 12102749
  • 2-Way M Metri-Pack 150 Series (RD)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WH 1487 Switched Antenna Enable Signal A WH 1487 Switched Antenna Enable Signal
B YE 5172 Antenna Radio Signal B YE 5172 Antenna Radio Signal
C501 Instrument Panel Harness to Driver Door Harness Connector End View

GM647976Courtesy of GENERAL MOTORS CORP.
GM847286Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332161
  • Service: 15306416
  • 12-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332166
  • Service: See Catalog
  • 12-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TN 201 Left Front Speaker (+) (1) A TN 201 Left Front Speaker (+) (1)
B GY 118 Left Front Speaker Signal (-) (1) B GY 118 Left Front Speaker Signal (-) (1)
C RD/WH 340 Battery Positive Voltage C RD/WH 340 Battery Positive Voltage
D L-GN/BK 394 Left Front Door Handle Switch Signal (1) D L-GN/BK 394 Left Front Door Handle Switch Signal (1)
E BN 1046 DDM Class 2 Serial Data E BN 1046 DDM Class 2 Serial Data
F BK/WH 1690 Automatic Day/Night Mirror Signal F GY 1690 Automatic Day/Night Mirror Signal
G BK/RD 1691 Automatic Day/Night Mirror Low Reference G PK 1691 Automatic Day/Night Mirror Low Reference
H OG 5880 Battery Positive Voltage H OG 5880 Battery Positive Voltage
J YE 2131 Left Front Side Impact Sensing Module Supply Voltage J YE 2131 Left Front Side Impact Sensing Module Supply Voltage
K WH 2132 Left Front Side Impact Sensing Module Signal K WH 2132 Left Front Side Impact Sensing Module Signal
L YE 190 Left Folding Mirror Motor Extend Control (D24) L YE 190 Left Folding Mirror Motor Extend Control (D24)
M L-BU 191 Left Folding Mirror Motor Retract Control (D24) M L-BU 191 Left Folding Mirror Motor Retract Control (D24)
C503 Instrument Panel Harness to Driver Door Harness Connector End View

GM788070Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064755
  • Service: See Catalog
  • 6-Way F Metri-Pack 280 Series, Self Lock (BK)
 Connector Part Information
  • OEM: 12064754
  • Service: 15305872
  • 6-Way M Metri-Pack 280 Series, Self Lock (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD/WH 1440 Battery Positive Voltage A RD/WH 1440 Battery Positive Voltage
B BK 1450 Ground B BK 1450 Ground
C - - Not Used C - - Not Used
D BK 1450 Ground D BK 1450 Ground
E D-GN 5664 Left Folding Mirror Motor Extend Control (D24) E D-GN 5664 Left Folding Mirror Motor Extend Control (D24)
F BN 5131 Left Folding Mirror Motor Retract Control (D24) F BN 5131 Left Folding Mirror Motor Retract Control (D24)
C555 Door Harness to Driver Door Trim Harness Connector End View

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15304692
  • Service: 15304692
  • 18-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15336468
  • Service: 15336468
  • 18-Way M GT 150, 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PU/WH 5965 Driver Lock Indicator Voltage A1 PU/WH 5965 Driver Lock Indicator Voltage
A2 BN 5881 Left Front Interior Door Handle Switch Signal A2 BN 5881 Left Front Interior Door Handle Switch Signal
A3 - - Not Used A3 - - Not Used
A4 BN 1046 DDM Class 2 Serial Data A4 BN 1046 DDM Class 2 Serial Data
BN 1046 DDM Class 2 Serial Data
A5 RD/WH 340 Battery Positive Voltage A5 RD/WH 340 Battery Positive Voltage
A6 - - Not Used A6 - - Not Used
A7 L-GN 5116 Courtesy Lamp Supply Voltage A7 L-GN 5116 Courtesy Lamp Supply Voltage
A8 GY 1359 LCD Backlighting Lamp Control A8 GY 1359 LCD Backlighting Lamp Control
A9 - - Not Used A9 - - Not Used
B1 - - Not Used B1 - - Not Used
B2 OG 5880 Left Front Interior Door Handle Switch Signal B2 OG 5880 Left Front Interior Door Handle Switch Signal
B3 BK 1450 Ground B3 BK 1450 Ground
B4-B9 - - Not Used B4-B9 - - Not Used
C600 Instrument Panel Harness to Passenger Door Harness Connector End View

GM647976Courtesy of GENERAL MOTORS CORP.
GM847286Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332161
  • Service: 15306416
  • 12-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332166
  • Service: See Catalog
  • 12-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 200 Right Front Speaker (+) A L-GN 200 Right Front Speaker (+)
B D-GN 117 Right Front Speaker Signal (-) B D-GN 117 Right Front Speaker Signal (-)
C - - Not Used C - - Not Used
D L-BU 395 Right Front Door Handle Switch Signal D L-BU 395 Right Front Door Handle Switch Signal
E TN 1047 PDM Class 2 Serial Data E TN 1047 PDM Class 2 Serial Data
F-G - - Not Used F-G - - Not Used
H PU 5877 Right Front Door Handle Switch Signal H PU 5877 Right Front Door Handle Switch Signal
J TN 2133 Right Front Side Impact Sensing Module Supply Voltage J TN 2133 Right Front Side Impact Sensing Module Supply Voltage
K D-GN 2134 Right Front Side Impact Sensing Module Signal K D-GN 2134 Right Front Side Impact Sensing Module Signal
L-M - - Not Used L-M - - Not Used
C602 Instrument Panel Harness to Passenger Door Harness Connector End View

GM788070Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064755
  • Service: See Catalog
  • 6-Way F Metri-Pack 280 Series, Self Lock (BK)
 Connector Part Information
  • OEM: 12064754
  • Service: 15305872
  • 6-Way M Metri-Pack 280 Series, Self Lock (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD/WH 1440 Battery Positive Voltage A RD/WH 1440 Battery Positive Voltage
B BK 1550 Ground B BK 1550 Ground
C - - Not Used C - - Not Used
D BK 1550 Ground D BK 1550 Ground
E YE 5004 Right Folding Mirror Motor Extend Control (D24) E YE 5004 Right Folding Mirror Motor Extend Control (D24)
F L-BU 5023 Right Folding Mirror Motor Retract Control (D24) F L-BU 5023 Right Folding Mirror Motor Retract Control (D24)
C666 Door Harness to Passenger Door Trim Harness Connector End View

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15304692
  • Service: 15304692
  • 18-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15336468
  • Service: 15336468
  • 18-Way M GT 150, 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PU/WH 5967 Passenger Lock Indicator Voltage A1 PU/WH 5967 Passenger Lock Indicator Voltage
A2 GY 5878 Right Front Interior Door Handle Switch Signal A2 GY 5878 Right Front Interior Door Handle Switch Signal
A3-A6 - - Not Used A3-A6 - - Not Used
A7 D-BU 5117 Courtesy Lamp Supply Voltage A7 D-BU 5117 Courtesy Lamp Supply Voltage
A8 GY 1359 LCD Backlighting Lamp Control A8 GY 1359 LCD Backlighting Lamp Control
A9 L-BU 244 Passenger Door Lock Switch Lock Control A9 L-BU 244 Passenger Door Lock Switch Lock Control
B1 D-BU 245 Passenger Door Lock Switch Unlock Control B1 D-BU 245 Passenger Door Lock Switch Unlock Control
B2 PU 5877 Right Front Interior Door Handle Switch Signal B2 PU 5877 Right Front Interior Door Handle Switch Signal
B3 BK 1550 Ground B3 BK 1550 Ground
B4-B6 - - Not Used B4-B6 - - Not Used
B7 PU 2765 Power Window Switch Right Front Express Signal B7 PU 2765 Power Window Switch Right Front Express Signal
B8 GY 1136 Power Window Master Switch Left Front Down Signal B8 GY 1136 Power Window Master Switch Left Front Down Signal
B9 TN 1300 Power Window Master Switch Left Front Up Signal B9 TN 1300 Power Window Master Switch Left Front Up Signal
C911 Deck Lid Harness to Folding Top Harness Connector End View

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064762
  • Service: 12125665
  • 6-Way F Metri-Pack 150 Series (GY)
 Connector Part Information
  • OEM: 12064763
  • Service: 12101876
  • 6-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 138 Trunk Pull Down Motor Control A OG 138 Trunk Pull Down Motor Control
B GY 474 5-Volt Reference B GY 474 5-Volt Reference
C D-BU 5742 Rear Tonneau Position Sensor Signal C D-BU 5742 Rear Tonneau Position Sensor Signal
D TN 407 Low Reference D TN 407 Low Reference
E-F - - Not Used E-F - - Not Used
C935 Deck Lid Harness to Center High Mount Stop Lamp (CHMSL) Harness Connector End View

GM280768Courtesy of GENERAL MOTORS CORP.
GM766913Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052832
  • Service: 12101825
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12052833
  • Service: 12117275
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1150 Ground A BK 1150 Ground
B WH 20 Stop Lamp Supply Voltage B L-BU 20 Stop Lamp Supply Voltage
C960 Deck Lid Harness to License Pocket Harness Connector End View

GM130687Courtesy of GENERAL MOTORS CORP.
GM684945Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064867
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series (WH)
 Connector Part Information
  • OEM: 15354699
  • Service: 15306065
  • 2-Way M Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1150 Ground A BK 1150 Ground
B L-GN 24 Backup Lamp Supply Voltage B L-GN 24 Backup Lamp Supply Voltage
C960 (Europe) Deck Lid Harness to License Pocket Harness Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
GM287973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12047782
  • Service: 12117371
  • 3-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1150 Ground A BK 1150 Ground
B L-GN 24 Backup Lamp Supply Voltage B L-GN 24 Backup Lamp Supply Voltage
C OG 122 Rear Fog Lamp Supply Voltage C OG 122 Rear Fog Lamp Supply Voltage
scientia non olet · About LEMON Manuals
