Instrument Cluster Schematics

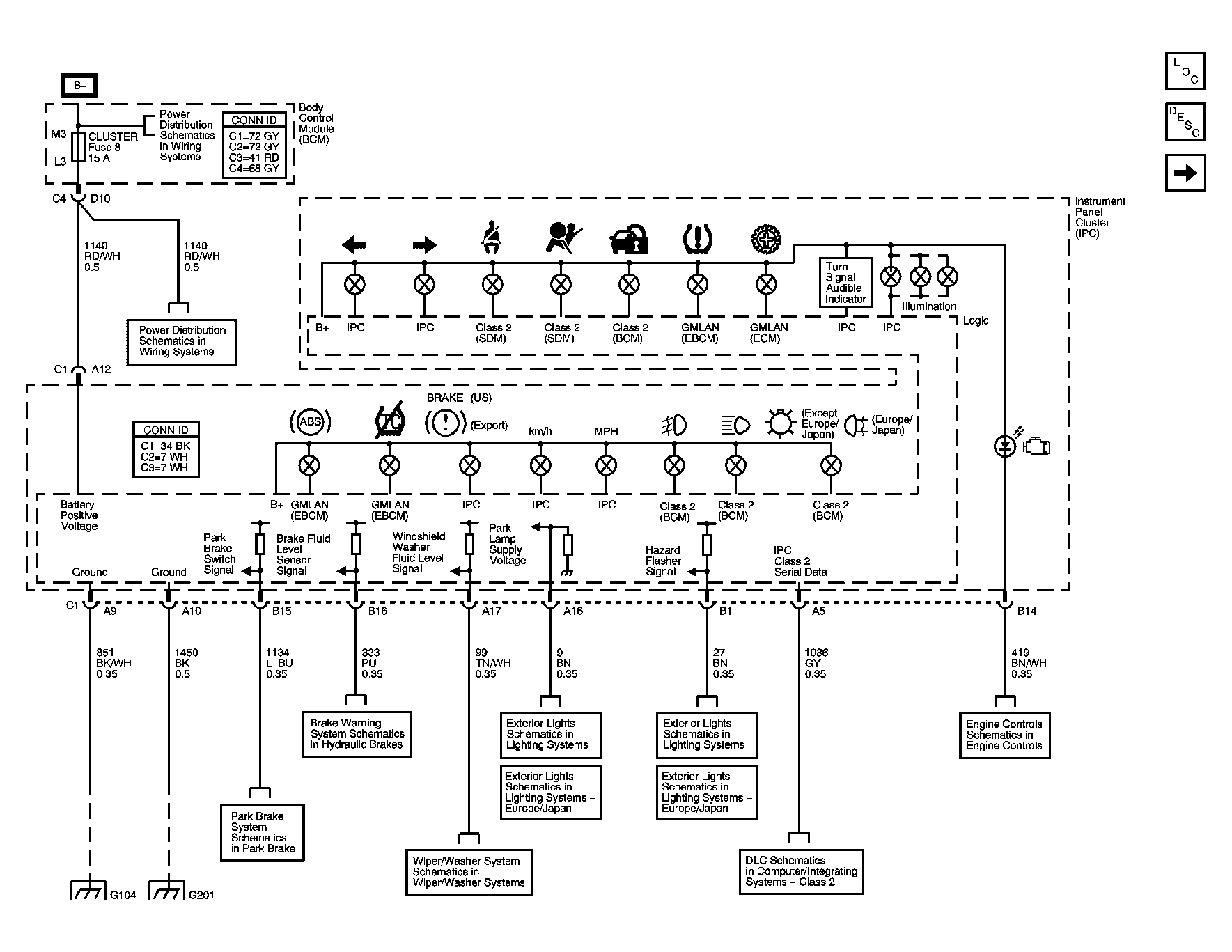

Fig 1: DLC, Ground, Indicators, and Power Schematic
GM1115055Courtesy of GENERAL MOTORS CORP.

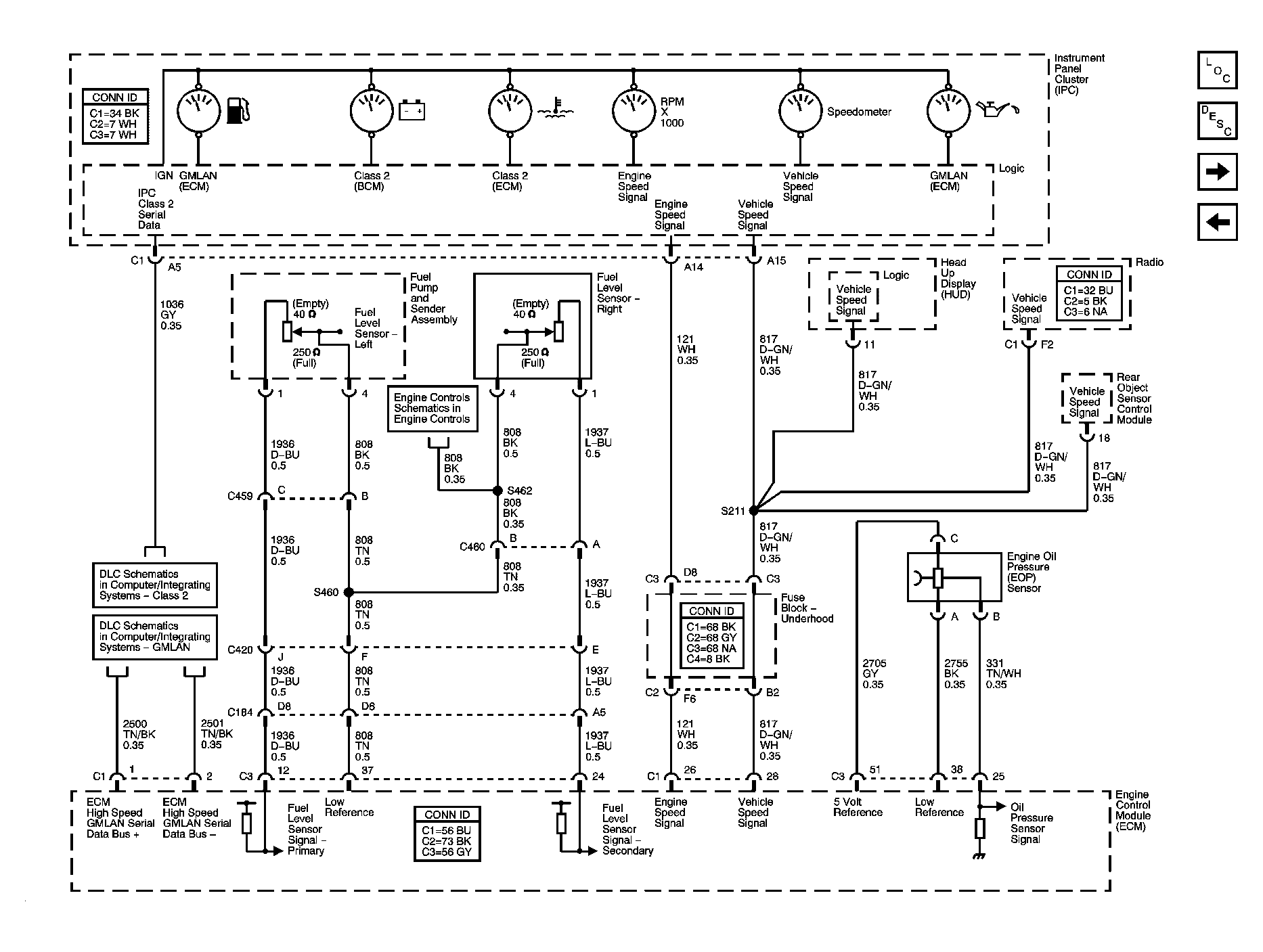

Fig 2: Gages Schematic
GM1115114Courtesy of GENERAL MOTORS CORP.

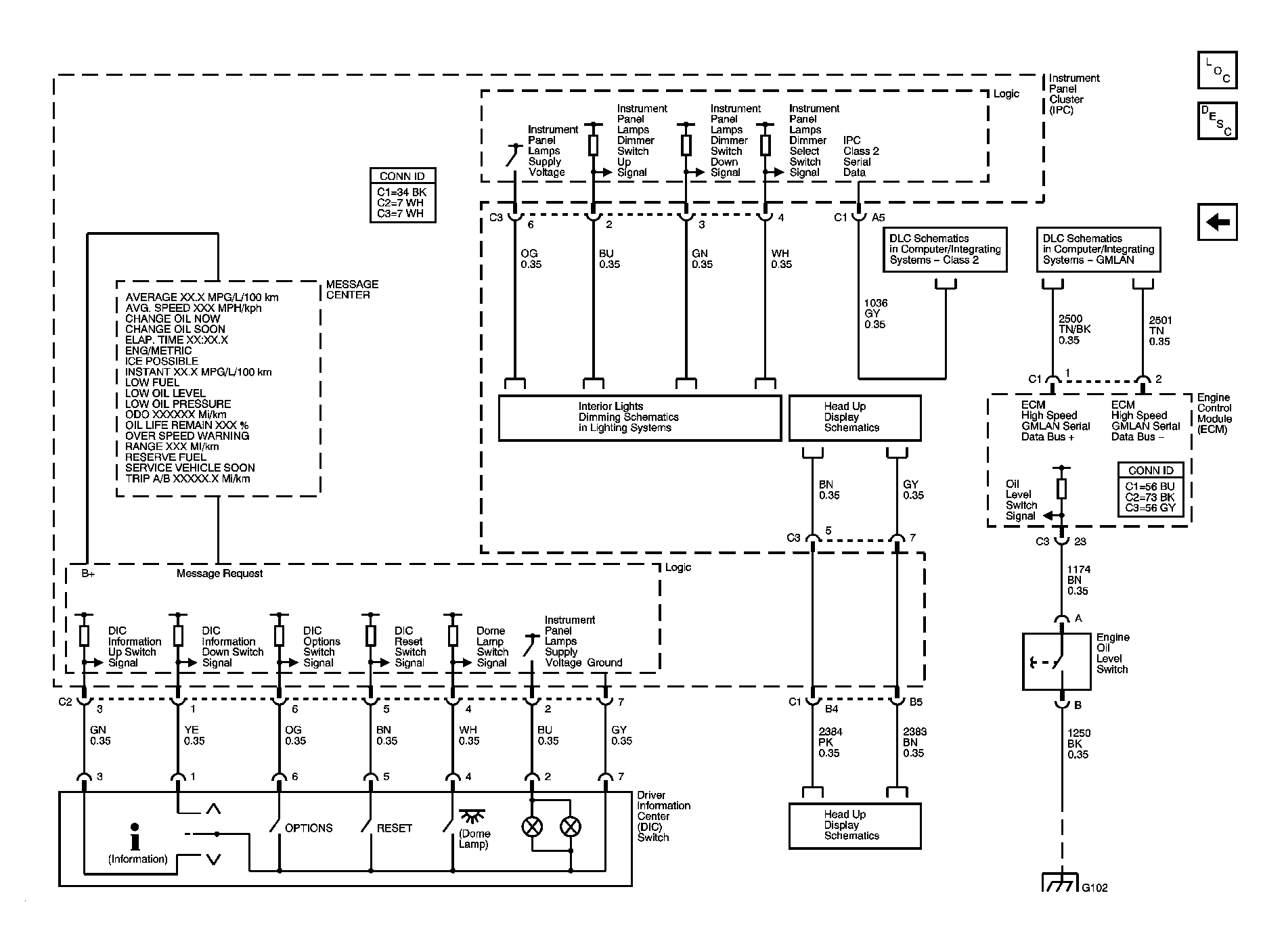

Fig 3: Messages Schematic
GM1115150Courtesy of GENERAL MOTORS CORP.
