Instrument Cluster Schematics

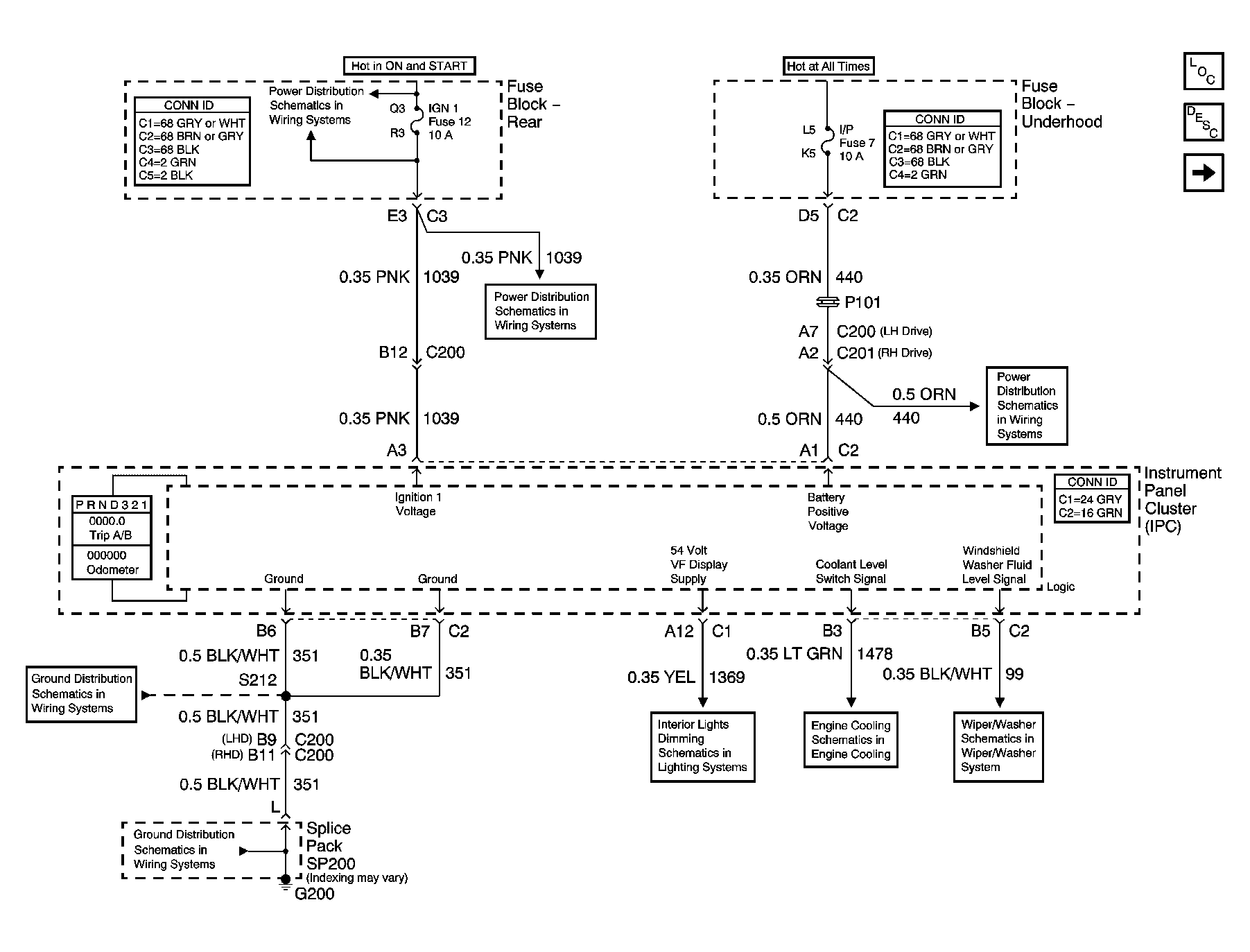

Fig 1: Power, Ground, and Class 2 Schematic
GM879899Courtesy of GENERAL MOTORS CORP.

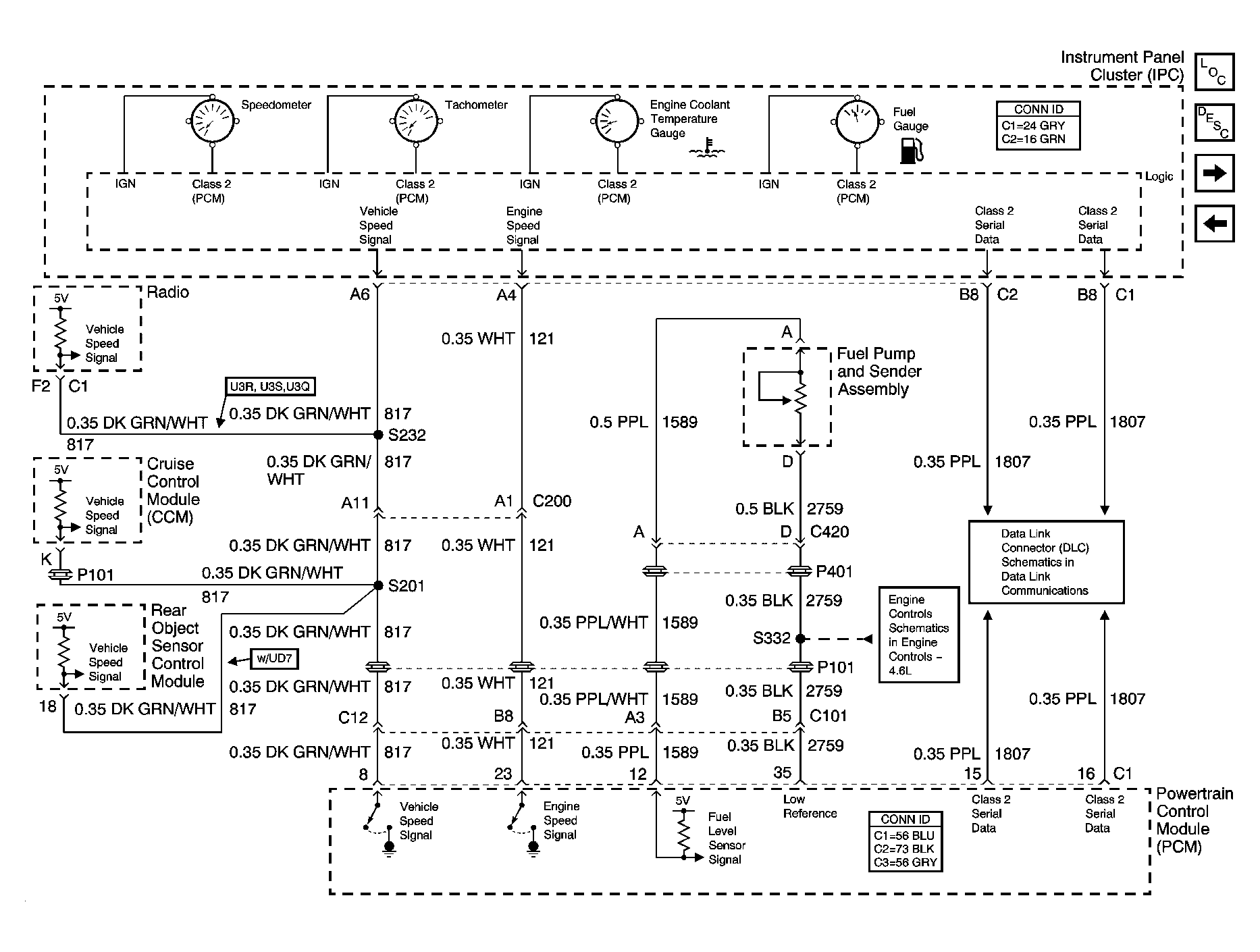

Fig 2: PCM Signals Schematic
GM1220840Courtesy of GENERAL MOTORS CORP.

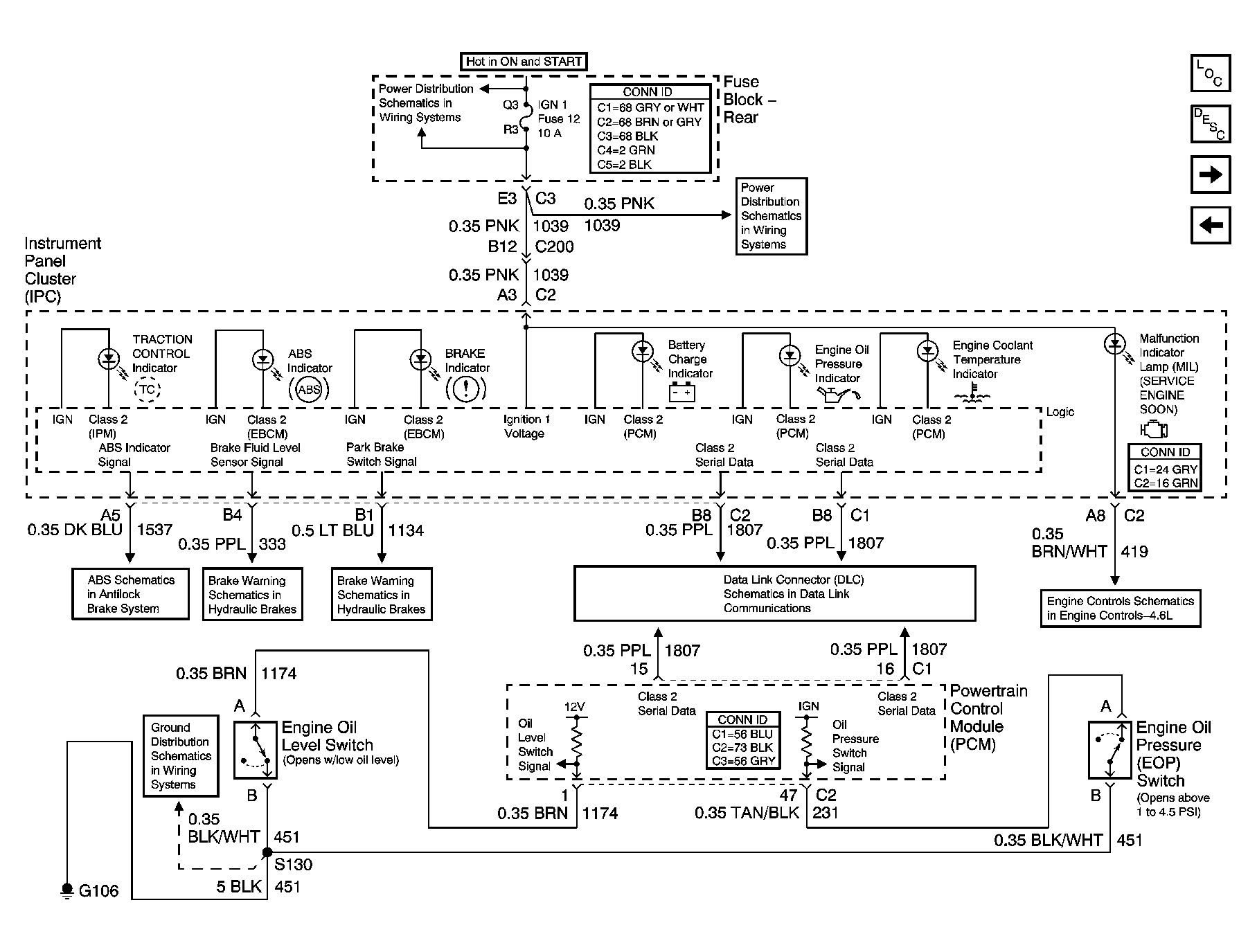

Fig 3: PCM and IPM Signals Schematic
GM1220848Courtesy of GENERAL MOTORS CORP.

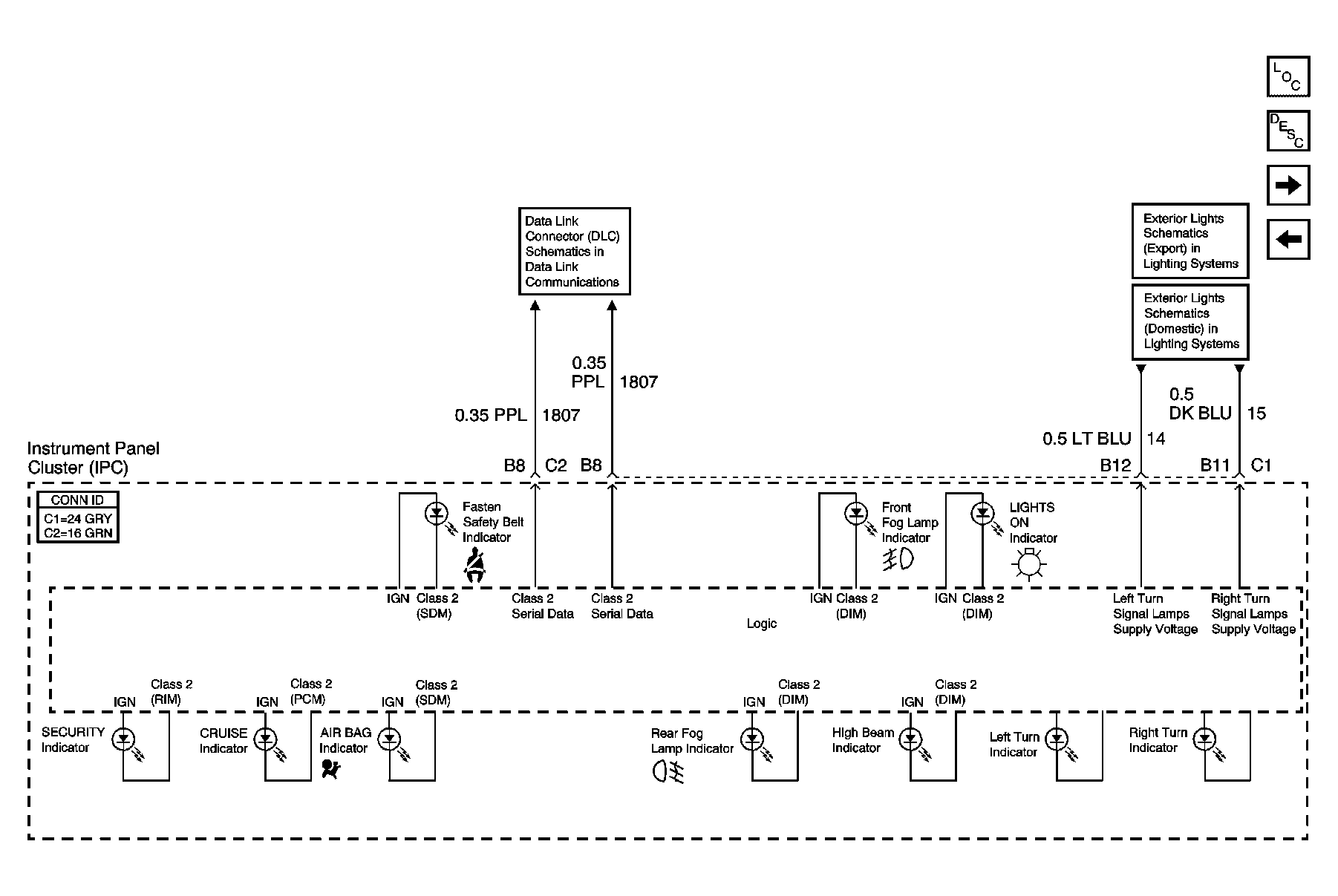

Fig 4: DIM, RIM, PCM, and SDM Signals Schematic
GM642220Courtesy of GENERAL MOTORS CORP.

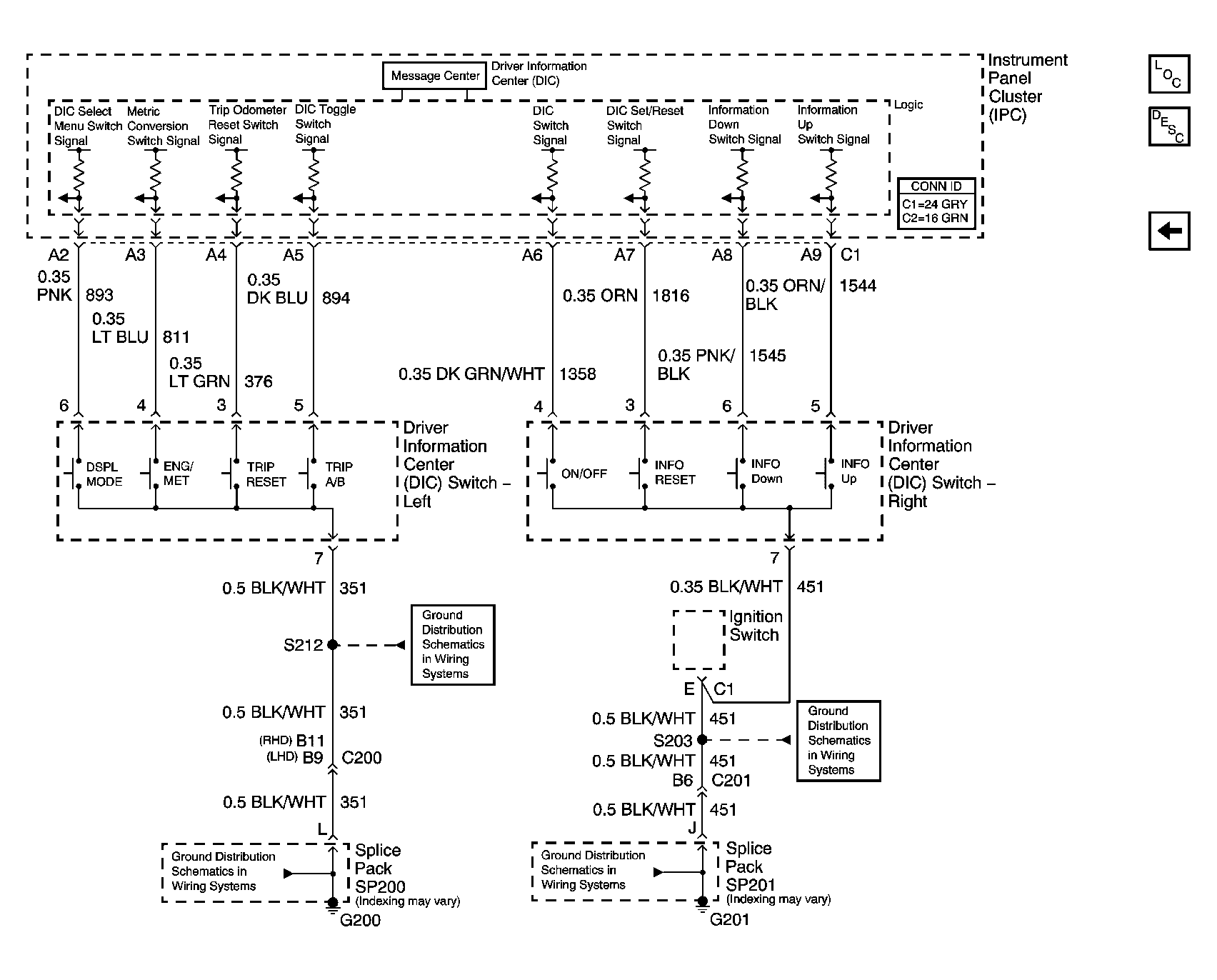

Fig 5: Driver Information Center (DIC) Schematic
GM792024Courtesy of GENERAL MOTORS CORP.
