Headlights/Daytime Running Lights (DRL) Schematics (Europe/Japan)

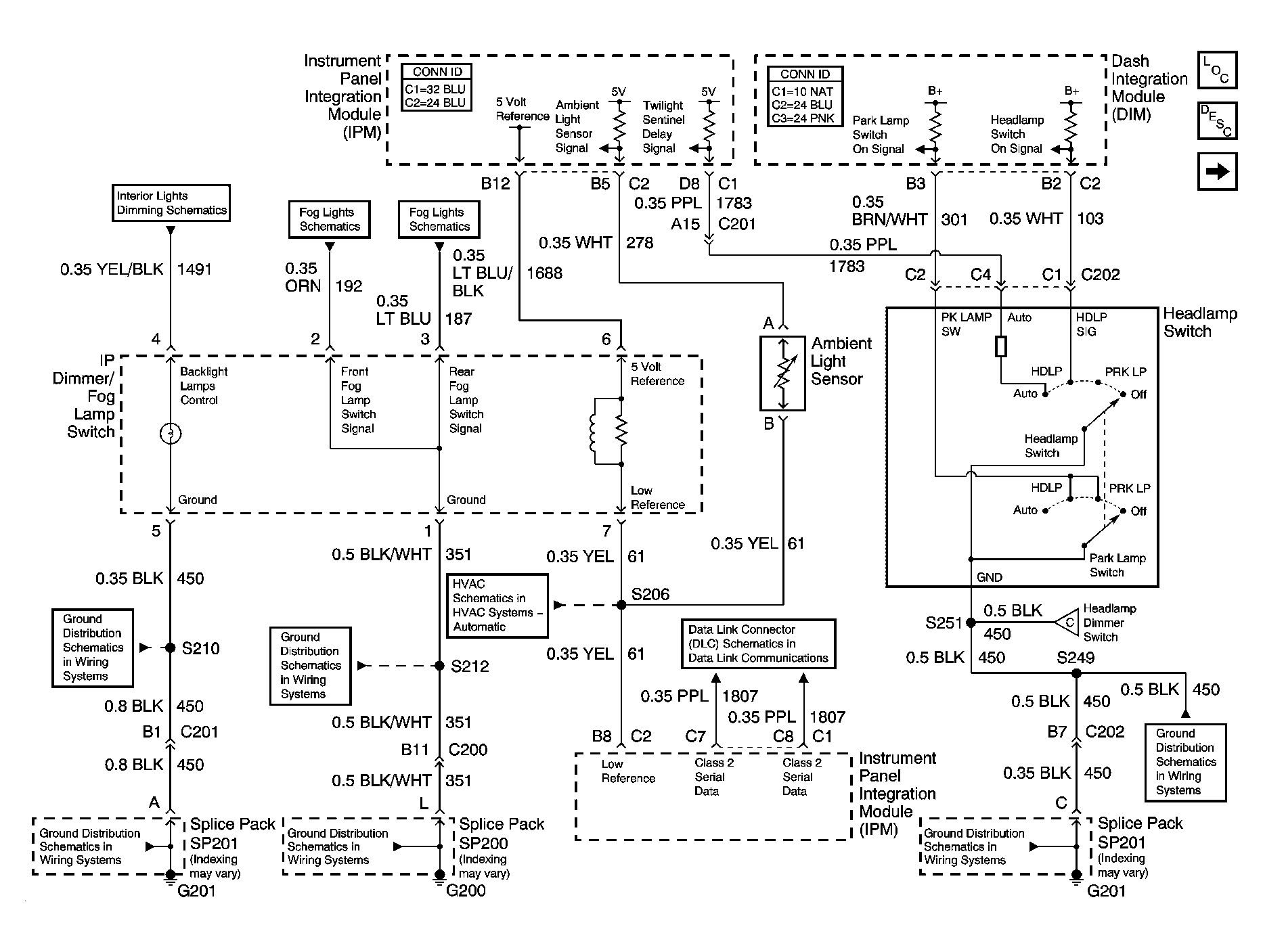

Fig 1: I/P Dimmer/Fog Lamp Switch Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

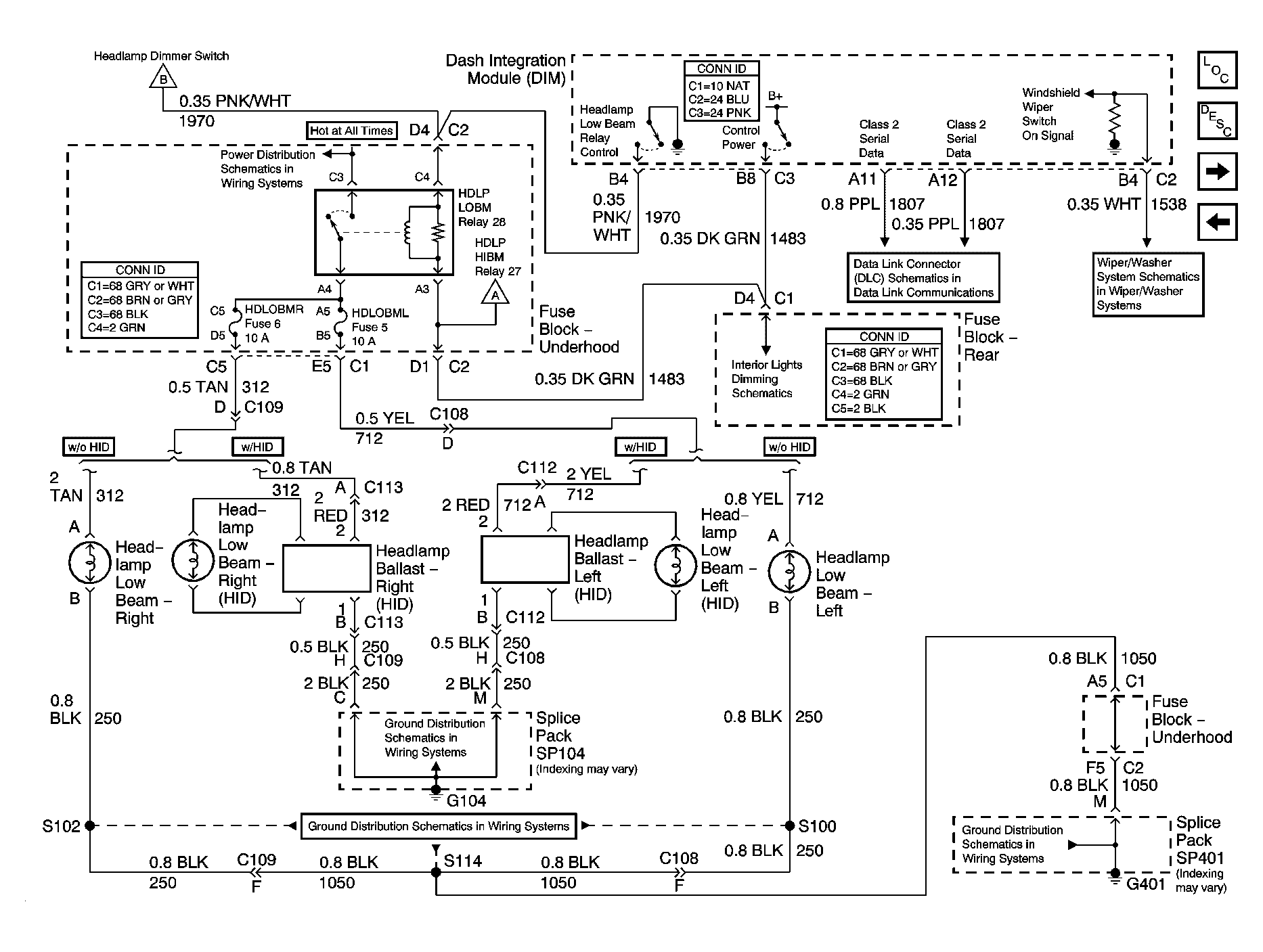

Fig 2: Low Beam Headlamps Schematic

Courtesy of GENERAL MOTORS CORP.

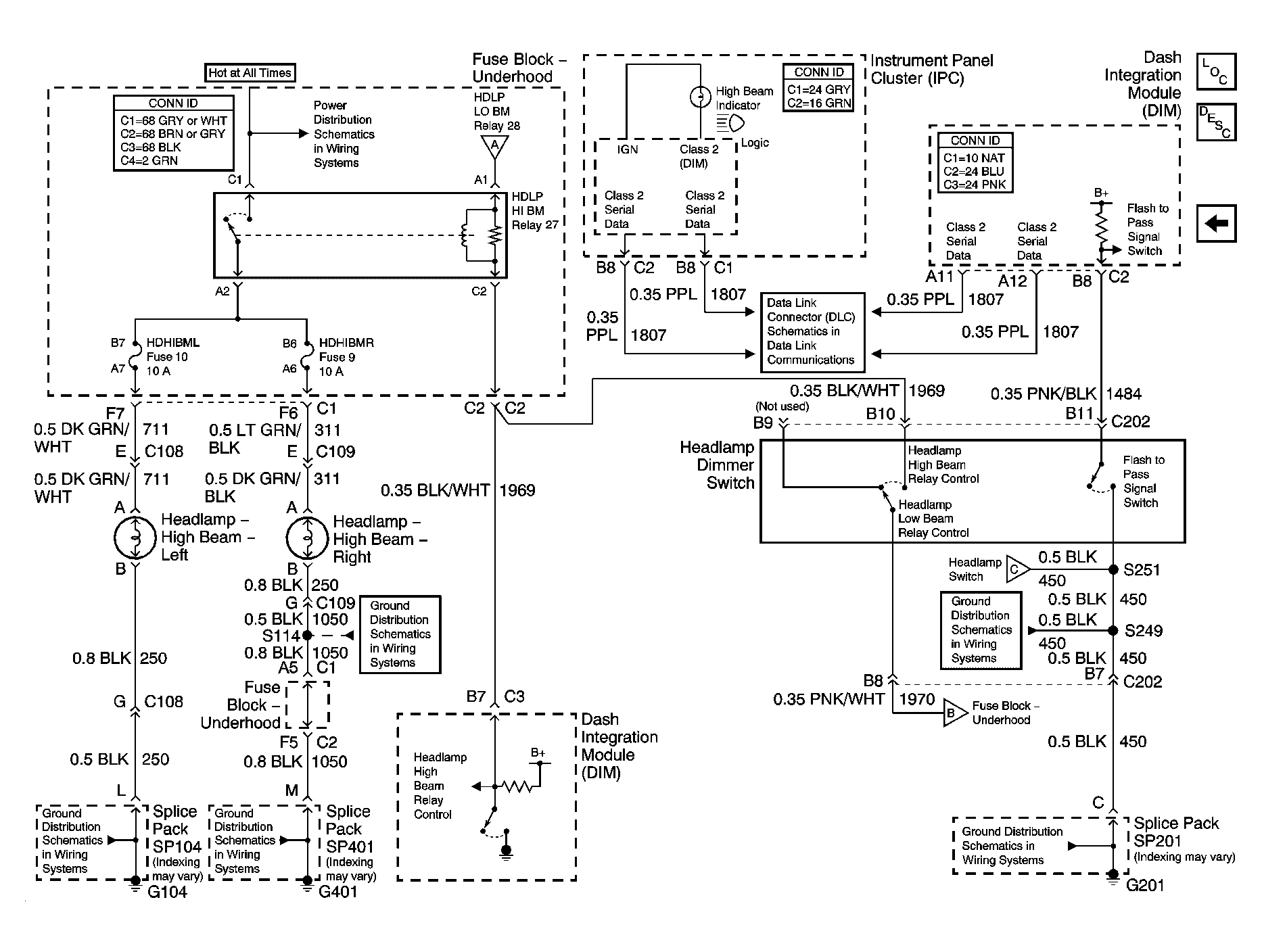

Fig 3: High Beam Headlamps Schematic

Courtesy of GENERAL MOTORS CORP.
