Headlights/Daytime Running Lights (DRL) Schematics (Domestic)

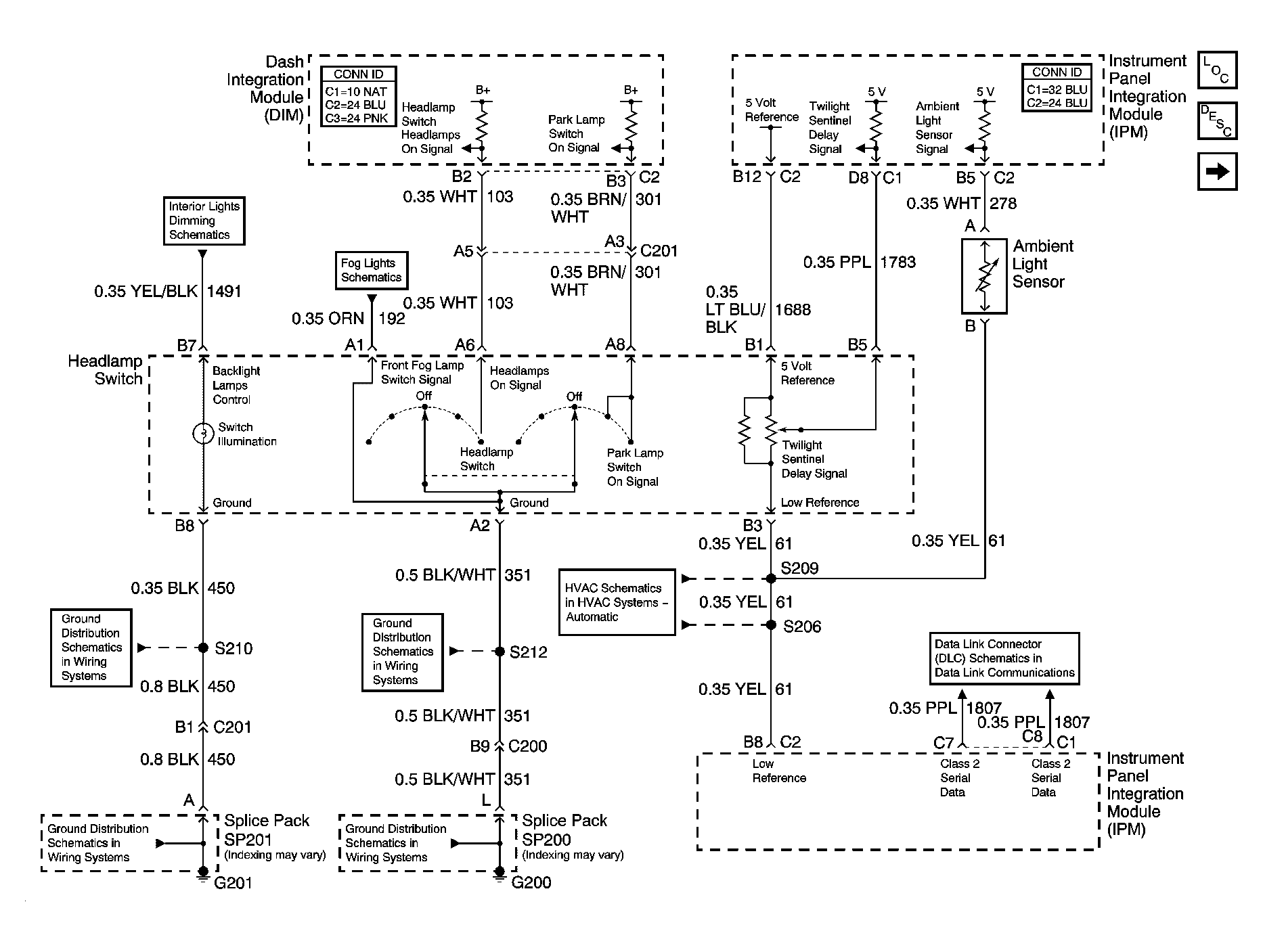

Fig 1: Headlamp Switch Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

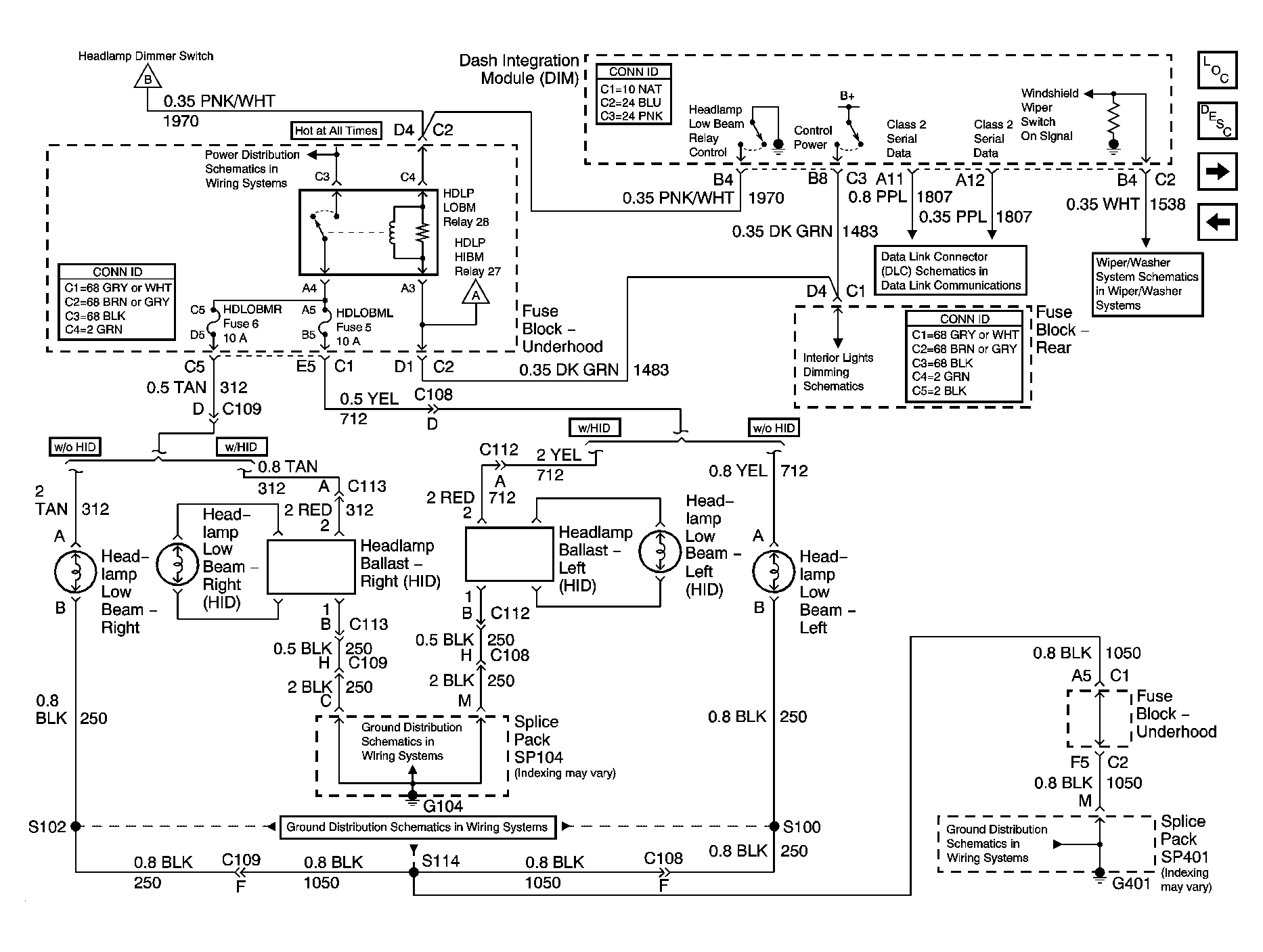

Fig 2: Low Beam Headlamps Schematic

Courtesy of GENERAL MOTORS CORP.

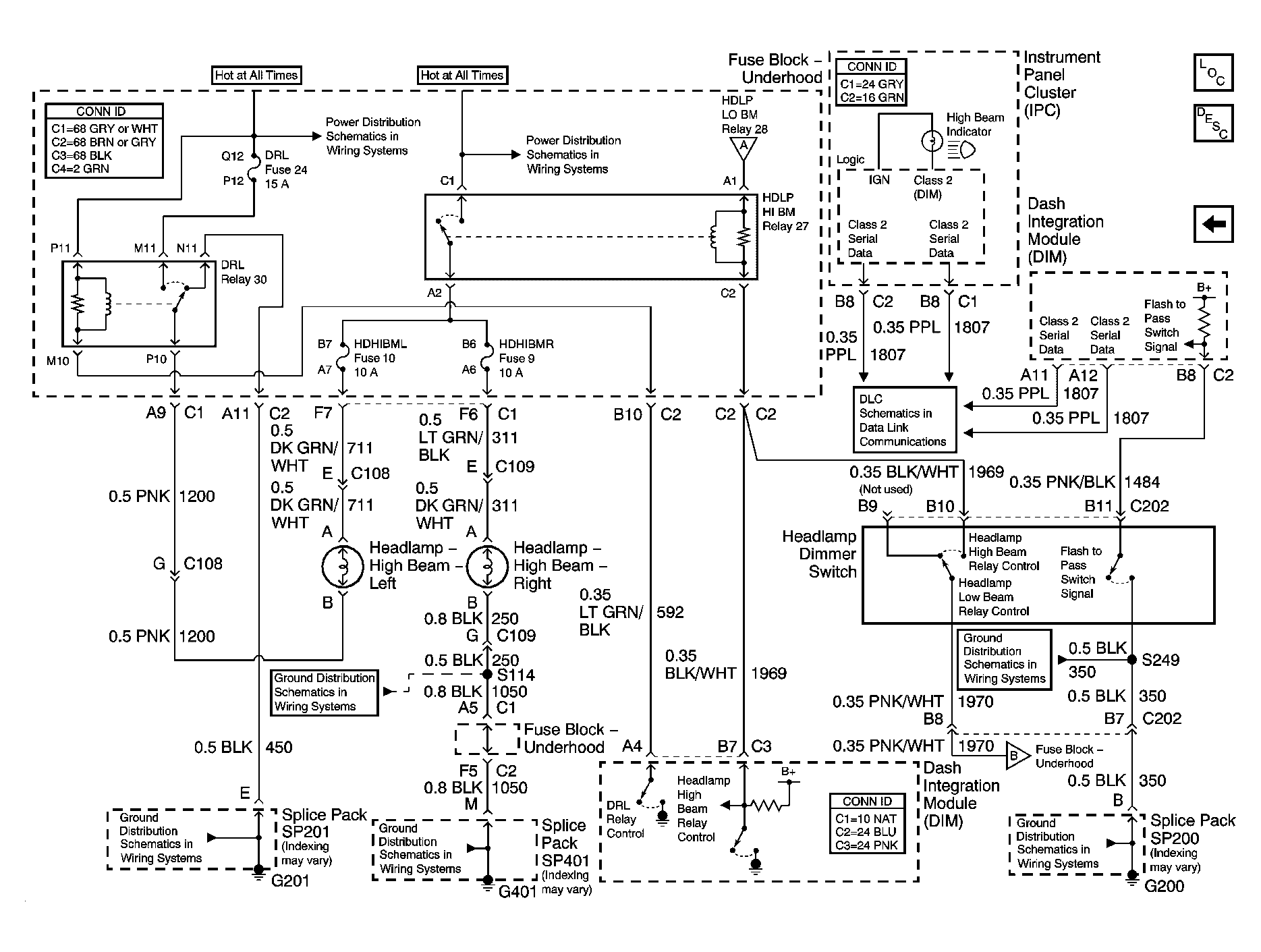

Fig 3: High Beam Headlamps Schematic

Courtesy of GENERAL MOTORS CORP.
