Installation Procedure

  1. Install the speaker wiring harness to the trim pad (2).
  2. Install the speaker grilles to the trim pad (2). Fold over the speaker grilles' retaining tabs, in order to secure the speaker grilles.
  3. Install the speakers to the trim pad (2). Refer to Speaker Replacement - Front in Entertainment.

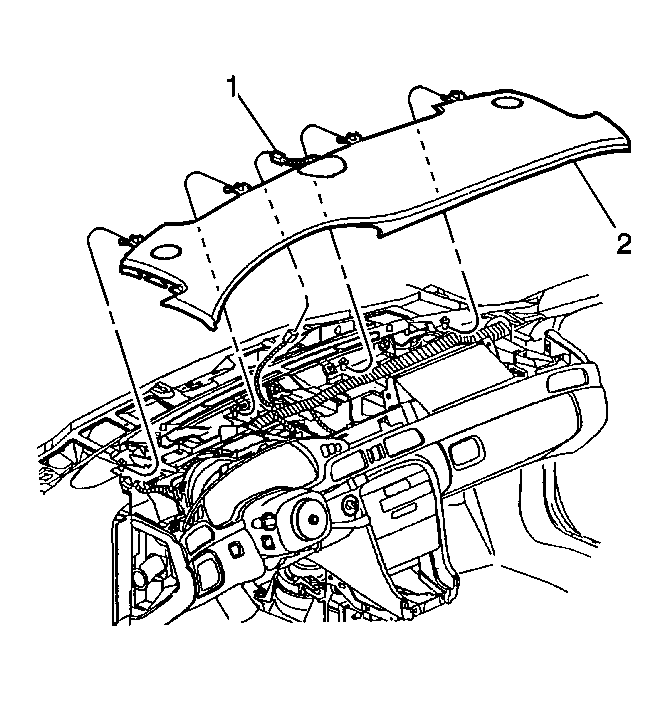

    4. Fig 1: Identifying Trim Pad & Electrical Connector
    GM105552Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P trim pad (2) to the I/P assembly, and reconnect the electrical connection (1).
    5. Fig 2: Identifying I/P Pad
    GM105553Courtesy of GENERAL MOTORS CORP.
  5. Slide the I/P pad forward in order to engage the front retainers to the I/P carrier.
  6. Align the rear edge of the I/P pad (1) with the I/P cluster bezel, and snap the retainers into the upper pad.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the fasteners (2) into the air outlet deflector openings.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

    8. Fig 3: Identifying Air Outlets
    GM519693Courtesy of GENERAL MOTORS CORP.
  8. Open the air outlets (1).
  9. Install the air outlet vents. Refer to Deflector Replacement - Instrument Panel Air in Heating, Ventilation, and Air Conditioning.
  10. Install the right and the left windshield garnish moldings. Refer to Garnish Molding Replacement - Windshield Pillar (Standard) in Interior Trim.
  11. Enable the SIR. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in SIR.
