Installation Procedure

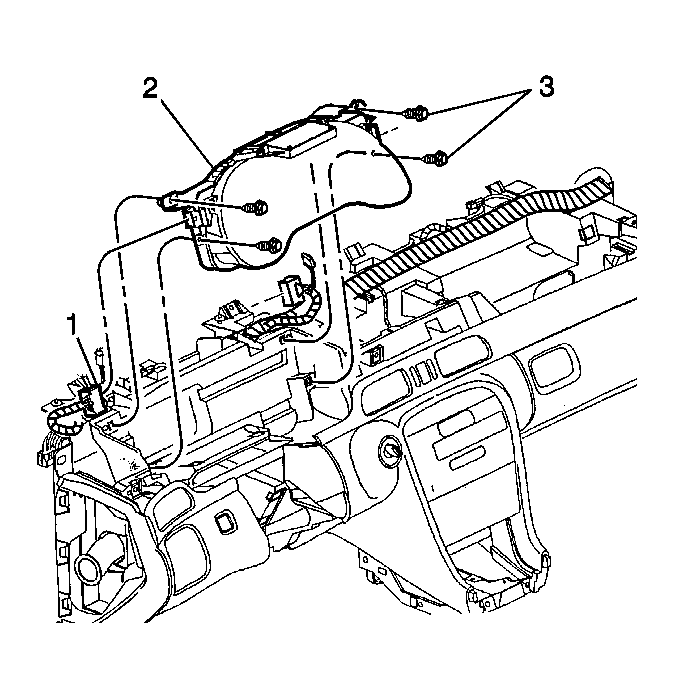

    Fig 1: View of Instrument Cluster Trim Panel
    GM105547Courtesy of GENERAL MOTORS CORP.
  1. Set the I/P cluster (2) partially into the retainer.
  2. Connect the electrical connectors (1).
  3. Align the I/P cluster to the retainer.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the 4 fasteners (3).

    Tighten:  Tighten the cluster fasteners to 1.5 N.m (14 lb in).

  5. Install the I/P cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster .
  6. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
